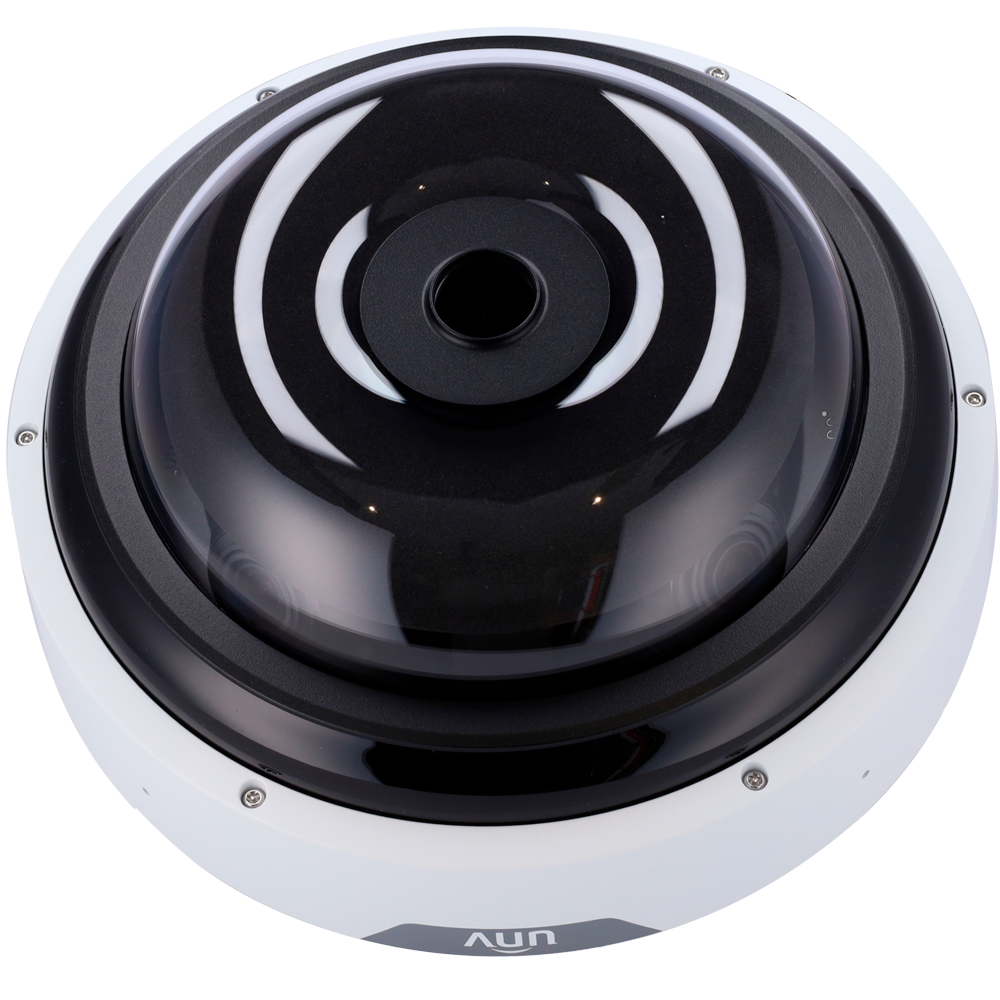

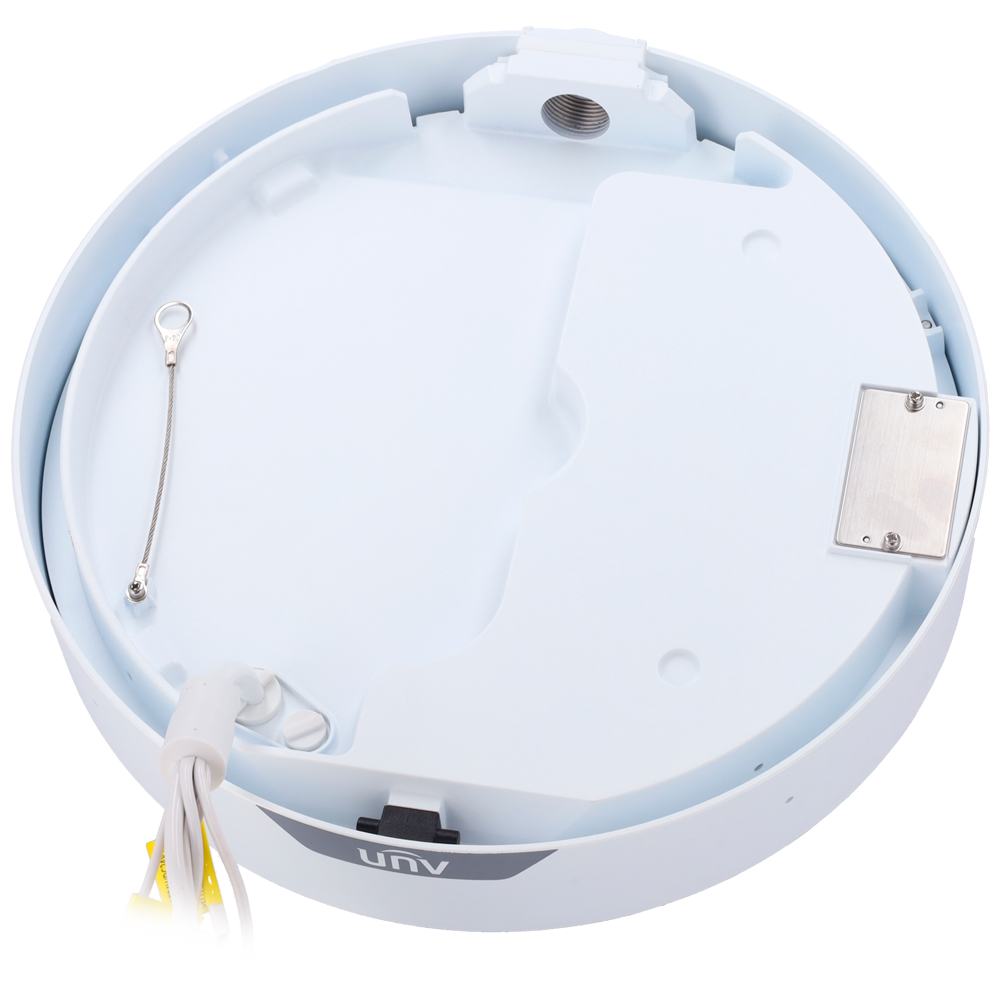

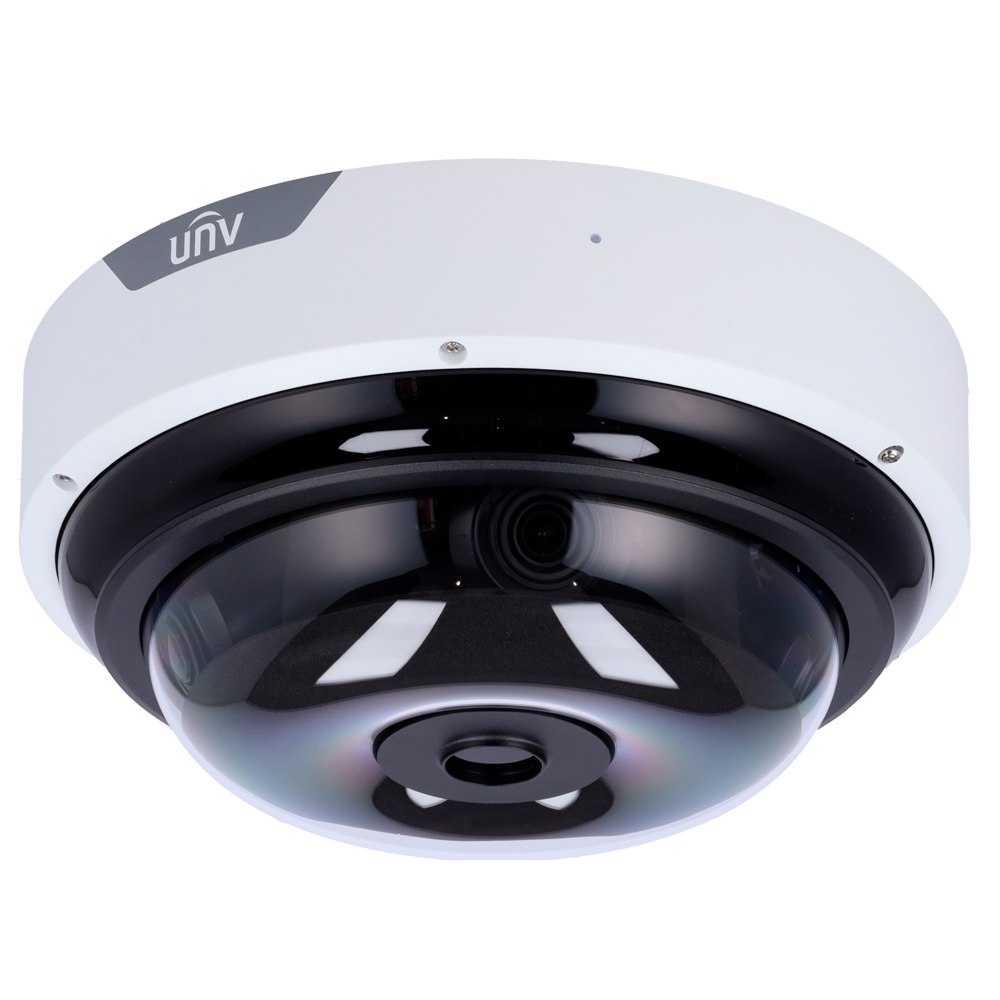

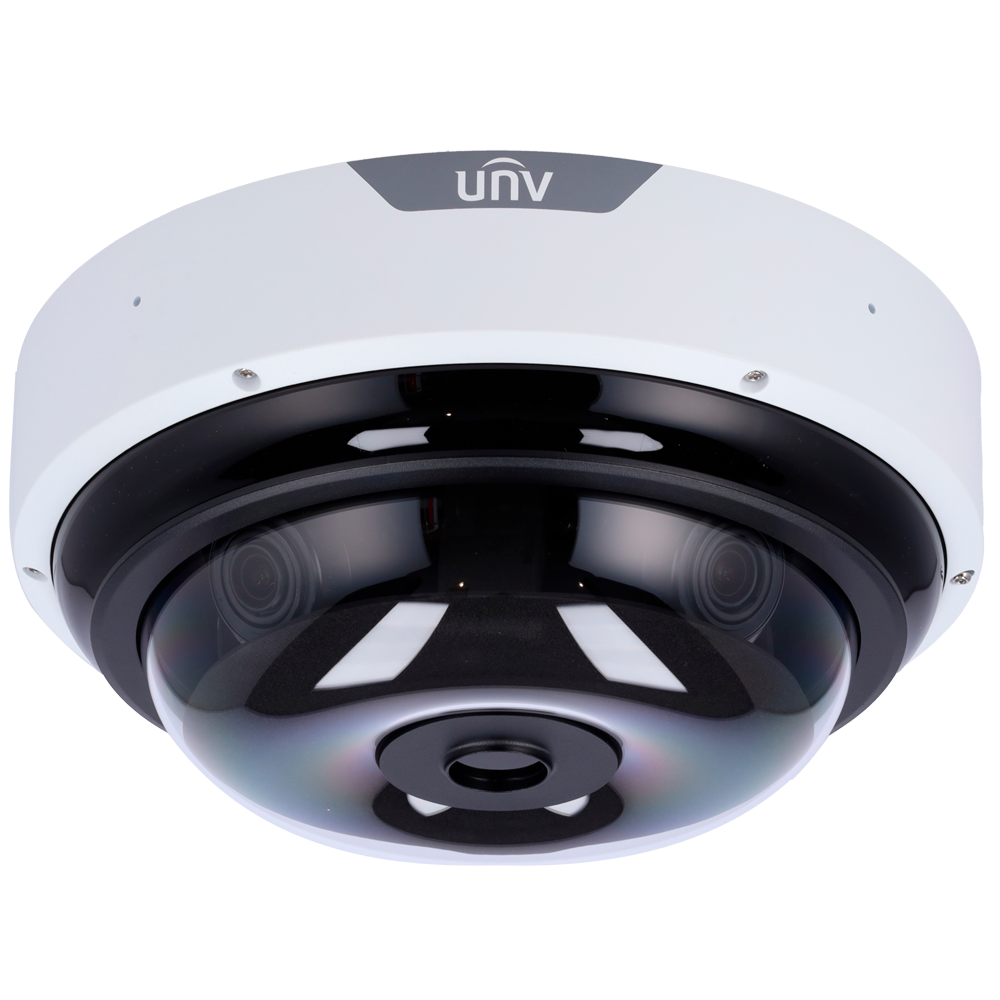

UV-IPC8645EA-ADZKM-I1
UV-IPC8645EA-ADZKM-I1
- Uniview IP Dome Camera - Prime range
- 4 x 5 MP | Motorized lens 2.7~13.5 mm
- IR 50m | WDR 130 dB | microSD 512GB
- LightHunter | Statistical Analysis
- PoE | SIP | UMD | IP67 | IK10
- Audio | Alarms | Mic | Output DC12V
LightHunter
Uniview's LightHunter technology redefines nighttime surveillance by capturing full-color images 24 hours of the day. Highly sensitive sensors and warm LEDs identify details such as colors of clothing, vehicles and objects, even in complete darkness. Ideal for ensuring maximum precision in areas such as parking lots, residential entrances or high-traffic areas where details matter.
Ultra Motion Detection (UMD)
Uniview's UMD technology takes motion detection to the next level, accurately identifying the fastest or subtlest movements. Thanks to its advanced AI algorithm, UMD is able to detect changes in the environment extremely efficiently, even in conditions of high speed or movement difficult to capture by other technologies. Perfect for applications such as surveillance of high traffic areas or protection of critical sites where every second counts.
Smart Intrusion Prevention (SIP)
With Uniview's SIP technology, stop threats before they happen thanks to its advanced intrusion prevention system. SIP combines artificial intelligence algorithms with real-time video analysis to accurately identify human and vehicular intrusions, minimizing false alarms caused by animal movements or weather conditions. Perfect for protecting perimeters, residential areas or critical facilities, ensuring intelligent and efficient security.
- Uniview
- MultiView Wise-ISP IP Camera
- Prime range
- One IP channel, 4 cameras
- 1/2.7" Progressive Scan CMOS
- 4 x 5 Megapixel (2880x1620)
- Motorized varifocal lens 2.7 ~ 13.5 mm
- 0 Lux
- IR Range 50 m
- WDR 130 dB
- 3D-DNR
- Compression Ultra265/H.265/H.264
- Alarm
- Audio
- Integrated microphone
- Intelligent functions
- Runner mode (16:9)
- PoE IEEE802.3bt
- Weatherproof IP67
- IK10
- Overvoltage protection 6 KV
- Slot for microSD up to 512 GB- WEB, CMS, Smartphone and NVR interfaces
- ONVIF Compatible
- Output DC12V
Specifications
| Brand | Uniview |
| Range | Prime |
| Image sensor | 1/2.7” Progressive Scan CMOS |
| Maximum resolution | 4 x 5 Megapixel (2880x1620) |
| Main Stream rate | 4 Channels 5MP (2880*1620), Max 30fps; 4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Extra Stream rate | 4 Channels 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Third Stream Rate | 4 Channels D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Compression | Ultra265/H.265/H.264 |
| Lens | Motorized varifocal 2.7 ~ 13.5 mm |
| Minimum illumination | 0.002Lux (F1.2, AGC ON) |
| Infrared range | 50 m |
| Image improvements | 130 dB WDR 2D/3D DNR, BLC, HLC, AGC, 2D/3D-NR, ROI, Privacy Mask, Smart IR |
| Alarm | 3 Inputs / 2 Outputs |
| Audio | 1 Input / 1 Output |
| Microphone | Support |
| Runner mode | Support |
| SIP (Smart Intrusion Prevention) | Cross-line detection, intrusion detection, area entry and exit detection (supports false alarm filtering and human/vehicle classification) |
| Smart Events | Motion detection, tamper detection, audio detection |
| Ultra Motion Detection (UMD) | Support |
| Statistical analysis | Supports people flow counting and people density monitoring |
| Day / Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 512 GB |
| Network interface | Ethernet 10/100 BaseTX |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Power | DC 24 V / AC 24 V / 31 W, PoE IEEE802.3bt |
| DC output | Support DC12V |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Waterproof IP67, IK10, overvoltage 6 KV |
| Dimensions | Φ 318 x 136.6 mm |
| Weight | 4770 g |
In the box
- Uniview IP Camera
- Installation material
- User instructions
