UV-IPC815SB-ADF14K-I0-BLACK
Ga direct naar de productinformatie
UV-IPC815SB-ADF14K-I0-BLACK

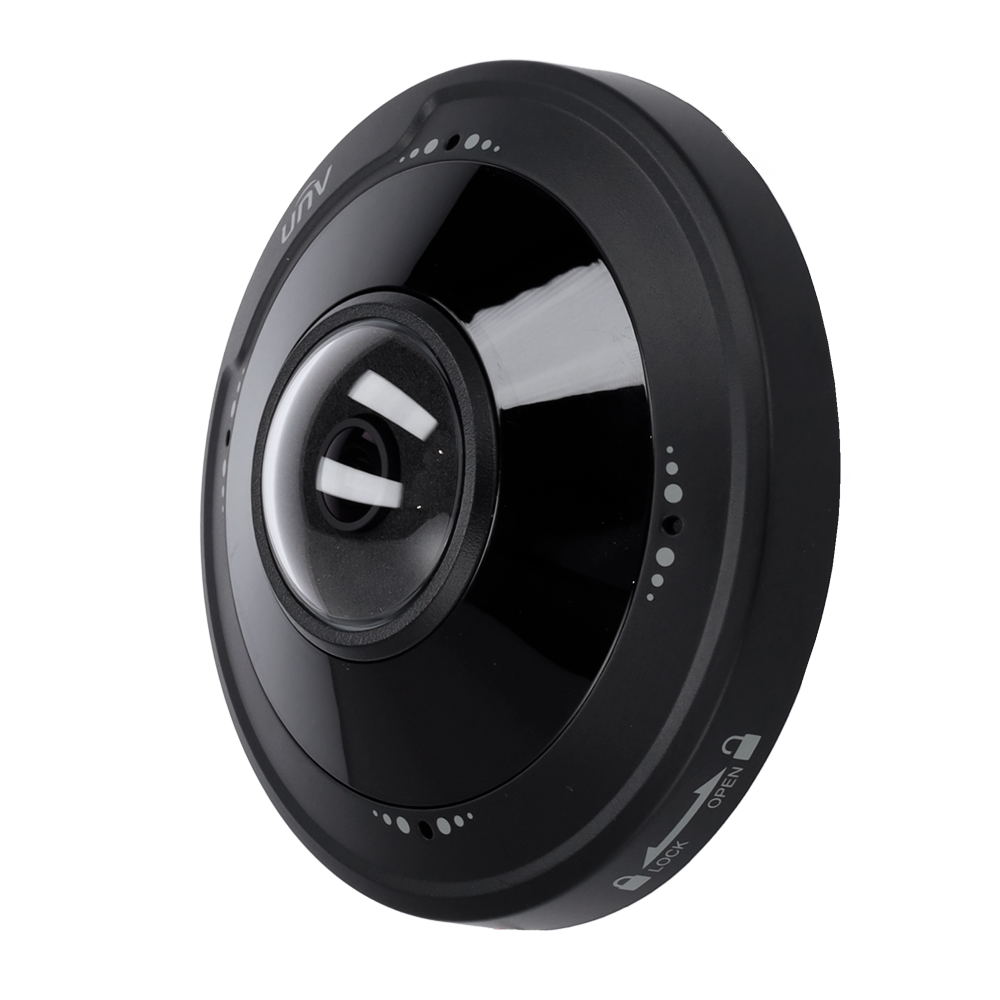

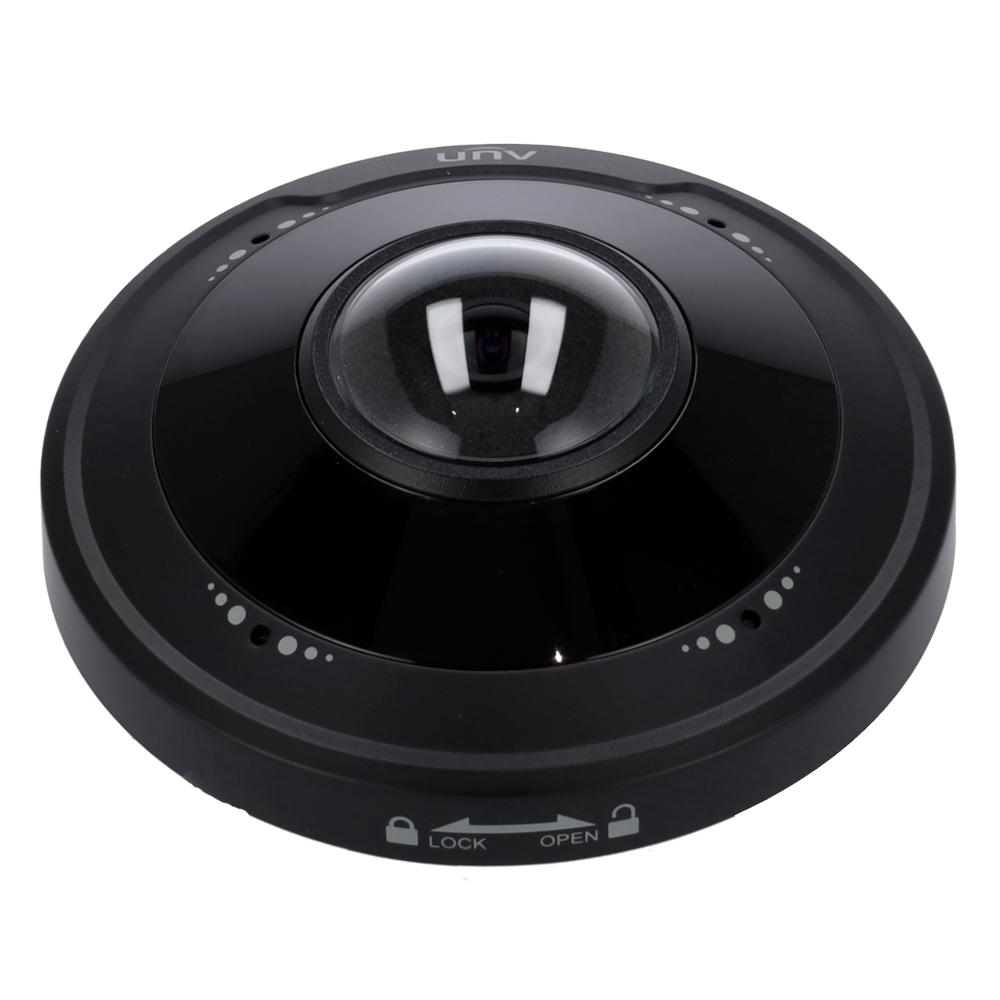

- IP fisheye camera 5 Megapixel Black Color
- Prime range
- 1/2.8" Progressive Scan CMOS
- 1.4 mm Fisheye lens 360º | WDR
- IR LEDs Range 10 m | Audio and Alarms
- WEB, CMS, Smartphone and NVR interface
- Uniview
- IP camera
- Prime range
- 1/2.8" Progressive Scan CMOS
- 5 Megapixel (2592×1944)
- Lens 1.4 mm Fisheye
- 0 Lux
- IR Range 10 m
- Compression Ultra265/H.265/H.264
- RJ-45 10/100 BaseT
- 2x Integrated microphone
- Alarm
- PoE IEEE802.3af
- Weatherproof IP66
- Vandal proof IK10
- IR Cut
- WDR (120 dB)
- SD card recording
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
- Black colour
Specifications
| Brand | Uniview |
| Range | Prime |
| Image sensor | 1/2.8” Progressive Scan CMOS |
| Maximum resolution | 5 Megapixel (2592×1944) |
| Colour | Black |
| Main Stream rate | 5Mpx (1 ~ 30 FPS) |
| Extra Stream rate | 2º:1080p (1 ~ 30 FPS), 3º:D1 (1 ~ 30 FPS) |
| Compression | Ultra265/H.265/H.264 |
| Lens | Lens 1.4 mm Fisheye 360º |
| Minimum illumination | 0.01 Lux (Colour) |
| Infrared range | 10 m |
| Image improvements | WDR (120dB), BLC, HLC, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask, Smart IR |
| Day / Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 256 GB |
| Alarms | 1 input / 1 relay |
| Audio | 2x Integrated microphone |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Power | DC 12 V / 8.5 W, PoE IEEE802.3af |
| Protection | IP66, IK10 |
| Temp. operation | -40º C ~ 60º C |
| Degree of protection | Weatherproof IP66, Anti-vandal IK10 |
| Dimensions | 44 mm (D) x 125 (Ø) mm |
| Weight | 360 g |
In the box
- Uniview IP Camera
- Installation material
- User instructions
