UV-IPC7624ER-X41-VH1
Ga direct naar de productinformatie

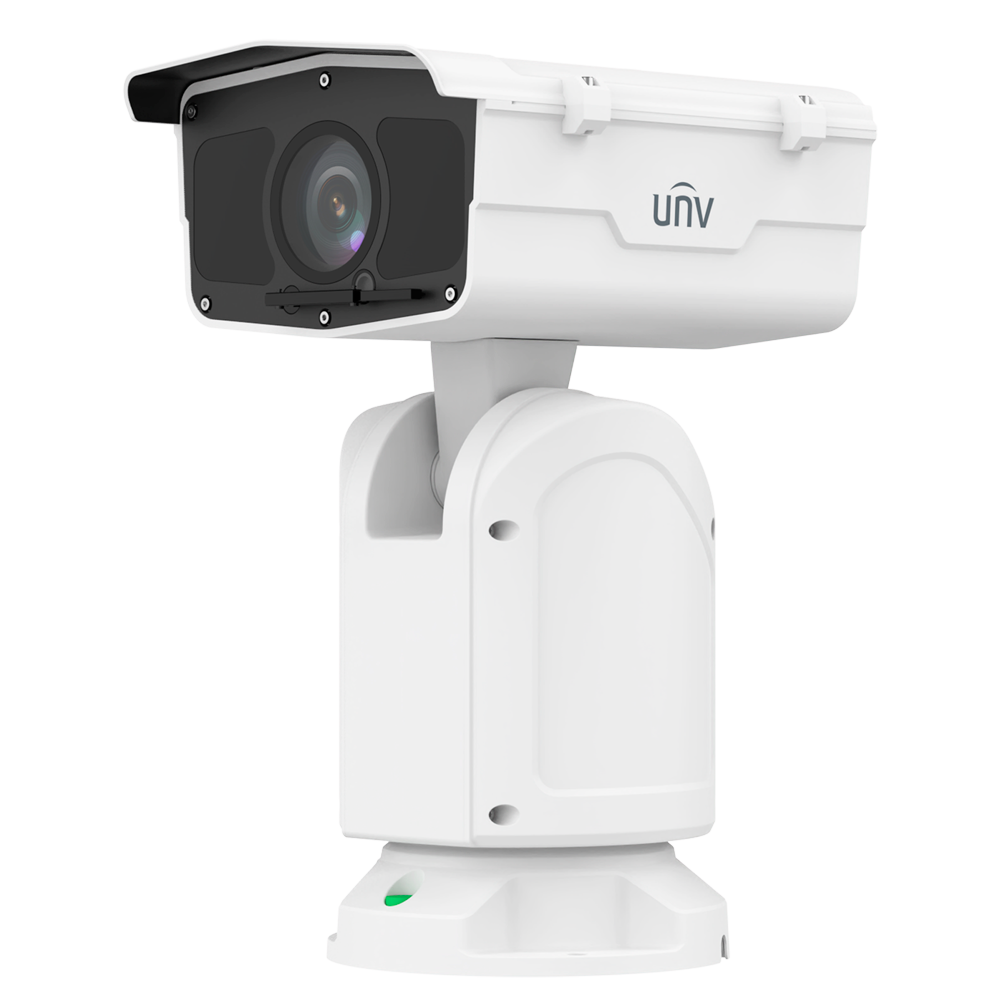

UV-IPC7624ER-X41-VH1
- Uniview IP positioning camera - Pro range
- 4 MP | Motorized lens 6~246 mm | 41X Zoom
- IR 400 m | WDR 120 dB | microSD 512 GB
- Light Hunter | People Counting
- BNC video output
- PoE+ | SIP | UMD | IP66 | Alarm | Audio
4MP IP Pro positioning camera with 6 ~ 246 mm (41X optical zoom) motorized varifocal lens, with IR range up to 400 m. Equipped with Light Hunter technology, SIP, UMD and Statistical Analysis.
- IP Camera Positioning - Pro Range
- 4 MP(2688*1520) 60 FPS
- Motorized varifocal lens 6 ~ 246 mm
- 41X Optical zoom
- Minimum illumination 0.0005 lux | 0 lux with supplemental light
- IR range of 400 m
- Light Hunter: technology that ensures super-high quality images in low-light environments
- WDR 120dB
- People flow counting and crowd density monitoring
- SIP (Smart Intrusion Prevention): combines artificial intelligence algorithms with real-time video analysis to accurately identify human and vehicular intrusions, minimizing false alarms caused by animal movements or weather conditions
- UMD (Ultra Motion Detection): thanks to its advanced AI algorithm, UMD is able to detect changes in the environment extremely efficiently, even in conditions of high speed or motion difficult to capture by other technologies
- 1024 presets
- Video output BNC
- Weatherproof IP67
- Audio 1 Input / 1 Output
- Alarms 7 Inputs / 1 Output
- MicroSD slot 512 GB
- Reset button
- ONVIF Compatible
Specifications
| Brand | UNIVIEW |
| Image sensor | 1/1.8" Progressive Scan CMOS |
| Resolution | 4 Megapixel (2688*1520) |
| Main Stream rate | 4MP (2688*1520)@ 60fps |
| Sub Stream Rate | 2MP (1920*1080)@30fps |
| Third Stream Rate | D1 (720*576)@30fps |
| Lens | Varifocal 6 ~ 246 mm (Optical Zoom 41X) |
| Compression | Ultra265 / H.265 / H.264 |
| Minimum illumination | Colour: 0.0005Lux (F1.2, AGC ON) |
| IR range | 400 m |
| Day / Night | Mechanical ICR filter |
| Range performance | 107.2 m ~ 3330 m (D), 42 m ~ 1332 m (O), 21 m ~ 666 m (R), 10 m ~ 333 m (I) |
| Image improvements | BLC, HLC, WDR, 2D/3D-NR, AGC, AWB, MD, Privacy Masking, ROI, ANR |
| Smart Intrusion Prevention | Intelligent Intrusion Prevention. Accurate detection of humans and vehicles to avoid false alarms. Event due to line crossing, area intrusion or entry or exit of a previously defined area |
| Smart Features | People counting, Face detection, Line crossing, Intrusion detection, Auto tracking, Audio detection, Object removed, Object left behind |
| Pan/Tilt Range | Horizontal: 0° ~ 360°, Vertical: -90° ~ 45° |
| Manual speed | Horizontal: 0.1°/s ~ 140°/s, Vertical: 0.1°/s ~ 50°/s |
| Speed between Presets | Horizontal: 140° /s, Vertical: 50° /s |
| Preset positions | 1024 |
| Internal memory | MicroSD card, Max 512 GB |
| Audio | 1 Input / 1 Output |
| Alarms | 7 Inputs / 2 Outputs |
| Network interface | Ethernet 10 / 100 BaseTX |
| Extra ports | Serial port RS485 and BNC |
| Remote access | Web Browser, Smartphone App (UNV-Link, UNV-Link Pro) and EZStation PC Software |
| Interoperability | ONVIF |
| Power | DC 48 V /AC 24 V / 103 W |
| Temp. operation | -40º C ~ +70º C |
| Degree of protection | Waterproof IP67 / Surge protection 6KV |
| Dimensions (without bracket) | 283 mm (w) x 366 mm (d) x 509 mm (h) |
| Weight (without bracket) | 14.76 kg |
In the box
- Uniview IP camera positioning
- Installation material
- User instructions
- Power adapter
