UV-IPC6824EL-X42-W-VH1
- Uniview IP Motorized Dome - Pro range
- 4 MP | Motorized lens 6~252 mm | 42X Zoom
- IR 500 m | WDR 140 dB | microSD 256 GB
- LightHunter | People Counting
- Gyroscope , Traffic detection , Metadata
- PoE++ | SIP | Alarm | Audio | IP67 | IK10

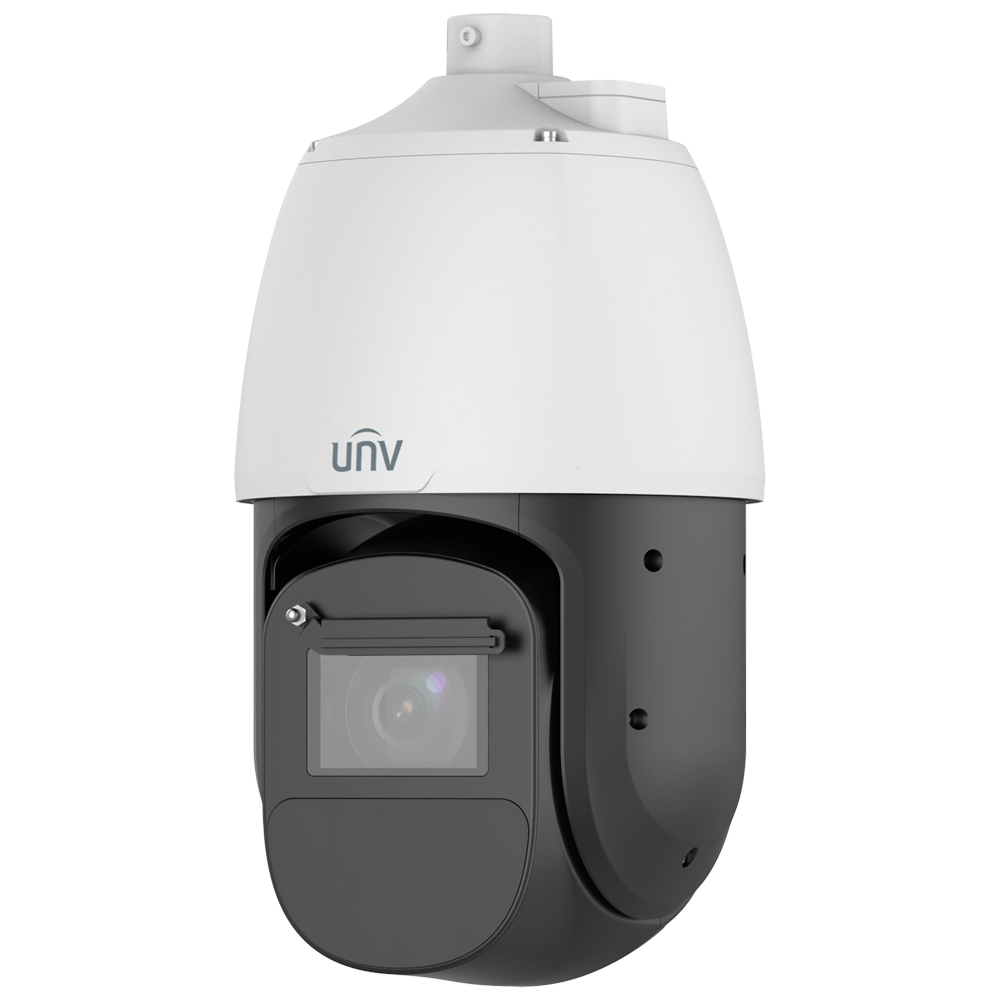

4MP IP Prime motorized dome with 6 ~ 252 mm (42X optical zoom), features IR range up to 500m plus LightHunter technology, SIP, people counting, face detection and collection of people and vehicle attributes for future analysis. Gyroscopic stabilizer included for a more stable image.
- IP PTZ Camera - Pro Range
- 4 MP(2688x1520)
- varifocal6~252 mm Lens
- 42X Optical zoom
- Minimum illumination 0.003 lux | 0 lux with supplementary light- IR laser Range 500 m
- Light Hunter: technology that ensures super-high quality images in low-light environments
- SIP (Smart Intrusion Prevention): combines artificial intelligence algorithms with real-time video analysis to accurately identify human and vehicular intrusions, minimizing false alarms caused by animal movements or weather conditions
- Supports face capture
- Supports people counting, people flow counting, crowd density monitoring
- Supports mixed traffic detection
- Supports collection of human body, motor vehicle and non-motor vehicle attributes for further analysis
- WDR 140 dB
- Supports windshield wipers
- 1024 presets
- Horizontal movement speed 240º/s
- Vertical movement speed 100º/s
- Audio 1 Input / 1 Output
- Alarms 7 Inputs / 1 Output
- MicroSD slot 256 GB
- Reset button
- Gyroscopic stabilizer for more stable images
- Weatherproof IP67
- Vandal proof IK10
- PoE++ IEEE802.3bt
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Pro |
| Image sensor | 1/1.8" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2688x1520) |
| Principal Flow Rate | 4MP (2688x1520)@60fps |
| Secondary Flow Rate | 2MP (1920x1080)@60fps |
| Compression | Ultra265/H.265/H.264/MJPEG |
| Lens | Varifocal 6 ~ 252 mm 42X Optical zoom |
| FOV | Horizontal: 59.47º ~ 2.20º Vertical: 35.62º ~ 1.24º Diagonal: 73.15º ~ 2.60º |
| Range performance | Detect: 107.2 ~ 3330.6 m Observe: 42.9 ~ 1133.2 m Recognize: 21.4 ~ 666.1 m Identify: 10.7 ~ 333.1 m |
| Minimum illumination | 0.003 Lux (colour) 0 Lux a B/W |
| Infrared lighting | Laser IR 500 m |
| Day / Night | Mechanical ICR filter |
| Image improvements | BLC, HLC, WDR, 2D/3D-NR, AGC, Privacy Masking, ROI, ANR |
| WDR | 140 dB |
| UMD | Support Advanced motion detection, triggered only by detection of human skin and/or vehicle. |
| SIP (Smart Intrusion Prevention) | Intelligent Intrusion Prevention. Accurate detection of humans and vehicles to avoid false alarms. Event due to line crossing, area intrusion or entry or exit of a previously defined area |
| Smart Features | People counting, Face detection, mixed traffic detection, collection of human body, motor vehicle and non-motor vehicle attributes for further analysis |
| Pan/Tilt Range | Horizontal: 0°~360° Vertical: -15°~90° auto reverse |
| Manual speed | Horizontal: 180° /s Vertical: 180° /s |
| Speed between Presets | Horizontal: 240° /s Vertical: 180° /s |
| Preset positions | 1024 |
| Internal memory | MicroSD card, Max 256 GB |
| Audio | 1 Input / 1 Output |
| Alarms | 7 Inputs / 2 Outputs |
| Network interface | Ethernet 10M /100M BaseT |
| Remote access | EZStation Web Browser, Smartphone App and PC Software |
| Interoperability | ONVIF |
| Power | DC 24V / 60W PoE++ |
| Temp. operation | -40º C ~ +70º C |
| Degree of protection | Weatherproof IP67 Vandal proof IK10 Overvoltage protection 6 KV |
| Dimensions (without bracket) | 414 mm (H) x 270 (Ø) mm |
In the box
- Uniview Motorized IP Dome Camera
- Installation material
- User instructions
