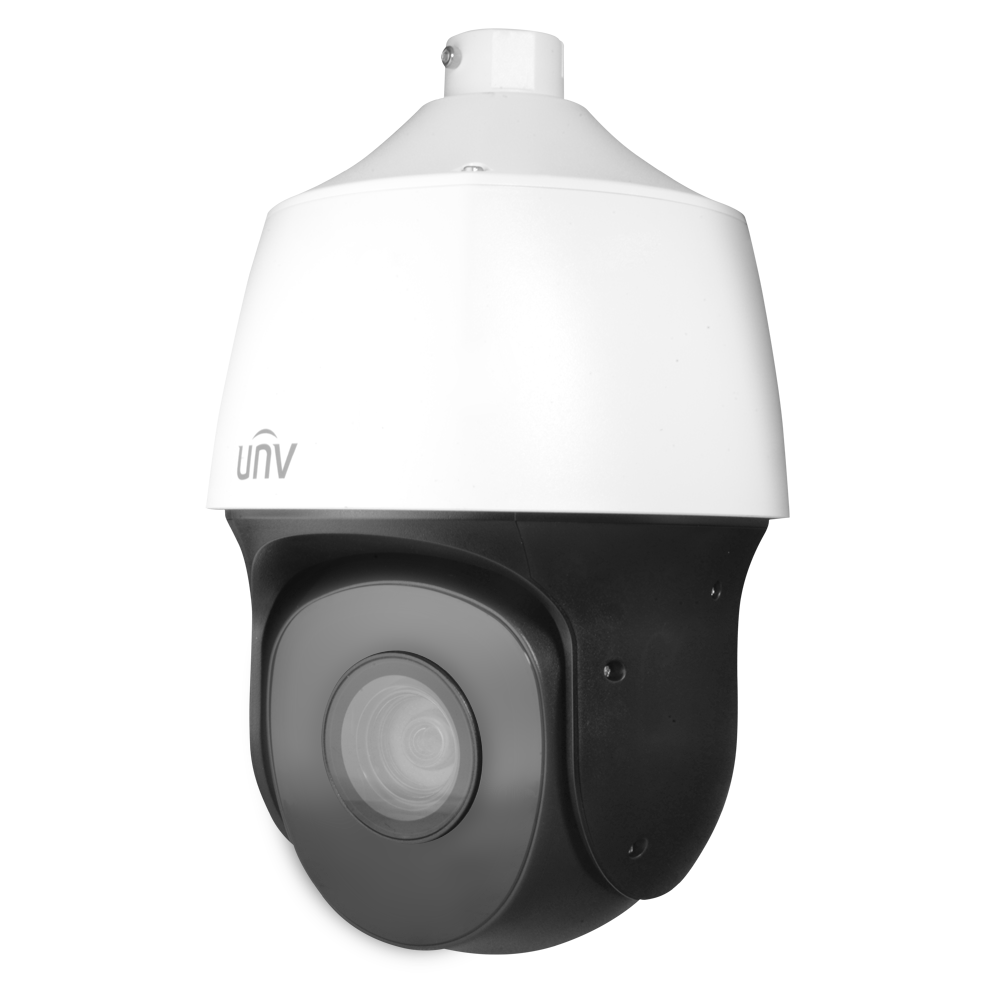

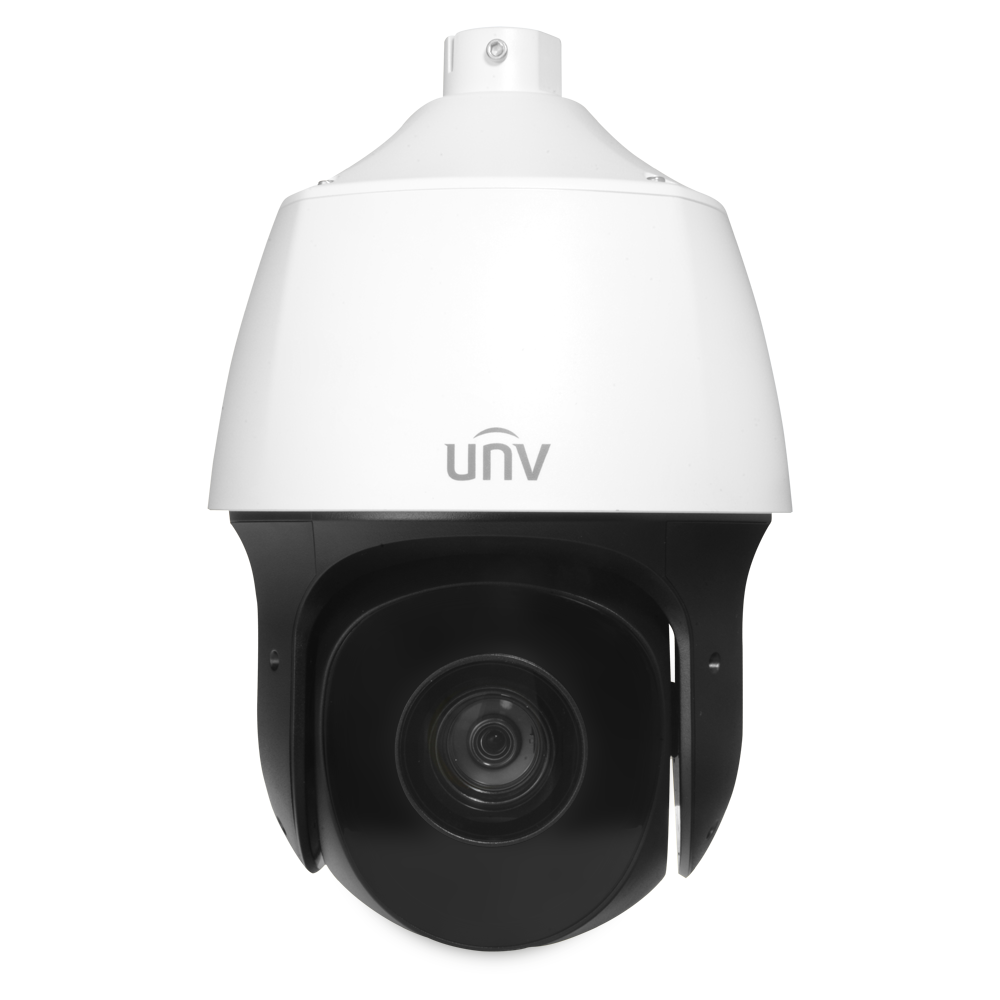

UV-IPC6612SR-X33-VG
- 2 MP Motorised IP Camera
- Prime range
- 1/2.8” Progressive Scan CMOS
- 4.5~148.5mm (33X) Auto Iris Lens
- IR LEDs Reach 150 m | WDR
- SIP Smart Features
- UNIVIEW
- PTZ IP Camera
- Prime range
- 33X Optical zoom
- 1/2.8" Progressive Scan CMOS
- 2 Megapixel (1920x1080)
- 4.5~148.5mm Varifocal Lens
- IR Range 150 m
- Smart intrusion Prevention
- Ultra compression 265/H.265/H.264
- 1024 presets
- RS485
- PoE+ IEEE802.3at
- Weatherproof IP66
- IR Cut
- WDR 120dB
- Audio
- Alarms
- SD card recording
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
Specifications
| Brand | UNIVIEW |
| Image sensor | 1/2.8" Progressive Scan CMOS |
| Resolution | 2 Megapixel (1920x1080) |
| Lens | Varifocal 4.5~148.5mm (Optic Zoom 33X) |
| Infrared lighting | IR LEDs (150 m) |
| Minimum illumination | 0.001 Lux (colour) |
| Compression | Ultra265/H.265/H.264 |
| Day / Night | Mechanical ICR filter |
| Image improvements | BLC, HLC, WDR, 2D/3D-NR, AGC, AWB, MD, Privacy Masking, ROI, ANR |
| Intelligent functions | Auto tracking, Audio detection, Anti-sabotage alarm |
| Pan/Tilt Range | Horizontal: 0°~360°, Vertical: -15°~90° auto flip |
| Manual speed | Horizontal: 2° ~ 75°/sec, Vertical: 2° ~ 75°/sec |
| Speed between Presets | Horizontal: 180° /s, Vertical: 80° /s |
| Preset positions | 1024 |
| Internal memory | MicroSD card, Max 256 GB |
| Smart intrusion Prevention | Supports false alarm filtering: line crossing detection, intrusion detection, incoming area detection, outgoing area detection |
| Audio | 1 Input / 1 Output |
| Alarms | 2 Entries / 1 Relay |
| Network interface | Ethernet 10 / 100 BaseT |
| Remote access | EZStation Web Browser, Smartphone App and PC Software |
| Interoperability | ONVIF |
| Power | DC 12 V / 25 W, PoE+ (IEEE802.3 at) |
| Temp. operation | -40º C ~ +65º C |
| Degree of protection | Waterproof IP66 / Surge protection |
| Dimensions (without bracket) | 369 mm (H) x 220 (Ø) mm |
| Weight (without bracket) | 3400 g |
In the box
- Uniview Motorized IP Dome Camera
- Installation material
- User instructions
