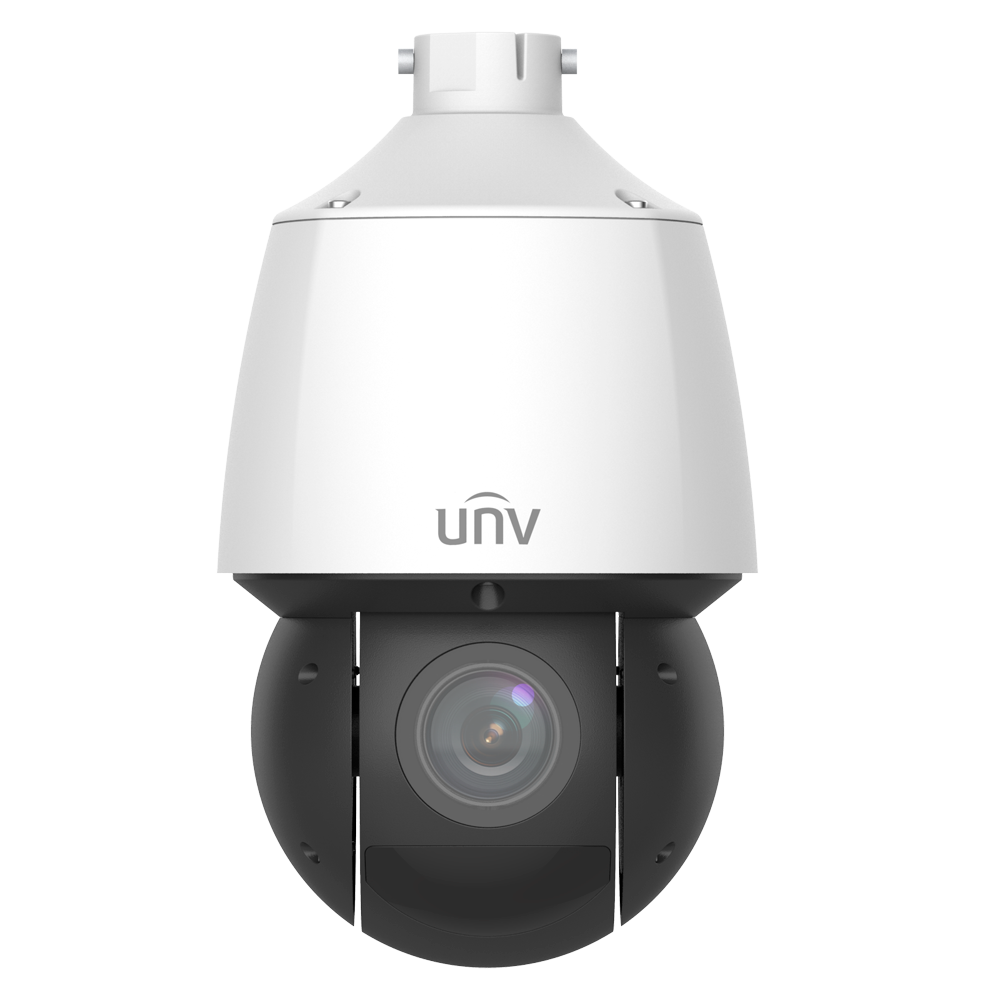

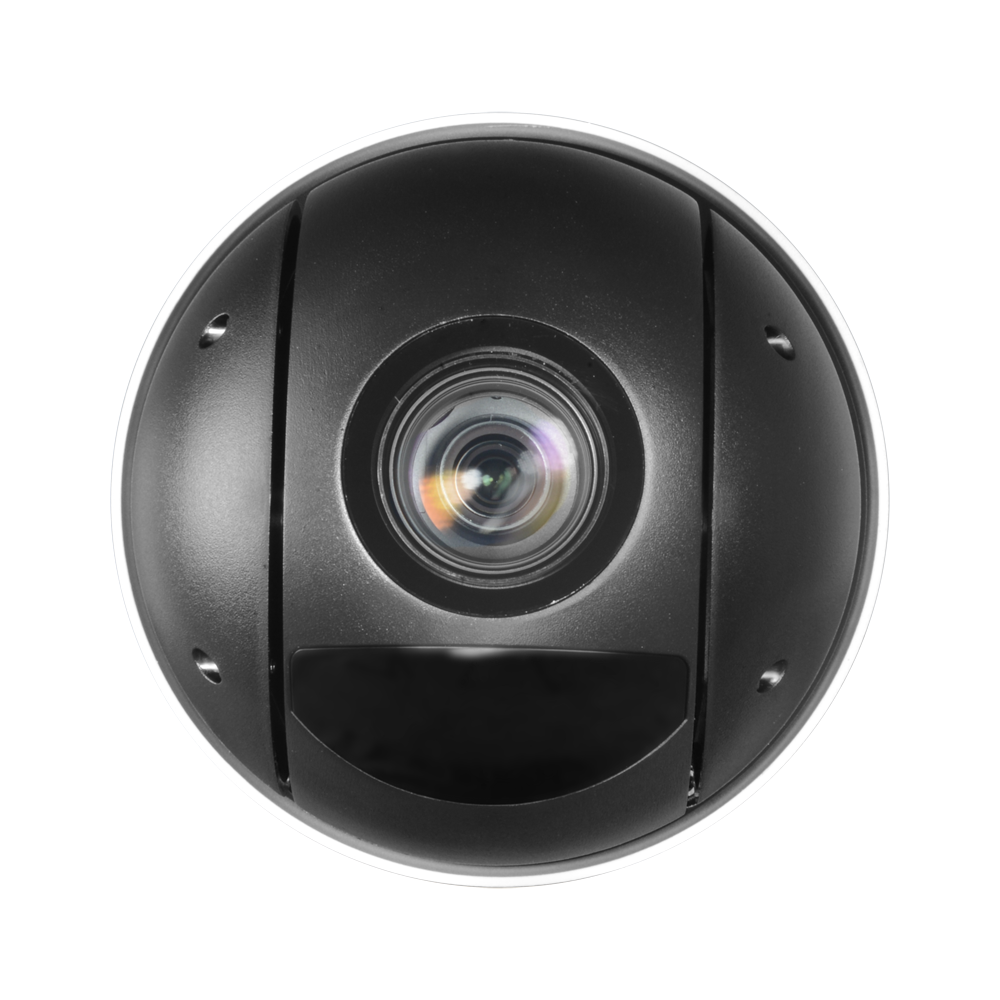

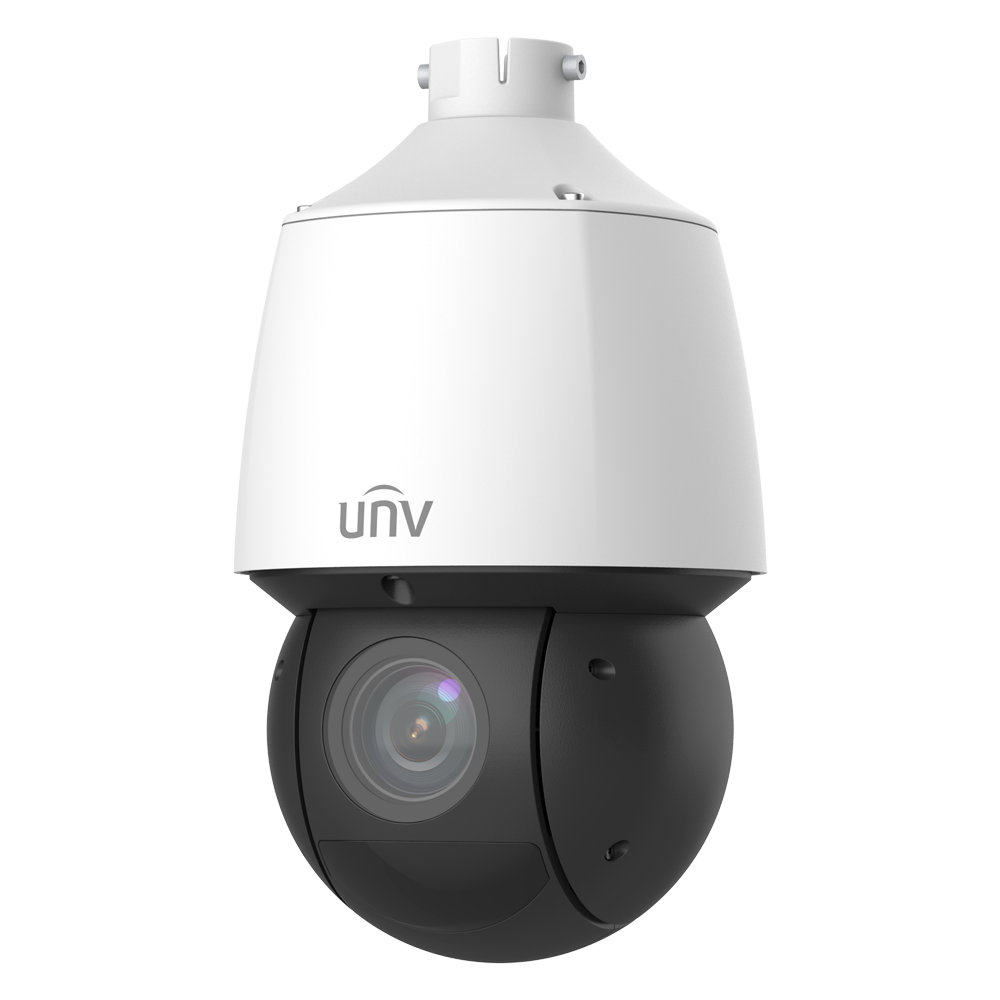

UV-IPC6412LR-X16-VG
Ga direct naar de productinformatie
UV-IPC6412LR-X16-VG
- 2 MP Motorised IP Camera
- Prime range
- 1/2.8” Progressive Scan CMOS
- 5~80mm (16X) Auto Iris Lens
- IR LEDs Range 100 m | WDR 120dB
- WEB, CMS Software, Smartphone and NVR
- UNIVIEW
- PTZ IP Camera
- Prime range
- LightHunter
- 16X Optical zoom
- 1/2.8" Progressive Scan CMOS
- 2 Megapixel (1920x1080)
- 5~80mm Varifocal Lens
- IR Range 100 m
- Ultra compression 265/H.265/H.264
- 1024 presets
- PoE+(IEEE 802.3at))
- IP66
- IR Cut
- WDR 120dB
- Audio
- Alarms
- SD card recording
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
Specifications
| Brand | UNIVIEW |
| Image sensor | 1/2.8" Progressive Scan CMOS |
| Resolution | 2 Megapixel (1920 x 1080) |
| Lens | Varifocal 5~80mm (Optic Zoom 16X) |
| Minimum illumination | Colour: 0,003 Lux (F1.7, AGC ON) 0 Lux with IR |
| Infrared lighting | IR LEDs (100 m) |
| Frame rate | Main flow: 2MP (1920 x 1080), maximum 30 fps; Sub Stream: 720P (1280 x 720), maximum 30 fps; |
| Compression | Ultra265/H.265/H.264 |
| Day / Night | Mechanical ICR filter |
| Image improvements | BLC, HLC, WDR 120dB, 2D/3D-NR, AGC, AWB, MD, Privacy Masking, ROI, ANR |
| Manual speed | Horizontal: 0.1° ~ 200°/sec, Vertical: 0.1° ~ 120°/sec |
| Speed between Presets | Horizontal: 240° /s, Vertical: 200° /s |
| Preset positions | 1024 |
| Internal memory | MicroSD card, Max 256 GB |
| Network interface | 1 x RJ45 10M / 100M Base-TX Ethernet |
| Remote access | EZStation Web Browser, Smartphone App and PC Software |
| Interoperability | ONVIF (S-Profile, G-Profile, T-Profile), API, SDK |
| Power | DC12V (±25%, 3A), PoE+ (IEEE 802.3at) |
| Temp. operation | -40º C ~ +70º C |
| Degree of protection | IP66 |
| Dimensions (without bracket) | 293 mm (H) x 162 (Ø) mm |
| Weight (without bracket) | 1790 g |
In the box
- Uniview Motorized IP Dome Camera
- Installation material
- User instructions

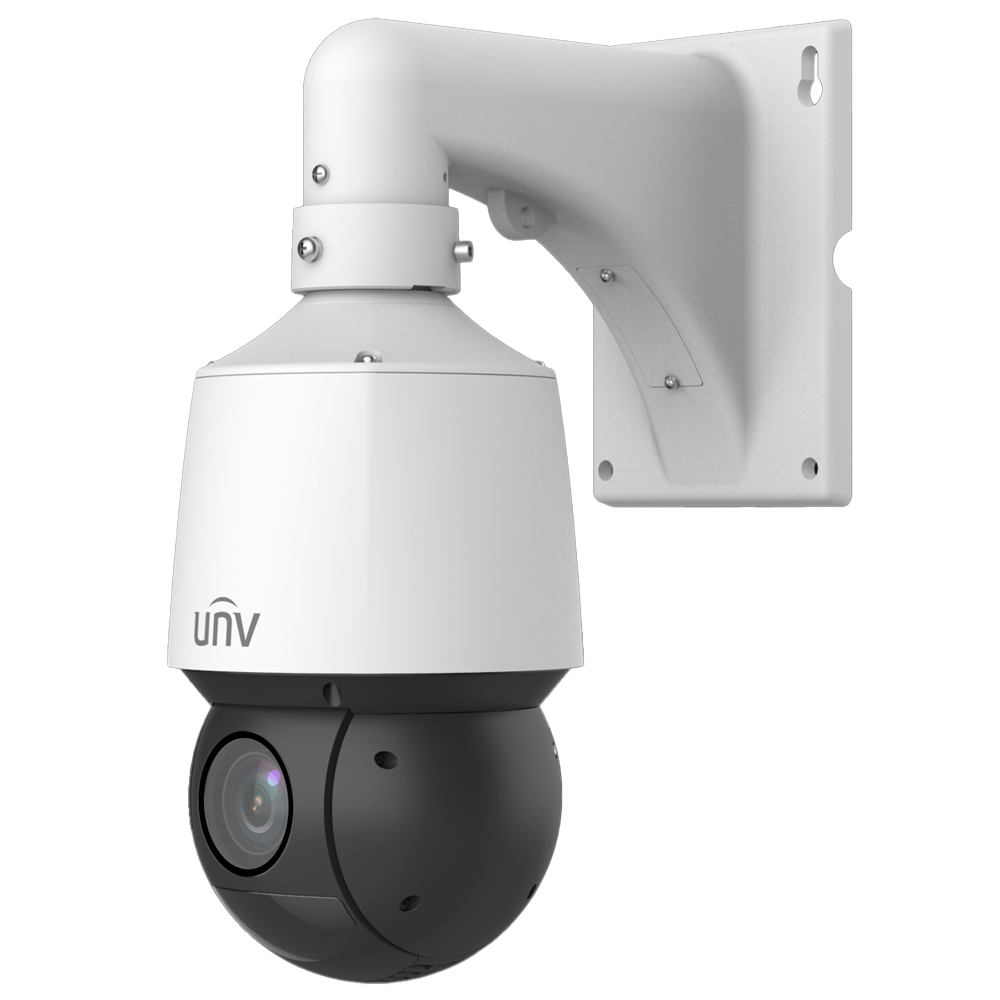

- Support TR-WE45-A-IN included
