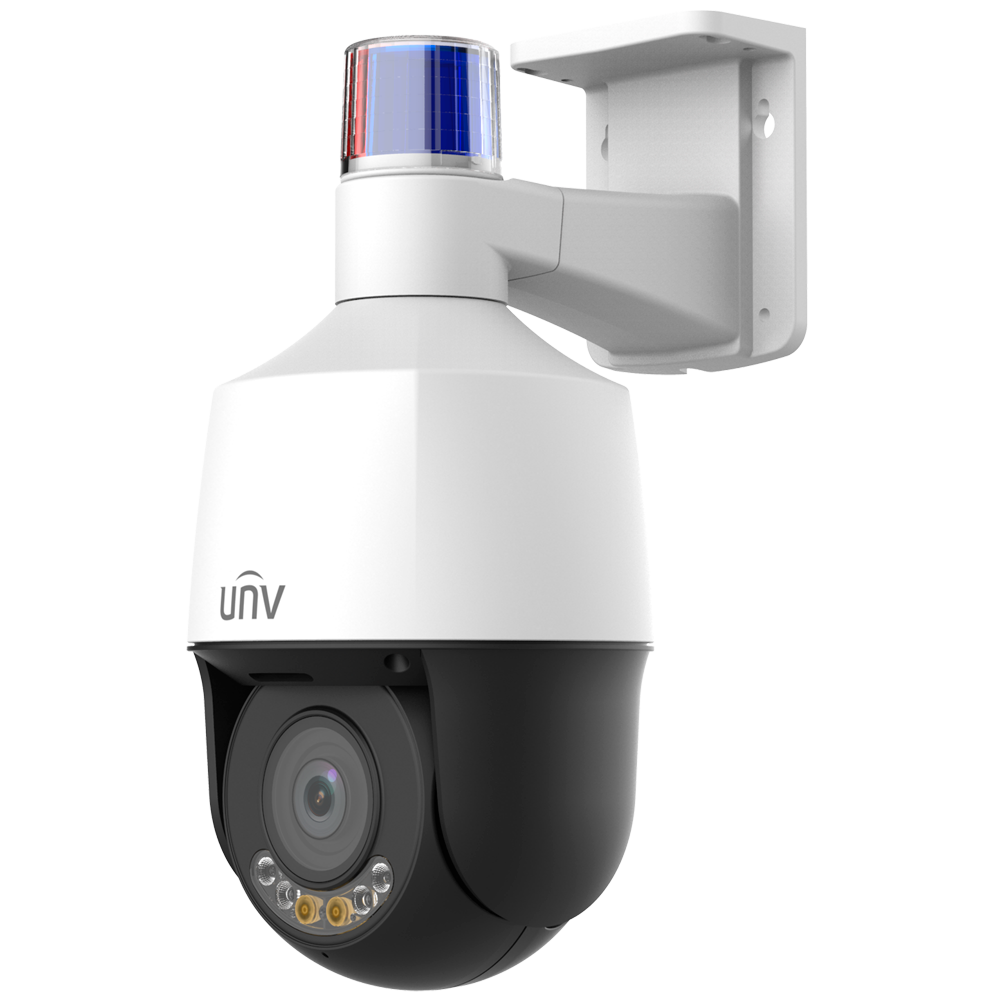

UV-IPC6325LFW-AX5C-VG
Ga direct naar de productinformatie
UV-IPC6325LFW-AX5C-VG
- 5 MP Motorised IP Camera
- Easy range
- 1/2.7” Progressive Scan CMOS
- Lens 2.7~13.5mm (5X) | GO 50 m
- Audio : Micro SD : Built-in microphone and speakerphone
- WEB, CMS Software, Smartphone and NVR
- UNIVIEW
- PTZ IP Camera
- Easy range
- 1/2.7" Progressive Scan CMOS
- 5 Megapixel (2880*1620)
- 2.7~13.5mm Varifocal Lens
- IR Range 50 m
- White Light 15 m
- Ultra compression 265/H.265/H.264
- RJ-45 10/100 BaseT
- Intelligent functions
- Smart intrusion prevention
- Weatherproof IP66
- IR Cut
- WDR 120dB
- Integrated speaker and microphone
- PoE (IEEE 802.3at))
- Autotracking
- Slot for micro SD card up to 512 GB
- ANR
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
Specifications
| Brand | UNIVIEW |
| Image sensor | 1/2.7" Progressive Scan CMOS |
| Resolution | 5 Megapixel (2880*1620) |
| Minimum illumination | 0.005Lux (F1.8, AGC ON) 0Lux with IR |
| Infrared lighting | IR (50 m) |
| Lighting White Light | 15 m |
| Compression | Ultra265/H.265/H.264/MJPEG |
| Lens | Varifocal 2.7~13.5mm (Optic Zoom 5X) |
| Range performance | 70.9m~247.5m (D), 28.4m~99m (O), 14.2m~49.5m (R), 7.1m~24.8m (I) |
| Field of View | 106.9°~30.6° (H), 56°~17.7° (V), 131.5°-36.1° (D) |
| Digital zoom | 5X |
| Day / Night | Mechanical ICR filter |
| Image improvements | BLC, HLC, WDR, 2D/3D DNR, Smart IR, Privacy Masking, ROI |
| Video analysis | Motion detection, Audio detection, Tampering Alarm, Abandoned object, Autotracking |
| Pan/Tilt Range | Horizontal: 0°~345°, Vertical: -10°~110° |
| Intelligent functions | Cross line detection, intrusion detection, area entry/exit, people counting and crowd density |
| Manual speed | Horizontal: 0.1° ~ 50°/sec, Vertical: 0.1° ~40°/s |
| Speed between Presets | Horizontal: 50° /s, Vertical: 40° /s |
| Preset positions | 1024 preset, preset patrol, |
| Internal memory | MicroSD card, Max 512 GB |
| Audio | Built-in microphone and speaker |
| Audio Compression | Compression G.711U,G.711A |
| PTZ Control | Via network access, RS485 |
| Network interface | Ethernet 10 / 100 BaseT |
| Remote access | EZStation Web Browser, Smartphone App and PC Software |
| Interoperability | ONVIF, PSIA, CGI |
| Power | DC 12 V / 18W |
| Temp. operation | -30º C ~ +60º C |
| Degree of protection | Waterproof IP66 / Overvoltage protection 2000 V |
| Dimensions (without bracket) | Φ133mm x 185 x 286 mm |
| Weight (without bracket) | 1.32 kg |
In the box
- Uniview Motorized IP Dome Camera
- Installation material
- CD with software and instructions
