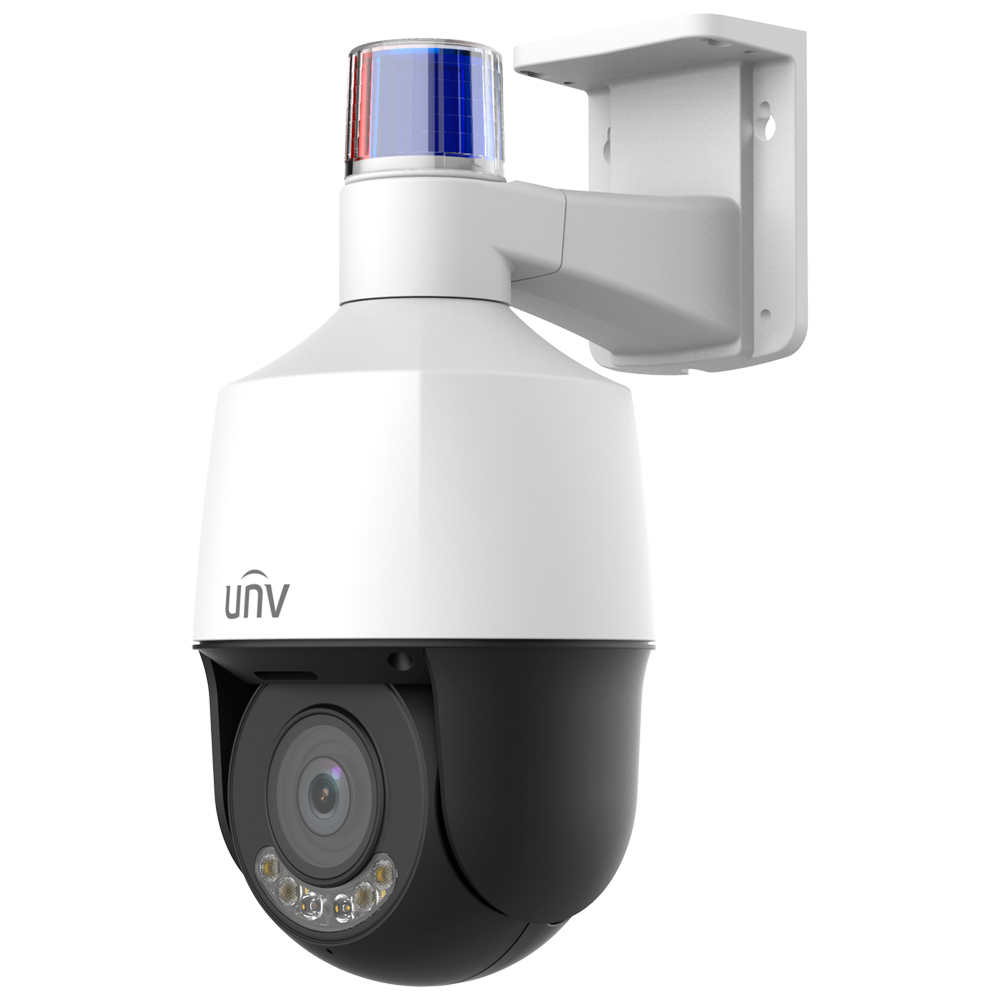

UV-IPC6324LWH-AX5C-VG2
Ga direct naar de productinformatie
UV-IPC6324LWH-AX5C-VG2
- IP PTZ camera 4Mpx Easy Range
- WISE-ISP technology OwlView series
- 1/1.8” Progressive Scan CMOS F1.2
- Lens 2.7~13.5mm (5X) White LED up to 40m
- Microphone and Speakerphone | MicroSD 512GB | TriGuard
- UMD | Alarms | IP66 | Metal body
Prime IP camera type Motorized Dome of 4 MP with varifocal lens 2.7-13.5mm and with UMD. In addition, thanks to ColorHunter and Wise-ISP technology, it allows color display in any environment, even in the dark.
- Uniview
- PTZ IP Camera
- Easy range
- 1/1.8" Progressive Scan CMOS
- 4 Megapixel (2688x1520)
- 2.7~13.5mm Varifocal Lens
- White Light 40 m
- Ultra compression 265/H.265/H.264
- RJ-45 10/100 BaseT
- UMD (Ultra Motion Detection): thanks to its advanced AI algorithm, UMD is able to detect changes in the environment extremely efficiently, even in conditions of high speed or motion difficult to capture by other technologies
- IR Cut
- WDR 120dB
- Integrated speaker and microphone
- Poe (IEEE 802.3at
- Autotracking
- Alarms
- SD card recording up to 512GB
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
- Weatherproof IP66
Specifications
| Brand | UNIVIEW |
| Image sensor | 1/1.8" Progressive Scan CMOS |
| Resolution | 4 Megapixel (2688x1520) |
| Minimum illumination | 0.0005Lux (F1.2, AGC ON) |
| Lighting White Light | 40 m |
| Compression | Ultra265/H.265/H.264/MJPEG |
| Lens | Varifocal 2.7~13.5mm (Optic Zoom 5X) |
| Digital zoom | 4X |
| Image improvements | BLC, HLC, WDR, 2D/3D DNR, Smart IR, Privacy Masking, ROI |
| Video analysis | Motion detection, Audio detection, Tampering Alarm |
| Pan/Tilt Range | Horizontal: 0°~345°, Vertical: -10°~100° |
| UMD | Ultra Motion Detection (Human and vehicle detection on motion detection) |
| Autotracking | Yes |
| Manual speed | Horizontal: 0.1° ~ 50°/sec, Vertical: 0.1° ~40°/s |
| Speed between Presets | Horizontal: 50° /s, Vertical: 40° /s |
| Preset positions | 256 preset, preset patrol, |
| Internal memory | MicroSD card, Max 512 GB |
| Audio | Built-in microphone and speaker |
| Audio Compression | Compression G.711U,G.711A |
| PTZ Control | Via network access, RS485 |
| Network interface | Ethernet 10 / 100M BaseT |
| Alarms | 1 Input / 1 Output |
| Remote access | EZStation Web Browser, Smartphone App and PC Software |
| Interoperability | ONVIF, PSIA, CGI |
| Power | DC 12 V / 15W, Poe (IEEE 802.3at) |
| Temp. operation | -30º C ~ +60º C |
| Degree of protection | Waterproof IP66 / Surge protection 2K |
| Dimensions (without bracket) | 286 (H) x 133 (W) x 185 (D) mm |
| Weight (without bracket) | 870 g |
In the box
- Uniview Motorized IP Dome Camera
- Installation material
- CD with software and instructions
