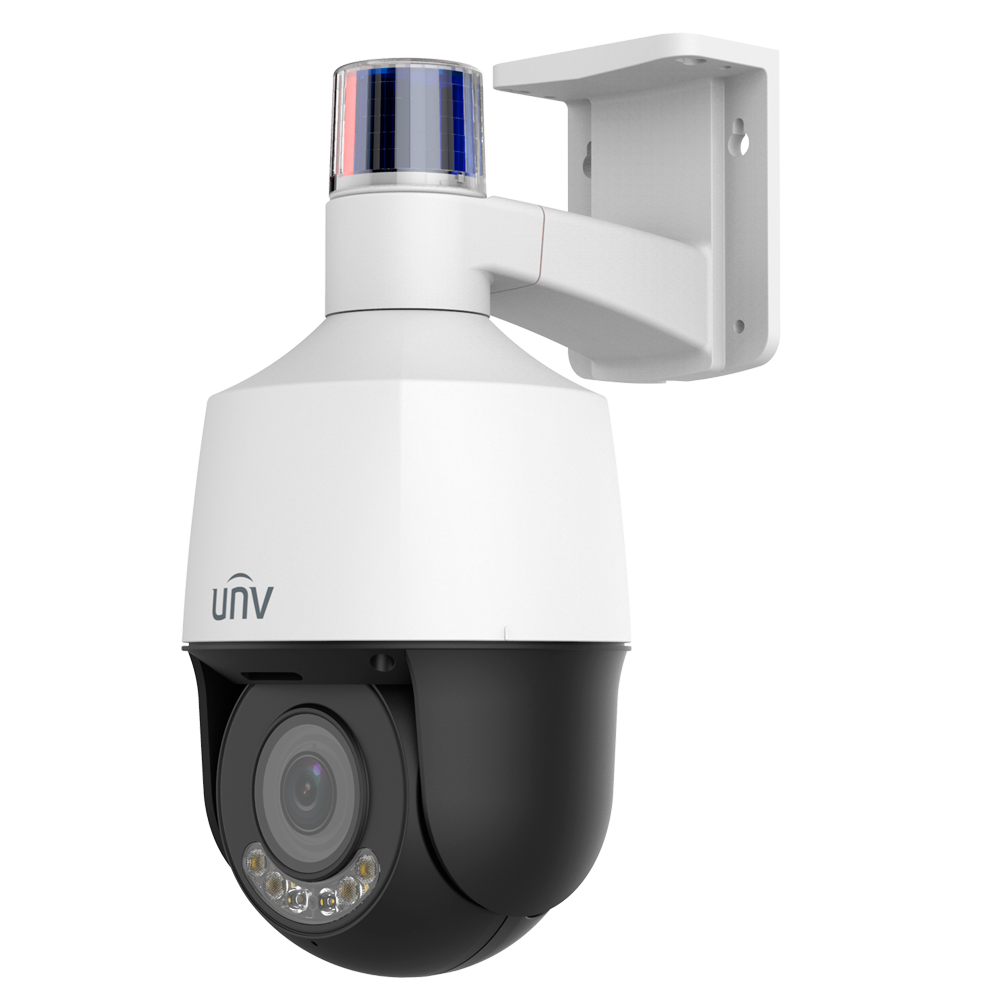

UV-IPC6314LWH-AX5C-VG2
Ga direct naar de productinformatie
UV-IPC6314LWH-AX5C-VG2
- IP PTZ camera 4Mpx Easy Range
- WISE-ISP technology OwlView series
- 1/1.8” Progressive Scan CMOS F1.2
- Lens 2.7~13.5mm (5X) White LED up to 40m
- Microphone and Speakerphone | MicroSD 512GB | TriGuard
- UMD | Alarms | IP66
OwlView series 4MP IP PTZ camera with 2.7~13.5 mm, 5X optical zoom lens. It features ColorHunter technology with Wise-ISP for color images even in low-light environments; additionally, it has active deterrence that allows activating the blue and red lights as soon as any SIP analytics are triggered, making it a Tri-Guard camera.
- IP PTZ camera
- 4 MP(2560x1440)
- Lens 2.7 ~ 13.5 mm 5X
- Minimum illumination 0.0005 lux | 0 lux with supplemental light
- White light range 40 m
- ColorHunter with Wise-ISP technology: with Uniview's Wise-ISP technology, your images will reach an exceptional level of perfection. This intelligent processor optimizes each frame by reducing noise, improving dynamic range and adjusting colors to deliver superior visual quality. Designed for scenarios with varying light conditions, Wise-ISP guarantees sharp and consistent images, becoming the basis for Uniview's most advanced solutions
- SIP (Smart Intrusion Prevention): combines artificial intelligence algorithms with real-time video analysis to accurately identify human and vehicular intrusions, minimizing false alarms caused by animal movements or weather conditions
- UMD (Ultra Motion Detection): thanks to its advanced AI algorithm, UMD is able to detect changes in the environment extremely efficiently, even in conditions of high speed or motion difficult to capture by other technologies
- Auto-Tracking allows to enable only by human detection
- WDR 120 dB
- Integrated microphone
- Integrated speaker
- Audio 1 Input / 1 Output
- Alarms 1 Input / 1 Output
- MicroSD slot up to 512 GB
- IP66
- Overvoltage protection 2000 V
- Plastic
- PoE IEEE802.3at
- ONVIF Compatible
Specifications
| Brand | UNIVIEW |
| Image sensor | 1/1.8" Progressive Scan CMOS |
| Resolution | 4 Megapixel (2560x1440) |
| Minimum illumination | 0.0005Lux (F1.2, AGC ON) 0Lux with White light |
| Lighting | White light 40 m |
| Compression | Ultra265/H.265/H.264/MJPEG |
| Main Stream rate | 4MP(2560x1440)@30fps |
| Lens | Varifocal 2.7~13.5mm (Optic Zoom 5X) |
| Range performance | D: 98.6 ~ 209.9 m O: 39.4 ~ 84 m R: 19.7 ~ 137.7 m I: 9.9 ~ 21 m |
| Field of View | H: 113.69 ~ 50.29º V: 59.46 ~ 28.5º D: 156.23 ~ 59.34º |
| Optical zoom | 5X |
| Day / Night | Mechanical ICR filter |
| Image improvements | BLC, HLC, WDR 120 dB, 2D/3D DNR, Smart IR, Privacy Masking, ROI |
| Video analysis | Motion detection, Audio detection, Tampering Alarm |
| UMD | Yes (Advanced motion detection with human and vehicle classification) |
| SIP | Yes Line crossing, intrusion, area entry and exit triggered by humans, vehicles and/or two-wheeled vehicles |
| Pan/Tilt Range | Horizontal: 0°~345°, Vertical: -10°~100° |
| Manual speed | Horizontal: 1° ~ 50°/sec Vertical: 1° ~ 40°/sec |
| Preset positions | 1024 preset, preset patrol |
| Internal memory | MicroSD card, Max 512 GB |
| Audio | Built-in microphone and speaker 1 Input / 1 Output |
| Alarms | 1 Input / 1 Output |
| Audio Compression | Compression G.711U, G.711A |
| PTZ Control | Via network access, RS485 |
| Network interface | Ethernet 10 / 100 BaseT |
| Remote access | EZStation Web Browser, Smartphone App and PC Software |
| Interoperability | ONVIF, PSIA, CGI |
| Power | DC 12 V / 25.4W PoE IEEE802.3at |
| Temp. operation | -20º C ~ +60º C |
| Degree of protection | Waterproof IP66 / Surge protection |
| Dimensions (without bracket) | Ø133 x 185 x 285 mm |
In the box
- Uniview Motorized IP Dome Camera
- Installation material
- CD with software and instructions
