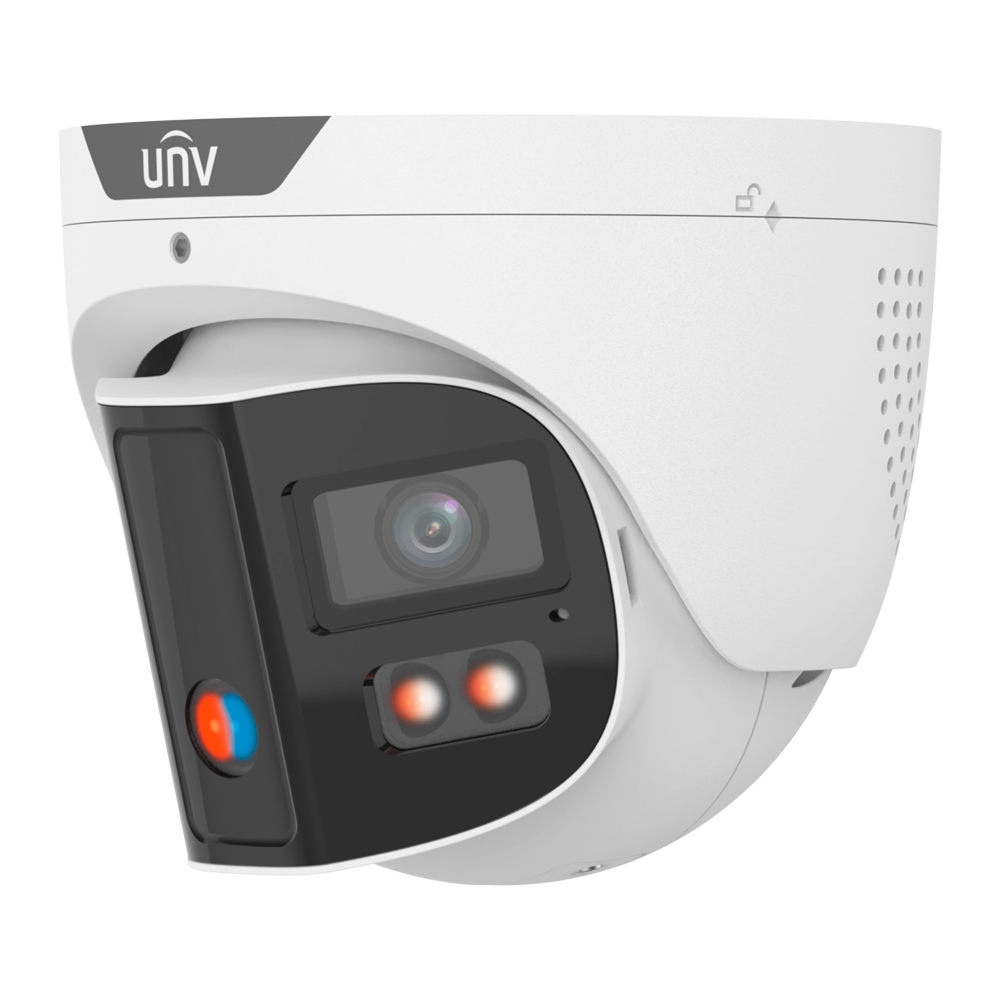

UV-IPC3K28SE-ADF28KMC-DL-I0
- Uniview Turret IP Camera - Prime range
- 8 MP | Lens 2.8 mm | microSD 512 GB
- IR 30m | White light 30m | WDR 130 dB
- Color Hunter | Panoramic Camera 180º
- PoE | SIP | UMD | IP67 | IK10 | People counting
- 2 MIC | Loudspeaker | Deterrent light | Alarms
8 MP Turret IP camera with dual lens and 180° panoramic vision. It features Tri-Guard, which integrates three technologies: ColorHunter, SIP and active deterrence. Incorporates all the latest intelligent detection and color search algorithms.
- Uniview
- Panoramic Dual Lens Turret IP Panoramic Camera - Prime Range
- Lens splicing technology for 180º panoramic vision
- 8 Megapixel (2x4MP)
- 2.8 mm Lens
- Minimum illumination: 0.0005 lux
- 0 lux with supplementary light
- IR Range 30 m
- Hybrid light range 30 m
- People flow counting and crowd monitoring
- Tri-Guard: Integrates SIP, ColorHunter and active deterrence in a single IP camera. It will not only alert when an event occurs, but will have color information in dark environments. Tri-Guard includes red and blue light alert, which is more noticeable than white light
- ColorHunter: Allows to obtain color images in low light environments, even in total darkness, using warm light
- SIP (Smart Intrusion Prevention): combines artificial intelligence algorithms with real-time video analysis to accurately identify human and vehicular intrusions, minimizing false alarms caused by animal movements or weather conditions
- Active deterrence: red and blue light in conjunction with siren to alert intruders
- UMD (Ultra Motion Detection): thanks to its advanced AI algorithm, UMD is able to detect changes in the environment extremely efficiently, even in conditions of high speed or motion difficult to capture by other technologies
- WDR 130dB
- 2 Built-in microphones
- Integrated speaker
- Audio 1 Input / 1 Output
- Alarms 1 Input / 1 Output
- PoE
- Slot for Micro SD up to 512 GB
- IP67
- IK10
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Prime |
| Image sensor | 1/2.5" Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (4096x1860) |
| Main Stream rate | 8MP@20fps |
| Substream rate | 2048*936@20fps |
| Compression | Ultra265/H.265/H.264 |
| Lens | 2.8 mm |
| Field of view | Horizontal: 180º Vertical: 65º Diagonal: 180º |
| Range performance | Detect: 63.1 m Observe: 25.2 m Recognize: 12.6 m Identify: 6.3 m |
| Day / Night | Mechanical ICR filter |
| Minimum illumination | Color Hunter 0.0005 Lux (Colour) |
| Supplementary lighting | Hybrid light IR range : 30 m White light range: 30 m |
| Color Hunter | Support Enables color images to be captured in low-light environments and even in total darkness using warm light. |
| WDR | 130 dB |
| SIP (Smart Intrusion Prevention) | Line crossover, intrusion detection, area entry/exit, etc Supports false alarm filtering and classification of humans, vehicles, and vehicles. |
| Image improvements | Motion detection, BLC, HLC, AGC, 2D/3D-NR, Smart IR, Region of interest, Privacy mask |
| Attribute collection | SIP with Color Retrieval |
| Statistical analysis | People count. People flow counting. People density monitoring. |
| Basic detection | Motion detection, Ultra motion detection (UMD), anti-tamper alarm, audio detection |
| Internal memory | Micro SD slot (up to 512 GB) Allows ANR |
| Alarms | 1 Input / 1 Output |
| Audio | 1 Input / 1 Output |
| Microphone | 2 integrated microphones |
| Speaker | Integrated speaker |
| Active deterrence | Support Red and blue light to alert intruders Siren |
| Tri-Guard | Support Integrates SIP + Color Hunter + Active Deterrence. In this way it allows to generate alerts only with the detection of humans and/or vehicles, it will capture color images 24/7 and will alert the intruder with a deterrent light and the siren will emit a pre-recorded sound. |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF (profile S, profile G, profile T), API, SDK. |
| Power | DC 12V / 12.6W PoE IEEE802.3af |
| Level of protection | IP67 IK10 Overvoltage protection 4KV |
| Temp. operation | -35º C ~ 60º C |
| Dimensions | 109.9 mm (H) x 128.7 (Ø) mm |
| Weight | 860 g |
In the box
- Uniview IP Camera
- Installation tools
- User instructions
