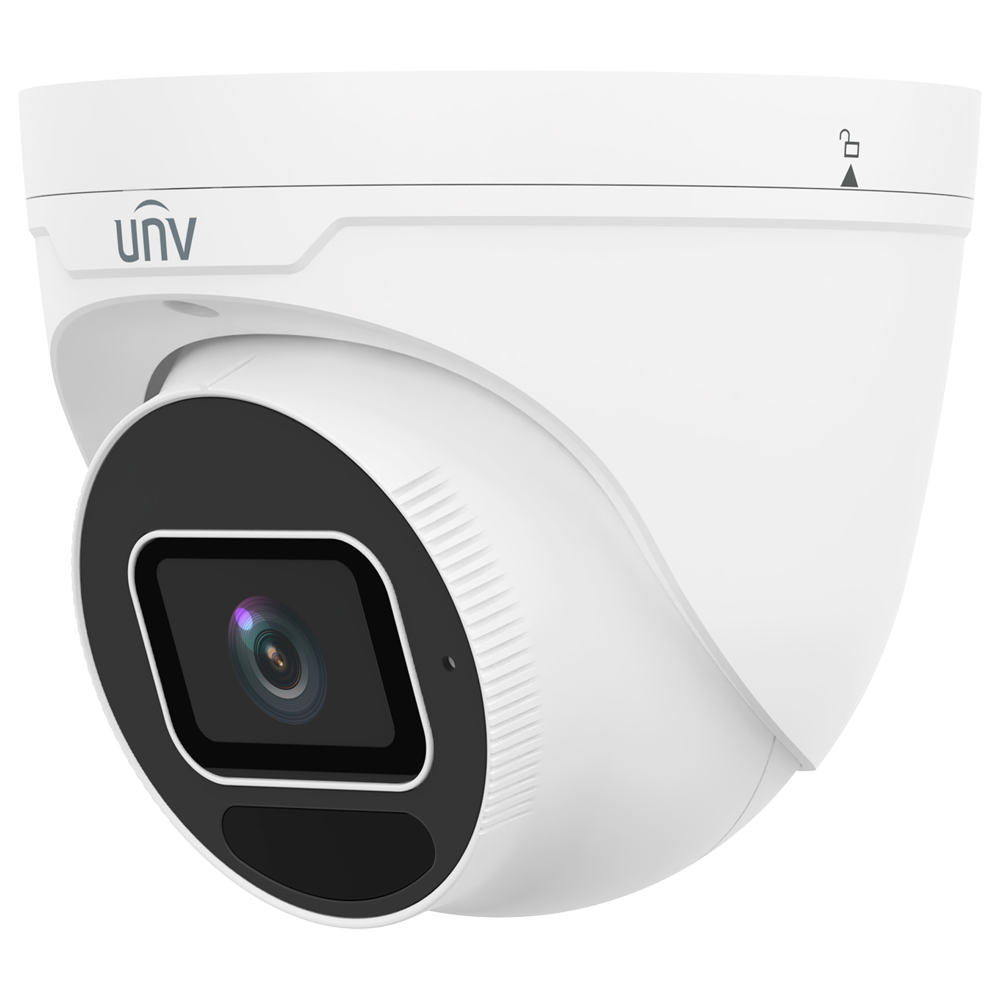

UV-IPC3638SS-ADF28K-I1
Ga direct naar de productinformatie
UV-IPC3638SS-ADF28K-I1
- Uniview Turret IP Camera - Prime range
- 8 MP | Lens 2.8 mm | microSD 512 GB
- IR 40m | WDR 130 dB
- LightHunter | SIP with Color Retrieval
- PoE | SIP | UMD | IP67 | People Counting
- MIC | Alarms
8 MP Turret IP Prime camera with 2.8mm fixed lens. Integrates advanced analytics functions for accurate classification of people and vehicles, extracts metadata from the colors of features such as clothing or color of vehicle. Light Hunter technology, which allows color display even in low-light conditions.
- Uniview
- Turret IP Camera - Prime Range
- 8 MP (3840x2160)
- 2.8 mm Lens
- Minimum illumination: 0.002 lux
- 0 lux with supplementary light
- LightHunter: technology that delivers clear, detailed color images in low light conditions, thanks to advanced sensors, large aperture lenses and noise reduction
- IR range of 40 m
- People flow counting and crowd monitoring
- SIP (Smart Intrusion Prevention): combines artificial intelligence algorithms with real-time video analysis to accurately identify human and vehicular intrusions, minimizing false alarms caused by animal movements or weather conditions
- SIP with ColorRetrieval: allows the extraction of color metadata from human and vehicle features
- UMD (Ultra Motion Detection): thanks to its advanced AI algorithm, UMD is able to detect changes in the environment extremely efficiently, even in conditions of high speed or motion difficult to capture by other technologies
- Active deterrence: red and blue light in conjunction with siren to alert intruders
- WDR 130dB
- Integrated microphone
- Audio 1 Input / 1 Output
- Alarms 1 Input / 1 Output
- PoE
- Slot for Micro SD up to 512 GB
- IP67
- Metallic
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Prime |
| Image sensor | 1/2.8” Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (3840x2160) |
| Lens | 2.8 mm |
| Viewing Angle (FOV) | H: 97.46°, V: 52.31°, D: 102.29° |
| Range performance | Detect: 86.9 m Observe: 34.8 m Recognize: 17.4 m Identify: 8.7 m |
| Main Stream rate | 8MP (3840x2160)@30 fps; 5MP (2880x1620)@30 fps; 4MP (2560x1440)@30 fps; 1080p (1920x1080)@30 fps; 720p (1280x720)@30 fps |
| Extra Stream rate | 720p (1280x720)@30 fps; D1 (720x76@30 fps; 640x360@30 fps; 2CIF (704x288)@30 fps; CIF (352x288)@30 fps |
| Third Stream Rate | D1 (720x76)@30 fps; 640x360@30 fps; 2CIF (704x288)@30 fps; CIF (352x288)@30 fps |
| Compression | Ultra 265, H.265, H.264, MJPEG |
| Video bitrate | 128 Kbps~16 Mbps |
| Minimum illumination | Colour: 0,002 lux (F1.0, AGC ON) 0 lux with IR |
| Supplementary lighting | IR range: 40 m |
| Day / Night | Mechanical ICR filter |
| Image improvements | WDR (130 dB), BLC, HLC, AGC, AWB, 2D/3D-DNR, ROI, Privacy Mask, Smart IR, Flip |
| Corridor mode | Yes |
| SIP | Smart Intrusion Prevention (Smart Intrusion Prevention). False alarm filtering support: cross-line detection, intrusion detection, ingress area detection, egress area detection, cross-line detection, intrusion detection, intrusion detection, ingress area detection, egress area detection. |
| Color Retrieval | Human clothing color, vehicle color and two-wheeler color metadata detection. |
| Statistical analysis | People flow counting. Crowd density monitoring. |
| UMD | Integrates Ultra Motion Detection. |
| Automatic Scene Matching (ASM) | Supported (WDR only) |
| Internal memory | Slot for MicroSD card up to 512 GB |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Audio | 1 input / 1 output Built-in microphone |
| Audio Compression | G.711U, G.711A |
| Audio bitrate | 64 Kbps |
| Alarms | 1 input / 1 output |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF (S-Profile, G-Profile, T-Profile), API, SDK |
| Power | DC 12V / 8W PoE IEEE802.3af |
| Temp. operation | -30º C ~ 60º C |
| Material | Metallic |
| Degree of protection | Waterproof IP67, Surge protection 4000 V |
| Dimensions | Ø 129 mm × 110(Al) mm |
| Base dimensions | Ø base 129 mm / Ø between bolts 109 mm / 3 bolts |
| Weight | 670 g |
In the box
- Uniview IP Camera
- Installation material
- User instructions
