UV-IPC3638SE-ADF28K-WP-I1

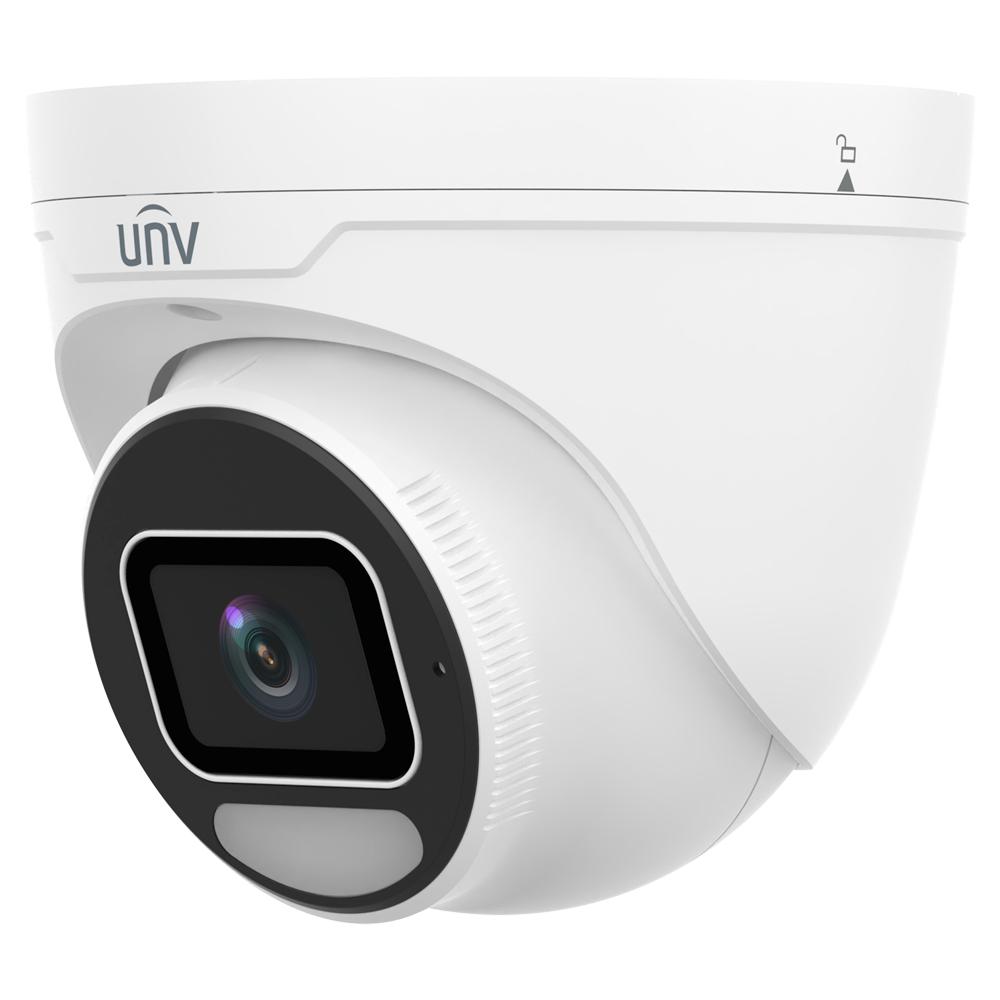

- Uniview Turret IP Camera - Prime range
- 8 MP | Lens 2.8 mm | microSD 512 GB
- White light 40 m | WDR 130 dB
- OwlView | SIP | UMD | Statistical Analysis
- PoE | IP67 | Overvoltages 4000 V | IK10
- Alarm | Audio | Microphone
Uniview Prime range Turret IP camera with 8MP, fixed 2.8 mm lens. This camera features SIP, people counting, metadata capture of vehicles and persons. It has Wise-ISP and OwlView technology that allows color display in very low light environments, in addition to its 140 dB in WDR allows a clear image in backlit environments.
- Turret IP Camera - Prime Range
- 1/1.2" Progressive Scan CMOS
- 8 Megapixel (3840x2160)
- 2.8 mm Lens
- Minimum illumination 0.0003 lux
- White light range 30 m
- UMD (Ultra Motion Detection): thanks to its advanced AI algorithm, UMD is able to detect changes in the environment extremely efficiently, even in conditions of high speed or motion difficult to capture by other technologies
- SIP (Smart Intrusion Prevention): combines artificial intelligence algorithms with real-time video analysis to accurately identify human and vehicular intrusions, minimizing false alarms caused by animal movements or weather conditions
- SIP with ColorRetrieval: allows the extraction of color metadata from human and vehicle features
- OwlView: With Wise-ISP technology, the OwlView series provides the best color image in low-light, near-total darkness environments.
- Audio
- Alarms
- Integrated microphone
- People flow counting
- People density monitoring
- Auto Scene Match (ASM)
- WDR (130 dB)
- PoE (IEEE802.3af)
- MicroSD card slot up to 512 GB
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
- Weatherproof IP67
- IK10
- Surge protection 4000 V
Specifications
| Brand | Uniview |
| Range | Prime |
| Image sensor | 1/1.2" Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (2688x1520) |
| Main Stream rate | 8MP (3840 x 2160), Max 30fps; 5.3MP (3072 x 1728), Max 30fps; 3.6MP (2560 x 1440), max 30 fps; 1080P (1920 x 1080), maximum 30fps; 720P (1280 x 720), maximum 30 fps; |
| Extra Stream rate | 1080P (1920 x 1080), Max 30fps; 720P (1280 x 720), max 30 fps; D1 (720 x 576), maximum 30 fps; 640 x 360, Max 30fps; 2CIF (704 x 288), max 30 fps; CIF (352 x 288), maximum 30 fps; |
| Compression | Ultra265/H.265/H.264 |
| Lens | 2.8 mm (H: 110.4º, V: 60.5º, D: 115.2º) |
| Range performance | D: 43.4 m O: 17.4m R: 8.7m I: 4.3m |
| Minimum illumination | Wise-ISP 0.0003Lux (F1.0 AGC ON) |
| LED White | 30 m |
| Image improvements | WDR 120dB, BLC, HLC, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask, Smart IR |
| SIP (Smart Intrusion Prevention) | SIP, Smart Intrusion Prevention (Classification of human, vehicle and two-wheeler over line crossing, area intrusion, region of entry and region of exit) Counting and flow of people over an area *Both functions cannot be enabled at the same time |
| Face Capture | Yes |
| Day / Night | Automatic and configurable |
| Internal memory | Slot for microSD card up to 256GB |
| Alarms | 1 Input / 1 Output |
| Audio | Integrated microphone, 1 Input and 1 Output |
| Network interface | Ethernet 10/100M BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Power | DC 12 V / 11 W, PoE IEEE802.3af |
| Temp. operation | -30º C ~ 60º C |
| Material | Metallic |
| Degree of protection | Waterproof IP67, Vandal resistant IK10, Overvoltage protection |
| Dimensions | 129 (Ø) x 110 (h) mm |
| Weight | 64 g |
In the box
- Uniview IP Camera
- Installation material
- User instructions
