UV-IPC3635SS-ADZK-I1

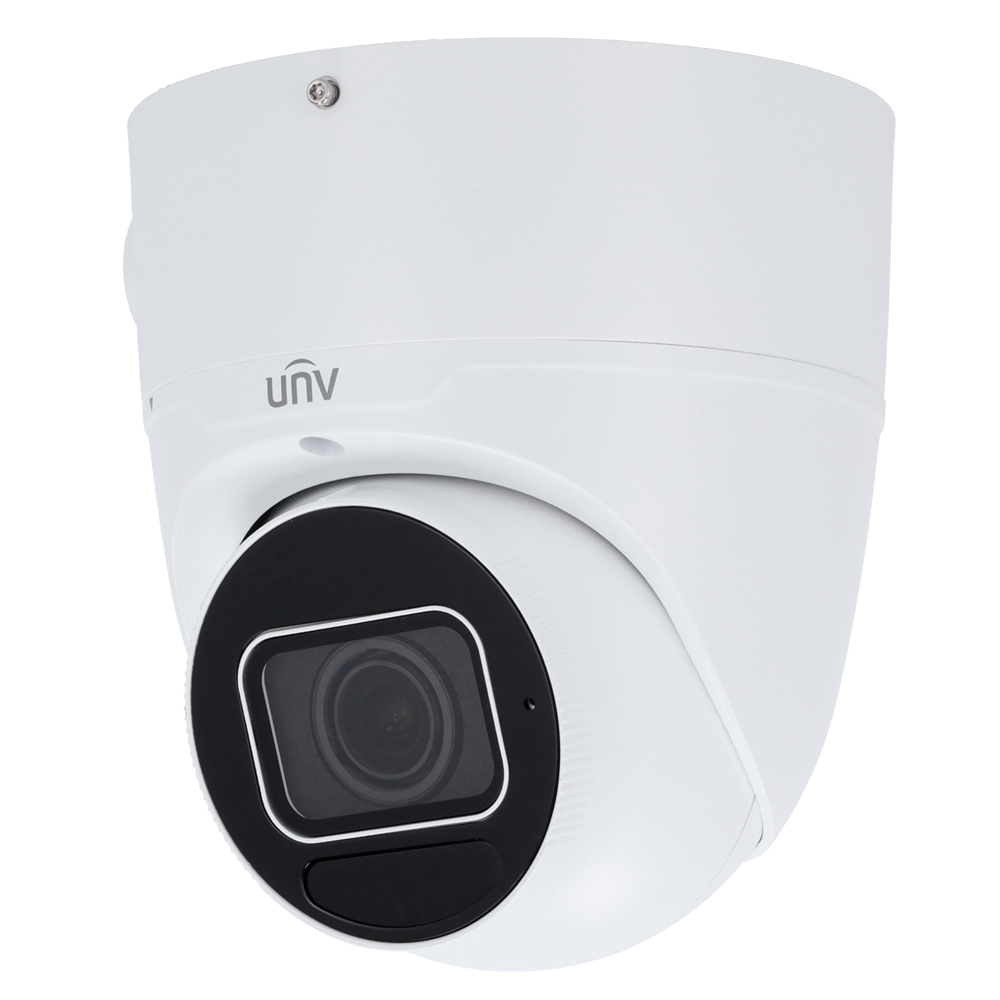

- Uniview Turret IP Camera - Prime
- 5 MP | Lens 2.7~13.5 mm | microSD 256 GB
- IR 40m | WDR 130 dB | Face Capture
- ColorRetrieval | Statistical Analysis
- PoE | SIP | UMD | IP67 | 4KV
- Alarm | Audio | MIC
5 MP Turret IP Prime camera with 2.7 ~ 13.5 mm motorized varifocal lens. It has Light Hunter technology for color visualization in low light conditions, SIP with ColorRetrieval, which allows to identify vehicles and humans and extract the colors of their clothing; it also has video analytics such as face capture and people counting.
- Turret IP Camera
- Prime range
- 5 Megapixel (2880 x 1620)
- Motorized Varifocal Lens 2.7~13.5mm
- Minimum illumination 0.002 lux | 0 Lux with supplementary lighting
- Light Hunter: technology that ensures super high quality images in low-light environments - SIP with ColorRetrieval: allows the extraction of color metadata from human and vehicle features
- IR Range 40 m
- WDR 130dB
- Audio 1 Input / 1 Output
- Integrated microphone
- Alarms 1 Input / 1 Output
- SIP (Smart Intrusion Prevention): combines artificial intelligence algorithms with real-time video analysis to accurately identify human and vehicular intrusions, minimizing false alarms caused by animal movements or weather conditions
- Crowd flow counting, crowd density monitoring
- Slot for microSD up to 256GB
- ONVIF Compatible
- Weatherproof IP67
- PoE
Specifications
| Brand | Uniview |
| Range | Prime |
| Image sensor | 1/2.7” Progressive Scan CMOS |
| Maximum resolution | 5 Megapixel (2880 x 1620) |
| Lens | 2.7~13.5 mm Motorized Varifocal (H: 106.3~32.5°; V: 53.5~18.0°; D: 126.0~38.5°) |
| Main Stream rate | 5 MP (2880x1620), Max 30fps 4MP (2688x1520), Max 30fps; 4MP (2560x1440), Max 30fps; 3MP (2304x1296), Max 30fps; 1080P (1920x1080), Max 30fps; |
| Second Stream Rate | 1080P (1920x1080), Max 30fps; 720P (1280x720), Max 30fps; D1 (720x576), Max 30fps; 640x360, Max 30fps; 2CIF(704x288), Max 30fps; CIF(352x288), Max 30fps; |
| Third Stream Rate | D1 (720x576), Max 30fps; 640x360, Max 30fps; 2CIF(704x288), Max 30fps; CIF(352x288), Max 30fps; |
| Compression | Ultra265/H.265/H.264 |
| Minimum illumination | Colour: 0.002Lux (F1.2, AGC ON) 0 lux with IR on |
| Infrared range | 40 m |
| Image improvements | WDR (130dB), BLC, HLC, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask, Smart IR |
| Intelligent intrusion prevention | False alarm filtering support: cross-line detection, intrusion detection, ingress area detection, egress area detection, cross-line detection, intrusion detection, intrusion detection, ingress area detection, egress area detection |
| Color Retrieval | Color metadata detection on humans, vehicles and two-wheelers. |
| Statistical analysis | People counting, crowd flow counting support and crowd density monitoring |
| Face Capture | Support |
| UMD | Integrates Ultra motion detection |
| Automatic Scene Matching (ASM) | Supported (WDR only) |
| Aisle mode 9:16 | Supported |
| Day / Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 256 GB |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Alarms | 1 input / 1 relay |
| Audio | 1 input / 1 output / Integrated Microphone |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF (S-Profile, G-Profile, T-Profile), API,SDK |
| Power | DC input 12 V / 6.5 W, PoE IEEE802.3af DC output 12 V, 0.1 A, 1.2 W |
| Temp. operation | -40º C ~ 60º C |
| Material | Metallic |
| Degree of protection | Weatherproof IP67 |
| Dimensions | Φ111 x 83mm |
| Weight | 420 g |
In the box
- Uniview IP Camera
- Installation material
- User instructions
