UV-IPC3634SE-ADF40K-WP-I1
- Uniview Turret IP Camera - Prime range
- 4 MP | Lens 4 mm | microSD 512 GB
- White light 30m | WDR 130 dB
- Color Hunter | SIP with Color Retrieval
- PoE | SIP | UMD | IP67 | IK10 | Counting
- Alarm | Low | Audio

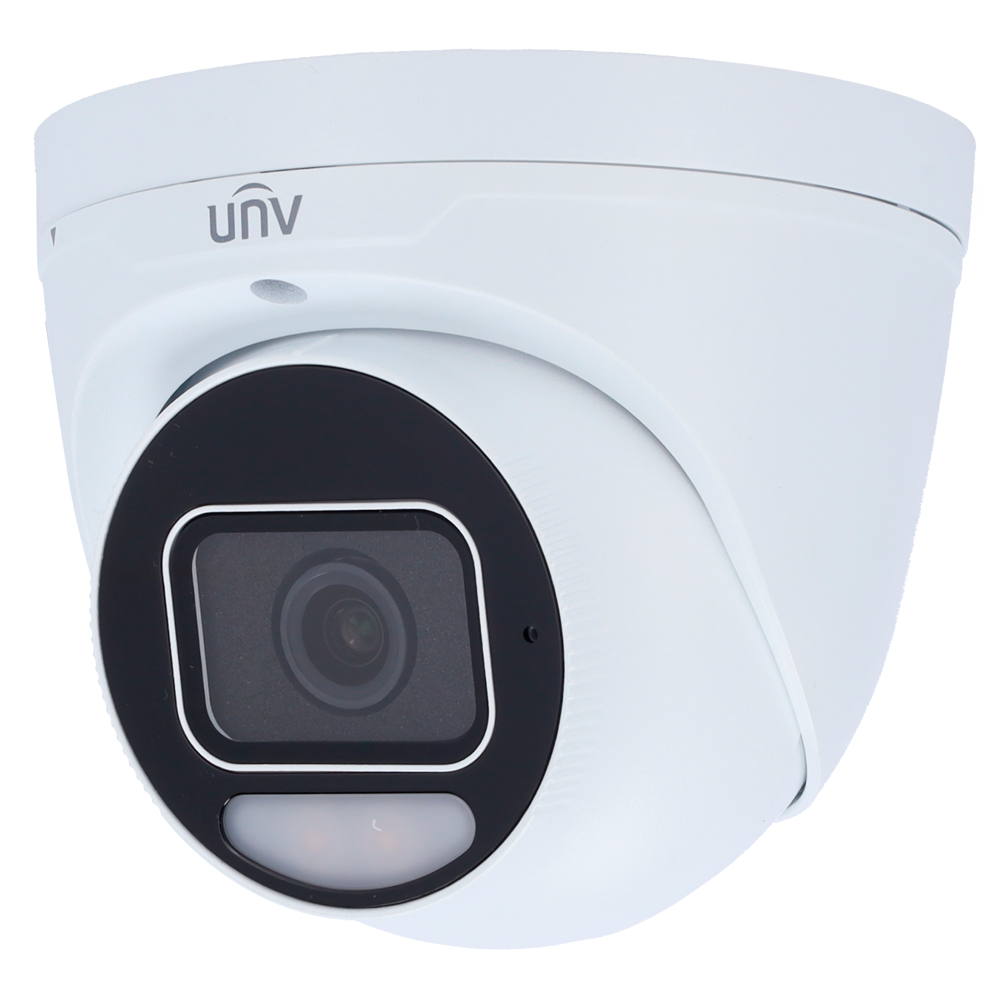

4 MP Turret IP Prime camera with 4 mm fixed lens. Equipped with ColorHunter technology, it guarantees color images even in low light conditions. Integrates advanced analytics functions for accurate classification of people and vehicles and extracts metadata from the colors of features such as clothing or color of vehicle.
- Uniview
- Turret IP Camera - Prime Range
- 4 MP (2688x1520)
- 4 mm Lens
- Minimum illumination 0.0005 lux
- 0 lux with supplementary light
- Color Hunter: Allows to obtain color images in low light environments, even in total darkness, using white light
- White light range 30 m
- People flow counting and crowd density monitoring
- SIP (Smart Intrusion Prevention): combines artificial intelligence algorithms with real-time video analysis to accurately identify human and vehicular intrusions, minimizing false alarms caused by animal movements or weather conditions
- SIP with ColorRetrieval: allows the extraction of color metadata from the features of people and vehicles - UMD (Ultra Motion Detection): thanks to its advanced AI algorithm, UMD is able to detect changes in the environment extremely efficiently, even in conditions of high speed or motion difficult to capture by other technologies
- WDR 130dB
- Integrated microphone
- Alarm 1 Input / 1 Output
- Audio 1 Input / 1 Output
- PoE
- Corridor mode
- Slot for Micro SD up to 512 GB
- IP67
- IK10
- Metallic
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Prime |
| Image sensor | 1/1.8" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2688x1520) |
| Main Stream rate | 4MP (2688*1520)@30fps, 4MP (2560*1440)@30fps, 3MP (2304*1296)@30fps, 1080P (1920*1080)@30fps, 720P (1280*720)@30fps |
| Extra Stream rate | 720P (1280*720)@30fps, D1 (720*576)@30fps, 640*360@30fps |
| Compression | Ultra265/H.265/H.264 |
| Lens | 4 mm (H: 88.2º, V: 47.6º, D: 104º) |
| Range performance | Detect: 62.1 m Observe: 24.8 m Recognize: 12.4 m Identify: 6.2m |
| Day / Night | Automatic and configurable |
| Minimum illumination | ColorHunter, color image 24/7 0.0005Lux (F1.0 AGC ON) |
| White light | 30 m |
| Image improvements | WDR 130dB, BLC, HLC, AGC, 2D/3D-DNR, Motion detection, ROI, Privacy Mask |
| SIP (Smart Intrusion Prevention) | SIP, Smart Intrusion Prevention (Classification of human, vehicle and two-wheeler over line crossing, area intrusion, region of entry and region of exit) Counting and flow of people over an area *Both functions cannot be enabled at the same time |
| SIP with Color Retrieval | Support |
| Statistical analysis | People flow counting. People density monitoring. |
| Basic detection | Motion detection, Ultra motion detection (UMD), anti-tamper alarm, audio detection |
| Internal memory | Slot for microSD card up to 512 GB |
| Alarm | 1 Input / 1 Output |
| Audio | Integrated microphone, 1 Input and 1 Output |
| Network interface | Ethernet 10/100M BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Power | DC 12V / 4.5W PoE IEEE802.3af |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Waterproof IP67, Anti-vandal IK10, Surge protection 4KV |
| Dimensions | 129 (Ø) x 110 (h) mm |
| Weight | 670 g |
In the box
- Uniview IP Camera
- Installation material
- User instructions
