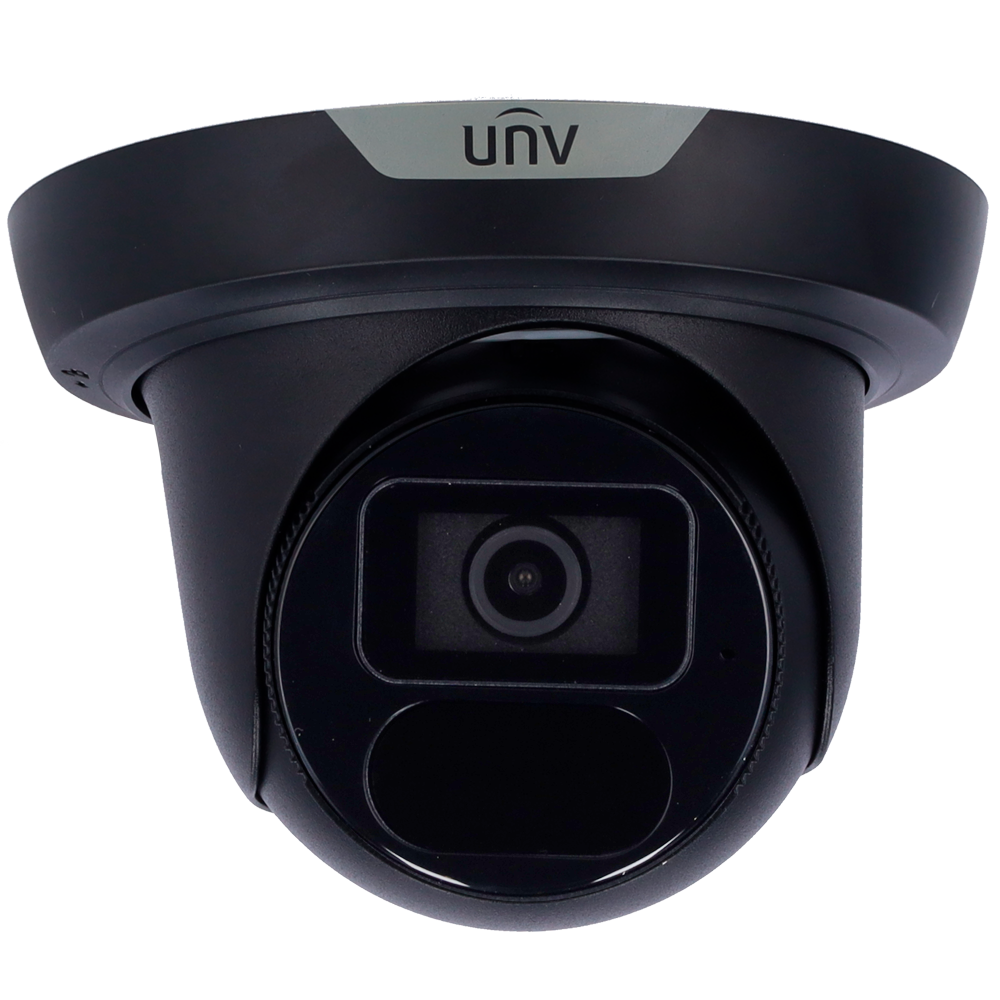

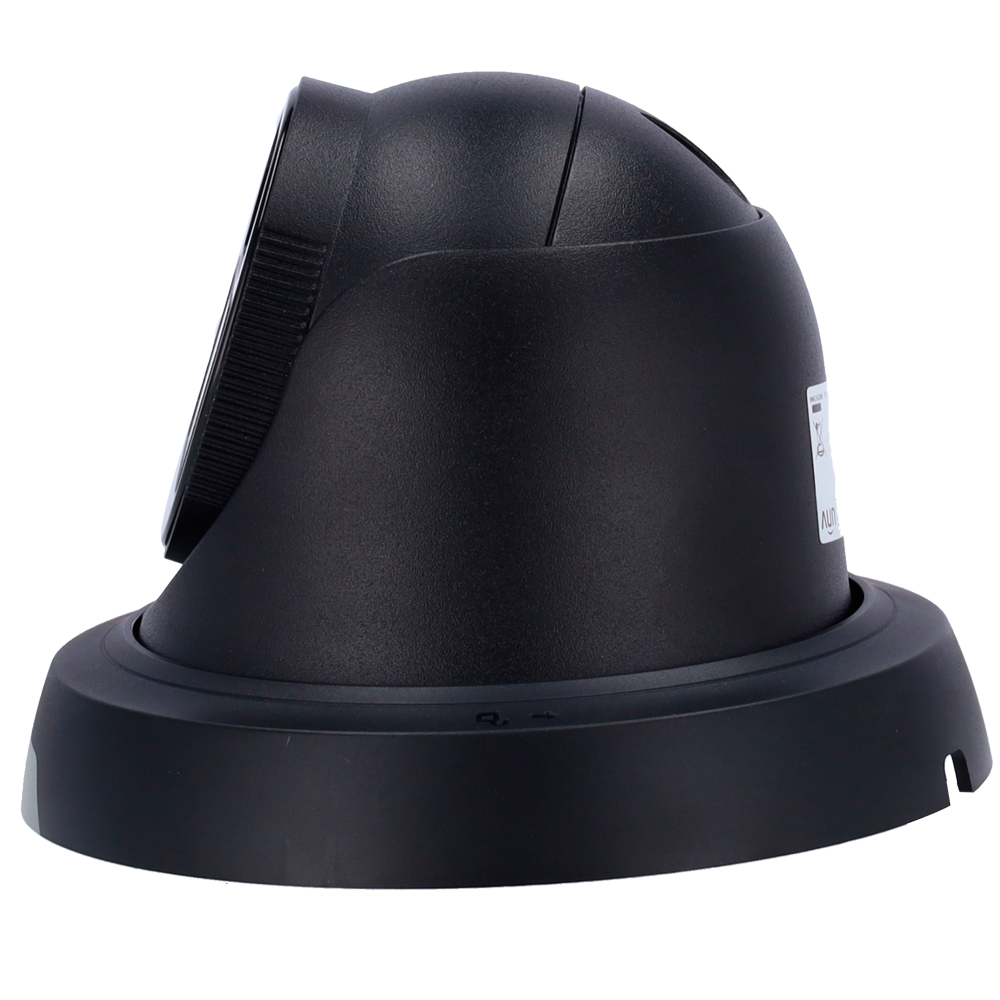

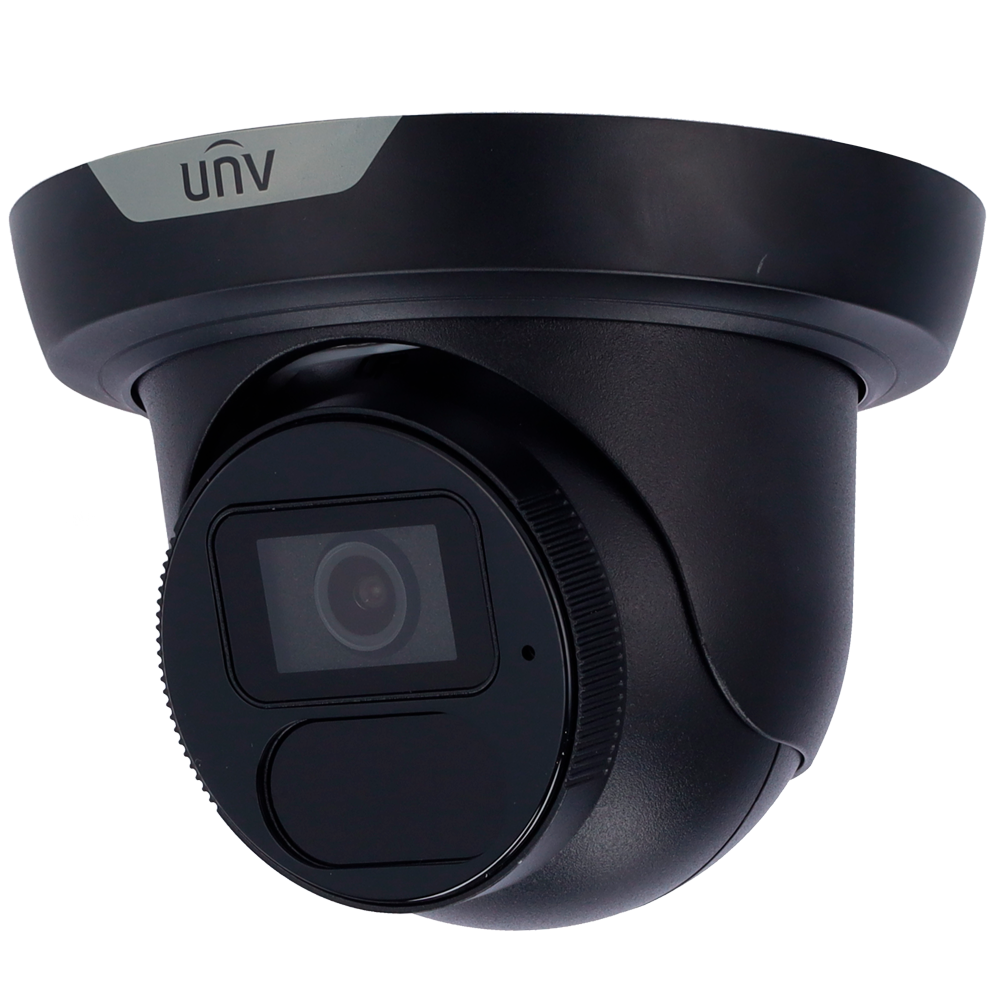

UV-IPC3618SS-ADF28K-I1-BLACK
Ga direct naar de productinformatie
UV-IPC3618SS-ADF28K-I1-BLACK
- 8 MP IP Camera
- Prime range
- Lens 2.8 mm | Built-in microphone
- IR LEDs Range 40 m | WDR 130 dB
- AI Algorithm | Avoid false alarms
- WEB, CMS, Smartphone and NVR interface
- Uniview
- Turret IP Camera
- Prime range
- 1/2.8" Progressive Scan CMOS
- 8 Megapixel (3840x2160)
- 2.8 mm Lens
- 0 Lux
- IR Range 40 m
- WDR 130dB
- Compression Ultra265/H.265/H.264
- Integrated microphone
- Intelligent functions
- PoE IEEE802.3af
- Weatherproof IP67
- Surge protection
- MicroSD slot
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Prime |
| Image sensor | 1/2.8” Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (3840X2160) |
| Main Stream rate | 8MP (3840*2160)@30fps; 5MP (3072*1728)@30fps; 4MP (2560*1440)@30fps; 1080P (1920*1080)@30fps |
| Extra Stream rate | 720P (1280*720)@30fps; D1 (720*576)@30fps; 640*360@30fps; 2CIF(704*288)@30fps; CIF(352*288)@30fps |
| Third Stream Rate | D1 (720*576)@30fps; 640*360@30fps; 2CIF(704*288)@30fps; CIF(352*288)@30fps |
| Compression | Ultra265/H.265/H.264 |
| Audio | Integrated microphone |
| Lens | 2.8 mm |
| Minimum illumination | 0.002 Lux (Color) / 0 lux with IR |
| Infrared range | 40 m |
| Image improvements | WDR (130dB), BLC, HLC, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask, Smart IR |
| SIP (Smart Intrusion Prevention) | Intelligent Intrusion Prevention. Accurate detection of humans and vehicles to avoid false alarms. Event due to line crossing, area intrusion or entry or exit of a previously defined area |
| Intelligent functions | Line crossing, Motion detection, Audio detection, Tamper protection, |
| Statistical analysis | People counting, people flow counting and crowd density control |
| Day / Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 512 GB |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Audio | Integrated microphone |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Power | DC 12 V / 7 W, PoE IEEE802.3af |
| Temp. operation | -40º C ~ 60º C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | Φ129 x 110mm |
| Weight | 420 g |
In the box
- Uniview IP Camera
- Installation material
- User instructions
