UV-IPC3618SB-ADF28KM-I0
- 8 MP IP Camera
- Prime range
- 2.8mm / WDR Lens
- IR LEDs Range 30 m
- AI Algorithm | Avoid false alarms
- WEB, CMS, Smartphone and NVR interface
- Uniview
- Turret IP Camera
- Prime range
- 1/2.7" Progressive Scan CMOS
- 8 Megapixel (3840x2160)
- 2.8 mm Lens
- 0 Lux
- IR Range 30 m
- WDR 120dB
- Compression Ultra265/H.265/H.264
- Integrated microphone
- Intelligent functions
- UMD
- SIP
- PoE IEEE802.3af
- Weatherproof IP67
- Surge protection
- MicroSD slot
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Prime |
| Image sensor | 1/2.7” Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (3840x2160) |
| Main Stream rate | 20 fps (3840x2160) 30 fps (3072x1728, 2560 x 1440, 1920 x 1080) |
| Extra Stream rate | 2º:1080p (1 ~ 30 FPS), 3º:D1 (1 ~ 30 FPS) |
| Compression | Ultra265/H.265/H.264 |
| Lens | 2.8 mm |
| Minimum illumination | 0.01Lux (F2.0, AGC ON) |
| Infrared range | 30 m |
| Image improvements | WDR (120dB), BLC, HLC, AGC, 2D/3D-NR, ROI, Privacy Mask, Smart IR |
| SIP (Smart Intrusion Prevention) | Intelligent Intrusion Prevention. Accurate detection of humans and vehicles to avoid false alarms. Event due to line crossing, area intrusion or entry or exit of a previously defined area |
| Intelligent functions | Motion Detection, Audio Detection, Sabotage Protection |
| Day / Night | Mechanical ICR filter |

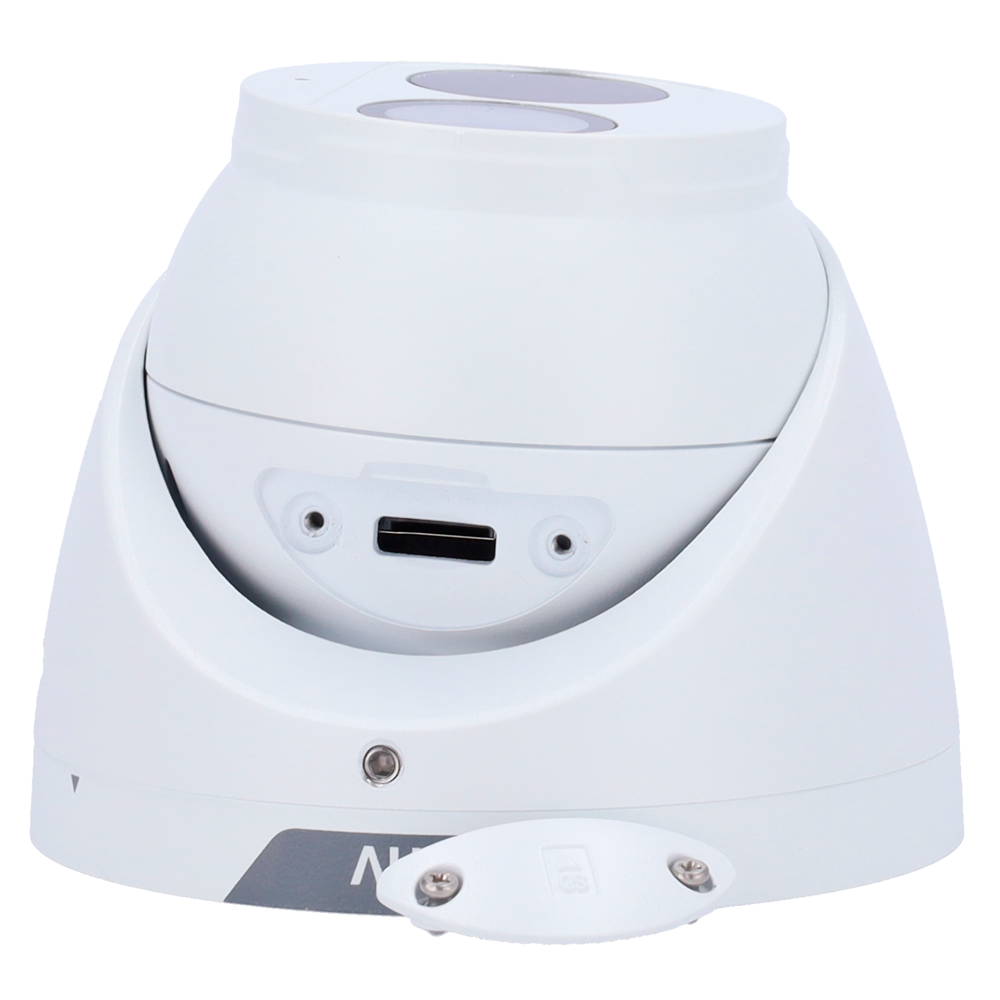

| Internal memory | MicroSD card, Max 256 GB |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Audio | Built-in microphone |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Power | DC 12 V / 5 W, PoE IEEE802.3af |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Waterproof IP67, Surge protection |
| Dimensions | 110 (Ø) x 94 (H) mm |

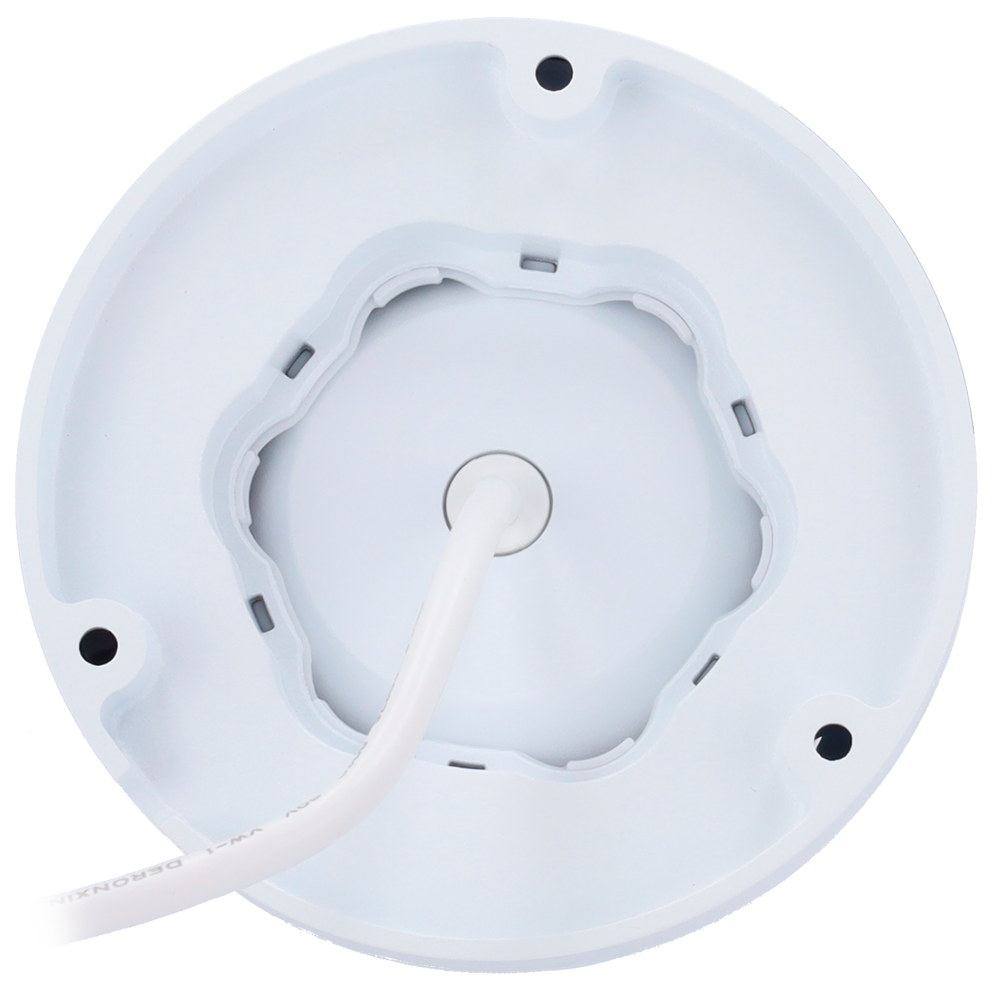

| Base diameter | 98 (Ø) mm / 3 Screws |
| Weight | 440 g |
In the box
- Uniview IP Camera
- Installation material
- User instructions
