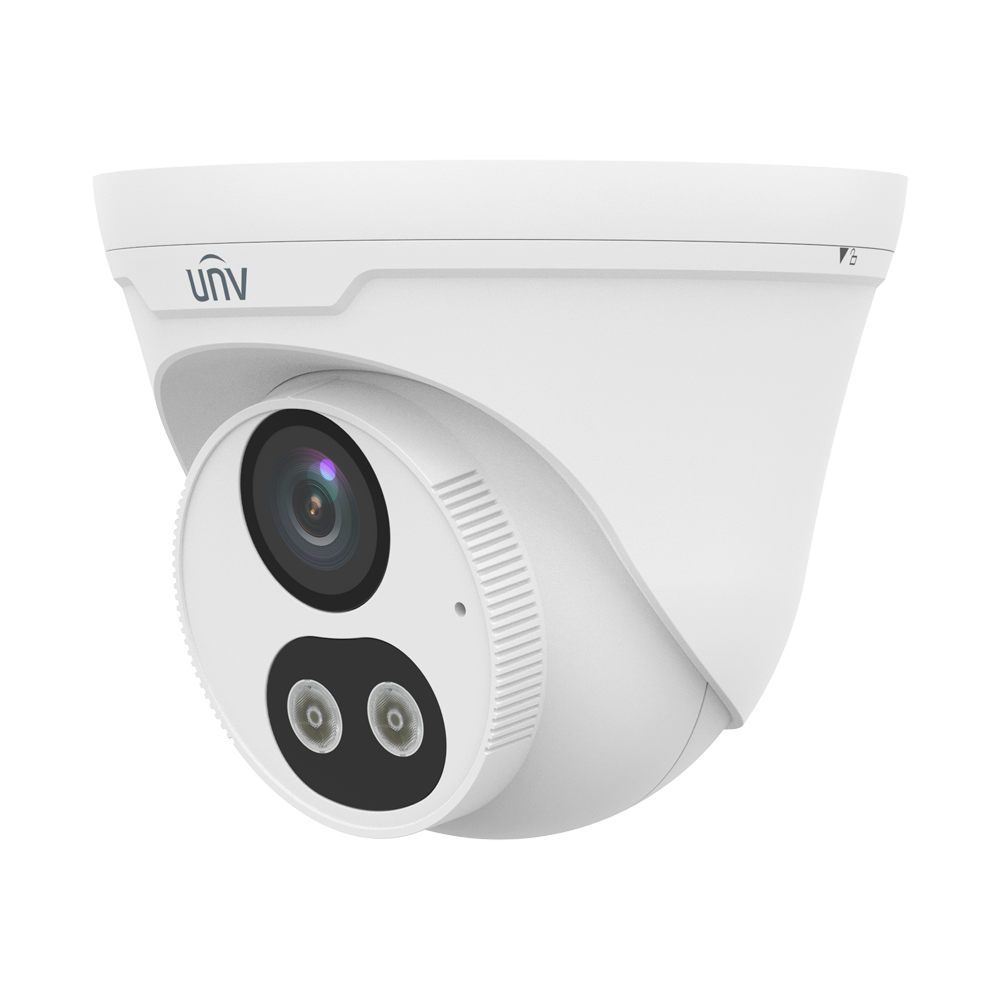

UV-IPC3616LE-ADF28K-DL
- Uniview Turret IP Camera - Easy range
- 6 MP | Lens 2.8 mm | microSD 512 GB
- White light 30 m | IR 30 m | WDR 120 dB
- SIP Lite | UMD
- PoE | IP67
- Microphone
6 MP Easy Turret IP camera with 2.8 mm fixed lens. Features SIPLite, UMD and dual illumination technology: IR and white light.
- 6MP (3200x1800)
- 2.8 mm Lens
- WDR 120 dB
- Minimum illumination 0.003 lux | 0 Lux with supplemental lighting
- IR range of 30 m
- White light range 30 m
- SIPLite: supports line crossing and intrusion analytics based on human and/or vehicle detection.
- Integrated microphone
- Slot for microSD up to 512 GB
- PoE
- IP67
- Plastic and metal
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Easy |
| Image sensor | 1/2.4” CMOS Progressive Scan Starlight |
| Image resolution | 6MP (3200x1800) |
| Main stream rate | 6 MP (3200x1800) @25 fps 4 MP (2560x1440) @30 fps 3 MP (2304x1296) @30 fps 1080P (1920x1080) @30 fps 720P (1280x720) @30 fps |
| Extra stream rate | 720P (1280x720) @30fps D1 (720x576) @30fps 640x360 @30fps 2CIF (704x288) @30fps VAT number (352x288) @30fps |
| Compression | Ultra 265, H.265, H.264, MJPEG |
| Lens | 2.8 mm |
| FOV | Horizontal: 102.73 º Vertical: 53.95 º Diagonal: 106.97 º |
| Range performance | D: 63.1 m O: 25.2 m R: 12.6 m I: 6.3 m |
| Minimum illumination | 0.003 Lux ( F1.6, AGC ON) |
| Scope supplementary lighting | IR: 30 m White light: 30 m |
| Image improvements | BLC, HLC, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask, Smart IR |
| WDR | 120dB |
| Day/Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 256 GB |
| Video backup | ANR video recovery technology by installing a Micro SD card |
| Audio | Integrated microphone |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Power | DC 12 V / 5.4 W, PoE IEEE802.3af |
| Operating Temp | -30º C ~ 60º C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | Φ110.5 x 98mm |
| Weight | 460 g |
In the box
- Uniview IP Camera
- Installation tools
- User instructions
