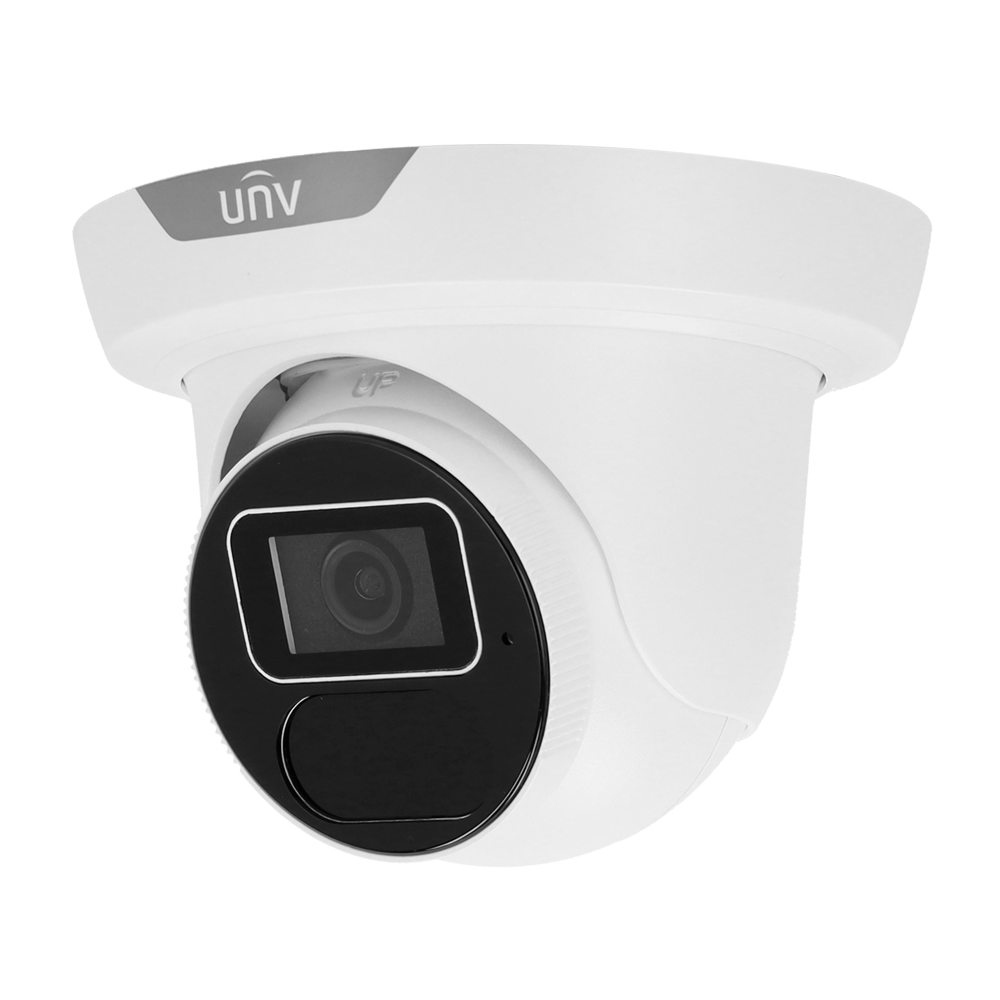

UV-IPC3615SS-ADF28K-I1
Ga direct naar de productinformatie
UV-IPC3615SS-ADF28K-I1
- IP Camera 5 Megapixel
- Prime range
- Lens 2.8 mm / WDR 130dB
- Smart IR LEDs 40 m Range
- AI | SIP Algorithm
- Supports corridor mode 9:16
- Uniview
- Turret IP Camera
- Prime range
- 1/2.7" Progressive Scan CMOS
- 5 Megapixel (2880 x 1620)
- 2.8 mm Lens
- LightHunter
- Intelligent IR
- Range 40 m
- WDR 130dB
- Compression Ultra265/H.265/H.264
- Integrated microphone
- Intelligent functions
- UMD
- SIP
- Intelligent people flow counting and crowd density monitoring
- Supports corridor mode 9:16
- PoE IEEE802.3af
- Weatherproof IP67
- Surge protection
- Corridor mode 9:16
- MicroSD slot
- ONVIF Compatible
- Automatic Scene Matching (ASM)
Specifications
| Brand | Uniview |
| Range | Prime |
| Image sensor | 1/2.7” Progressive Scan CMOS |
| Maximum resolution | 5 Megapixel (2880 x 1620) |
| Lens | 2.8 mm (H: 110.71°, V: 55,39°, D: 114.11°) |
| Main Stream rate | 5MP (2880 x 1620), Max 30fps; 4MP (2560 x 1440), Max 30fps; 3MP (2304 x 1296), Max 30fps; 1080P (1920 x 1080), Max 30fps; |
| Extra Stream rate | 1080P (1920 x 1080), Max 30fps; 720P (1280 x 720), Max 30fps; D1 (720 x 576), Max 30fps; 640*360, Max 30fps; 2CIF(704 x 288), Max 30fps; CIF(352 x 288), Max 30fps; |
| Compression | Ultra 265, H.265, H.264, MJPEG |
| Minimum illumination | Colour: 0,001 lux (F1.6, AGC ON) 0 lux with activated IR |
| Intelligent Infrared Range | 40 m |
| Image improvements | WDR (130dB), BLC, HLC, AGC, 2D/3D-NR, ROI, Privacy Mask, Smart IR |
| SIP (Smart Intrusion Prevention) | Supports false alarm filtering: cross-line detection, intrusion detection, entry area detection, exit area detection |
| Color Retrieval | Color metadata detection on humans, vehicles and two-wheelers. |
| Statistical analysis | People counting, people flow counting and crowd density monitoring |
| UMD | Integrates Ultra motion detection |
| Automatic Scene Matching (ASM) | Support (WDR only) |
| Internal memory | MicroSD card, Max 256 GB |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Audio | Built-in microphone |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF (S-Profile, G-Profile, T-Profile), API, SDK |
| Power | DC 12 V / 6,5 W, PoE IEEE802.3af |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Waterproof IP67, Surge protection |
| Material | Metal+Plastic |
| Dimensions | 129 (Ø) x 110 (H) mm |
| Weight | 430 g |
In the box
- Uniview IP Camera
- Installation material
- User instructions
