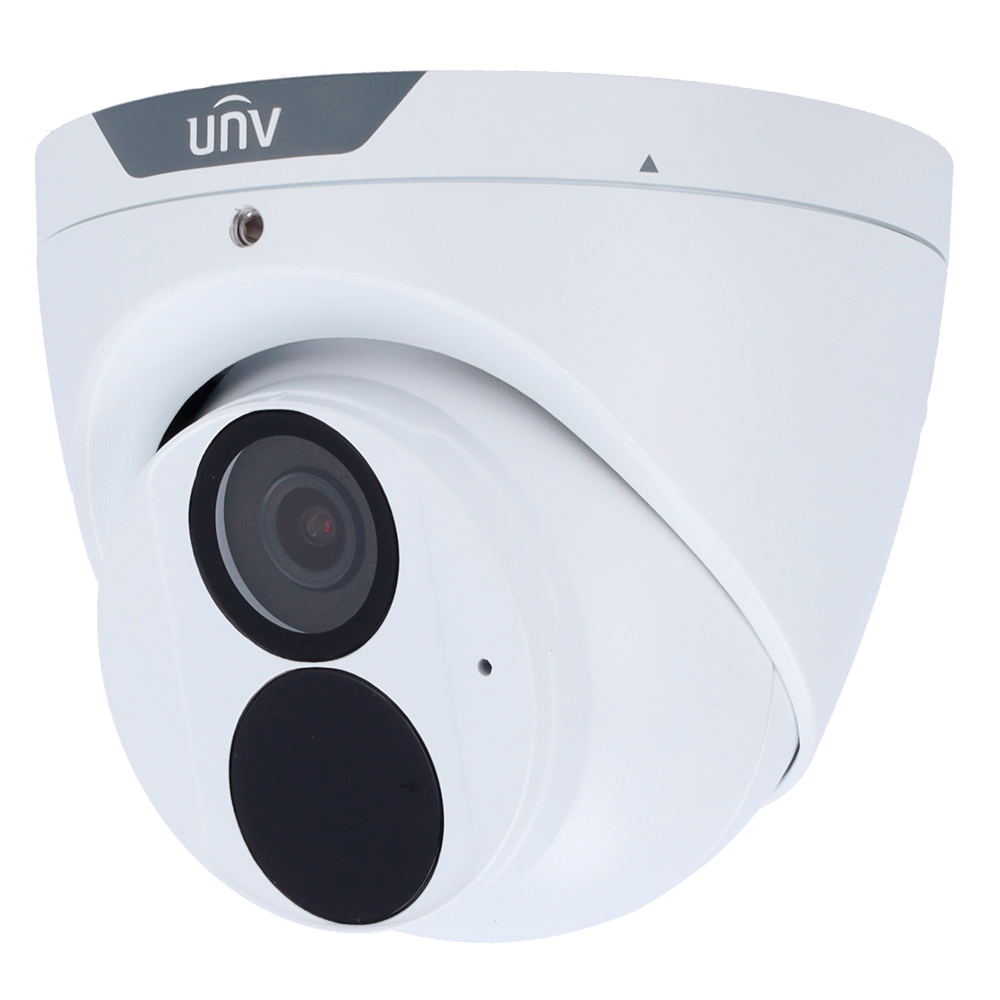

UV-IPC3615SB-ADF28KM-I0
Ga direct naar de productinformatie
UV-IPC3615SB-ADF28KM-I0
- Uniview Turret IP Camera - Prime range
- 5 MP | Lens 2.8 mm | microSD 512 GB
- IR 30m | WDR 120 dB
- SIP | UMD | People Counting
- PoE | IP67
- Microphone
5 MP Turret IP Prime camera. Integrates advanced analytics features for accurate classification of people and vehicles, intelligent intrusion prevention and advanced AI analytics.
- Turret IP Camera - Prime Range
- 5 MP (3072x1728)
- 2.8 mm Lens
- Minimum illumination: 0.002 lux
- 0 lux with supplementary light
- IR range of 30 m
- People flow counting and crowd monitoring
- SIP (Smart Intrusion Prevention): combines artificial intelligence algorithms with real-time video analysis to accurately identify human and vehicular intrusions, minimizing false alarms caused by animal movements or weather conditions
- UMD (Ultra Motion Detection): thanks to its advanced AI algorithm, UMD is able to detect changes in the environment extremely efficiently, even in conditions of high speed or motion difficult to capture by other technologies
- WDR 120dB
- Integrated microphone
- PoE
- Slot for Micro SD up to 512 GB
- IP67
- Metallic
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Prime |
| Image sensor | 1/2.7” Progressive Scan CMOS |
| Maximum resolution | 5 Megapixel (3072x1728) |
| Lens | 2.8 mm |
| Viewing Angle (FOV) | H: 110º V: 58.7º D: 130º |
| Range performance | D: 63 m O: 25.2 m R: 12.6 m I: 6.3 m |
| Main Stream rate | 5MP (2880x1620)@30 fps; 4MP (2560x1440)@30 fps; 1080p (1920x1080)@30 fps; 720p (1280x720)@30 fps |
| Extra Stream rate | 720p (1280x720)@30 fps; D1 (720x76@30 fps; 640x360@30 fps; 2CIF (704x288)@30 fps; CIF (352x288)@30 fps |
| Compression | Ultra265/H.265/H.264 |
| Minimum illumination | Colour: 0,002 lux (F1.0, AGC ON) 0 lux with Supplementary light |
| Supplementary lighting | IR range: 30 m |
| Image improvements | WDR (120dB), BLC, HLC, AGC, 2D/3D-NR, ROI, Privacy Mask, Smart IR |
| Microphone | Yes |
| SIP (Smart Intrusion Prevention) | Intelligent Intrusion Prevention. Accurate detection of humans and vehicles to avoid false alarms. Event due to line crossing, area intrusion or entry or exit of a previously defined area |
| Statistical analysis | People flow counting. Crowd density monitoring. |
| UMD | Integrates Ultra Motion Detection. |
| Intelligent functions | Motion Detection, Audio Detection, Sabotage Protection |
| Day / Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 256 GB |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Audio | Built-in microphone and speaker |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Power | DC 12 V / 7.5 W, PoE IEEE802.3af |
| Temp. operation | -30º C ~ 60º C |
| Material | Metallic |
| Degree of protection | Waterproof IP67, Surge protection |
| Dimensions | Ø 111 x 95 (H) mm |
| Weight | 410 g |
In the box
- Uniview IP Camera
- Installation material
- User instructions
