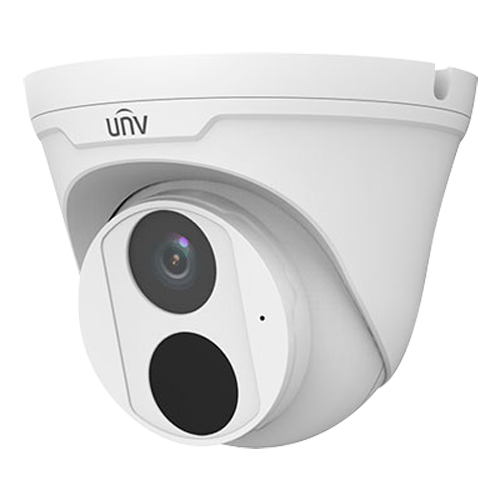

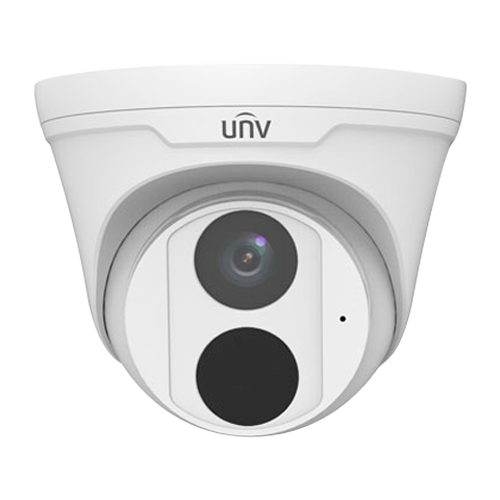

UV-IPC3615LE-ADF28K-G
Ga direct naar de productinformatie
UV-IPC3615LE-ADF28K-G
- 5 MP IP Camera
- EasyStar range
- 1/2.7" Progressive Scan CMOS
- 2.8 mm Lens
- IR LEDs Range 30 m
- WEB, CMS, Smartphone and NVR interface
- Uniview
- Turret IP Camera
- EasyStar range
- 1/2.7" Progressive Scan CMOS
- 5 Megapixel (2880x1620)
- 2.8 mm Lens
- 0 Lux
- IR Range 30 m
- WDR 120dB
- Compression Ultra265/H.265/H.264
- Integrated microphone
- RJ-45 10/100 BaseT
- PoE IEEE802.3af
- Corridor mode
- Weatherproof IP67
- Surge protection
- MicroSD slot
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | EasyStar |
| Image sensor | 1/2.7” CMOS Progressive Scan Starlight |
| Image resolution | 5 Megapixel (2880X1620) |
| Main stream rate | 5MP (2880x1620)@ 25fps;4MP (2560x1440)@ 25fps; 3MP (2304x1296)@30fps; 1080P (1920x1080)@30fps; |
| Extra stream rate | 720P(1280x720), D1 (720x576), 640x360 @30fps |
| Compression | Ultra 265, H.265, H.264, MJPEG |
| Lens | 2.8 mm |
| Minimum illumination | 0.003Lux ( F1.6, AGC ON) |
| Infrared range | 30 m |
| Image improvements | WDR (120dB), BLC, HLC, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask, Smart IR |
| Corridor Mode | Yes |
| Day/Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 256 GB |
| Video backup | ANR video recovery technology by installing a Micro SD card |
| Audio | Integrated microphone |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Power | DC 12 V / 6 W, PoE IEEE802.3af |
| Operating Temp | -30º C ~ 60º C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | Φ118 x 95mm |
| Weight | 350 g |
In the box
- Uniview IP Camera
- Installation tools
- User instructions
