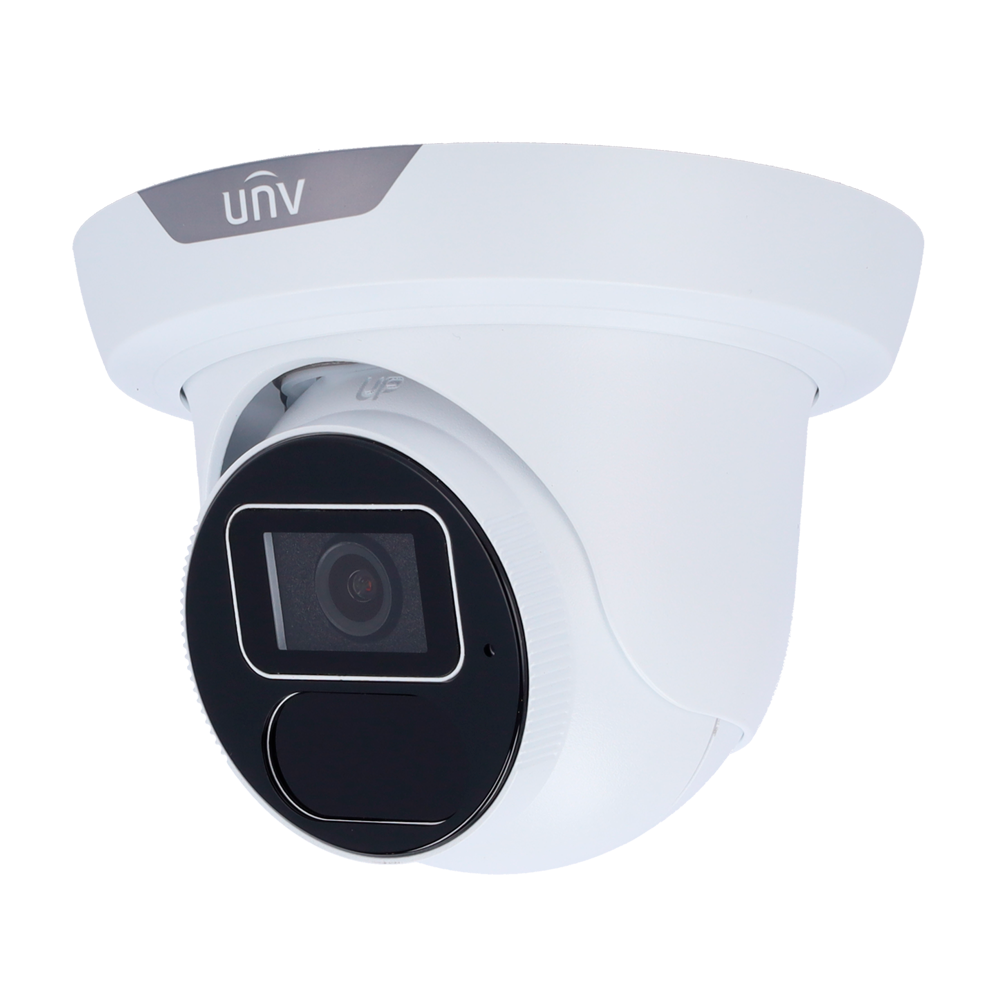

UV-IPC3614SS-ADF28K-I1
Ga direct naar de productinformatie
UV-IPC3614SS-ADF28K-I1
- Prime II Range
- 4 MP IP Camera
- 2.8 mm Lens
- IR LEDs Range 40 m | Built-in Microphone
- SIP | People Counting | UMD
- WDR 130 dB | Aisle Mode 9:16
- Uniview
- Turret IP Camera
- Prime II Range
- 1/3" Progressive Scan CMOS
- 4 Megapixel (2688x1520)
- 2.8 mm Lens
- LightHunter
- Color Retrieval
- IR Range 40 m
- WDR 130dB
- Compression Ultra265/H.265/H.264
- Integrated microphone
- SIP
- People count
- ASM
- Aisle mode 9:16
- PoE IEEE802.3af
- Weatherproof IP67
- Surge protection
- MicroSD slot
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Prime II |
| Image sensor | 1/3” Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2688X1520) |
| Lens | 2.8 mm (H: 97,68º , V:52,67º, D:102,52º) |
| Minimum illumination | Colour: 0,002 lux (F1,6, AGC on) 0 lux with IR |
| Range performance | Detection 63 m 25.2 m Observation 12.6 m Recognition 6.3 m Identification |
| Infrared range | 40 m |
| Main Stream rate | 4MP (2688 x 1520), maximum 30 fps; 4MP (2560 x 1440), maximum 30 fps; 3MP (2304 x 1296), maximum 30 fps; 1080P (1920 x 1080), maximum 30 fps; |
| Extra Stream rate | 1080P (1920 x 1080), maximum 30 fps; 720P (1280 x 720), maximum 30 fps; D1 (720 x 576), maximum 30 fps; 640 x 360, maximum 30 fps; 2CIF (704 x 288), maximum 30 fps; CIF (352 x 288), maximum 30 fps |
| Compression | Ultra 265, H.265, H.264, MJPEG |
| Image improvements | WDR (130dB), BLC, HLC, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask, Smart IR |
| SIP (Smart Intrusion Prevention) | Intelligent Intrusion Prevention. Accurate detection of humans and vehicles to avoid false alarms. Event due to line crossing, area intrusion or entry or exit of a previously defined area |
| Color Retrieval | Color metadata detection on humans, vehicles and two-wheelers. |
| Statistical analysis | People counting, people flow counting and crowd density monitoring |
| Intelligent functions | Line Crossing, Motion Detection, Audio Detection, Tamper Protection |
| UMD | Integrates Ultra motion detection |
| Automatic Scene Matching (ASM) | Support (WDR only) |
| UMD | Integrates Ultra motion detection |
| Corridor Mode | 9:16 |
| Day / Night | Mechanical ICR filter |

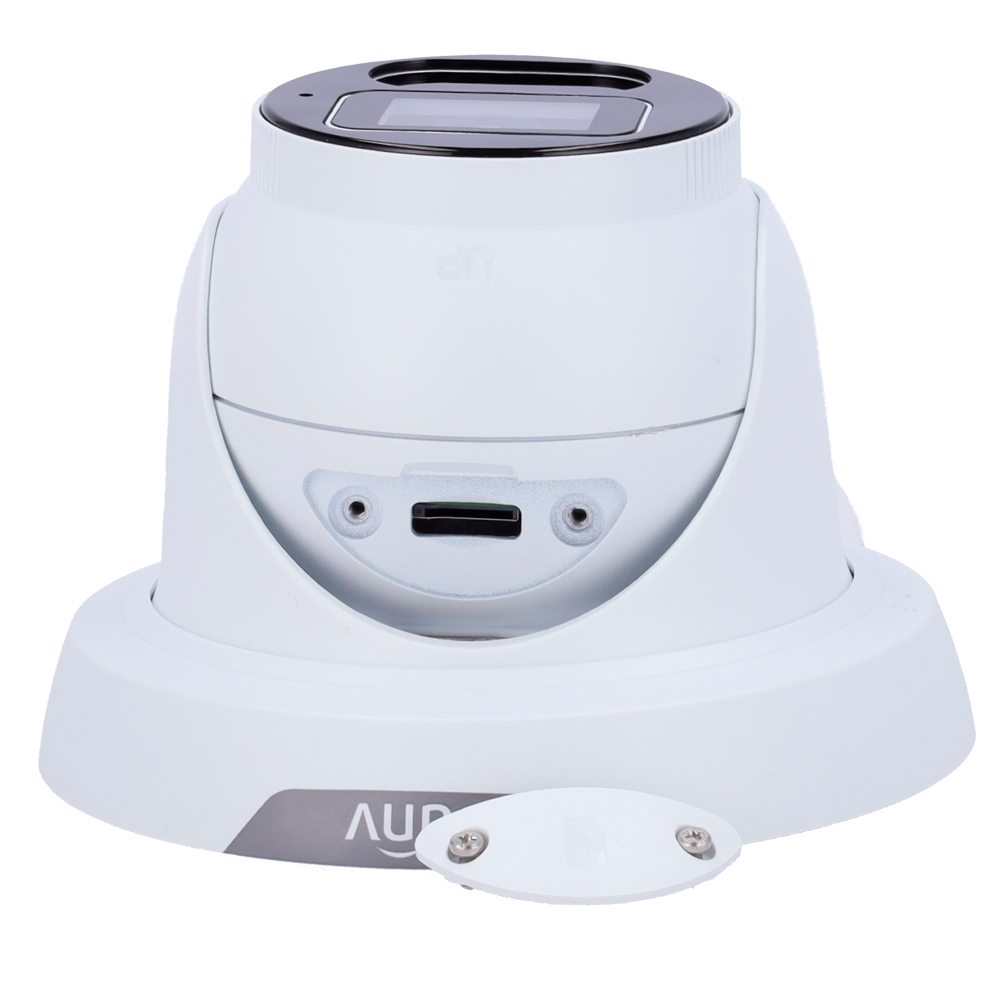

| Internal memory | MicroSD card, Max 256 GB |
| Network storage | ANR, NAS (NFS) |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Audio | Integrated microphone |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Material | Metal+Plastic |
| Power | DC 12 V / 6,5 W, PoE IEEE802.3af |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 110 mm (H) x 129 (Ø) mm |
| Weight | 430 g |
In the box
- Uniview IP Camera
- Installation material
- User instructions
