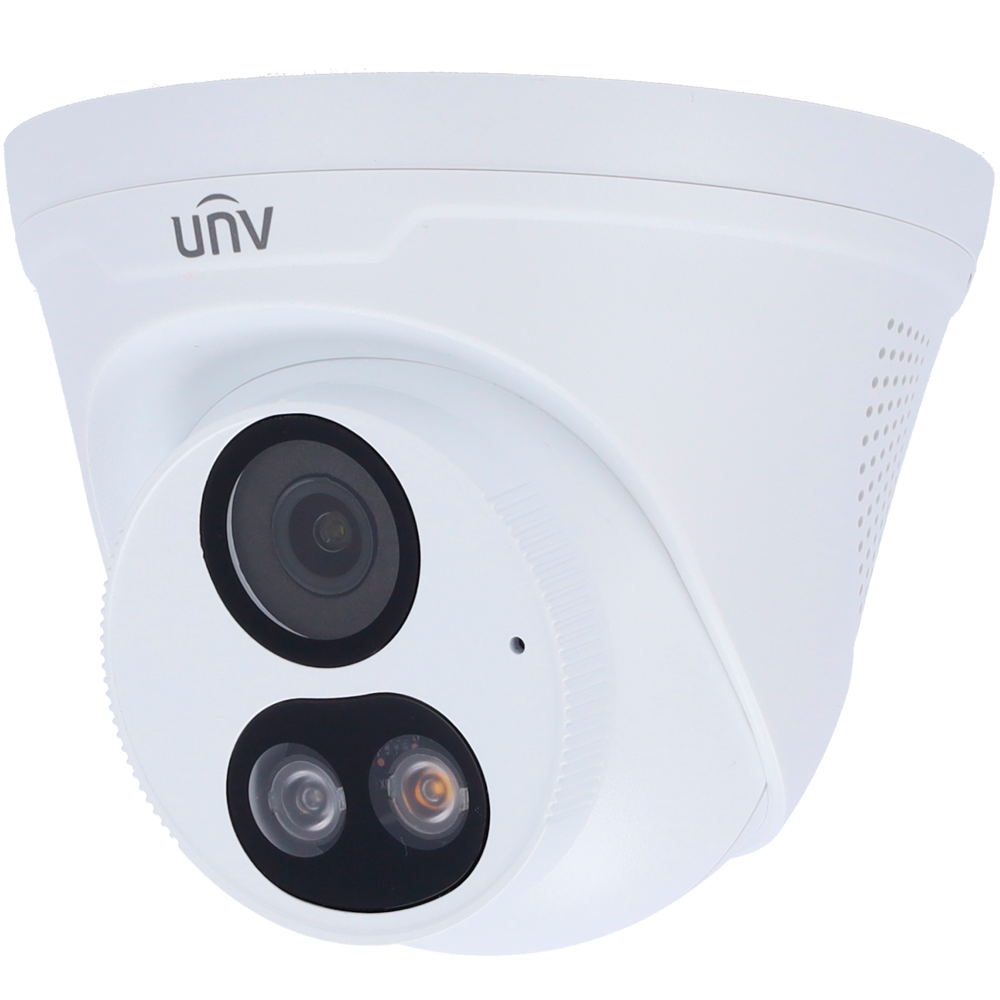

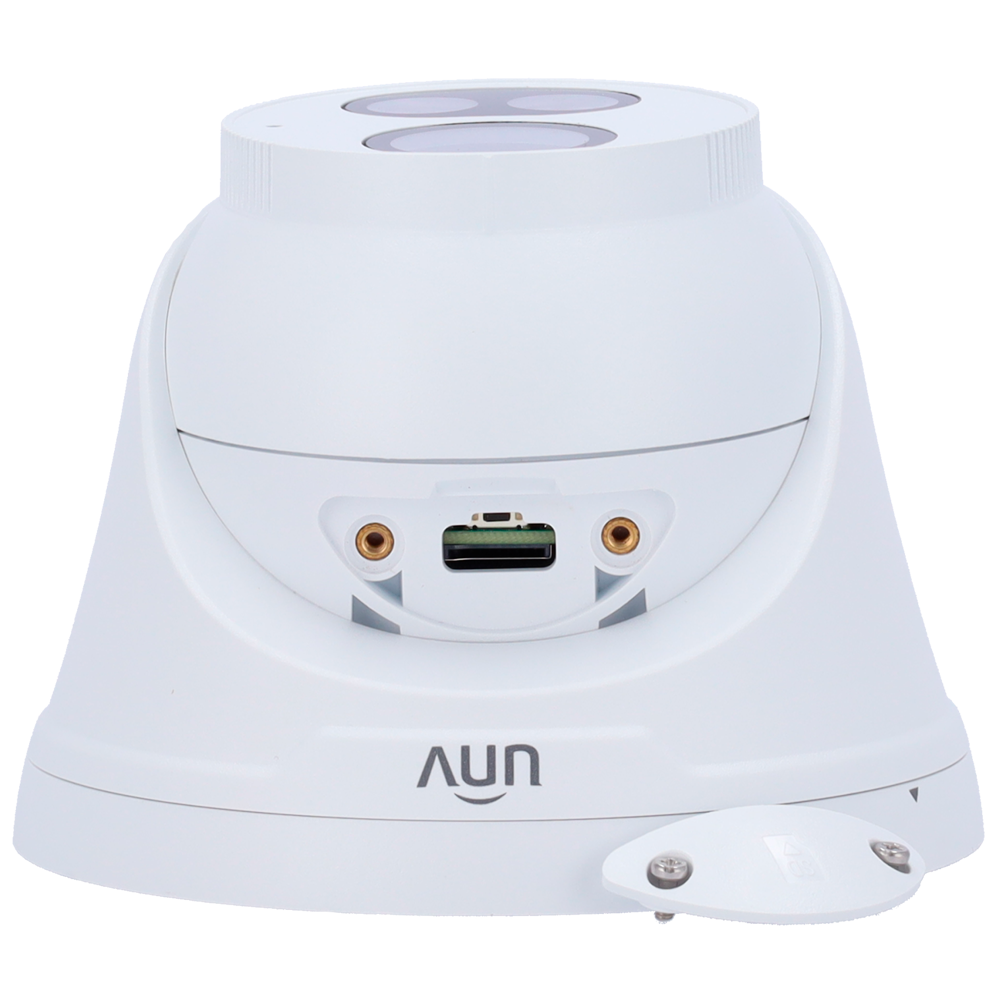

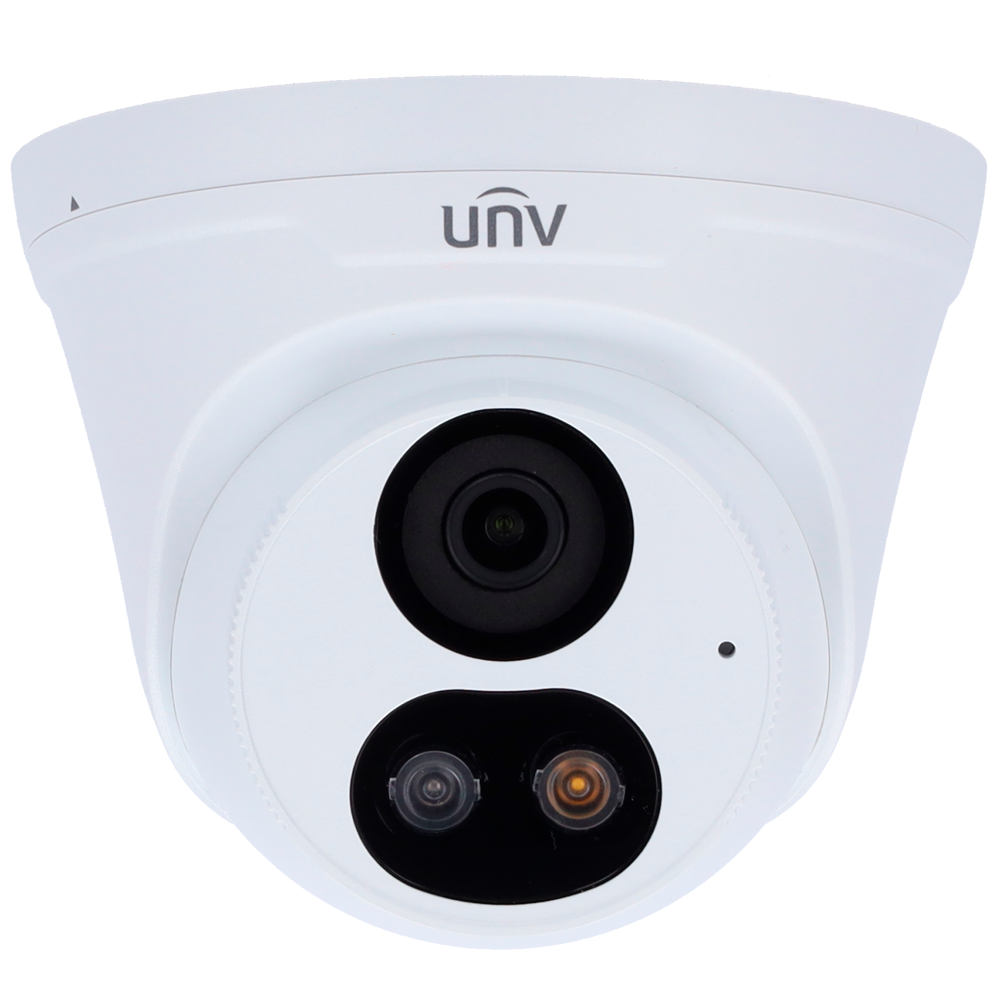

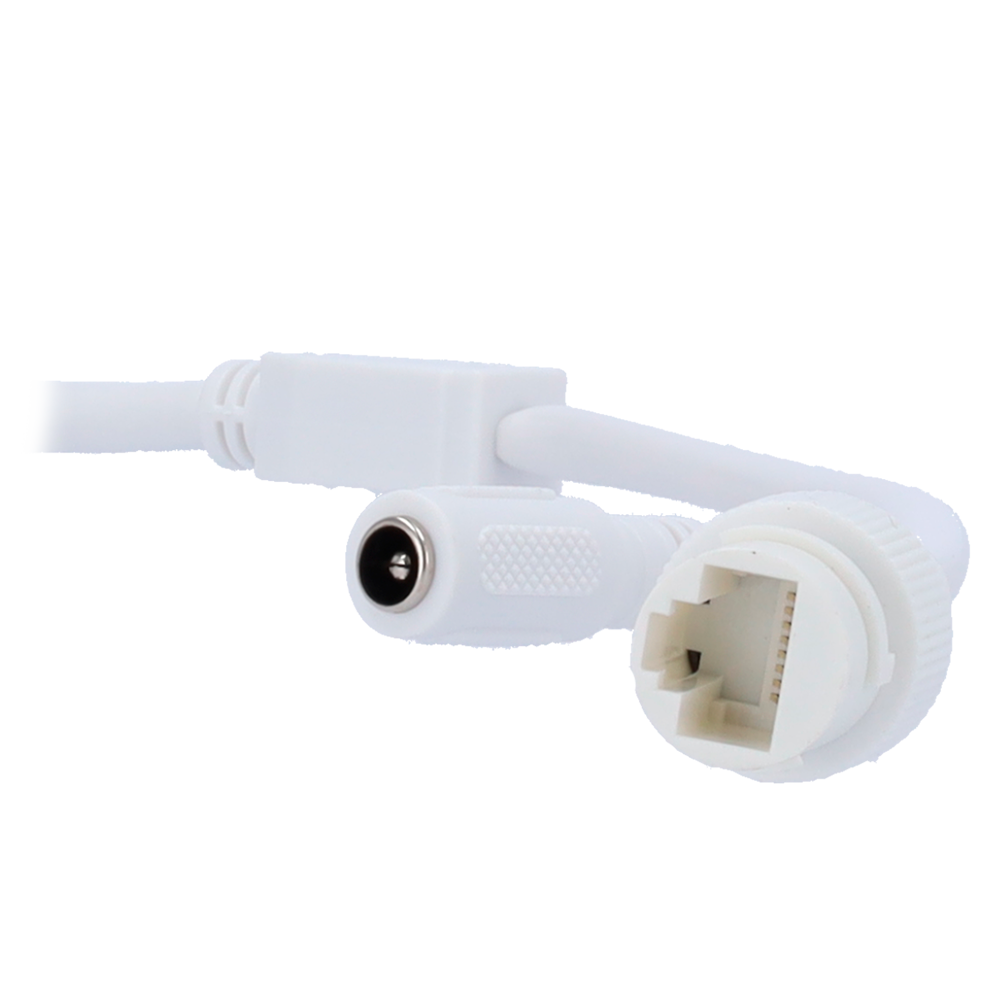

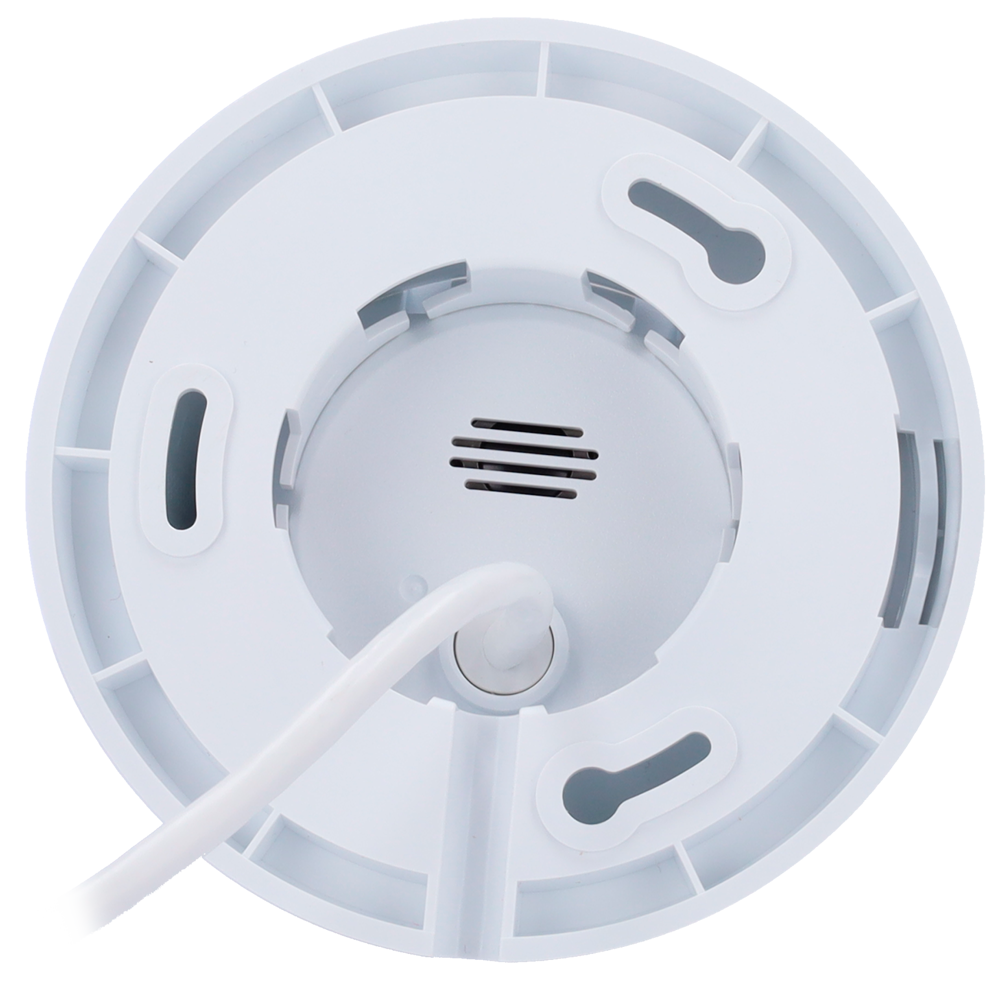

UV-IPC3612LE-ADF28KC-DL
Ga direct naar de productinformatie
UV-IPC3612LE-ADF28KC-DL
- IP camera 2 Megapixel dual light
- EasyStar range
- 1/2.8" Progressive Scan CMOS
- Lens 2.8 mm | Dual Range Light 30 m
- ColorHunter
- WEB, CMS, Smartphone and NVR interface
- Uniview
- Turret IP Camera
- EasyStar range
- 1/2.8" Progressive Scan CMOS
- 2 Megapixel (1920x1080)
- Fisheye
- 2.8 mm Lens
- Dual IR and white light with range 30 m
- ColorHunter
- WDR 120dB
- Compression Ultra265/H.265/H.264
- Integrated microphone
- Integrated speaker
- PoE IEEE802.3af
- Surge protection
- Slot for microSD up to 128GB
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
- Weatherproof IP67
Specifications
| Brand | Uniview |
| Range | EasyStar |
| Image sensor | 1/2.8" CMOS Progressive Scan Starlight |
| Maximum resolution | 2 Megapixel (1920x1080) |
| Main Stream rate | 1080P (1920*1080)@30fps; 720P (1280*720)@30fps; |
| Extra Stream rate | 720P (1280*720)@30fps; D1 (720*576)@30fps; 640*360@30fps |
| Compression | Ultra265/H.265/H.264 |
| Lens | 2.8 mm |
| Minimum illumination | 0.003 Lux (Colour) |
| Infrared range | 30 m |
| White light range | 30 m |
| Image improvements | WDR 120dB, BLC, HLC, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask, Smart IR |
| SIP (Smart Intrusion Prevention) | Line crossing, intrusion (based on human detection only) |
| Field of view | 06.7º (H), 57.1º (V), 115.7º (D) |
| Range performance | 43.4 m (D), 17.4 m (O), 8.7 m (R), 4.3 m (I) |
| Day / Night | Automatic and configurable |
| Internal memory | Slot for microSD card up to 128GB |
| Alarms | Does not have |
| Audio | Built-in microphone, Built-in speaker |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Power | DC 12 V / 8 W, PoE IEEE802.3af |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Waterproof IP67, Surge protection |
| Dimensions | Φ118 x 96mm |
| Weight | 320 g |
In the box
- Uniview IP Camera
- Installation material
- User instructions
