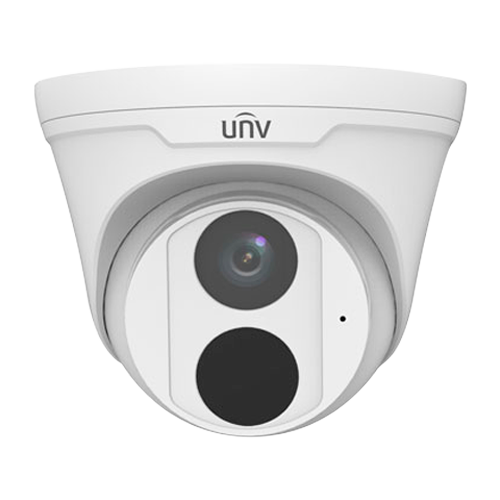

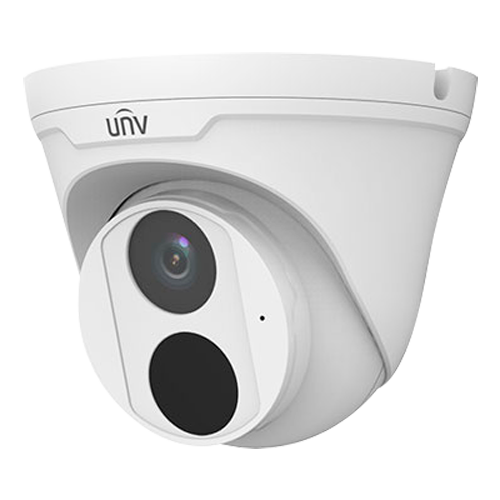

UV-IPC3612LB-ADF28K-H
- Turret IP Camera EasyBasic Range
- Resolution 2 MP (1920x1080)
- 2.8 mm Lens
- IR LEDs Range 30 m
- Ultra Motion Detection
- Integrated microphone | PoE | IP67 | MicroSD
Uniview Easy (-H) cameras with UMD (Ultra Motion Detection) technology stand out for their quality. UMD is an advanced function that allows to detect movements with an accuracy of 90%, a range of 15 meters and the possibility to configure up to 8 detection zones, minimizing false alarms.
- Uniview
- Turret IP Camera
- EasyBasic range
- 1/2.7" Progressive Scan CMOS
- 2 Megapixel (1920x1080)
- 2.8 mm Lens
- 0 Lux
- IR Range 30 m
- Compression Ultra265/H.265/H.264

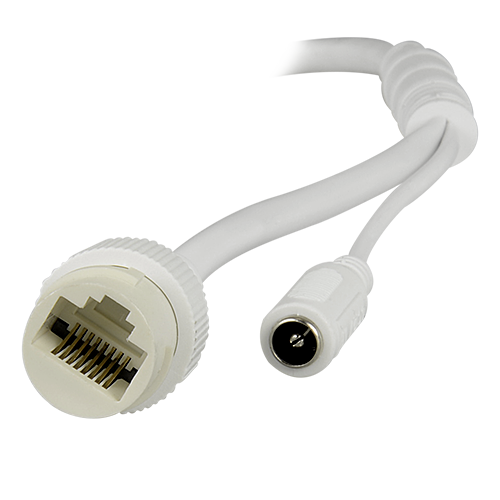

- RJ-45 10/100 BaseT
- Integrated microphone
- Ultra Motion Detection
- Corridor mode
- MicroSD card slot up to 128 GB
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
- PoE IEEE802.3af
- Weatherproof IP67
- Surge protection 4000 V
Specifications
| Brand | Uniview |
| Range | EasyBasic |
| Image sensor | 1/2.7” Progressive Scan CMOS |
| Image resolution | 2 Megapixel (1920x1080) |
| Main stream rate | 1080p (1920x1080), maximum 30fps; 720p (1280x720), maximum 30fps |
| Extra stream rate | 720p (1280x720), maximum 30fps; D1 (720x576), maximum 30fps; 640x360, maximum 30fps |
| Compression | Ultra 265, H.265, H.264, MJPEG |
| Video bitrate | 128 Kbps~6144 kbps |
| Lens | 2.8 mm |
| Viewing Angle (FOV) | H: 112.9º, V: 59.1º, D: 121.2º |
| Range performance | 42 m (D), 16.8 m (O), 8.4 m (R), 4.2 m (I) |
| Minimum illumination | 0.01 Lux @(F2.0, AGC ON) 0 lux with IR |
| Infrared range | 30 m |
| Day/Night | Mechanical ICR filter |
| Image improvements | WDR (120 dB), BLC, HLC, AGC, AWB, 2D/3D-DNR, ROI, Privacy Mask, Smart IR, Flip |
| UMD | Integrates Ultra Motion Detection. |
| Video backup | ANR video recovery technology by installing a Micro SD card |
| Internal memory | MicroSD card slot up to 128 GB |
| Audio | Integrated microphone |
| Audio Compression | G.711U, G.711A |
| Audio bitrate | 64 Kbps |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF (Profile S, Profile G, Profile T), API, SDK |
| Power | DC 12V / 7W PoE IEEE802.3af |
| Operating Temp | -30º C ~ 60º C |
| Material | Metal and plastic |
| Degree of protection | Waterproof IP67, Surge protection 4000 V |
| Dimensions | Φ 118 mm x 96 (H) mm |

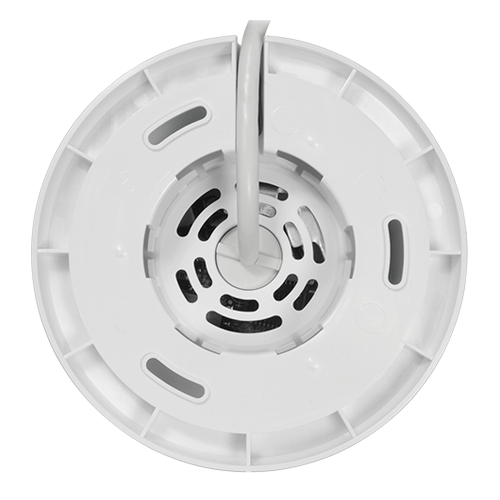

| Base dimensions | Ø base 118 mm / Ø between bolts 80 mm / 3 bolts |
| Weight | 300 g |
In the box
- Uniview IP Camera
- Installation tools
- User instructions
