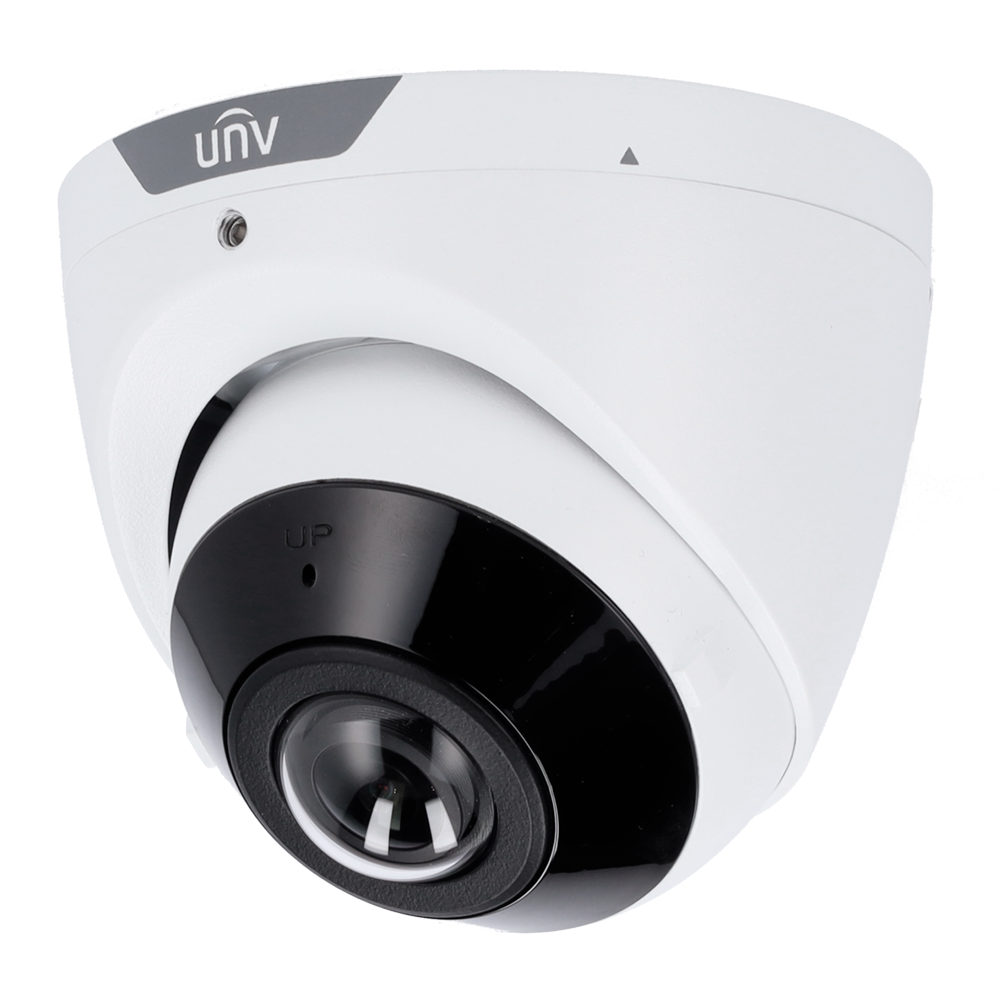

UV-IPC3605SB-ADF16KM-I0
Ga direct naar de productinformatie
UV-IPC3605SB-ADF16KM-I0
- 5 MP IP Camera
- Prime range
- Lens 1.6 mm / Intelligent Wide-Angle
- IR LEDs Range 20 m | Audio and alarms
- AI Algorithm | Avoid false alarms
- WEB, CMS, Smartphone and NVR interface
- Uniview
- Turret IP Camera
- Prime range
- 1/2.7" Progressive Scan CMOS
- 5 Megapixel (2688x1520)
- Wide-angle 180º
- 1.6 mm Lens
- 0 Lux
- IR Range 20 m
- WDR 120 dB
- Compression Ultra265/H.265/H.264
- Integrated microphone
- Intelligent functions
- PoE IEEE802.3af -Slot for microSD 256Gb
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
- Weatherproof IP67
- Surge protection
- Vandal proof IK10
Specifications
| Brand | Uniview |
| Range | Prime |
| Image sensor | 1/2.7” Progressive Scan CMOS |
| Maximum resolution | 5 Megapixel (2880X1620) |
| Main Stream rate | 5MP (2880 x 1620), Max 30fps; 4MP (2560 x 1440), Max 30fps; 1080P (1920 x 1080), Max 30fps; |
| Compression | Ultra265/H.265/H.264 |
| Lens | 1.6 mm |
| Minimum illumination | 0.01 Lux (Colour) |
| Infrared range | 20 m |
| Image improvements | WDR (120dB), BLC, HLC, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask, Smart IR, Intelligent Wide Angle |
| SIP (Smart Intrusion Prevention) | Intelligent Intrusion Prevention. Accurate detection of humans and vehicles to avoid false alarms. Event due to line crossing, area intrusion or entry or exit of a previously defined area |
| Intelligent functions | Line Crossing, Motion Detection, Audio Detection, Tamper Protection, Corridor Mode |
| Day / Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 256 GB |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Dewarping | Supported (1-9) |
| Material | Metallic |
| Audio | Integrated microphone |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF (Profile S/ Profile G/ Profile T) API,SDK |
| Power | DC 12 V / 5.5 W, PoE IEEE802.3af |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Waterproof IP67 / IK10 |
| Dimensions | Ø 111 mm x 93 (H) mm |
| Weight | 480 g |
In the box
- Uniview IP Camera
- Installation material
- User instructions
