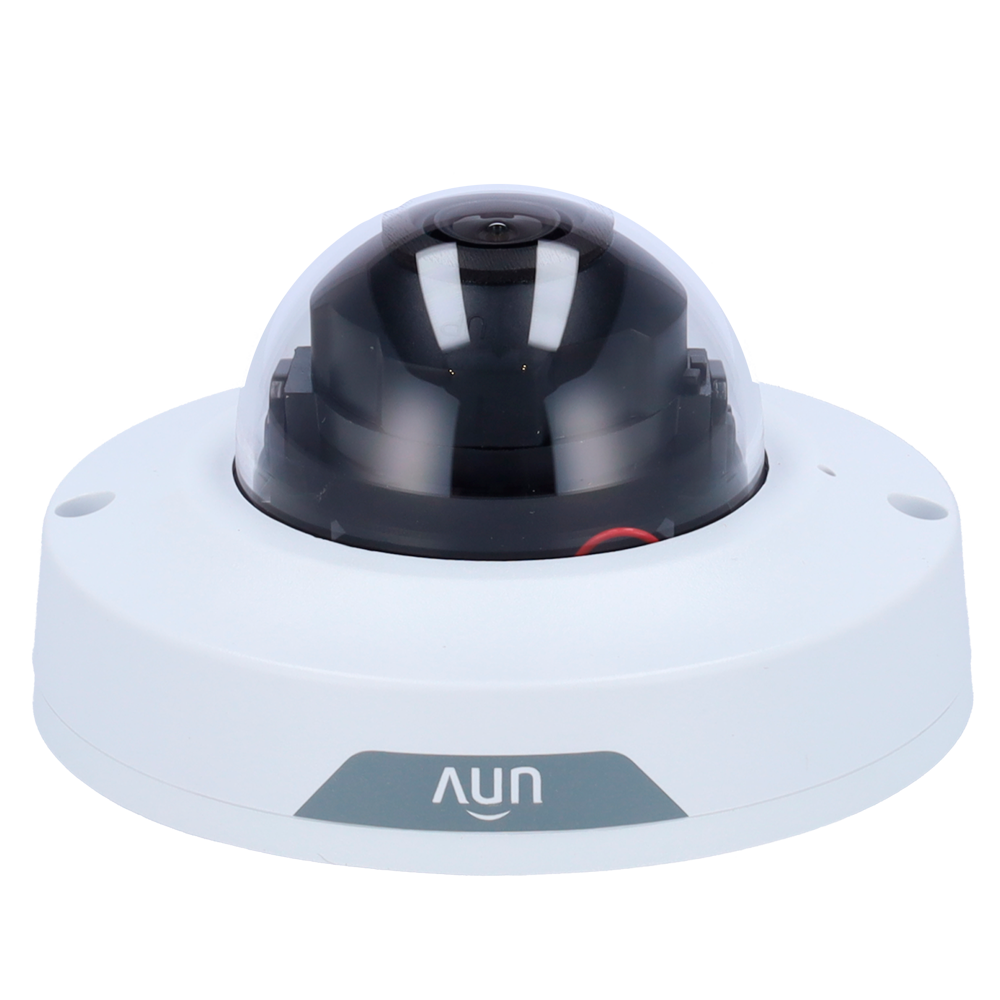

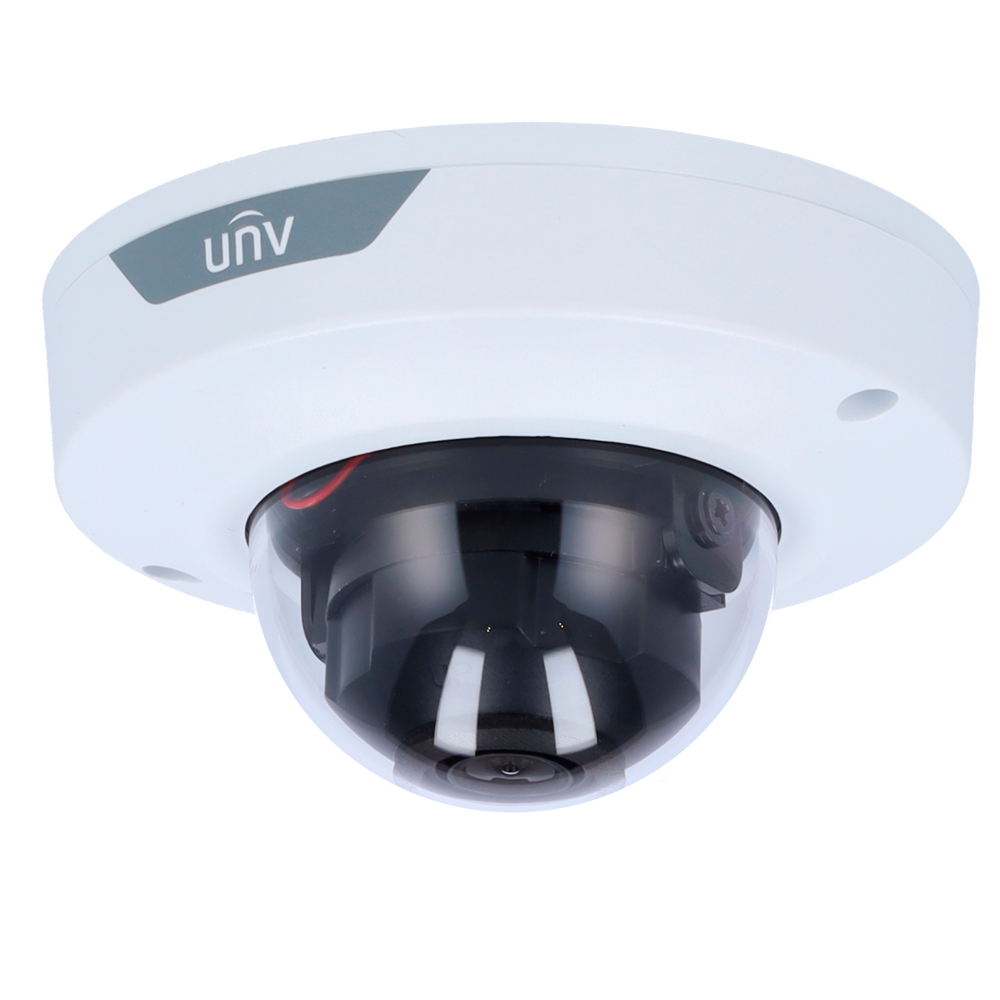

  • Uniview IP Dome Camera - Prime range
  • 4 MP | Lens 2.8 mm | microSD 512 GB
  • IR 30 m | WDR 120 dB
  • Light Hunter | People Counting
  • PoE | UMD | SIP
  • Reset button | Audio | Alarm

4 MP Prime IP camera with 2.8 mm fixed lens. Thanks to its LightHunter technology and its real WDR of 120 dB can obtain clear images in difficult lighting conditions. Features SIP and UMD to avoid false alarms in video analytics.

  • IP Dome Camera - Prime Range
  • 4 MP (2688x1520)
  • 2.8 mm fixed lens
  • Minimum illumination 0.003 lux | 0 lux with IR | IR Range 30 m | Light Hunter: technology that ensures super-high quality images in low-light environments
  • Crowd flow counting, crowd density monitoring
  • SIP (Smart Intrusion Prevention): combines artificial intelligence algorithms with real-time video analysis to accurately identify human and vehicular intrusions, minimizing false alarms caused by animal movements or weather conditions
  • UMD (Ultra Motion Detection): thanks to its advanced AI algorithm, UMD is able to detect changes in the environment extremely efficiently, even in conditions of high speed or motion difficult to capture by other technologies
  • WDR 120 dB
  • Audio 1 Input / 1 Output
  • Alarm 1 Input / 1 Output
  • Slot for microSD up to 512 GB
  • PoE
  • Metal and plastic
  • Reset button
  • ONVIF Compatible

Specifications

Brand Uniview
Range Prime
Image sensor 1/2.7" Progressive Scan CMOS
Maximum resolution 4 Megapixel (2688×1520)
Main Stream rate 30 fps (2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080)
Extra Stream rate 2º:720P (1280*720)@30fps; D1 (720*576)@30fps; 640*360@30fps; 2CIF(704*288)@30fps; CIF(352*288), @30fps; 3º:D1 (720*576)@30fps; 640*360@30fps; 2CIF(704*288)@30fps; CIF(352*288) @30fps;
Compression Ultra265/H.265/H.264
Lens 2.8 mm
Minimum illumination 0.002 Lux (Colour)
Infrared range 30 m
WDR 120 dB
Intelligent functions Line crossover, intrusion detection, area entry/exit, etc
Image improvements Motion detection, BLC, HLC, AGC, 2D/3D-NR, Smart IR, Region of interest, Privacy mask
Day / Night Mechanical ICR filter
Internal memory Micro SD slot (up to 256 GB)
Alarms 1 / 1
Audio Integrated microphone - I/O:1/1
Network interface Ethernet 10/100 BaseT
Remote access Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
Interoperability ONVIF
Power DC 12 V / 4.5 W, PoE IEEE802.3af
Temp. operation -35º C ~ 60º C
Dimensions 62 mm (D) x 109 (Ø) mm
Weight 220 g

In the box

  • Uniview IP Camera
  • Installation tools
  • User instructions
