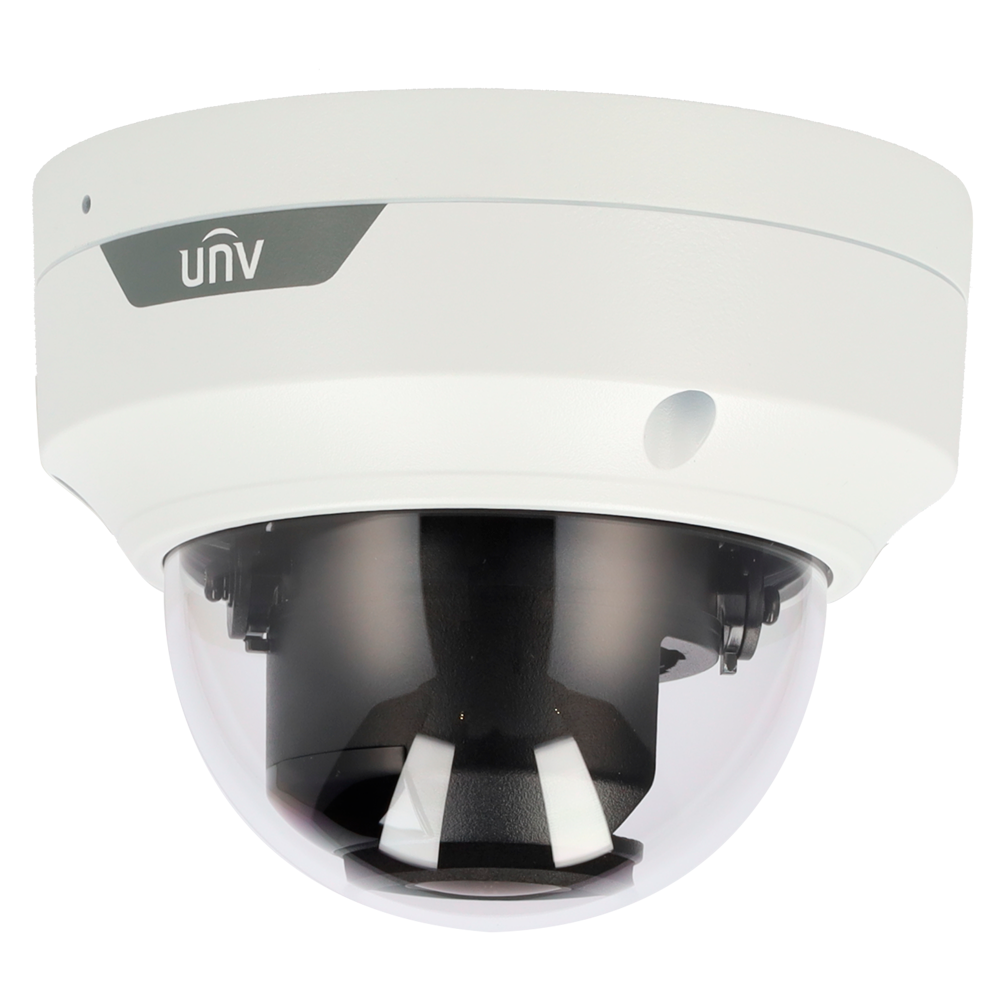

UV-IPC3535LB-ADZK-H
Ga direct naar de productinformatie
UV-IPC3535LB-ADZK-H
- 5 MP IP Camera
- EasyBasic range
- 1/2.7" Progressive Scan CMOS
- 2.8-12 mm motorised AF lens
- IR LEDs Range 40 m
- WEB, CMS, Smartphone and NVR interface
Uniview Easy (-H) cameras with UMD (Ultra Motion Detection) technology stand out for their quality. UMD is an advanced function that allows to detect movements with an accuracy of 90%, a range of 15 meters and the possibility to configure up to 8 detection zones, minimizing false alarms.
- Uniview
- IP Dome Camera
- EasyBasic range
- 1/2.7" Progressive Scan CMOS
- 5 Megapixel (2880x1620)
- 2.8-12 mm motorised varifocal autofocus lens
- 0 Lux
- IR Range 40 m
- WDR 120dB
- UMD (Ultra motion detection)
- Supports corridor mode 9:16
- Compression Ultra265/H.265/H.264
- Integrated microphone
- RJ-45 10/100 BaseT
- PoE IEEE802.3af
- MicroSD slot
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
- Weatherproof IP67
- Vandal proof IK10
- Surge protection
Specifications
| Brand | Uniview |
| Range | Easy |
| Image sensor | 1/2.7" Progressive Scan CMOS |
| Maximum resolution | 5 Megapixel (2880x1620) |
| Lens | 2.8 ~ 12 mm, AF autofocus and power zoom lens |
| Main Stream rate | 5 MP(2880x1620)@25fps; 4MP (2560*1440)@25fps; 3MP (2304*1296)@25fps; 1080P (1920*1080)@30fps; |
| Extra Stream rate | 720P (1280*720)@30fps; D1 (720*576)@30fps; 640*360@30fps |
| Compression | Ultra265/H.265/H.264 |
| Minimum illumination | Colour: 0.003 lux (F1.6, AGC ON) 0 lux with IR on |
| Infrared range | 40 m |
| WDR | 120 dB |
| Image improvements | BLC, HLC, AGC, 2D/3D-NR, Smart IR, Region of interest, Privacy mask |
| Audio | Built-in microphone |
| Detection functions | Line crossing, intrusion (based on human body detection), motion detection, ultra-motion detection (UMD), tampering alarm, audio detection |
| Day / Night | Mechanical ICR filter |
| Internal memory | Micro SD slot (up to 256 GB) |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF (S-Profile, G-Profile, T-Profile) |
| Protection | Waterproof (IP67), Vandal-proof (IK10), Surge protection |
| Power | 8.W, PoE (IEEE 802.3af) PoE (IEEE [%VAR%]) |
| Operating Temp | -30°C ~ 60°C |
| Dimensions | Φ128mmx100mm |
In the box
- Uniview IP Camera
- Installation tools
- User instructions
