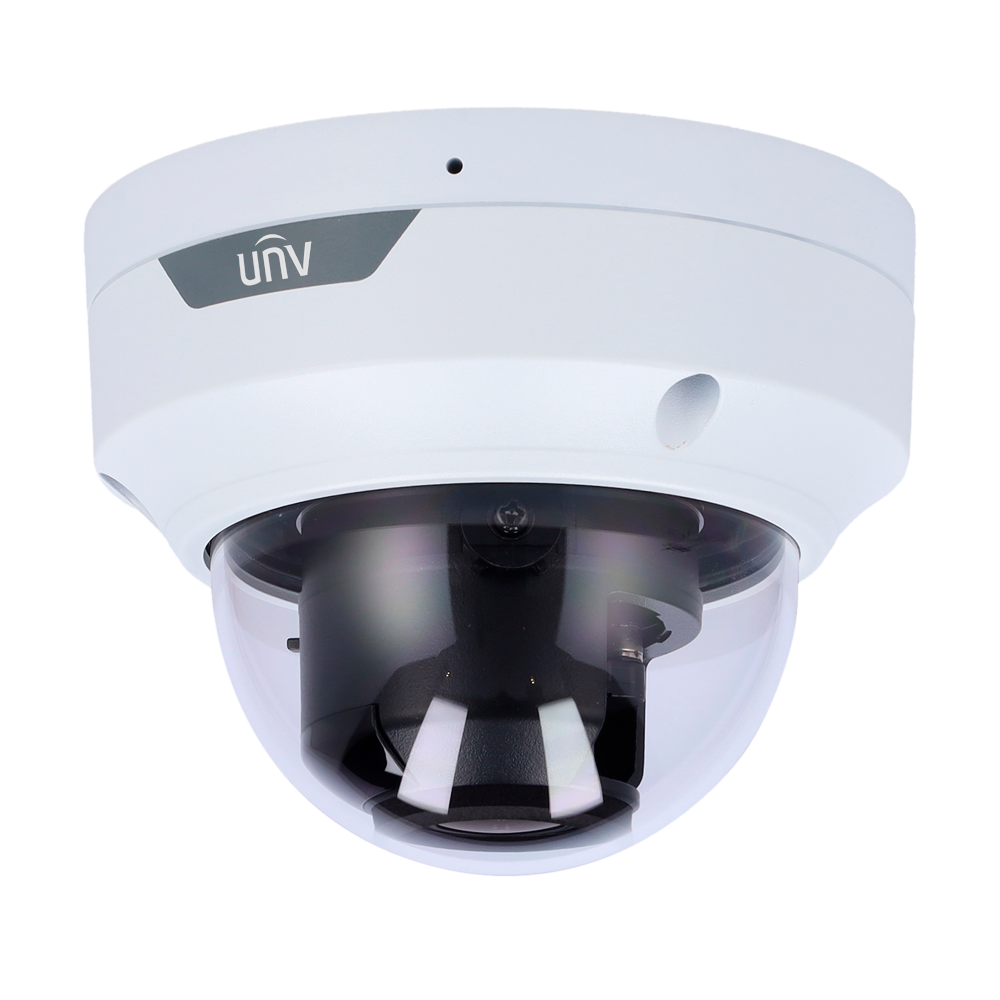

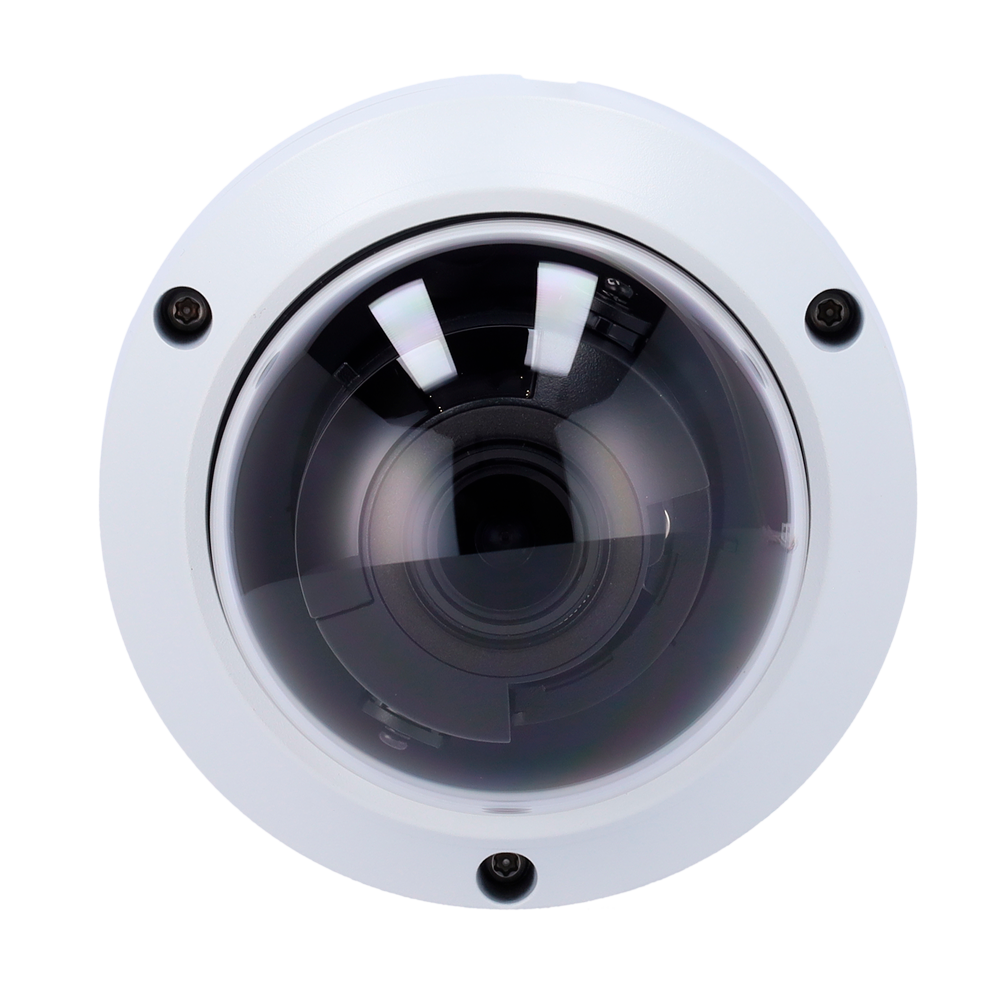

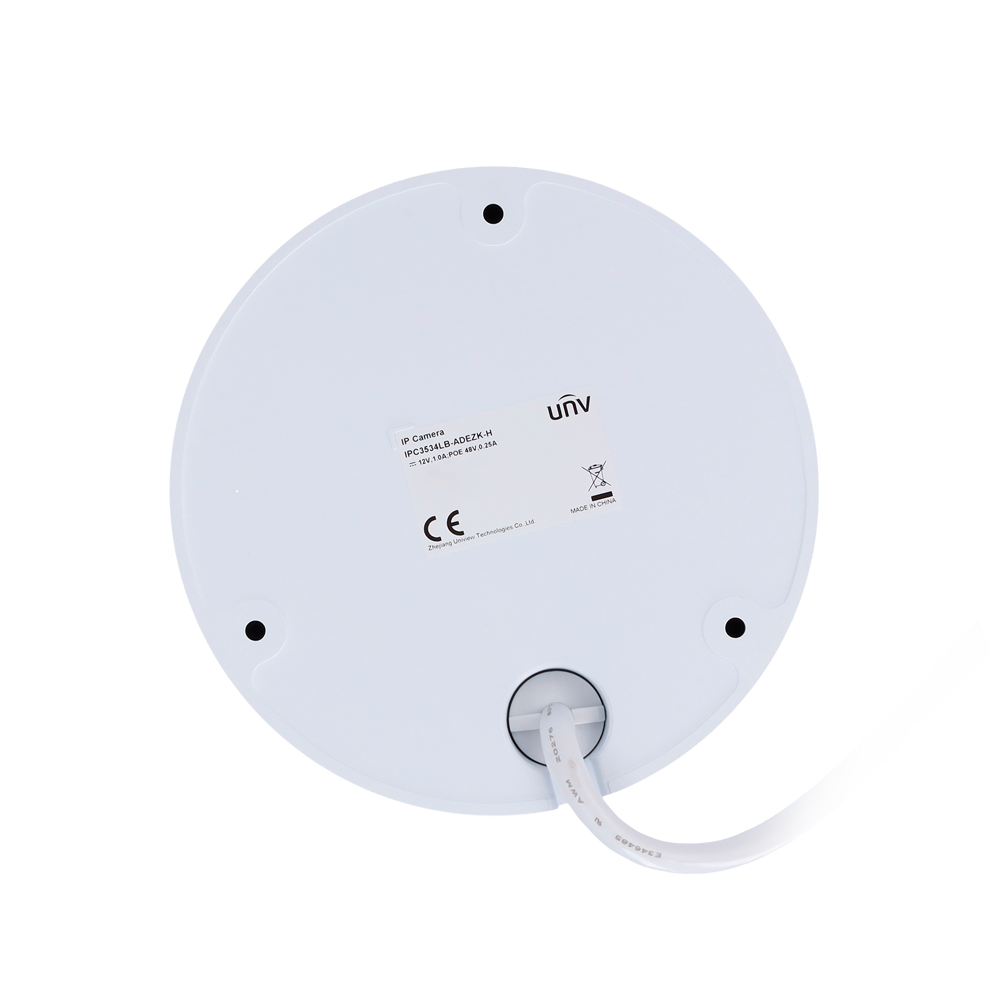

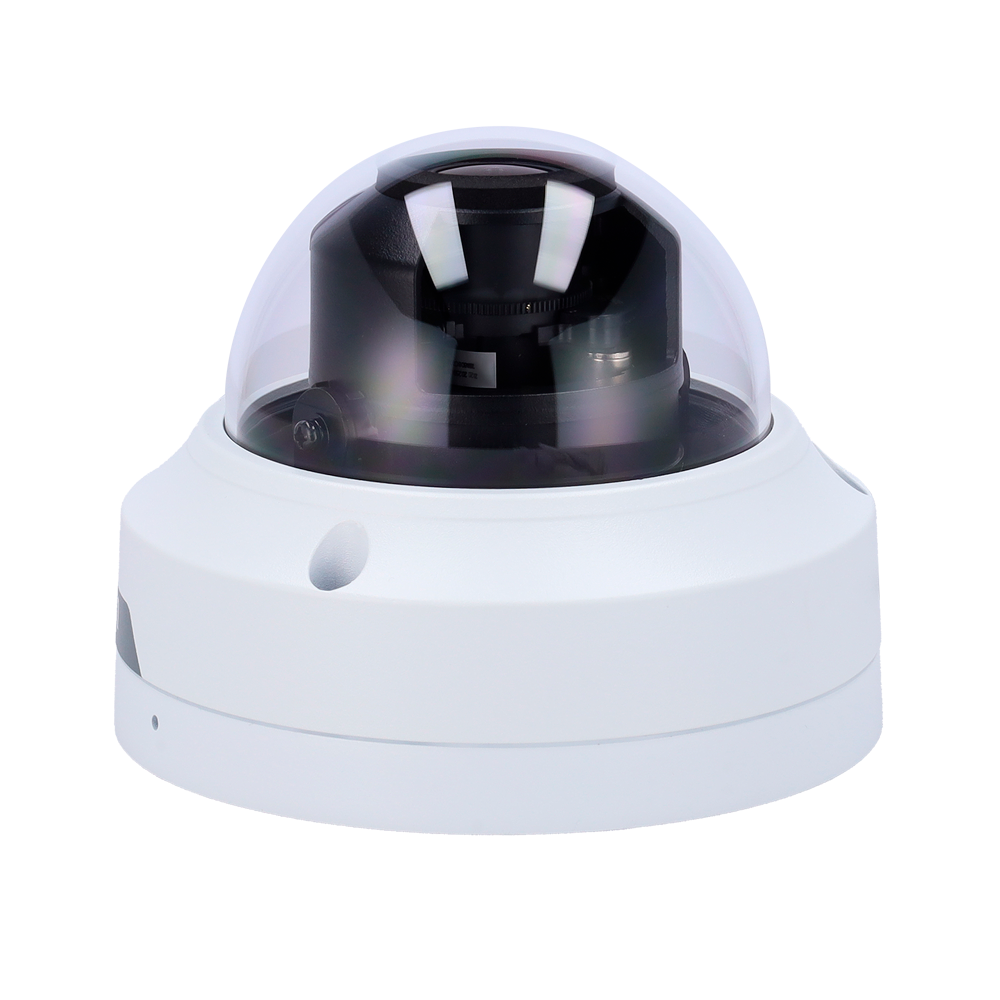

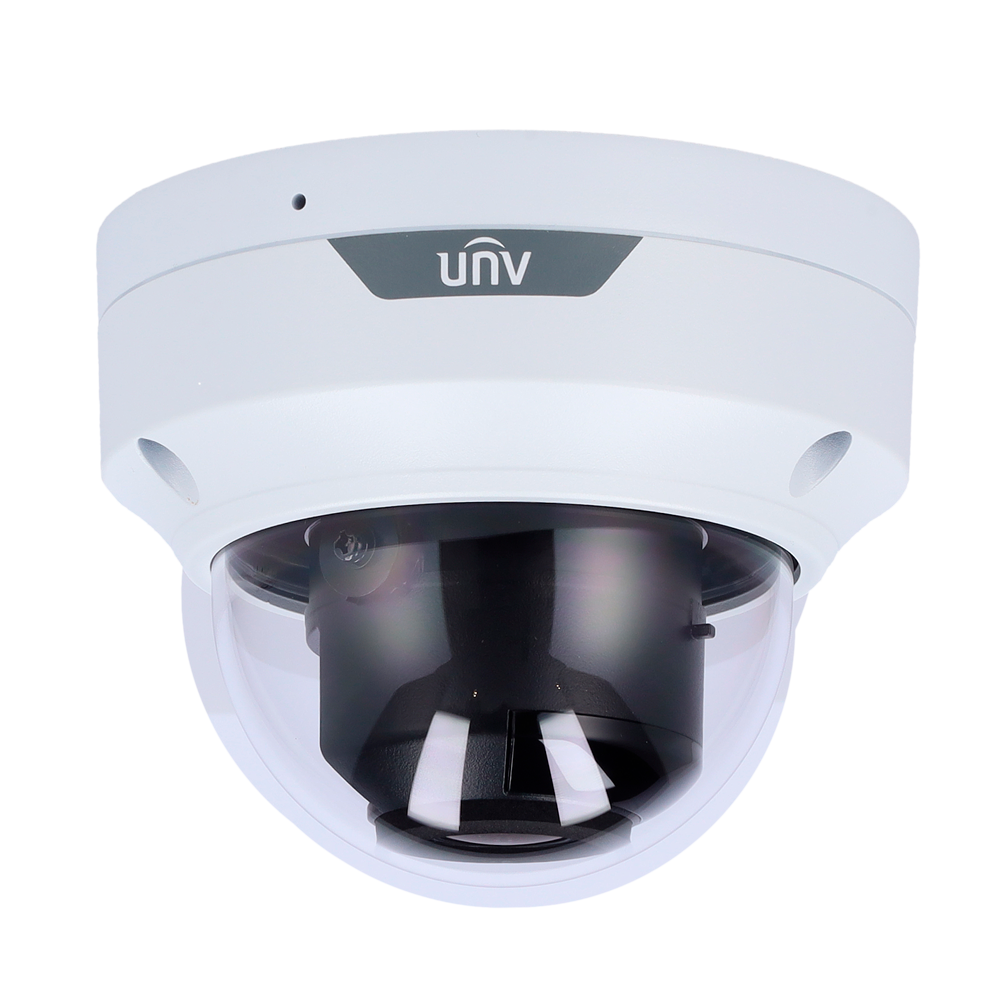

UV-IPC3534LB-ADEZK-H
Ga direct naar de productinformatie
UV-IPC3534LB-ADEZK-H
- Uniview IP Dome Camera - Easy
- 4 MP | Motorized lens 2.8-12 mm
- 1/3" Progressive Scan CMOS
- IR 40 m | WDR 120 dB | MicroSD Slot 256GB
- Built-in microphone | PoE | UMD | IP67 | IK10
- WEB, CMS, Smartphone and NVR interface
- Uniview
- IP Dome Camera
- EasyBasic range
- 1/3" Progressive Scan CMOS
- 4 Megapixel (2688x1520)
- 2.8-12 mm motorised varifocal autofocus lens
- Minimum illumination 0.003 Lux (F1.6, AGC ON) | 0 Lux with IR
- IR Range 40 m
- Integrated microphone
- Tripwire / Line crossing
- Audio detection
- UMD (Ultra Motion Detection): thanks to its advanced AI algorithm, UMD is able to detect changes in the environment extremely efficiently, even in conditions of high speed or motion difficult to capture by other technologies
- WDR 120dB
- Supports corridor mode 9:16
- Compression Ultra265/H.265/H.264/MJPEG
- Integrated microphone
- Alarm
- RJ-45 10/100 BaseT
- PoE IEEE802.3af
- Slot for microSD 256GB
- WEB, CMS, Smartphone and NVR interface
- ONVIF, API and SDK support
- Weatherproof IP67
- Vandal proof IK10
- Surge protection
Specifications
| Brand | Uniview |
| Range | Easy |
| Image sensor | 1/3" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2688×1520) |
| Lens | 2.8 ~ 12 mm, AF autofocus and power zoom lens |
| Main Stream rate | 4MP (2688*1520), 4MP (2560*1440), 3MP (2304*1296)@25fps 1080P (1920*1080)@30fps |
| Extra Stream rate | 720P (1280*720), D1 (720*576), (640*360)@30fps |
| Range performance | D: 63 ~ 270 m O: 25.2 ~ 108 m R: 12.6 ~ 54 m I: 6.3 ~ 27 m |
| Compression | Ultra265/H.265/H.264/MJPEG |
| Minimum illumination | Colour: 0.003 lux (F1.6, AGC ON) 0 lux with IR |
| IR range | 40 m |
| WDR | 120 dB |
| Image improvements | BLC, HLC, AGC, 2D/3D-NR, Smart IR, Region of interest, Privacy mask |
| Audio | Integrated microphone |
| Alarm | 1 input/ 1 output |
| MicroSD slot | 256 GB |
| Detection functions | Cross line, intrusion (based on human body detection), motion detection, ultra motion detection, tampering alarm, audio detection, UMD (Ultra Motion Detection): thanks to its advanced AI algorithm, UMD is able to detect changes in the environment extremely efficiently, even in conditions of high speed or motion difficult to capture by other technologies |
| Day / Night | Mechanical ICR filter |
| Internal memory | Micro SD slot (up to 256 GB) |
| Bitrate | 128 ~ 6144 Kbbps |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF (S-Profile, G-Profile, T-Profile), API, SDK |
| Protection | Waterproof (IP67), Vandal-proof (IK10), Surge protection |
| Power | 8.W, DC 12V PoE (IEEE 802.3af) |
| Operating Temp | -30°C ~ 60°C |
| Dimensions | Φ128mmx100mm |
In the box
- Uniview IP Camera
- Installation tools
- User instructions
