UV-IPC328SS-ADF28K-I1-BLACK
- Uniview IP Dome Camera - Prime
- 8 MP | Lens 2.8 mm | microSD 512 GB
- IR 40 m | WDR 130 dB
- Light Hunter | Counting
- PoE | UMD | SIP | IP67 | IK10
- Mic | Alarm | Audio | Black

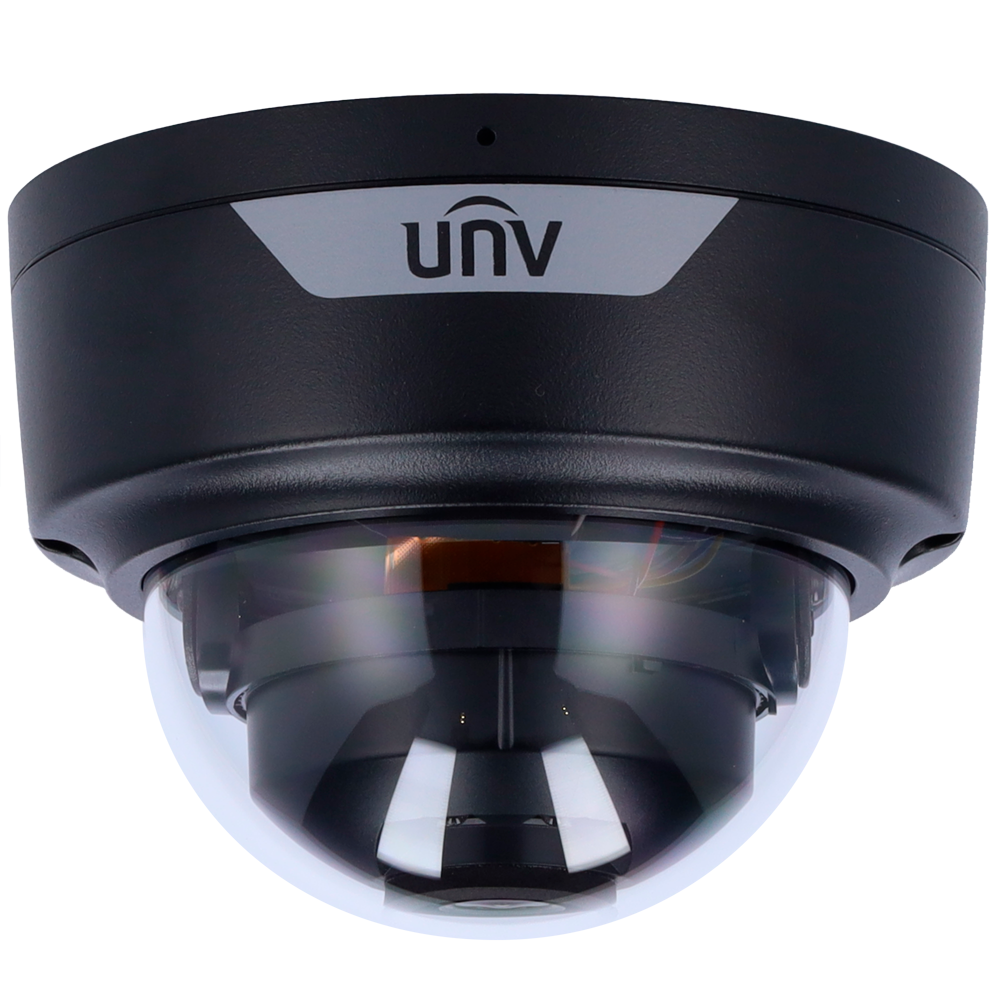

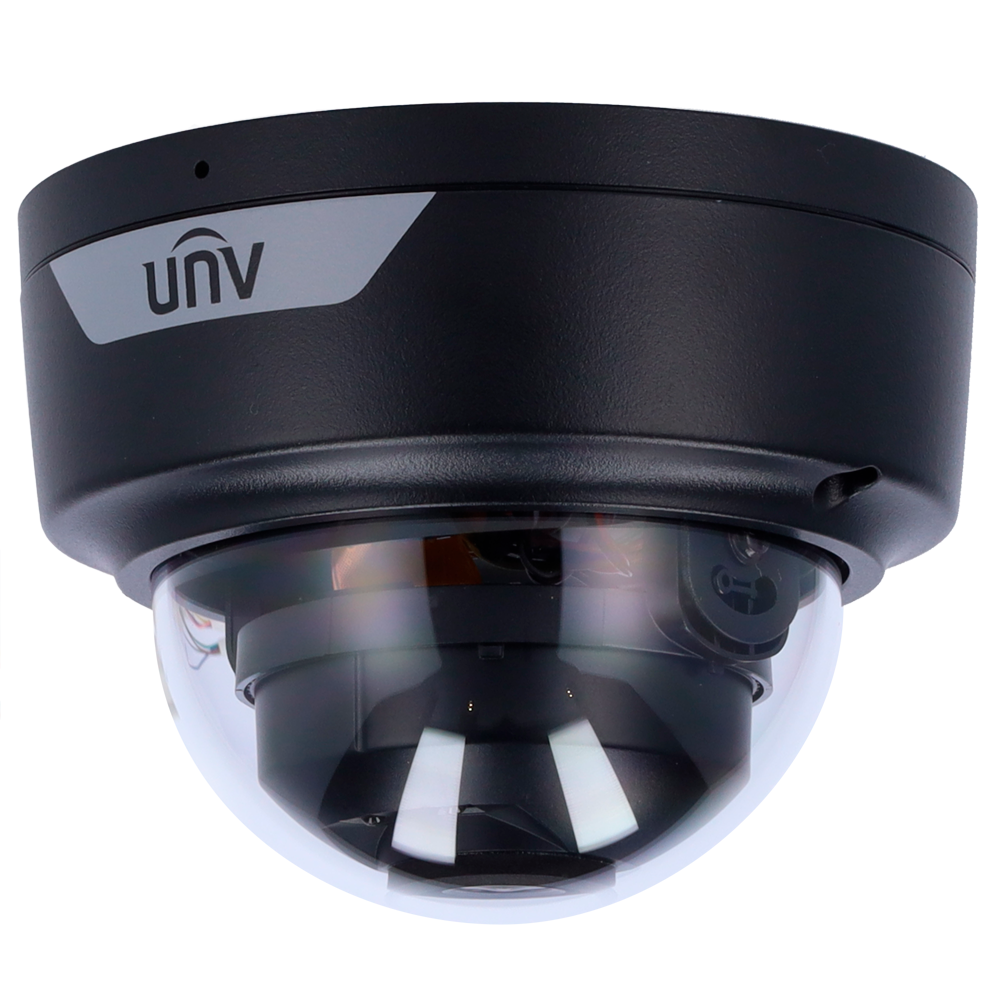

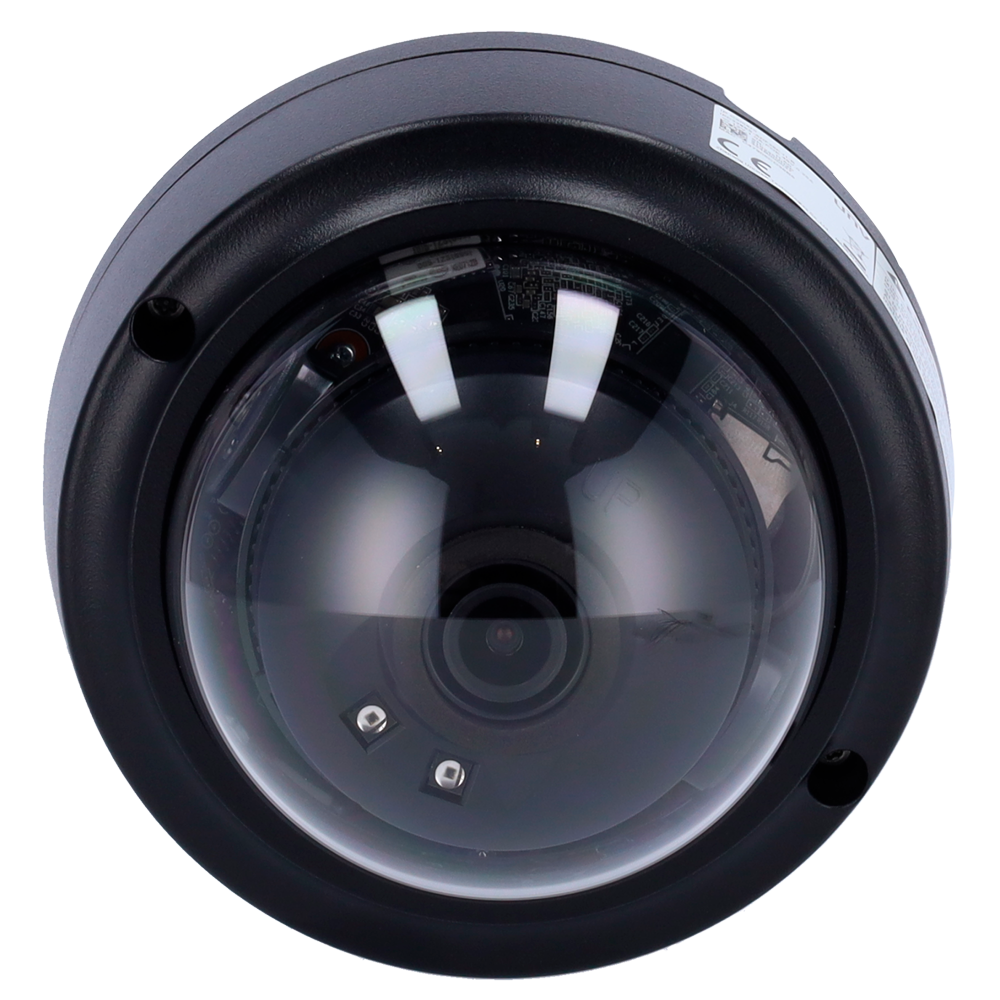

8 MP Prime Dome IP camera with 2.8 mm fixed lens. It has Light Hunter technology that together with the real WDR of 130 dB, makes its image quality superior. Additionally, it incorporates SIP and UMD to avoid false alarms.
- IP Dome Camera - Prime Range
- 8 MP (3840x2160)
- 2.8 mm fixed lens
- Minimum illumination 0.002 lux | 0 lux with IR
- IR range of 40 m
- Light Hunter: technology that ensures super-high quality images in low-light environments
- Crowd flow counting, crowd density monitoring
- SIP (Smart Intrusion Prevention): combines artificial intelligence algorithms with real-time video analysis to accurately identify human and vehicular intrusions, minimizing false alarms caused by animal movements or weather conditions
- UMD (Ultra Motion Detection): thanks to its advanced AI algorithm, UMD is able to detect changes in the environment extremely efficiently, even in conditions of high speed or motion difficult to capture by other technologies
- WDR 130 dB
- Built-in microphone
- Audio 1 Input / 1 Output
- Alarm 1 Input / 1 Output
- Slot for microSD up to 512 GB
- PoE
- IP67
- IK10
- Metallic
- Corridor mode
- ONVIF Compatible
- Black colour
Specifications
| Brand | Uniview |
| Range | Prime |
| Image sensor | 1/2.8” Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (3840X2160) |
| Main Stream rate | 30 fps (2688 x 1520, 2560 x 1440) 25 fps (2304 x 1296) 30 fps (1920 x 1080) |
| Extra Stream rate | 2MP(1920*1080)@30fps |
| Third Stream Rate | D1 (720*576)@30fps |
| Lens | 2.8 mm |
| Range performance | 86.9m (D), 34.8m (O), 17.4m (R), 8.7m (I) |
| Angle of view (FoV) | 97.49° (H), 52.31° (V), 102.29° (D) |
| Video compression | Ultra265/H.265/H.264 |
| Audio Compression | G.711U, G.711A |
| Minimum illumination | 0.002 Lux (Colour) / 0 lux with IR |
| Infrared range | 40 m |
| Image improvements | WDR (130dB), BLC, HLC, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask, Smart IR |
| SIP (Smart Intrusion Prevention) | Intelligent Intrusion Prevention. Accurate detection of humans and vehicles to avoid false alarms. Event due to line crossing, area intrusion or entry or exit of a previously defined area |
| Intelligent functions | Line crossing, Motion detection, Audio detection, Tamper protection, |
| Corridor mode | Yes |
| Day / Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 512 GB |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Alarms | 1 input / 1 output |
| Audio | 1 input / 1 output |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Power | DC 12V / 7W PoE IEEE802.3af |
| Temp. operation | -40º C ~ 60º C |
| Degree of protection | Weatherproof IP67 Vandal proof IK10 Surge protection 4KV |
| Device dimensions | Φ111 x 83 (h) mm |
| Base dimensions | Φ100 mm (2 screws) |
| Weight | 430 g |
| Color | Black |
In the box
- Uniview IP Camera
- Installation material
- User instructions
