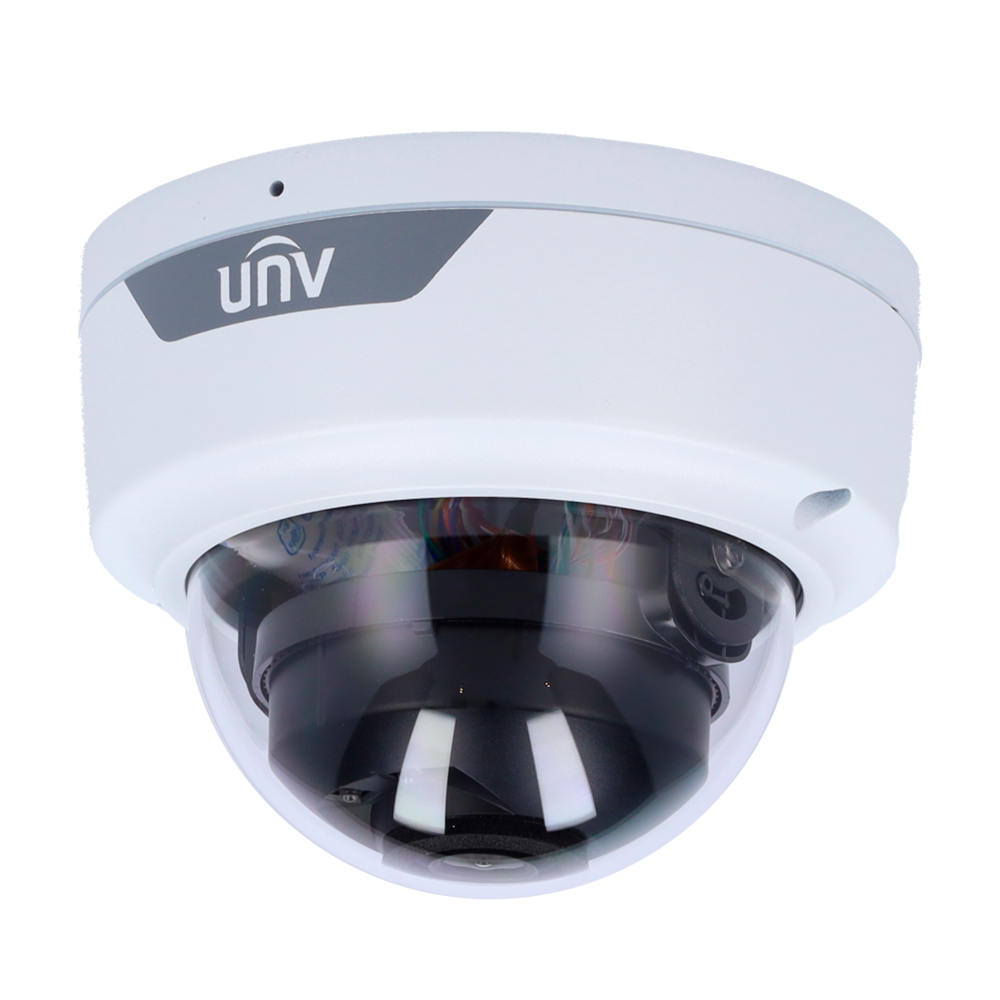

UV-IPC324SS-ADF28K-I1
Ga direct naar de productinformatie
UV-IPC324SS-ADF28K-I1
- 4 MP IP Camera
- Prime range
- 2.8 mm Lens
- IR LEDs Range 40 m | Audio and alarms
- AI Algorithm | Avoid false alarms
- WEB, CMS, Smartphone and NVR interface
- Uniview
- IP Dome Camera
- Prime range
- 1/3" Progressive Scan CMOS
- 4 Megapixel (2688x1520)
- 2.8 mm Lens
- 0 Lux
- LightHunter
- Color Retrieval
- IR Range 40 m
- WDR 130dB
- Compression Ultra265/H.265/H.264
- Audio
- Alarms
- Intelligent functions
- Auto Scene Match (ASM)
- Corridor mode 9:16
- PoE IEEE802.3af
- Weatherproof IP67
- Vandal proof IK10
- Surge protection
- Slot for microSD up to 256GB- WEB, CMS, Smartphone and NVR interfaces
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Prime |
| Image sensor | 1/2.7” Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2688 x 1520) |
| Lens | 2.8 mm (H: 97.68°; V: 52,67°; D: 102,52°) |
| Main Stream rate | 4MP (2688x1520), Max 30fps; 4MP (2560x1440), Max 30fps; 3MP (2304x1296), Max 30fps; 1080P (1920x1080), Max 30fps; |
| Extra Stream rate | 1080P (1920x1080), Max 30fps; 720P (1280x720), Max 30fps; D1 (720x576), Max 30fps; 640x360, Max 30fps; 2CIF(704x288), Max 30fps; CIF(352x288), Max 30fps; |
| Compression | Ultra265/H.265/H.264 |
| Minimum illumination | Colour: 0.002Lux (F1.6, AGC ON) 0 lux with IR on |
| Infrared range | 40 m |
| Image improvements | WDR (130dB), BLC, HLC, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask, Smart IR |
| Intelligent intrusion prevention | False alarm filtering support: cross-line detection, intrusion detection, ingress area detection, egress area detection, cross-line detection, intrusion detection, intrusion detection, ingress area detection, egress area detection |
| Color Retrieval | Color metadata detection on humans, vehicles and two-wheelers. |
| Intelligent functions | Line Crossing, Motion Detection, Audio Detection, Tamper Protection, Corridor Mode |
| Statistical analysis | People counting, crowd flow counting support and crowd density monitoring |
| UMD | Integrates Ultra motion detection |
| Automatic Scene Matching (ASM) | Supported (WDR only) |
| Aisle mode 9:16 | Supported |
| Day / Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 256 GB |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Alarms | 1 input / 1 relay |
| Audio | 1 IN / 1 OUT |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF (S-Profile, G-Profile, T-Profile), API,SDK |
| Power | DC 12 V / 6.5 W, PoE IEEE802.3af |
| Temp. operation | -40º C ~ 60º C |
| Material | Metallic |
| Degree of protection | Weatherproof IP67, Anti-vandal IK10 |
| Dimensions | Φ111 x 83mm |
| Weight | 420 g |
In the box
- Uniview IP Camera
- Installation material
- User instructions
