UV-IPC324SB-DF28K-I0

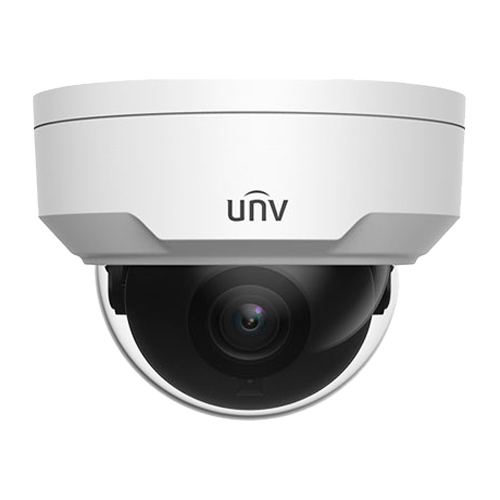

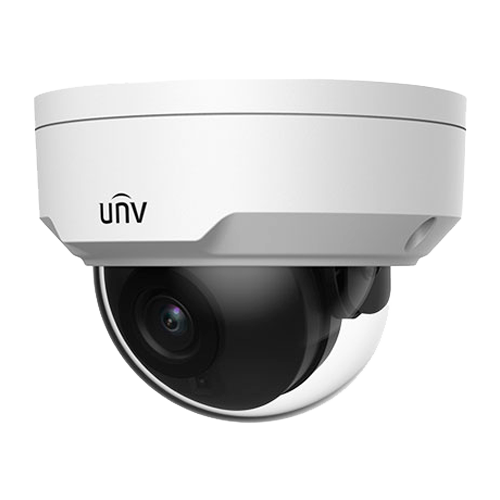

- Uniview IP Dome Camera - Prime range
- 4 MP | Lens 2.8 mm | microSD 256 GB
- IR 30m | WDR 120 dB
- LightHunter | Statistical Analysis
- PoE | SIP | UMD | IP67 | IK10
- Audio | Alarms
4 MP Prime IP Dome Camera with 2.8 mm Fixed Lens. Thanks to its Light Hunter technology and the fact that it has a real WDR of 120dB you can obtain clear images in difficult lighting conditions. Features SIP and UMD to avoid false alarms in video analytics.
- Uniview
- IP Dome Camera - Prime Range
- 4 MP (2688x1520)
- 2.8 mm fixed lens
- Minimum illumination 0.002 | 0 Lux with IR
- IR range of 30 m
- People counting, people flow counting and crowd density monitoring
- SIP (Smart Intrusion Prevention): combines artificial intelligence algorithms with real-time video analysis to accurately identify human and vehicular intrusions, minimizing false alarms caused by animal movements or weather conditions
- UMD (Ultra Motion Detection): thanks to its advanced AI algorithm, UMD is able to detect changes in the environment extremely efficiently, even in conditions of high speed or motion difficult to capture by other technologies
- WDR 120 dB
- Audio 1 Input / 1 Output
- Alarm 1 Input / 1 Output
- Slot for microSD up to 256 GB
- PoE
- Weatherproof IP67
- Vandal proof IK10
- Over voltage protection 4 KV
- Corridor mode 9:16
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Prime |
| Image sensor | 1/3” Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2688X1520) |
| Main Stream rate | 30 fps (2688 x 1520, 2560 x 1440) 25 fps (2304 x 1296) 30 fps (1920 x 1080) |
| Extra Stream rate | 2º:720p (1 ~ 30 FPS), 3º:D1 (1 ~ 30 FPS) |
| Compression | Ultra265/H.265/H.264 |
| Lens | 2.8 mm |
| Minimum illumination | 0.001 Lux (Colour) |
| Infrared range | 30 m |
| Image improvements | WDR (120dB), BLC, HLC, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask, Smart IR |
| SIP (Smart Intrusion Prevention) | Intelligent Intrusion Prevention. Accurate detection of humans and vehicles to avoid false alarms. Event due to line crossing, area intrusion or entry or exit of a previously defined area |
| Intelligent functions | Line Crossing, Motion Detection, Audio Detection, Tamper Protection, Corridor Mode |
| Day / Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 256 GB |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Alarms | 1 Input / 1 Output |
| Audio | 1 Input / 1 Output |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Power | DC 12V / 4.5W PoE IEEE802.3af |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Weatherproof IP67 Vandal proof IK10 |
| Dimensions | 81.1 mm (H) x 108.7(Ø) mm |
| Weight | 425 g |
In the box
- Uniview IP Camera
- Installation material
- User instructions
