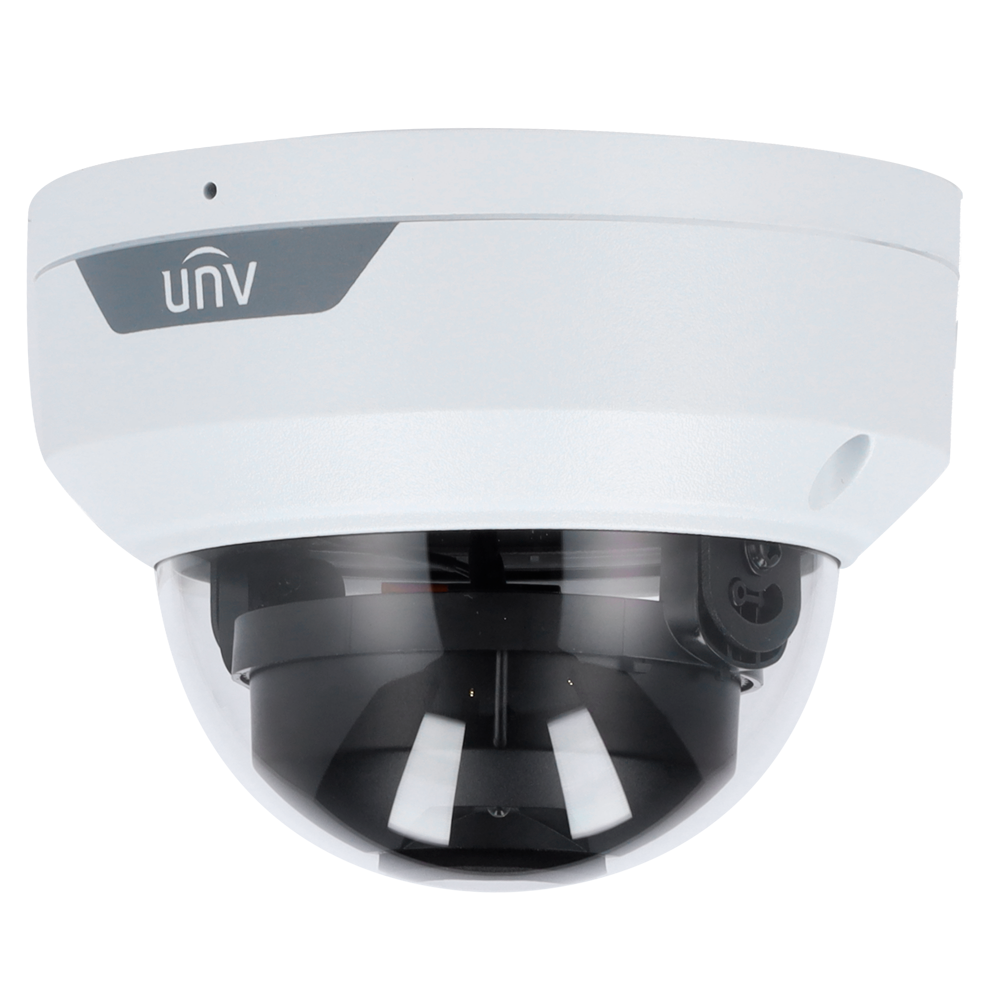

UV-IPC324LB-ADF28K-H
Ga direct naar de productinformatie
UV-IPC324LB-ADF28K-H
- 4 MP IP Camera
- EasyBasic range
- 1/2.9" Progressive Scan CMOS | 2.8 mm Lens
- IR LEDs Range 30 m
- Ultra Motion Detection (UMD)
- WEB, CMS, Smartphone and NVR interface
Uniview Easy (-H) cameras with UMD (Ultra Motion Detection) technology stand out for their quality. UMD is an advanced function that allows to detect movements with an accuracy of 90%, a range of 15 meters and the possibility to configure up to 8 detection zones, minimizing false alarms.
- Uniview
- IP Dome Camera
- EasyBasic range
- 1/2.9" Progressive Scan CMOS
- 4 Megapixel (2560x1440)
- 2.8 mm Lens
- 0 Lux
- IR Range 30 m
- Audio
- WDR 120 dB
- Compression Ultra265/H.265/H.264
- RJ-45 10/100 BaseT
- PoE IEEE802.3af
- Surge protection
- MicroSD slot
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
- Integrated microphone
- Weatherproof IP67
- Vandal proof IK10
Specifications
| Brand | Uniview |
| Range | EasyBasic |
| Image sensor | 1/2.9" CMOS Progressive Scan Starlight |
| Maximum resolution | 4 Megapixel (2560x1440) |
| Main Stream rate | 4MP (2560*1440)@25fps; 3MP (2304*1296)@30fps; 1080P (1920*1080)@30fps; 720P (1280*720)@30fps |
| Extra Stream rate | D1 (720*576)@30fps; 640*360@30fps; 2CIF(704*288)@30fps; CIF(352*288)@30fps; |
| Compression | Ultra265/H.265/H.264 |
| Lens | 2.8 mm |
| Minimum illumination | 0.01 Lux (Colour) |
| Infrared range | 30 m |
| WDR | 120 dB |
| Audio | Integrated microphone |
| Image improvements | Motion detection, Ultra Motion Detection (UMD), BLC, HLC, AGC, 2D/3D-NR, Smart IR, Region of interest, Privacy mask |
| Intelligent functions | Line Crossing, Intrusion, Anti-Tampering |
| Day / Night | Mechanical ICR filter |
| Internal memory | Micro SD slot (up to 256 GB) |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Protection | Waterproof (IP67), Vandal-proof (IK10), Surge protection |
| Power | DC 12 V / 4 W, PoE IEEE802.3af |
| Temp. operation | -30º C ~ 60º C |
| Dimensions | 83 mm (D) x 109 (Ø) mm |
| Weight | 360 g |
In the box
- Uniview IP Camera
- Installation tools
- User instructions
