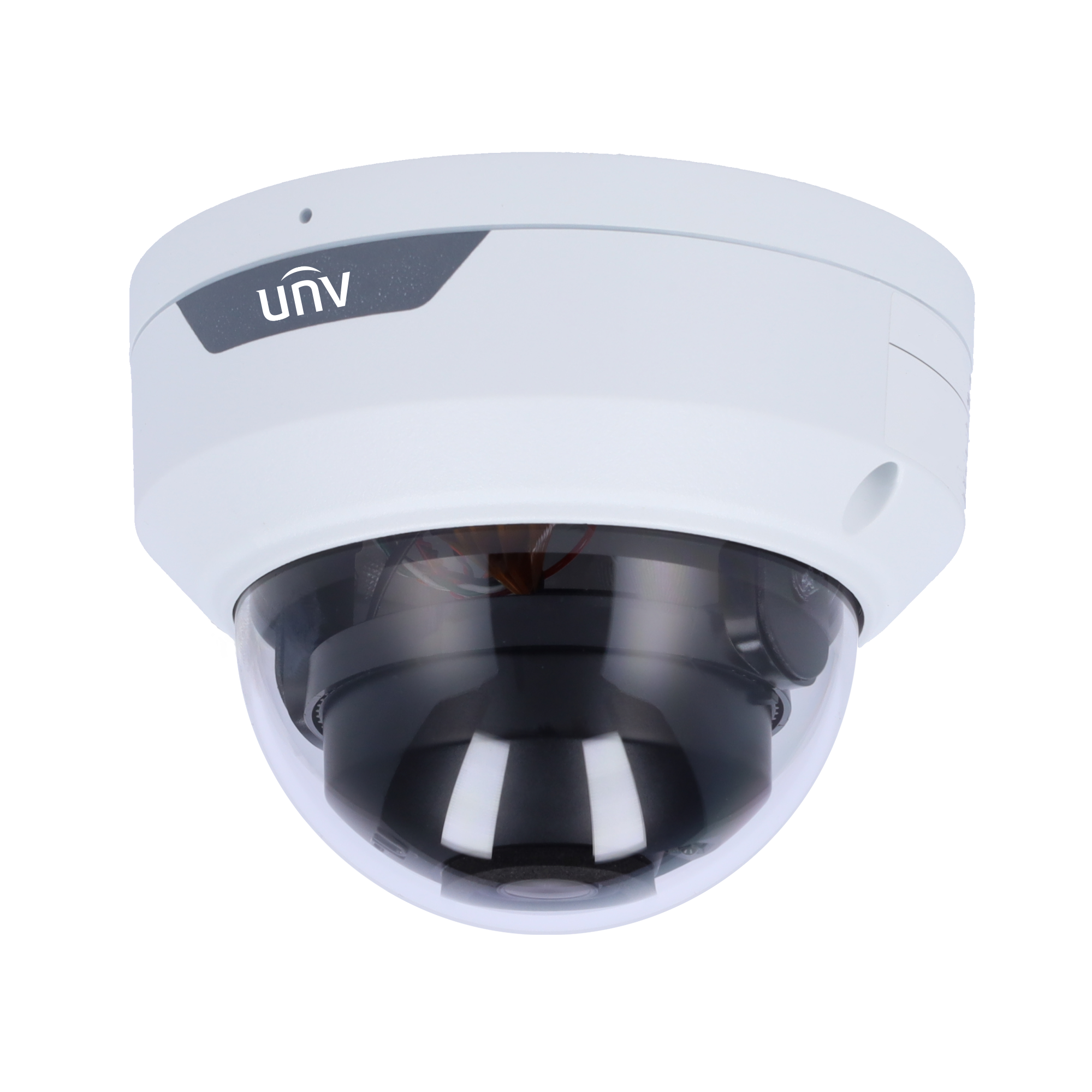

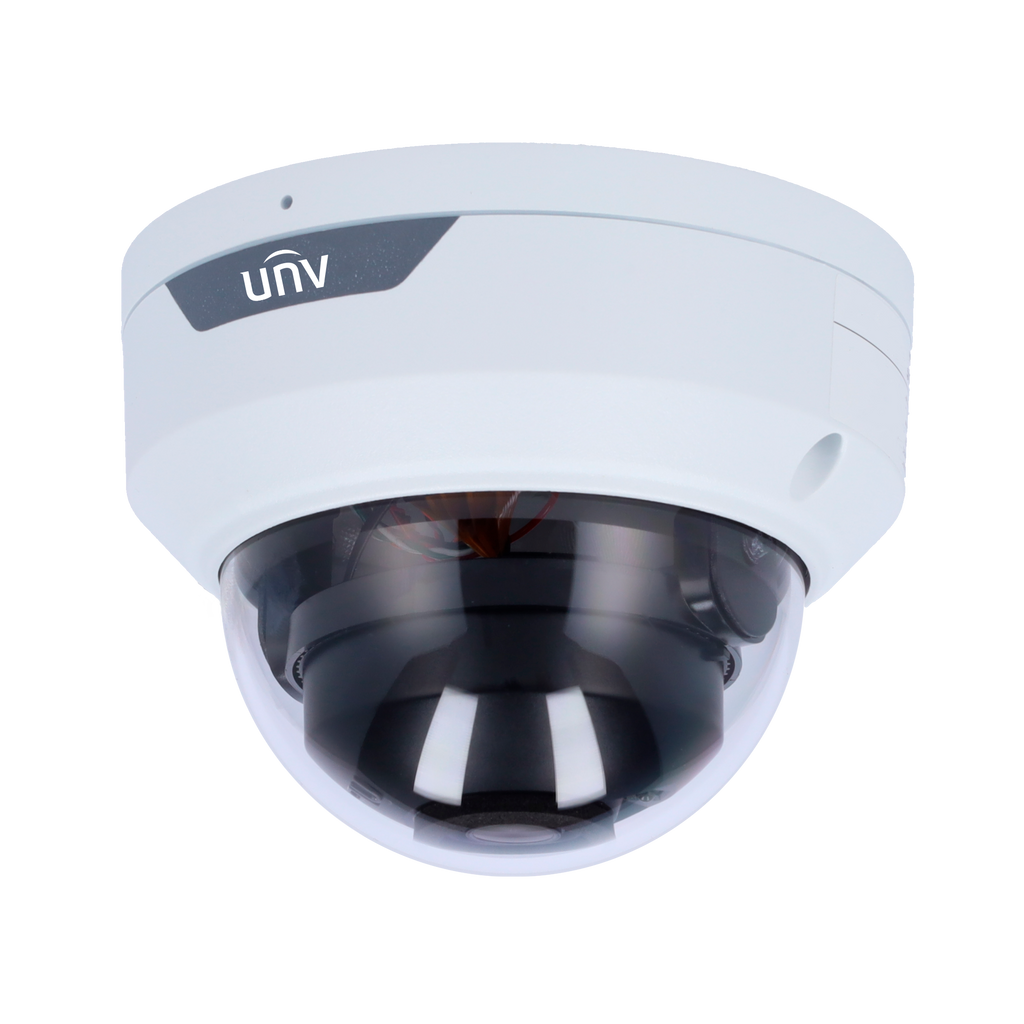

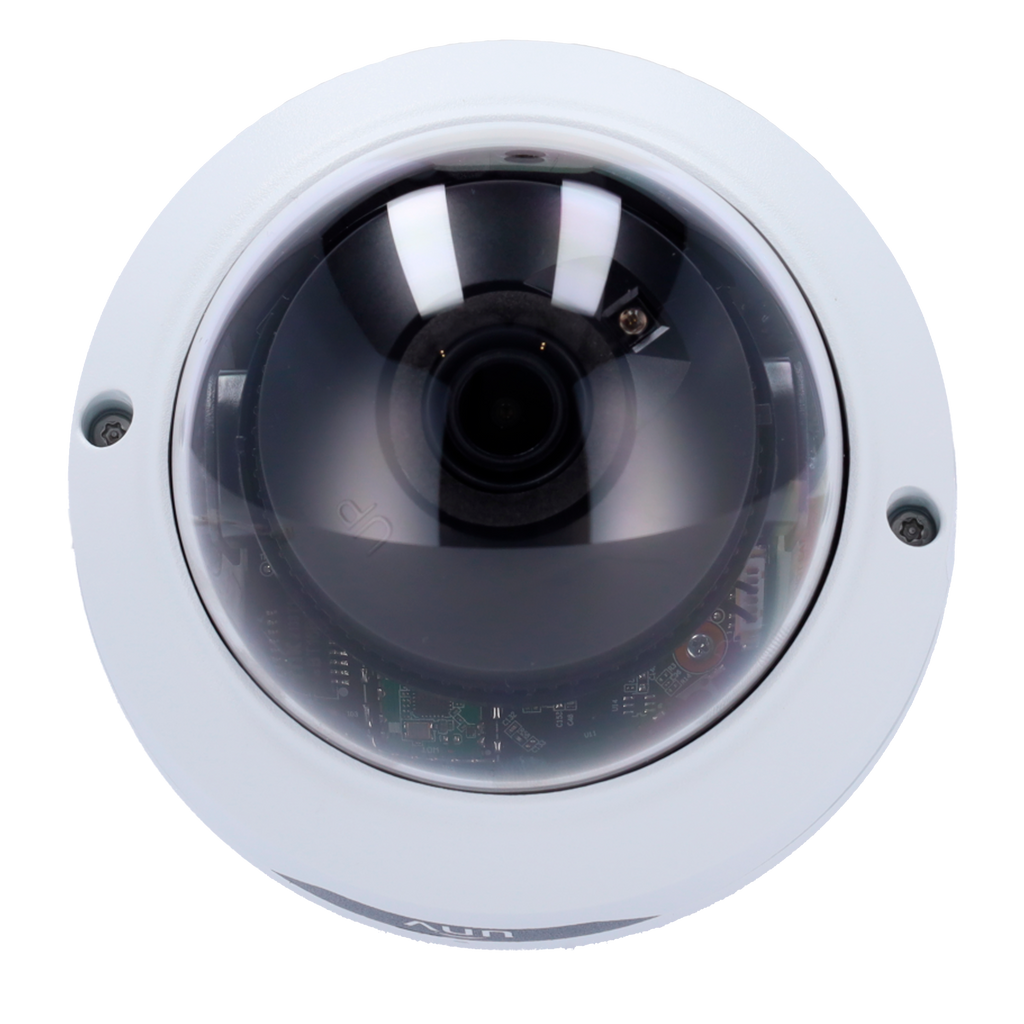

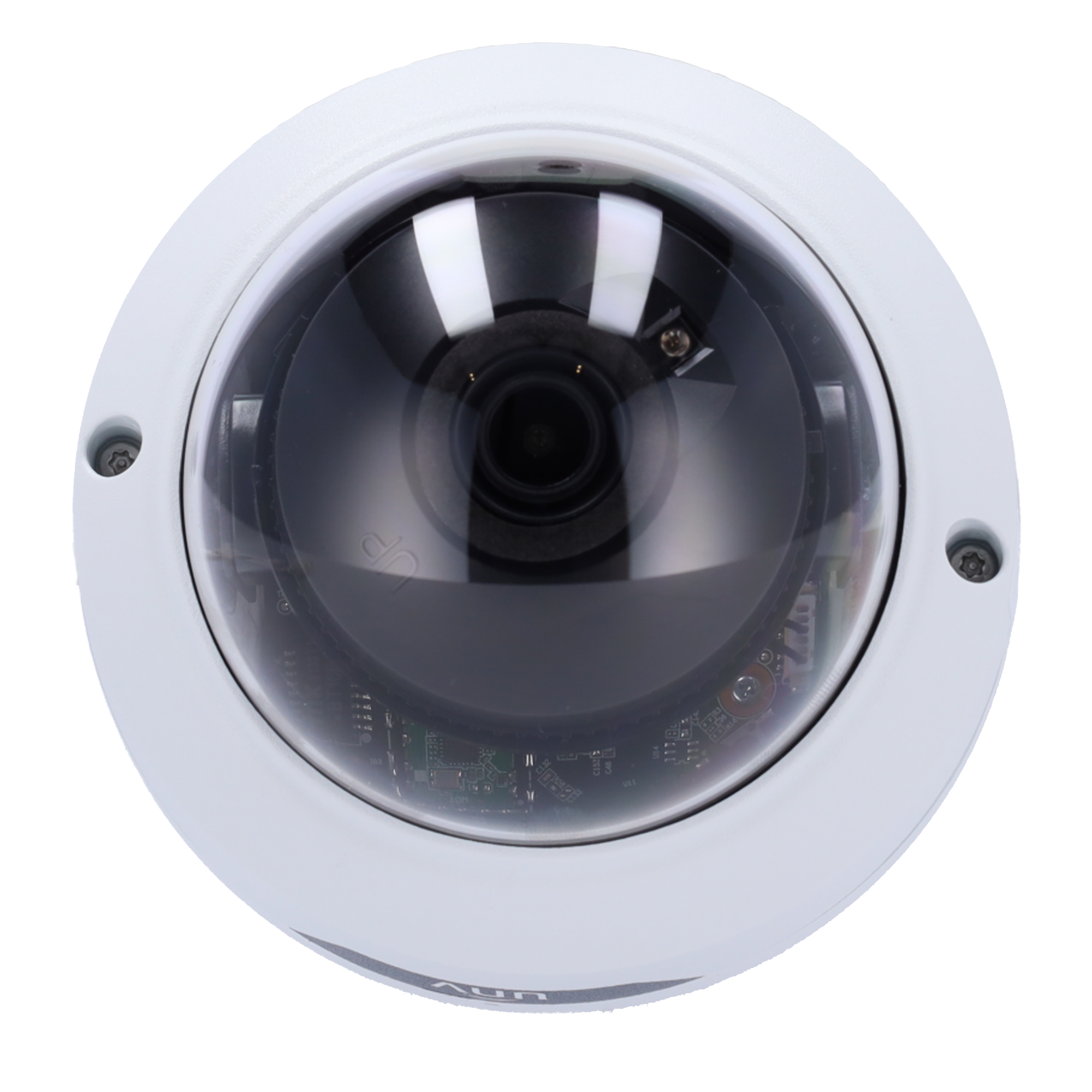

UV-IPC322SS-ADF28K-I1
- IP Dome Camera 2 Megapixel at 60FPS
- Prime range
- Lens 2.8 mm / WDR 130 dB | 60 FPS
- IR LEDs Range 30 m | Built-in Microphone
- SIP (AI precision 99%, range 40m and 16 rules)
- Impermeability IP67 & IK10 | Alarms
- Uniview
- IP Dome Camera
- Prime II Range
- 1/2.8" Progressive Scan CMOS
- 2 Megapixel (1920x1080) to 60FPS
- 2.8 mm Lens
- 0 Lux
- LightHunter
- Color Retrieval
- IR Range 30 m
- WDR 130dB
- Compression Ultra265/H.265/H.264
- SIP (Smart Intrusion Prevention)
- Audio
- Alarms
- PoE IEEE802.3af
- Weatherproof IP67
- Vandal proof IK10
- Surge protection
- MicroSD slot
- Corridor mode 9:16
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Prime |
| Image sensor | 1/2.8” Progressive Scan CMOS |
| Maximum resolution | 2 Megapixel (1920 x 1080) to 60FPS |
| Lens | 2.8 mm (H:100.15°; V: 54.5º; D: 104.92°) |
| Range performance | 43.4 (D), 17.4 (O), 8.7 (R), 4.3(I) |
| Main Stream rate | 2MP (1920 * 1080), maximum 60 fps; 720P (1280 * 720), maximum 30 fps; |
| Extra Stream rate | 720P (1280 * 720), maximum 30 fps; D1 (720 * 576), maximum 30 fps; 640 * 360, maximum 30 fps; 2CIF (704 * 288), maximum 30 fps; CIF (352 * 288), maximum 30 fps |
| Compression | Ultra 265, H.265, H.264, MJPEG |
| Minimum illumination | Colour: 0.001 lux (F1.6, AGC ON) 0 lux with activated IR |
| Infrared range | 30 m |
| Image improvements | WDR (130dB), BLC, HLC, AGC, 2D/3D-NR, ROI, Privacy Mask, Smart IR |
| Intelligent intrusion prevention | Intelligent Intrusion Prevention. False alarm filtering support: cross-line detection, intrusion detection, ingress area detection, egress area detection, cross-line detection, intrusion detection, intrusion detection, ingress area detection, egress area detection |
| Color Retrieval | Color metadata detection on humans, vehicles and two-wheelers. |
| Statistical analysis | People counting, crowd flow counting support and crowd density monitoring |
| UMD | Integrates Ultra motion detection |
| Automatic Scene Matching (ASM) | Supported (WDR only) |
| Day / Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 256 GB |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Audio | Integrated microphone |
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] Output: impedance 600Ω; amplitude 2V [p-p] |
| Alarm I/O | 1/1 |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF (S-Profile, G-Profile, T-Profile), API,SDK |
| Power | DC 12 V / 10 W, PoE IEEE802.3af |
| Temp. operation | -30º C ~ 60º C |
| Material | Metallic |
| Degree of protection | Weatherproof IP67, Anti-vandal IK10 |
| Dimensions | 83 (H) x 111 (Ø) mm |
| Weight | 425 g |
In the box
- Uniview IP Camera
- Installation material
- User instructions
