UV-IPC314SB-ADF28K-M12-I0
Ga direct naar de productinformatie
UV-IPC314SB-ADF28K-M12-I0
- 4 MP IP Camera
- Prime range
- 1/3" Progressive Scan CMOS
- Lens 2.8 mm | IR LEDs Range 30 m | Audio
- SIP | Network connector M12
- Area headcount
- Uniview
- IP camera
- Prime range
- 1/3" Progressive Scan CMOS
- 4 Megapixel (2688x1520)
- 2.8 mm Lens
- 0 Lux
- IR Range 30 m
- Compression Ultra265/H.265/H.264
- Connector M12 -Smart functions
- SIP, Smart intrusion prevention with human and vehicle classification
- Area headcount
- WDR 120dB
- Integrated microphone
- RJ-45 10/100M BaseT
- Corridor mode
- Micro SD slot up to 256GB
- IR Cut
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
- Weatherproof IP67
- Vandal proof IK10
Specifications
| Brand | Uniview |
| Range | Prime |
| Image sensor | 1/3" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2688x1520) |
| Lens | 2.8 mm (H: 101.1º, V: 55.3º, D: 111.1º) |
| Main Stream rate | 4 Mpx (2688x1520, 2560x1440), 3Mpx (2304x1296), 1080P (1920x1080) @ 30FPS |
| Extra Stream rate | 720P(1280x720), D1 (720x576), 640*360 @30fps |
| Third Stream | D1 (720x576), 640*360, 2CIF(704x288), CIF (352x288) @30fps |
| Compression | Ultra265/H.265/H.264 |
| Range performance | 63 (D), 25.2 (O), 12.6 (R), 6.3 (I) |
| Minimum illumination | 0.001 Lux (F1.6, AGC ON) 0Lux with Infrared |
| Day / Night | Mechanical ICR filter |
| Infrared range | 30 m |
| Image improvements | BLC, HLC, AGC, 2D/3D-NR, Smart IR, ROI (Up to 8 areas), Privacy Masking |
| WDR | 120 dB |
| Corridor mode | Yes |
| UMD (Advanced Motion Detection) | Yes |
| Intelligent functions | SIP, Smart Intrusion Prevention (Classification of human, vehicle and two-wheeler over line crossing, area intrusion, region of entry and region of exit) Counting and flow of people over an area *Both functions cannot be enabled at the same time |
| Internal memory | Micro SD slot (up to 256 GB) |
| Alarms | Does not have |
| Audio | Integrated microphone |
| Audio Inputs / Outputs | 1 input: impedance 35kΩ; amplitude 2V [p-p] 1 Output: impedance 600Ω; amplitude 2V [p-p] |

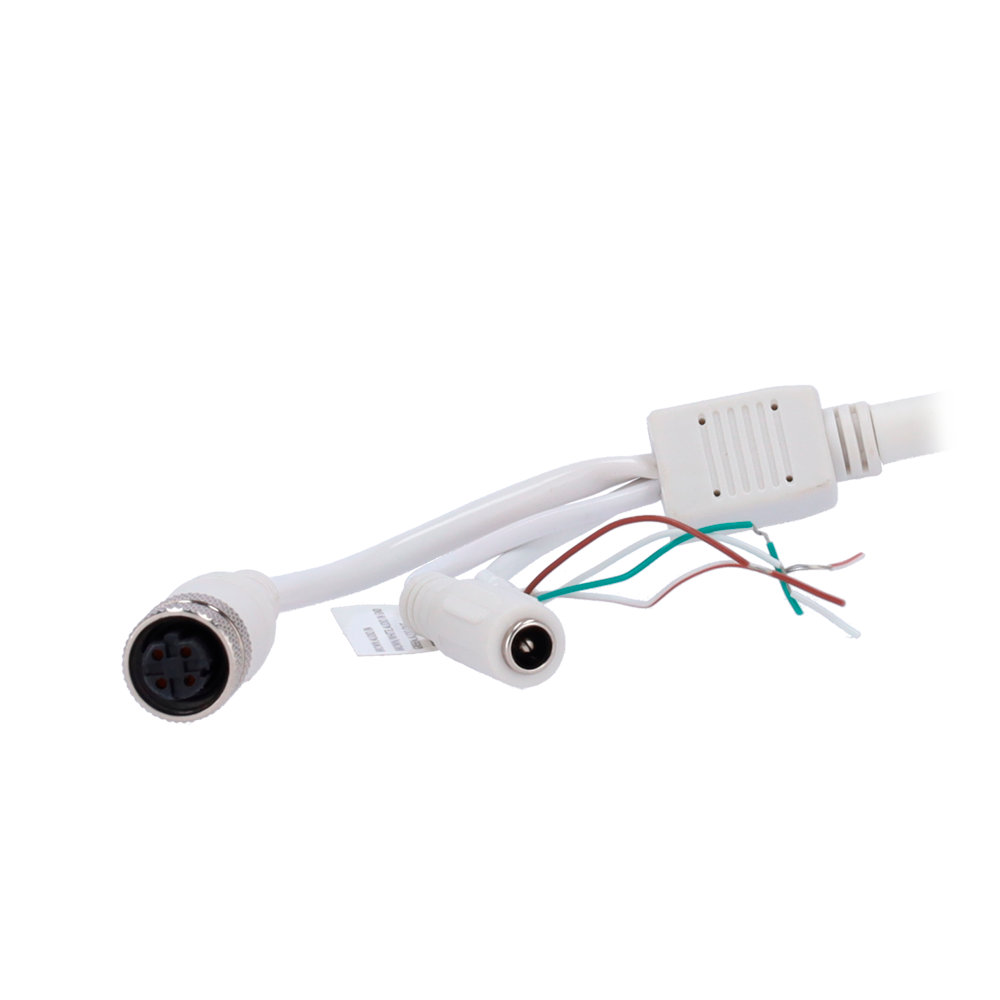

| Network interface | M12 D-Coding 10M/100M Base-TX Ethernet |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF (S-Profile, G-Profile, T-Profile), API, SDK |
| Power | DC 12V / 6W |
| Temp. operation | -30º C ~ 60º C |
| Dimensions | 61 (D) x 110 (Ø) mm |
| Weight | 370 g |
In the box
- Uniview IP Camera
- Installation tools
- User instructions
