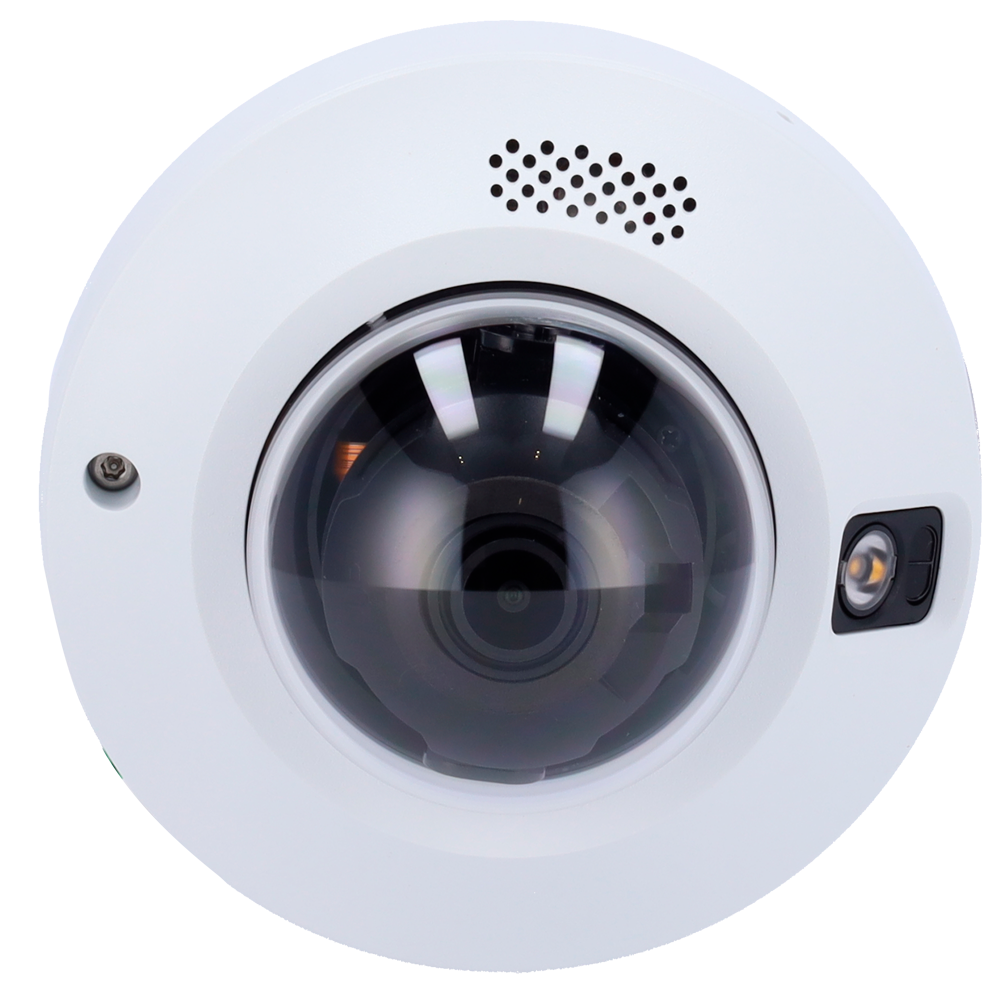

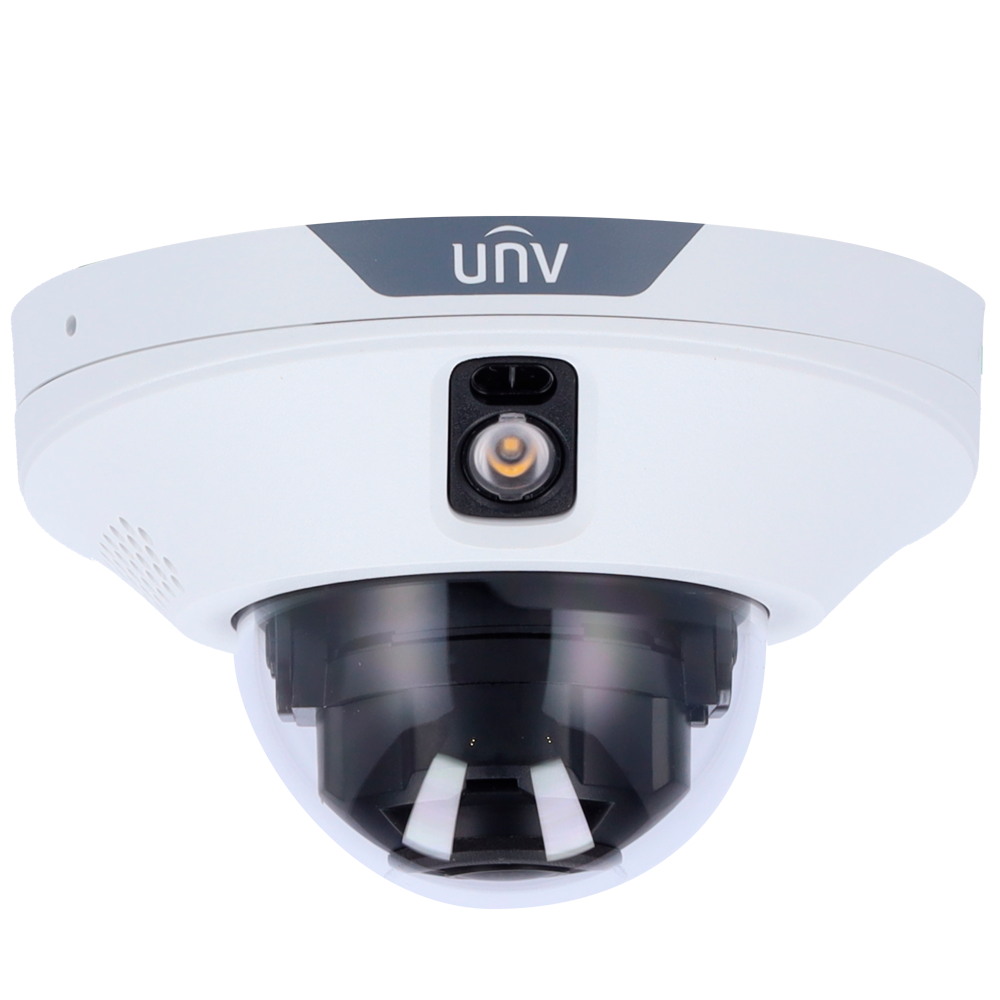

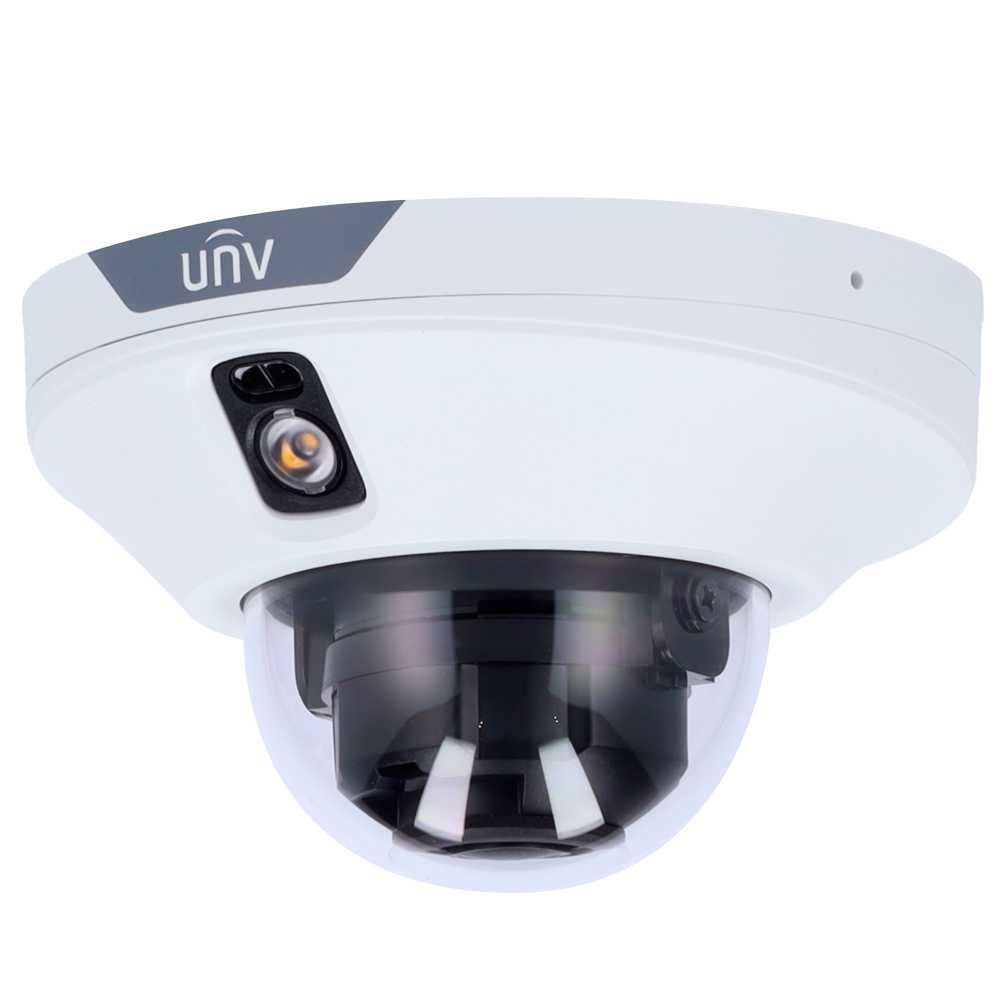

UV-IPC312LP-ADF20KC-DL
Ga direct naar de productinformatie
UV-IPC312LP-ADF20KC-DL
- Uniview IP Dome Camera - Easy range
- 2 MP | Lens 2 mm | microSD 512 GB
- IR 10m | WDR 120 dB
- LightHunter | Statistical Analysis
- PoE | SIP | UMD | IP67 | IK10
- Audio | Mic
2 MP Easy IP Dome Camera with 2 mm Fixed Lens. It has a wide viewing angle of 126º and thanks to the speaker and its white light, active deterrence can be activated to alert audibly and luminously when an event is detected. Special camera for installation in elevators, with video analytics dedicated to this sector, in addition to SIP and UMD.
- IP Dome Camera | Easy Range- 2 MP (1920x1080)
- 2 mm fixed lens
- Angle of view of 126º for large area coverage
- Minimum illumination 0.003 | 0 Lux with IR
- IR range of 10 m
- Supports elevator entrance detection, based on target classification, detecting bicycles and motorcycles
- Supports active deterrence, when elevator entrance detection is triggered, the camera links the alarm sound with white light
- Supports display of elevator information on camera OSD
- Supports Dual Light: IR as supplementary light and white light to generate alertness
- SIP (Smart Intrusion Prevention) Lite: combines artificial intelligence algorithms with real-time video analysis to accurately identify human and vehicular intrusions, minimizing false alarms caused by animal movements or weather conditions
- UMD (Ultra Motion Detection): thanks to its advanced AI algorithm, UMD is able to detect changes in the environment extremely efficiently, even in conditions of high speed or motion difficult to capture by other technologies
- WDR 120 dB
- Built-in microphone
- Built-in speaker
- Audio 1 Input / 1 Output
- Alarm 1 Input / 1 Output
- Slot for microSD up to 512 GB
- PoE
- Weatherproof IP67
- Over voltage protection 4 KV
- Corridor mode 9:16
- Reset button
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Easy |
| Image sensor | 1/2.8" Progressive Scan CMOS |
| Maximum resolution | 2 Megapixel (1920x1080) |
| Main Stream rate | (1920x1080, 1280x720)@ 30FPS |
| Extra Stream rate | 720P(1280x720), D1 (720x576), 640*360 @30fps |
| Third Stream | D1 (720x576), 640x360, 2CIF(704x288), CIF (352x288) @30fps |
| Compression | Ultra265/H.265/H.264 |
| Lens | 2.8 mm |
| FOV | Horizontal: 126º Vertical: 71º Diagonal: 144.6º |
| Range performance | Detect: 31 m Observe: 12.4 m Recognize: 6.8 m Identify: 3.1 m |
| Minimum illumination | 0.001 Lux (F1.6, AGC ON) 0Lux with Infrared |
| Infrared range | 10 m |
| Day / Night | Mechanical ICR filter |
| Image improvements | BLC, HLC, AGC, 2D/3D-NR, Smart IR, ROI (Up to 8 areas), Privacy Masking |
| WDR | 120 dB |
| Corridor mode | Yes |
| UMD (Advanced Motion Detection) | Yes |
| Intelligent functions | SIP, Smart Intrusion Prevention (Classification of human, vehicle and two-wheeler over line crossing, area intrusion, region of entry and region of exit) Counting and flow of people over an area *Both functions cannot be enabled at the same time |
| Elevator input detection | Support Based on target classification: motorcycle and bicycle |
| Elevator events | TOF tamper detection, elevator status display: current floor, condition: stopped/lowering/rising/speed, temperature and humidity detection. |
| Internal memory | Micro SD slot, up to 512 GB |
| Alarms | 1 Input / 1 Output |
| Audio | Integrated microphone 1 Input / 1 Output |
| Network interface | Ethernet 10/100M BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Power | DC 12V / 5.5W PoE IEEE802.3af |
| Temp. operation | -30º C ~ 60º C |
| Protection | Weatherproof IP67 |
| Dimensions | 68.7 (D) x 100 (Ø) mm |
| Weight | 250 g |
| Material | Metallic |
In the box
- Uniview IP Camera
- Installation tools
- User instructions
