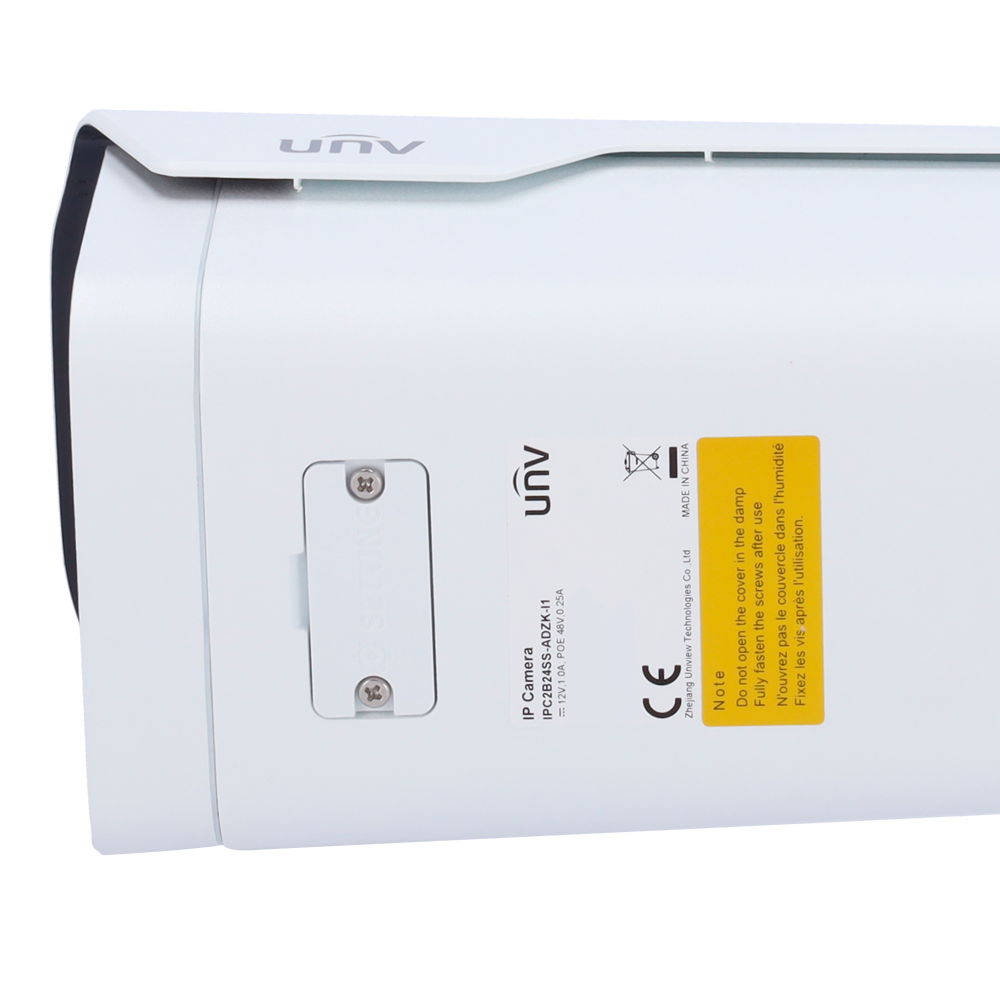

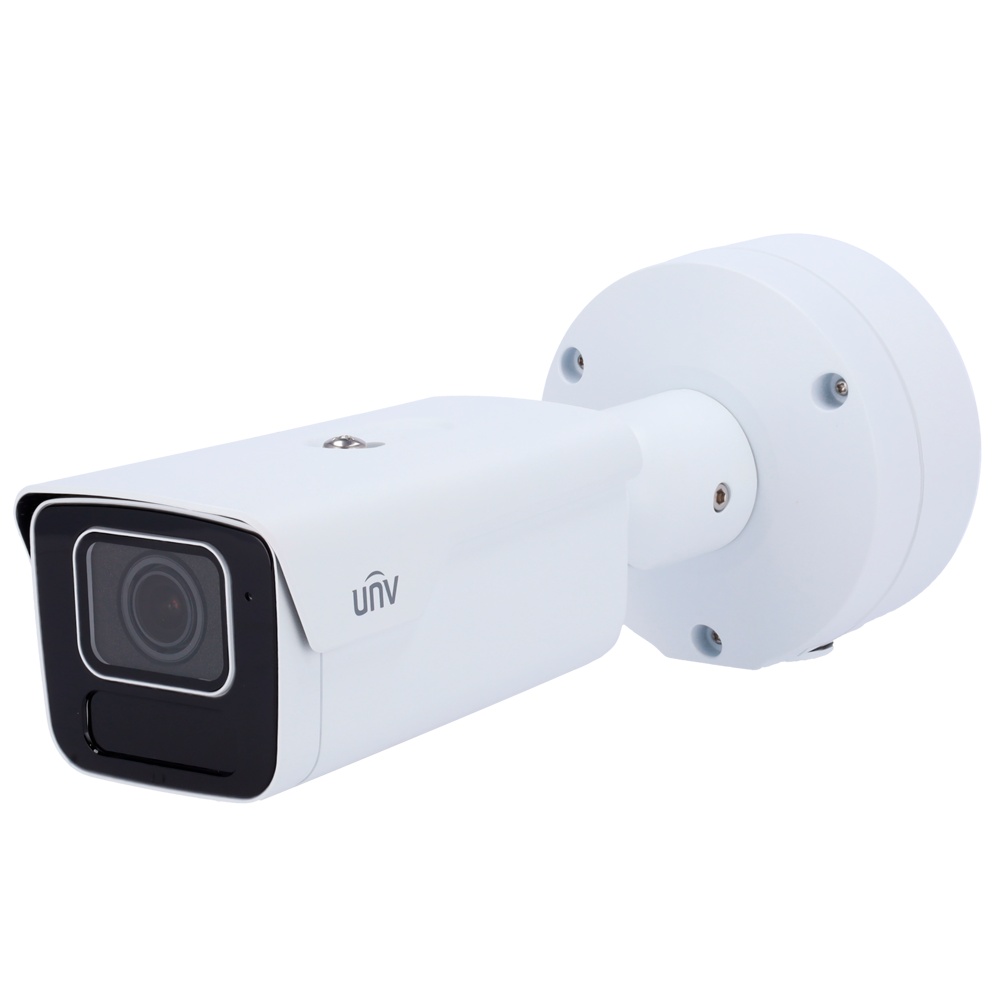

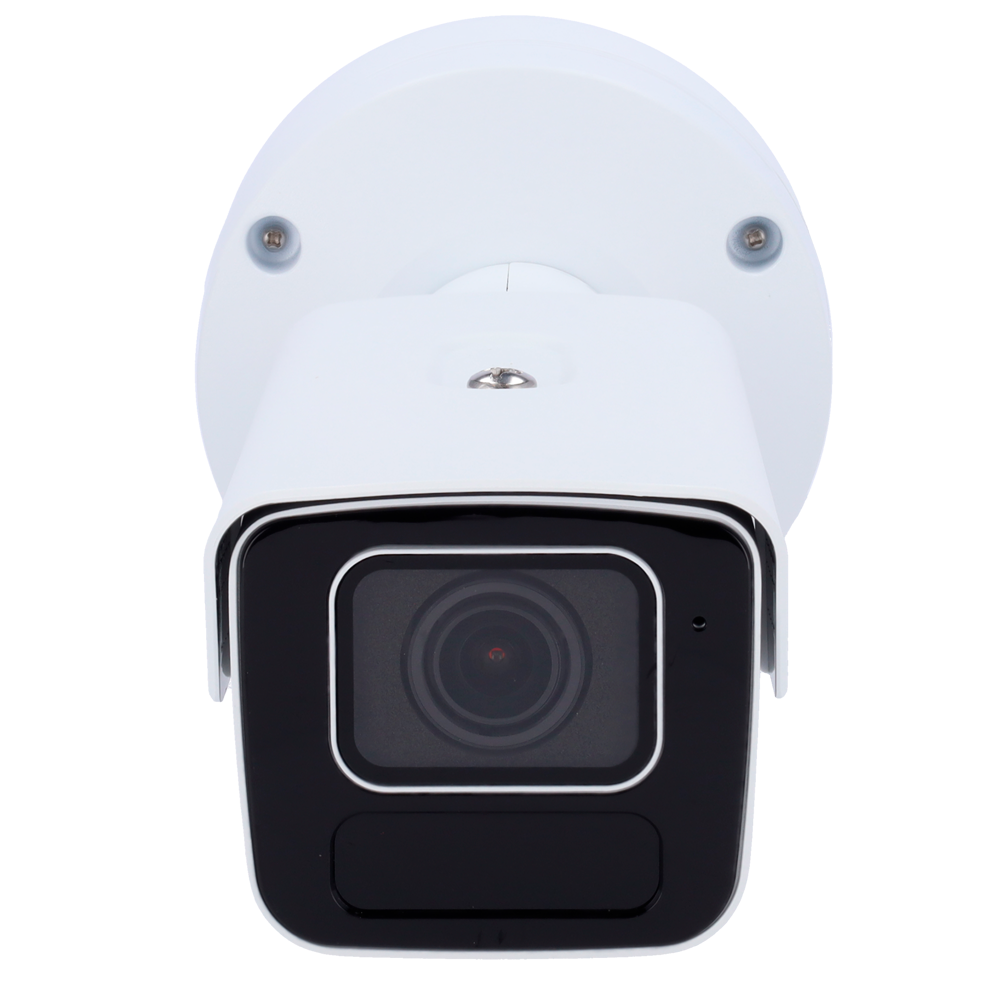

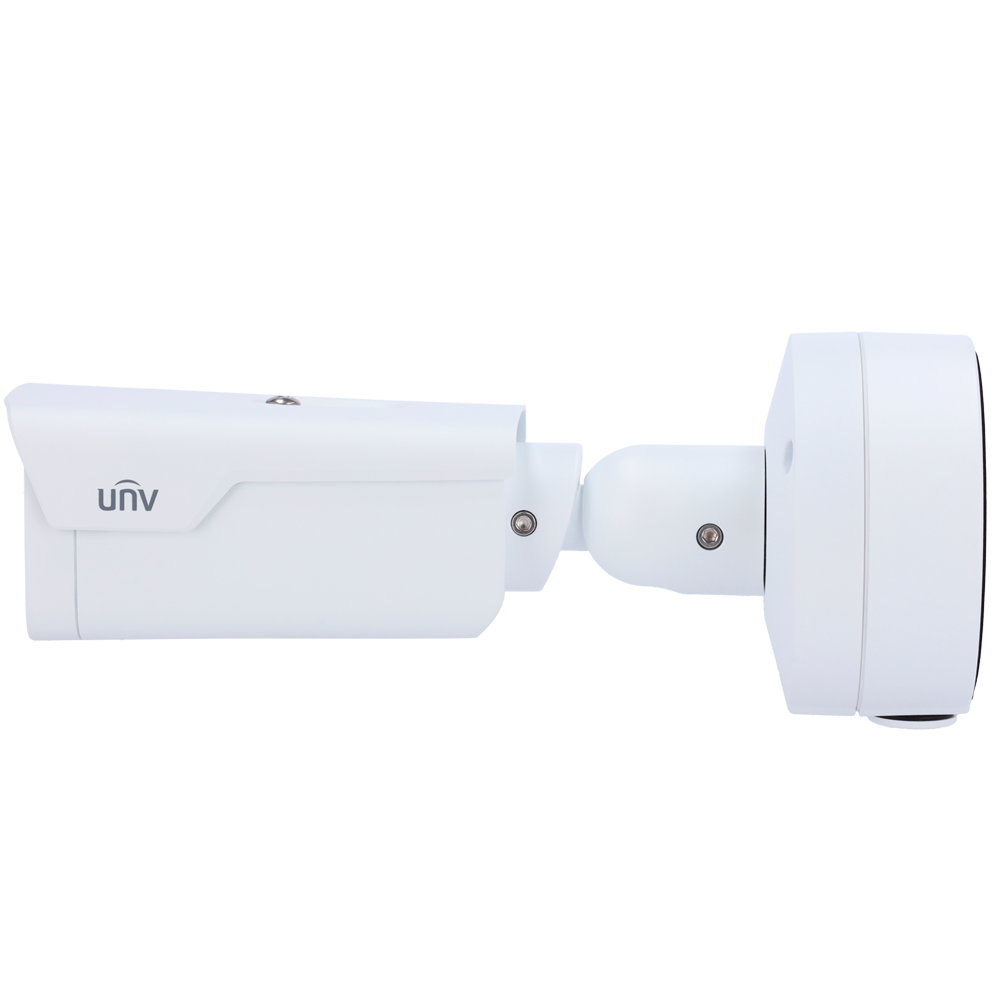

UV-IPC2B24SS-ADZK-I1
Ga direct naar de productinformatie
UV-IPC2B24SS-ADZK-I1
- IP Camera 4 Megapixel
- Prime range
- Lens 2.7 ~ 13.5 mm Motorized / WDR 130 dB
- IR LEDs Range 60 m | Built-in Microphone
- SIP | People Counting
- UMD | IP67 | IK10
- Uniview
- Bullet IP camera
- Prime range
- 1/3" Progressive Scan CMOS
- 4 Megapixel (2688 x 1520)
- 2.7~13.5 mm Varifocal Motorised Lens
- Lighthunter
- Color Retrieval
- IR Range 60 m
- WDR 130dB
- Compression Ultra265/H.265/H.264
- Integrated microphone
- SIP (Smart intrusion prevention)
- People count
- UMD
- Auto Scene Match (ASM)
- PoE IEEE802.3af
- Weatherproof IP67
- Vandal proof IK10
- Surge protection
- MicroSD slot
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Prime |
| Image sensor | 1/3” Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2688 x 1520) |
| Lens | 2.7 ~ 13.5 mm Varifocal Motorized Lens (H:103.8~29.7º; V: 56.7~16.7º; D: 108.3~33.7º) |
| Range performance | 60.8~303.8 (D), 24.3~121.5 (O), 12.2~60.8 (R), 6.1~30.4 (I) |
| Main Stream rate | 4MP (2688x1520), Max 30fps; 4MP (2560x1440), Max 30fps; 3MP (2304x1296), Max 30fps; 1080P (1920x1080), Max 30fps; |
| Second Stream Rate | 1080P (1920x1080), Max 30fps; 720P (1280x720), Max 30fps; D1 (720x576), Max 30fps; 640x360, Max 30fps; 2CIF(704x288), Max 30fps; CIF(352x288), Max 30fps; |
| Third Stream Rate | D1 (720x576), Max 30fps; 640x360, Max 30fps; 2CIF(704x288), Max 30fps; CIF(352x288), Max 30fps; |
| Compression | Ultra 265, H.265, H.264, MJPEG |
| Minimum illumination | Colour: 0,002 lux (F1.2, AGC ON) 0 lux with activated IR |
| Infrared range | 60 m |
| Image improvements | WDR (130dB), BLC, HLC, AGC, 2D/3D-NR, ROI, Privacy Mask, Smart IR |
| Intelligent intrusion prevention | Intelligent Intrusion Prevention. False alarm filtering support: cross-line detection, intrusion detection, ingress area detection, egress area detection, cross-line detection, intrusion detection, intrusion detection, ingress area detection, egress area detection |
| Color Retrieval | Color metadata detection on humans, vehicles and two-wheelers. |
| Statistical analysis | People counting, crowd flow counting support and crowd density monitoring |
| UMD | Integrates Ultra motion detection |
| Automatic Scene Matching (ASM) | Supported (WDR only) |
| Day / Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 256 GB |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Audio | Integrated microphone |
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] Output: impedance 600Ω; amplitude 2V [p-p] |
| Alarm I/O | 1/1 |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF (S-Profile, G-Profile, T-Profile), API,SDK |
| Power | DC input 12 V / 9.5 W, PoE IEEE802.3af DC output 12 V, 0.1 A, 1.2 W |
| Temp. operation | -40º C ~ 60º C |
| Degree of protection | Weatherproof IP67 Vandal proof IK10 |
| Dimensions | 324 × 126 × 130mm |
| Weight | 1480 g |
In the box
- Uniview IP Camera
- Installation material
- User instructions
