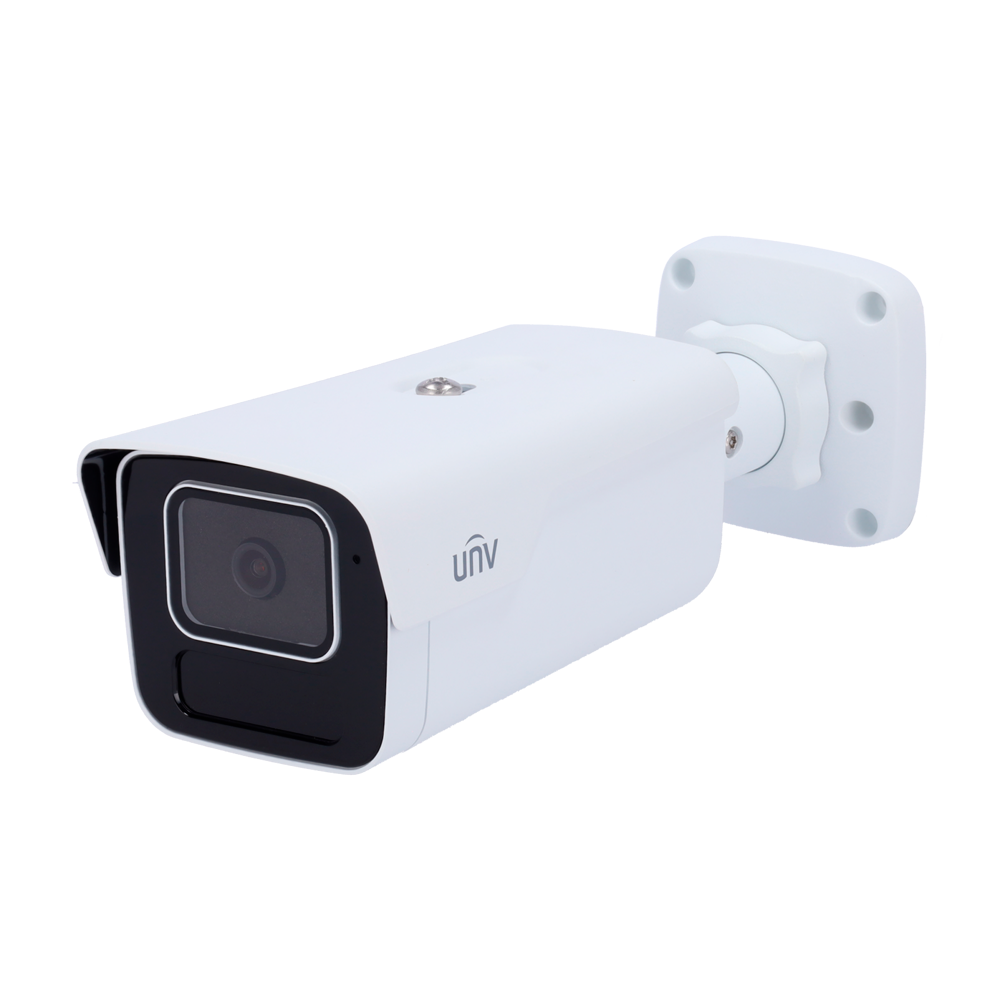

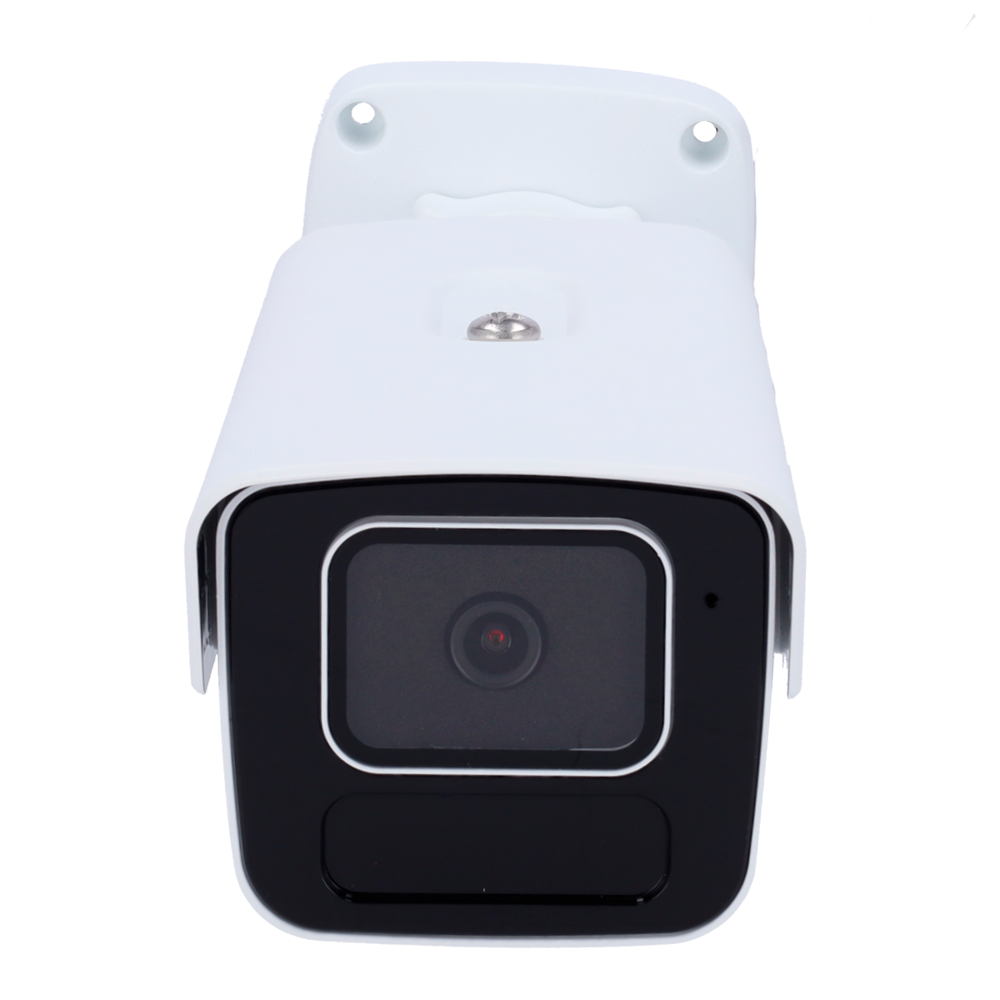

UV-IPC2B15SS-ADF28K-I1
Ga direct naar de productinformatie
UV-IPC2B15SS-ADF28K-I1
- 5 MP IP Camera
- Prime range
- Lens 2.8 mm / WDR 130 dB
- IR LEDs Range 80 m | Built-in Microphone
- AI Algorithm | Avoid false alarms
- WEB, CMS, Smartphone and NVR interface
- Uniview
- Bullet IP camera
- Prime range
- 1/2.7" Progressive Scan CMOS
- 5 Megapixel (2880 x 1620)
- 2.8 mm Lens
- Lighthunter
- Color Retrieval
- IR Range 80 m
- WDR 130dB
- Compression Ultra265/H.265/H.264
- Integrated microphone
- Intelligent functions
- Auto Scene Match (ASM)
- IEEE802.3af
- Weatherproof IP67
- Surge protection

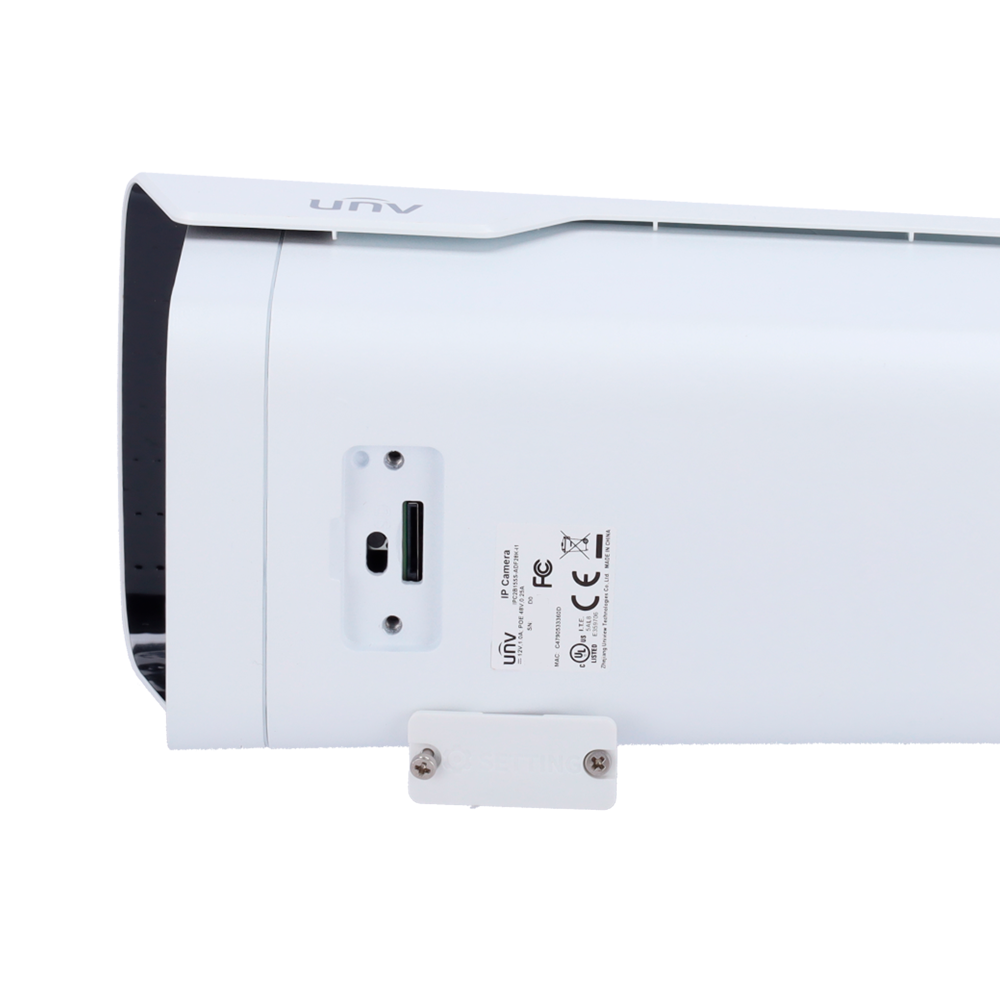

- MicroSD slot
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Prime |
| Image sensor | 1/2.7” Progressive Scan CMOS |
| Maximum resolution | 5 Megapixel (2880 x 1620) |
| Lens | 2.8 mm (H:110,71°; V: 56,39º; D: 114,11°) |
| Range performance | 63 (D), 25.2 (O), 12.6 (R), 6.3(I) |
| Main Stream rate | 5MP (2880 x 1620), maximum 30 fps; 4MP (2560 x 1440), maximum 30 fps; 3MP (2304 x 1296), Max 30fps; 1080P (1920 x 1080), maximum 30fps; |
| Extra Stream rate | 1080P (1920 x 1080), Max 30fps; 720P (1280 x 720), maximum 30 fps; D1 (720 x 576), maximum 30 fps; 640 x 360, maximum 30 fps; 2CIF (704 x 288), maximum 30 fps; CIF (352 x 288), maximum 30 fps; |
| Compression | Ultra 265, H.265, H.264, MJPEG |
| Minimum illumination | Colour: 0,002 lux (F1.6, AGC ON) 0 lux with activated IR |
| Infrared range | 80 m |
| Image improvements | WDR (130dB), BLC, HLC, AGC, 2D/3D-NR, ROI, Privacy Mask, Smart IR |
| Intelligent intrusion prevention | Intelligent Intrusion Prevention. False alarm filtering support: cross-line detection, intrusion detection, ingress area detection, egress area detection, cross-line detection, intrusion detection, intrusion detection, ingress area detection, egress area detection |
| Color Retrieval | Color metadata detection on humans, vehicles and two-wheelers. |
| Statistical analysis | People counting, crowd flow counting support and crowd density monitoring |
| UMD | Integrates Ultra motion detection |
| Automatic Scene Matching (ASM) | Supported (WDR only) |
| Day / Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 256 GB |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Audio | Microphone and speaker built-in |
| Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p] Output: impedance 600Ω; amplitude 2V [p-p] |
| Alarm I/O | 1/1 |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF (S-Profile, G-Profile, T-Profile), API,SDK |
| Power | DC 12 V / 10 W, PoE IEEE802.3af |
| Temp. operation | -40º C ~ 60º C |
| Degree of protection | Waterproof IP67, Surge protection |
| Dimensions | 269×96×82 mm |
| Weight | 840 g |
In the box
- Uniview IP Camera
- Installation material
- User instructions
