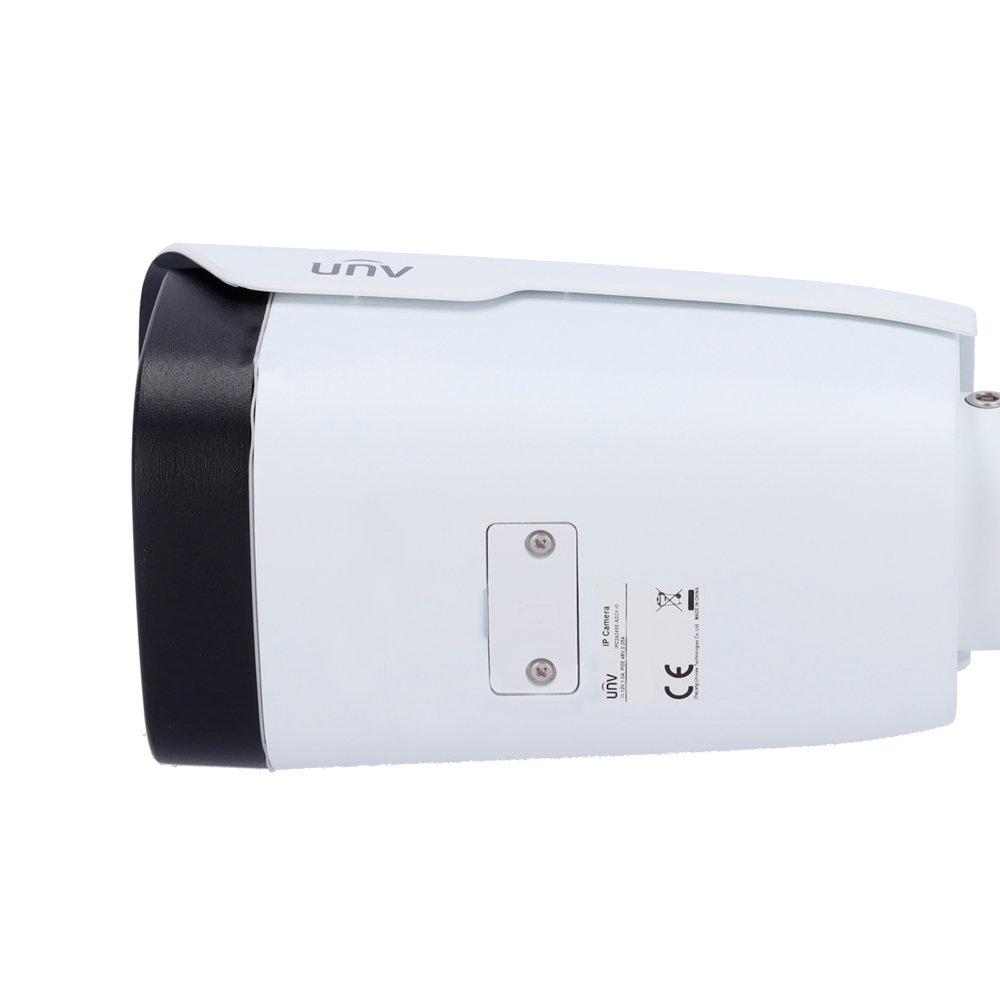

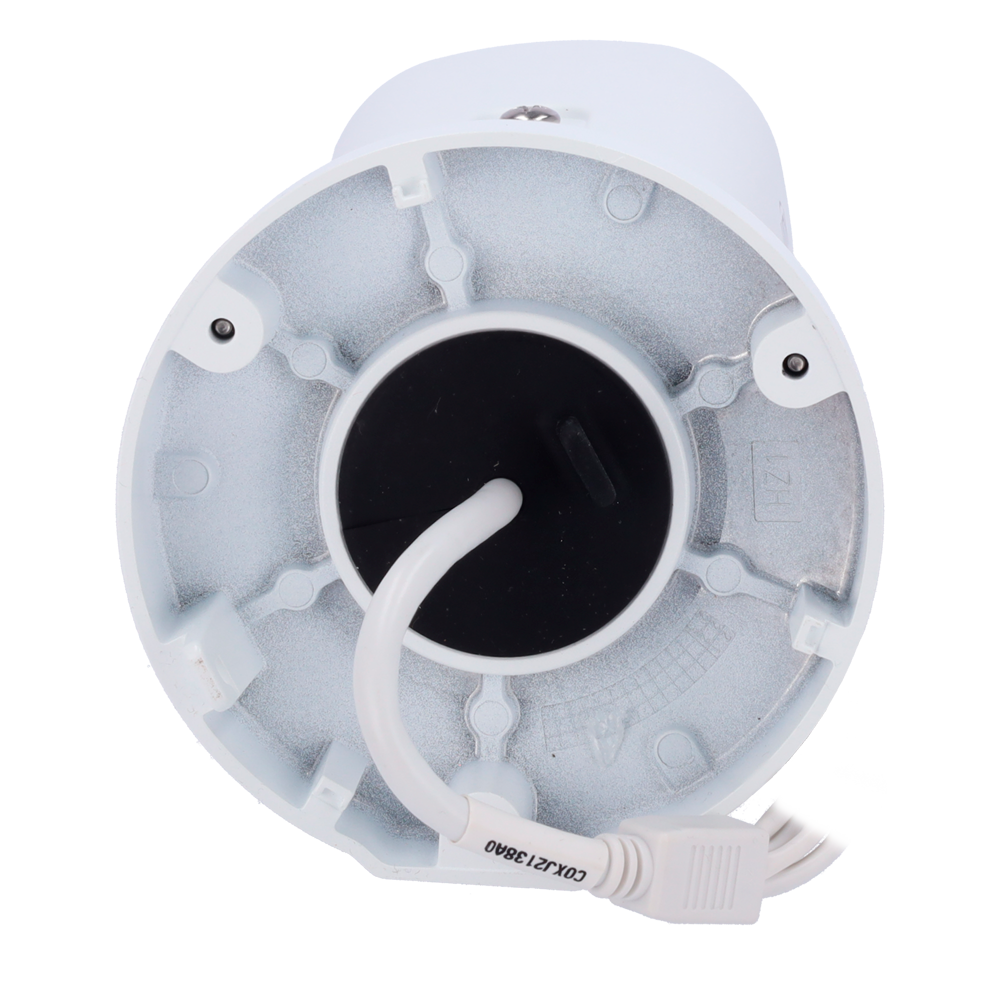

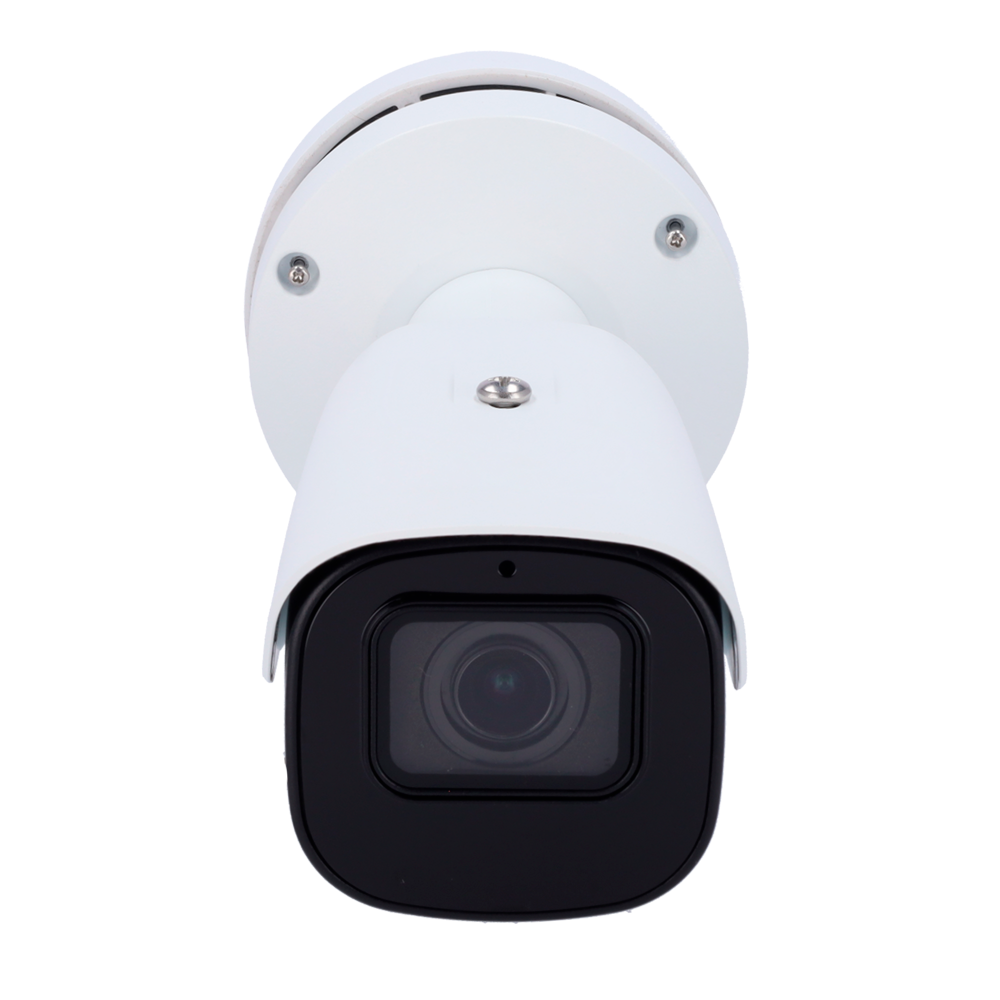

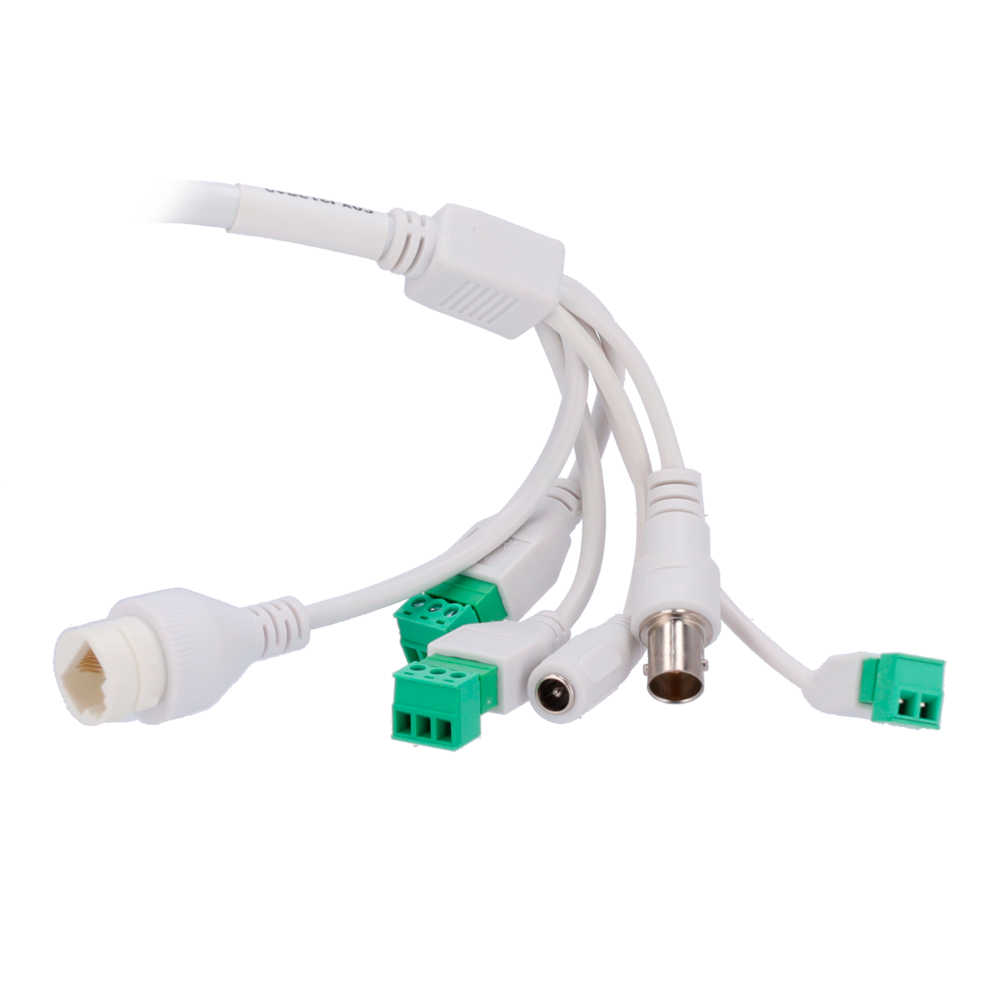

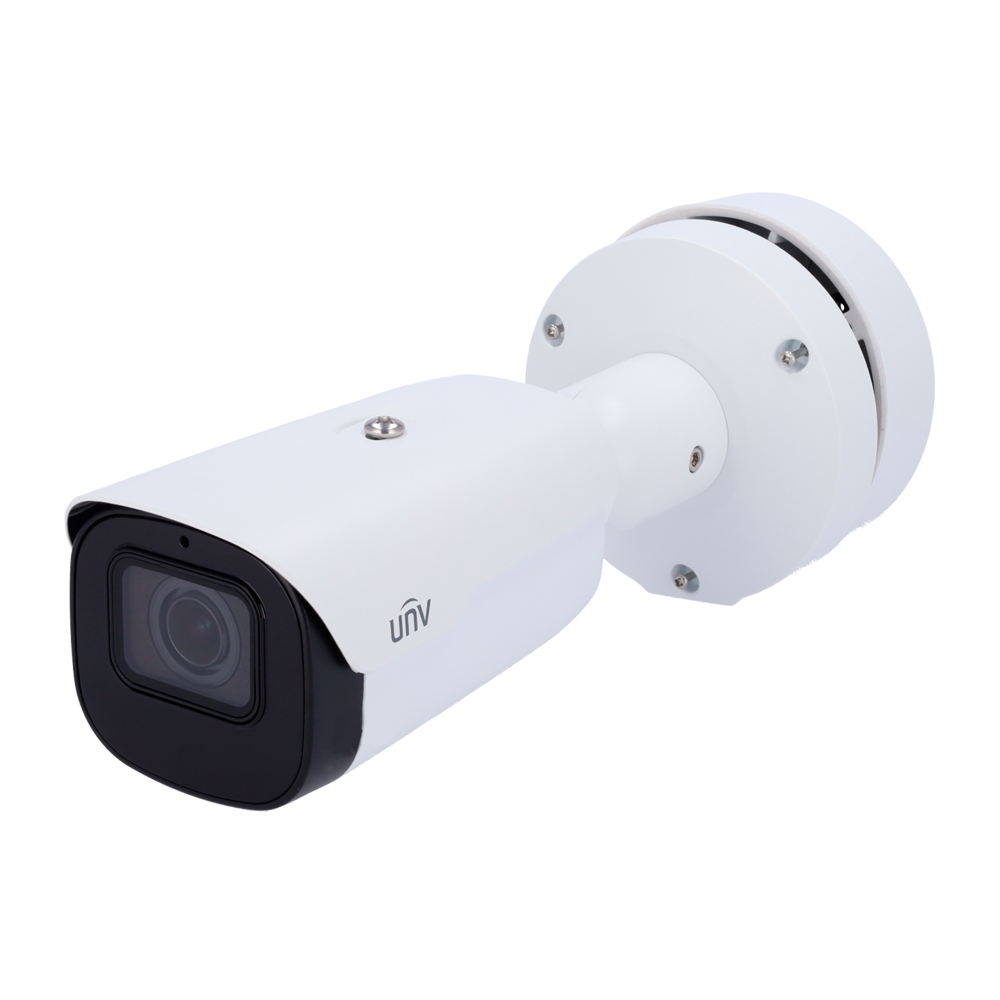

UV-IPC2A24SE-ADZK-I0
Ga direct naar de productinformatie
UV-IPC2A24SE-ADZK-I0
- 4 MP IP Camera
- Prime range
- 2.8 lens - 12mm / Optical WDR
- IR LEDs Range 80 m | Built-in Microphone
- SIP, Smart Intrusion Prevention | Persistent Intrusion Counting
- Built-in heater
- Uniview
- Bullet IP camera
- Prime range
- 1/8" Progressive Scan CMOS
- 4 Megapixel (2688x1520)
- 2.8-12mm lens
- Built-in heater
- Supports normal start-up at low temperature
- IR Range 80 m
- WDR 120dB Optical
- Compression Ultra265/H.265/H.264
- Integrated microphone
- SIP, Smart intrusion prevention with human and vehicle classification
- Area headcount
- PoE IEEE802.3af
- Corridor mode
- Weatherproof IP67
- Vandal proof IK10
- Surge protection
- MicroSD slot
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Prime |
| Image sensor | 1/8” Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2688x1520) |
| Main Stream rate | (2688 x 1520)@30fps |
| Extra Stream rate | 2º:1080p (1 ~ 30 FPS), 3º:D1 (1 ~ 30 FPS) |
| Compression | Ultra265/H.265/H.264 |
| Lens | 2.8 - 12 mm |
| Minimum illumination | Colour: 0.0005 lux (F1.2, AGC ON) 0 lux with infrared |
| Infrared range | 80 m |
| Image improvements | WDR (120dB), BLC, HLC, AGC, 2D/3D-NR, ROI, Privacy Mask, Smart IR |
| Range performance | 68-166.2 (D), 27.2-66.5 (O), 13.6-33.2 (R), 6.8-16.6 (I) |
| Corridor mode | Yes |
| UMD (Advanced Motion Detection) | Yes |
| Intelligent functions | SIP, Smart Intrusion Prevention (Classification of human, vehicle and two-wheeler over line crossing, area intrusion, region of entry and region of exit) Counting and flow of people over an area *Both functions cannot be enabled at the same time |
| Day / Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 256 GB |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Audio | Built-in microphone |
| Audio Compression | G.711U, G.711A |
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Power | DC 12 V / 12 W, PoE IEEE802.3af |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Waterproof IP67, Vandal-proof IK10, Surge protection |
| Dimensions | 322 (D) x 130 (Ø) mm |
| Weight | 1500 g |
In the box
- Uniview IP Camera
- Installation material
- User instructions
