UV-IPC268EA-AHDX4K-I1
Ga direct naar de productinformatie
UV-IPC268EA-AHDX4K-I1

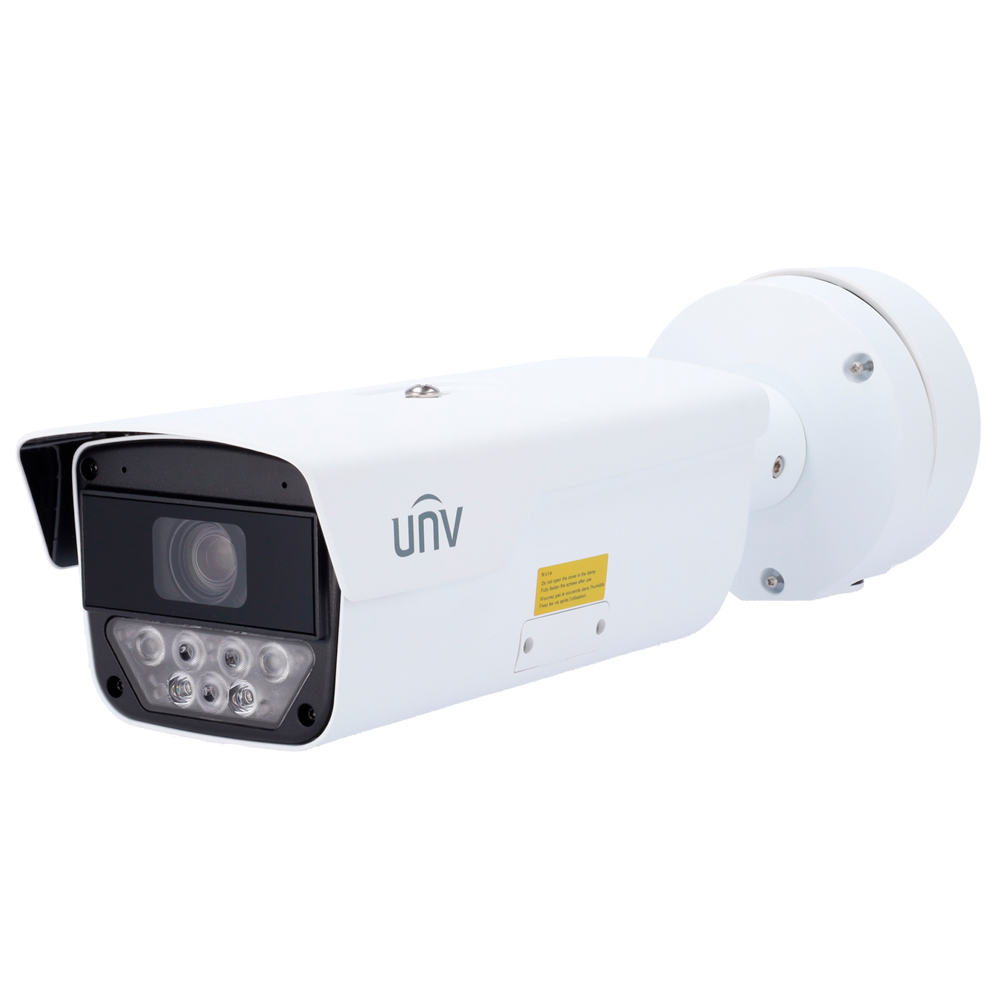

- Uniview IP Bullet Camera - Pro range
- 8 MP | Lens 8~32mm | microSD
- IR 120 m | WDR 140 dB | 60 FPS
- Wise-ISP | People Counting
- SIP | UMD | Facial Rec | Metadata
- Mic | Speaker | Alarm | Audio | Audio IP67 IK10
Uniview Pro range Bullet IP camera with 8MP, mm motorized varifocal lens 8~32. This camera features SIP, people counting, metadata capture of vehicles and persons. It has LightHunter technology that allows color display in low light environments, in addition to its powerful illuminator with a range of up to 120 m and thanks to its 140 dB in WDR allows a clear image in backlit environments.
- IP Bullet Camera - Pro Range
- 8 MP (3840x2160)
- 8~32 mm Varifocal Motorised Lens
- 60 FPS
- Minimum illumination 0.003 lux | 0 lux with supplemental light
- IR Range 120 m
- Wise-ISP: with Uniview's Wise-ISP technology, your images will reach an exceptional level of perfection. This intelligent processor optimizes each frame by reducing noise, improving dynamic range and adjusting colors to deliver superior visual quality. Designed for scenarios with varying light conditions, Wise-ISP guarantees sharp and consistent images, becoming the basis for Uniview's most advanced solutions
- Crowd flow counting, crowd density monitoring
- SIP (Smart Intrusion Prevention): combines artificial intelligence algorithms with real-time video analysis to accurately identify human and vehicular intrusions, minimizing false alarms caused by animal movements or weather conditions
- UMD (Ultra Motion Detection): thanks to its advanced AI algorithm, UMD is able to detect changes in the environment extremely efficiently, even in conditions of high speed or motion difficult to capture by other technologies
- Metadata analysis, supports human body, human face, motorized vehicle, non-motorized vehicle image capture of vehicle and vehicle attributes
- Crowd flow counting, crowd density monitoring
- Facial recognition support, up to 16 face libraries
- Facial Capture and Metadata
- WDR 140 dB
- Audio 2 Inputs / 1 Output
- Alarms 3 Inputs / 2 Outputs
- Slot for microSD up to 512 GB
- ONVIF Compatible
- Surge protection - Waterproof IP67
- Vandal proof IK10
Specifications
| Brand | Uniview |
| Range | Pro |
| Image sensor | 1/1.8” Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (3840x2160) |
| Lens | 8~32mm Motorized Varifocal |
| Range performance | Detect: 240.3~644.4 m Observe: 96.1~257.8 m Recognize: 48.1~128.9 m Identify: 24~64.4 m |
| Main Stream rate | 8MP (3840x2160)@60fps |
| Extra Stream rate | 2º: 2MP(1920*1080)@60fps; 3º: D1 (720x576)@60fps |
| Compression | Ultra 265, H.265, H.264, MJPEG |
| Minimum illumination | Colour: 0,003 lux (F1.6, AGC ON) 0 lux with activated IR |
| Infrared range | IR: 120 m |
| Image improvements | WDR (140dB), BLC, HLC, AGC, 2D/3D-NR, ROI, Privacy Mask, Smart IR |
| Intelligent intrusion prevention | False alarm filtering, cross-line detection, intrusion detection, entry area detection, exit area detection, motion detection, exception alarms |
| Detection | Audio detection. Metadata: Supports image capture and collection of human body, face, motor vehicle and non-motorized vehicle attributes. Capture and facial recognition: Supports up to 16 face libraries Max supports 10000 faces in face library Supports monitoring tasks, block list and allowed persons list comparison. |
| Statistical analysis | People counting, crowd flow counting support and crowd density monitoring |
| Day / Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 512 GB |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Audio | 2 In / 1 Out |
| Alarm | 3 inputs / 2 relay |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF (S-Profile, G-Profile, T-Profile), API,SDK |
| Power | DC 12 V / 19 W, PoE IEEE802.3af |
| Temp. operation | -40º C ~ 60º C |
| Degree of protection | Waterproof IP67 / Antivandalic IK10 / Overvoltage 6KV |
| Dimensions | 406 x 126 x 130mm |
| Weight | 1920 g |
In the box
- Uniview IP Camera
- Installation material
- User instructions
