UV-IPC264SA-AHDX4K-I1
- Uniview IP Bullet Camera - Pro range
- 4 MP | Lens 8~32 mm | microSD
- IR 120 m | White light 30 m | WDR 130 dB
- LightHunter | LPR Count | LPR | 60 FPS
- SIP | UMD | PoE +
- Mic | Speaker | Alarm | Audio | Audio IP67 IK10

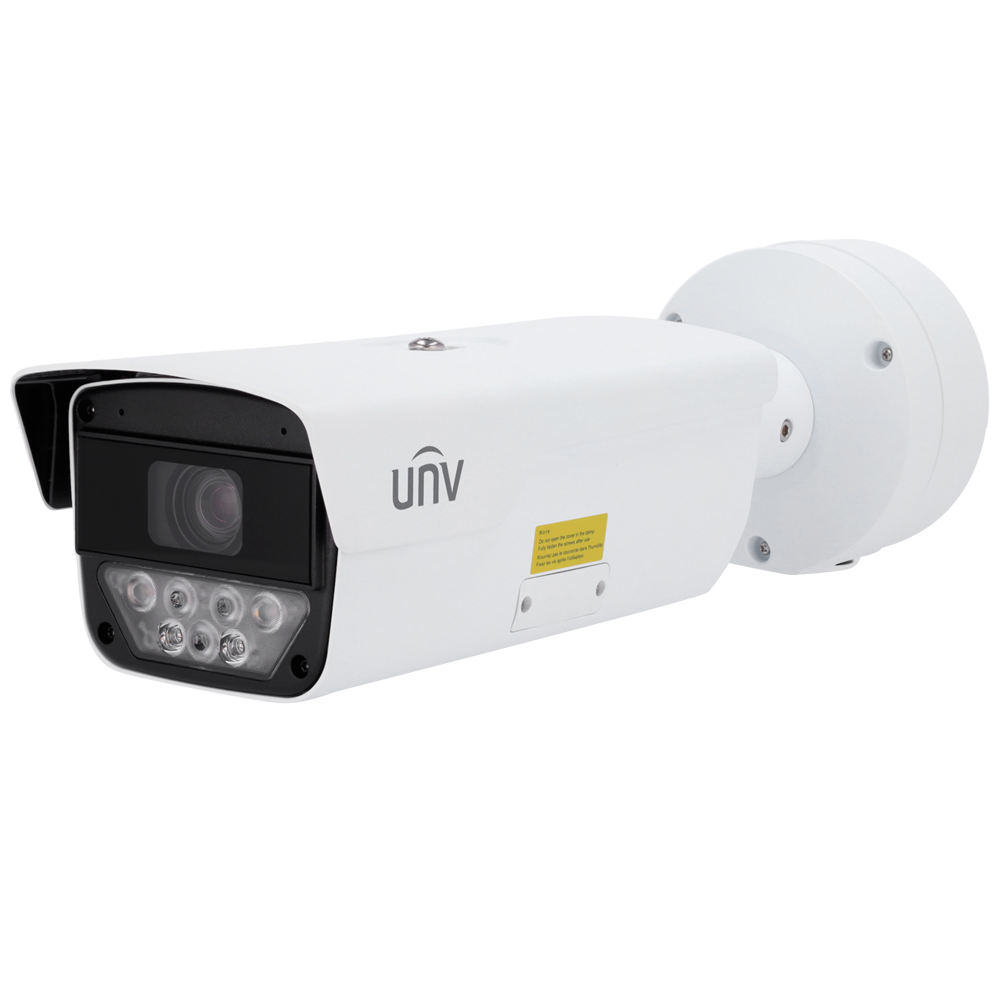

Uniview Pro range Bullet IP camera with 4 MP, motorized varifocal lens of 8 ~ 32 mm and up to 60fps. This camera features SIP, people counting, metadata capture of vehicles and persons. It has LightHunter technology that allows color display in low light environments, in addition to its powerful illuminator with a range of up to 120 m and thanks to its 130 dB in WDR allows a clear image in backlit environments.
- IP Bullet Camera - Pro Range
- 4 MP (2688x1520)
- 8~32 mm Varifocal Motorised Lens
- 60 FPS- Minimum illumination 0.001 lux | 0 lux with supplemental light
- IR Alcance120m
- White light range 30 m -LightHunter: uniview technology that allows you to view color images in low-light environments
- SIP (Smart Intrusion Prevention): combines artificial intelligence algorithms with real-time video analysis to accurately identify human and vehicular intrusions, minimizing false alarms caused by animal movements or weather conditions
- UMD (Ultra Motion Detection): thanks to its advanced AI algorithm, UMD is able to detect changes in the environment extremely efficiently, even in conditions of high speed or motion difficult to capture by other technologies
- Metadata analysis, supports human body, human face, motorized vehicle, non-motorized vehicle image capture of vehicle and vehicle attributes
- Crowd flow counting, crowd density monitoring
- Supports license plate recognition in up to 4 lanes and capture of vehicle details
- WDR 130 dB

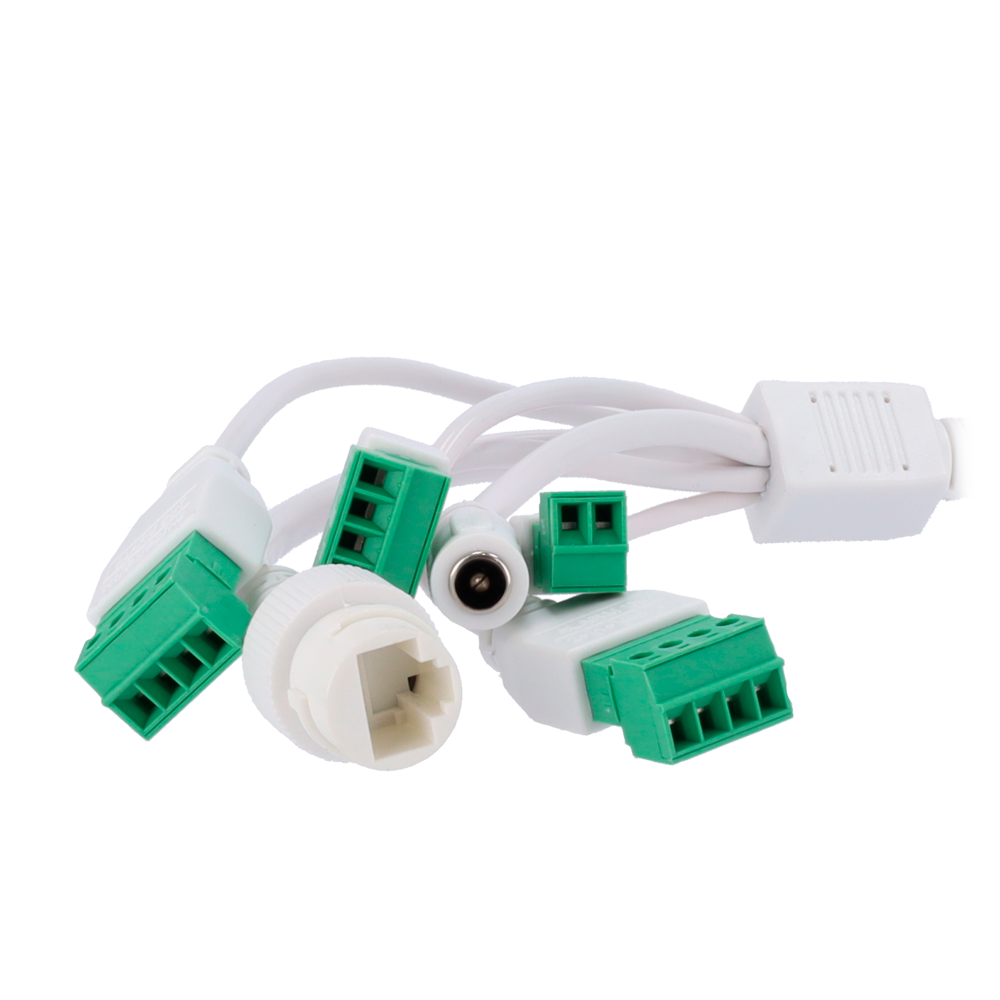

- Audio 2 Inputs / 1 Output
- Alarms 3 Inputs / 2 Outputs
- Slot for microSD up to 512 GB
- ONVIF Compatible
- Surge protection - Waterproof IP67
- Vandal proof IK10
- PoE +
Specifications
| Brand | Uniview |
| Range | Prime |
| Image sensor | 1/1.8” Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2688 x 1520) |
| Lens | Lens 8 ~ 32 mm Varifocal Motorized (H: 42.6~23.5º; V: 15.2~8.9º; D: 52.4~27.7º) |
| Range performance | 165.7~444 (D), 66~178 (O), 33~89 (R), 16.5~44.4 (I) |
| Main Stream rate | 4MP (2688x1520), Max 60fps; |
| Extra Stream rate | 2º: 1080P (1920x1080), Max 60fps; 3º: D1 (720x576), Max 60fps; |
| Compression | Ultra 265, H.265, H.264, MJPEG |
| Minimum illumination | Colour: 0,001 lux (F1.2, AGC ON) 0 lux with activated IR |
| Infrared and Warm Light Scope | IR: 120 m and WL: 30 m |
| Image improvements | WDR (130dB), BLC, HLC, AGC, 2D/3D-NR, ROI, Privacy Mask, Smart IR |
| Intelligent intrusion prevention | Intelligent Intrusion Prevention. False alarm filtering support: cross-line detection, intrusion detection, ingress area detection, egress area detection, cross-line detection, intrusion detection, intrusion detection, ingress area detection, egress area detection |
| UMD | Integrates Ultra motion detection |
| Statistical analysis | People counting, crowd flow counting support and crowd density monitoring |
| LPR (License plate capture) | Supports license plate image capture and collects car metadata Up to 4 lanes can be configured Two types of application mode available: high/low post * LPC: Known as License Plate Capture, it is used to capture vehicle license plates without actually applying OCR to them. |
| Automatic Scene Matching (ASM) | Supported (WDR only) |
| Day / Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 256 GB |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Audio | 2 Built-in Microphones / Built-in Loudspeaker |
| Audio I/O | 2 In / 1 Out |
| Alarm I/O | 3 inputs / 2 relay |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF (S-Profile, G-Profile, T-Profile), API,SDK |
| Power | DC 12 V / 23 W, PoE IEEE802.3af |
| Temp. operation | -40º C ~ 60º C |
| Degree of protection | Waterproof IP67 / Antivandalic IK10 / Overvoltage 6KV |
| Dimensions | 406 × 126 × 130mm |
| Weight | 2140 g |
In the box
- Uniview IP Camera
- Installation material
- User instructions
