UV-IPC2124SB-ADF28KMC-I0
Ga direct naar de productinformatie
UV-IPC2124SB-ADF28KMC-I0
- Uniview IP Bullet Camera - Prime range
- 4 MP | Lens 2.8 mm | microSD 256 GB
- IR 30 m | WDR 120 dB
- Light Hunter | Counting
- PoE | UMD | SIP | IP67
- Reset button , Microphone , Loudspeaker

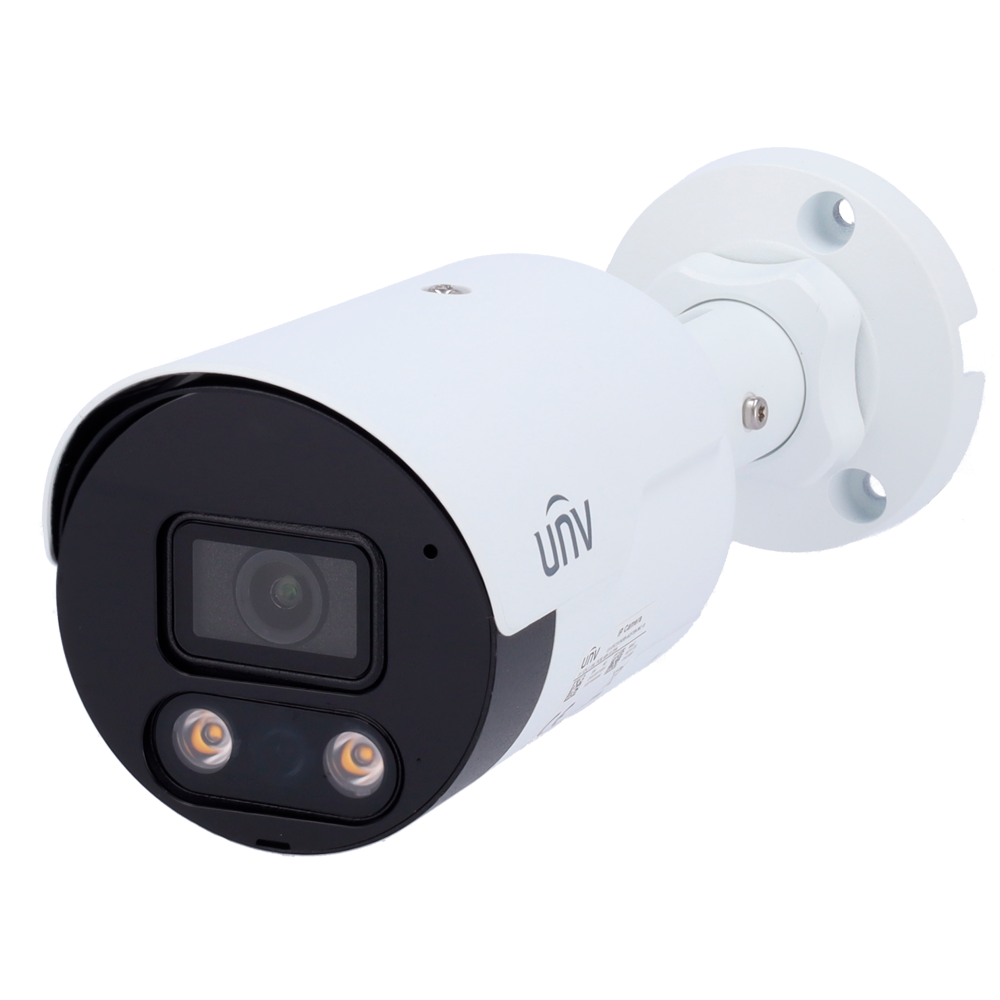

4 MP Prime Bullet IP camera with 2.8 mm fixed lens. Thanks to its Light Hunter technology and the fact that it has a real WDR of 120dB you can obtain clear images in difficult lighting conditions. Features SIP and UMD to avoid false alarms in video analytics. Incorporates microphone and loudspeaker, allowing two-way communication; allows sound and light alerts.
- IP Bullet Camera - Prime Range
- 4 MP (2688x1520)

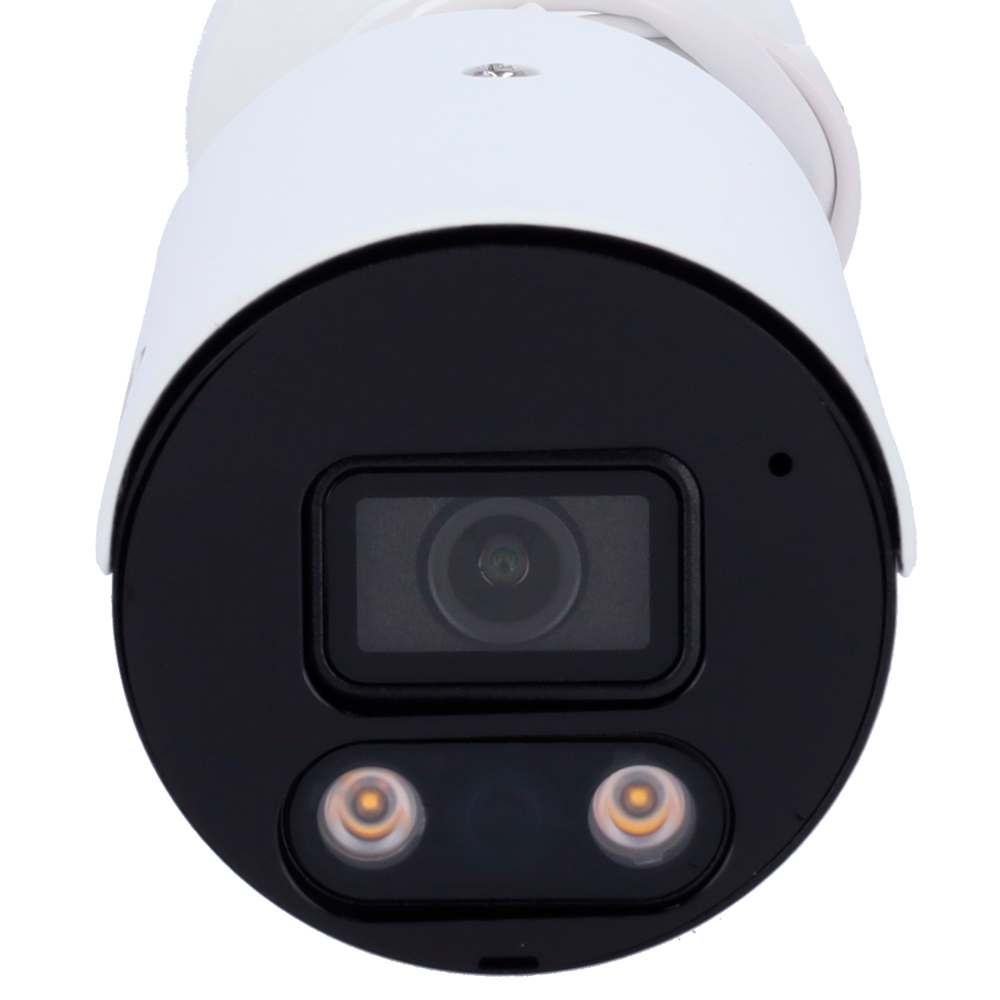

- 2.8 mm fixed lens
- Minimum illumination 0.002 lux | 0 lux with IR | IR Range 30 m | Light Hunter: technology that ensures super-high quality images in low-light environments
- Crowd flow counting, crowd density monitoring
- SIP (Smart Intrusion Prevention): combines artificial intelligence algorithms with real-time video analysis to accurately identify human and vehicular intrusions, minimizing false alarms caused by animal movements or weather conditions
- UMD (Ultra Motion Detection): thanks to its advanced AI algorithm, UMD is able to detect changes in the environment extremely efficiently, even in conditions of high speed or motion difficult to capture by other technologies
- WDR 120 dB
- Built-in microphone
- Built-in speaker

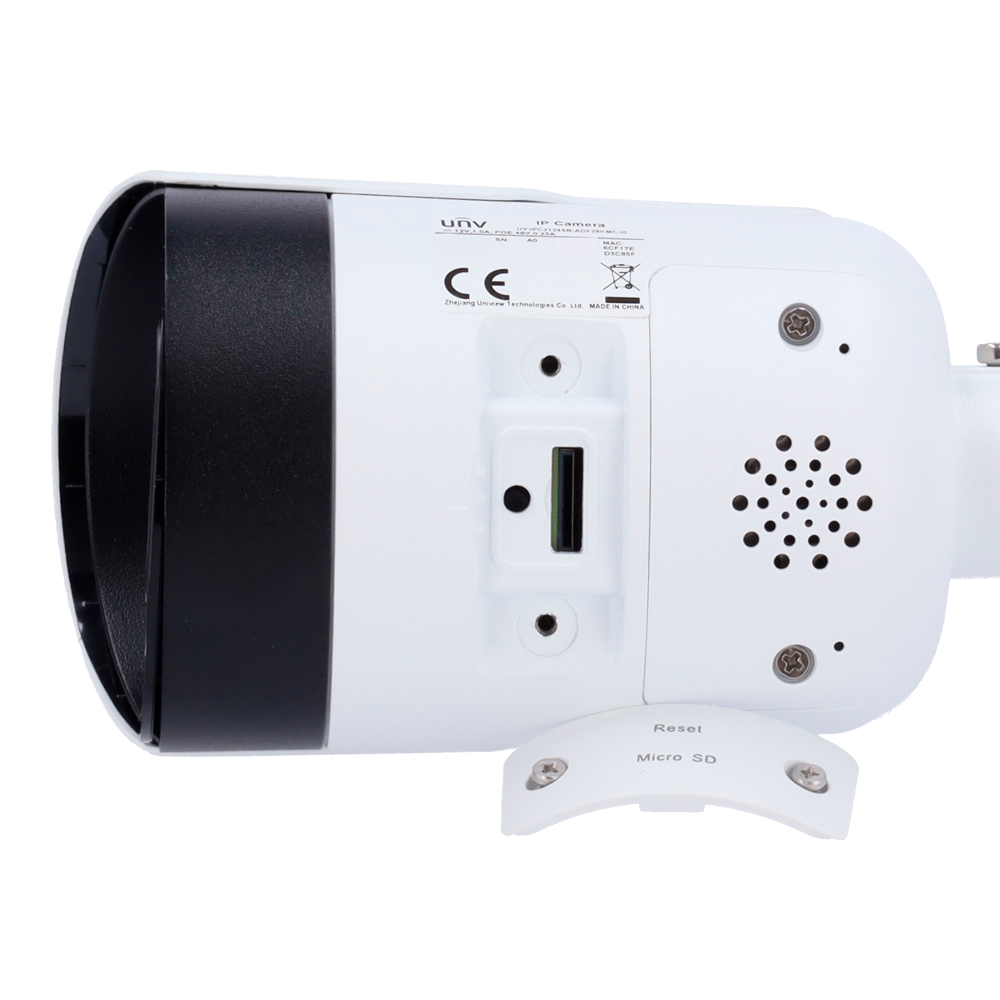

- Slot for microSD up to 256 GB
- PoE
- IP67
- Metallic
- Reset button
- Corridor mode
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Prime |
| Image sensor | 1/2.7” Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2688x1520) |
| Main Stream rate | 30 fps (2688 x 1520, 2560 x 1440) 25 fps (2304 x 1296) 30 fps (1920 x 1080) |
| Extra Stream rate | 2º:720p (1 ~ 30 FPS), 3º:D1 (1 ~ 30 FPS) |
| Compression | Ultra265/H.265/H.264 |
| Lens | 2.8mm (H: 101.1º, V: 55.3º, D: 111.1º) |
| Range performance | Detect: 63 m Observe: 25.2 m Recognize: 12.6 m Identify: 6.3 m |
| Minimum illumination | Colour: 0,002 lux (F1.6, AGC ON) 0 lux with light on |
| Infrared range | 30 m |
| Image improvements | WDR (120dB), BLC, HLC, AGC, 2D/3D-NR, ROI, Privacy Mask, Smart IR |
| Intelligent functions | Motion Detection, Audio Detection, Sabotage Protection |
| UMD | Yes (Advanced motion detection with human and vehicle classification) |
| SIP (Smart Intrusion Prevention) | Intelligent Intrusion Prevention. Accurate detection of humans and vehicles to avoid false alarms. Event due to line crossing, area intrusion or entry or exit of a previously defined area |
| Day / Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 256 GB |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Audio | Built-in microphone Built-in speaker |

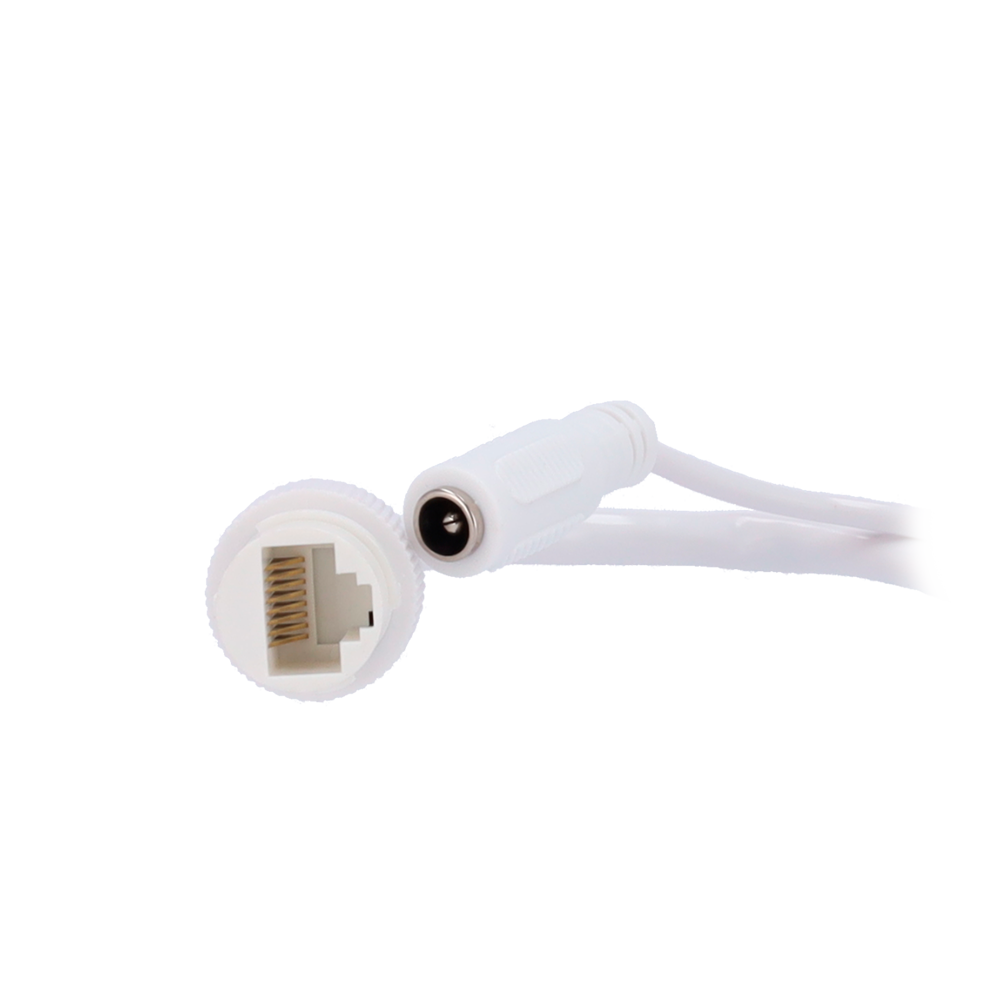

| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF (S-Profile, G-Profile, T-Profile), API, SDK |
| Power | DC 12V / 10.5W PoE IEEE802.3af |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Weatherproof IP67 Surge protection 4000 V |
| Dimensions | 191× 75 × 74mm |
| Weight | 500 g |
In the box
- Uniview IP Camera
- Installation material
- User instructions
