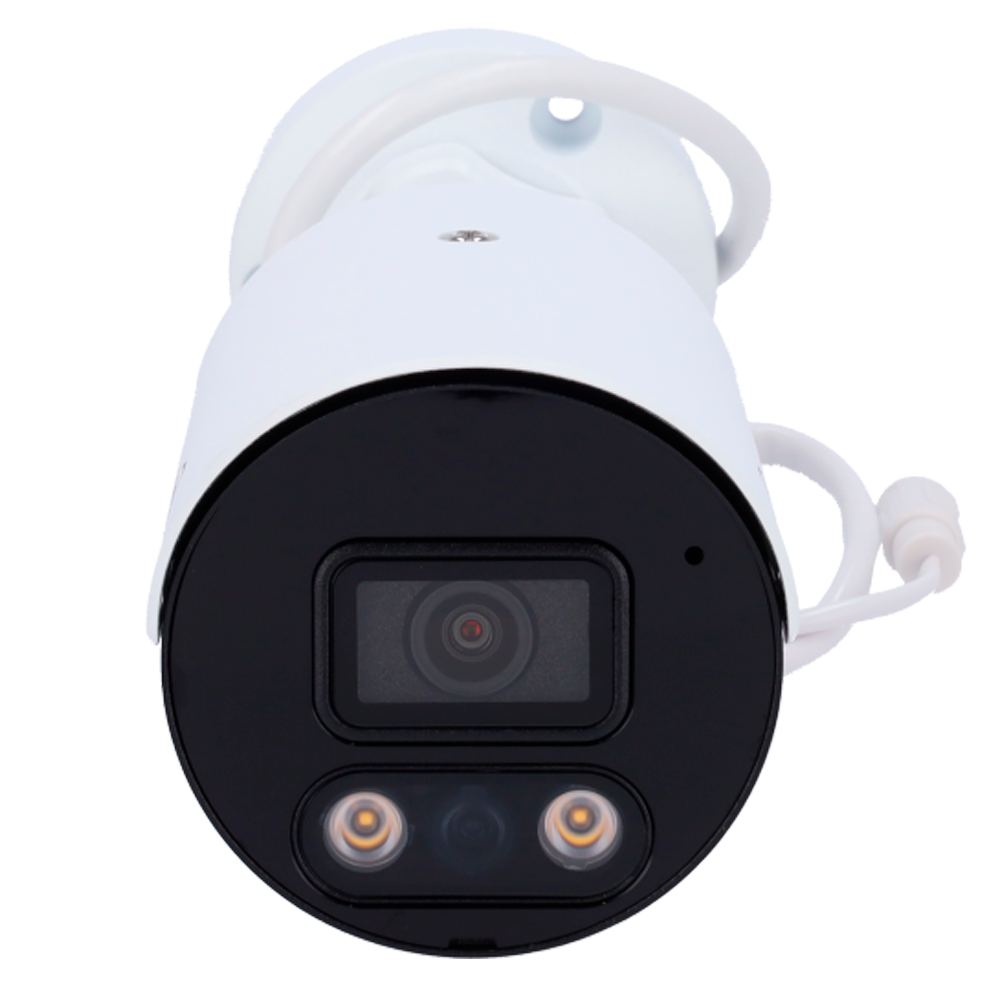

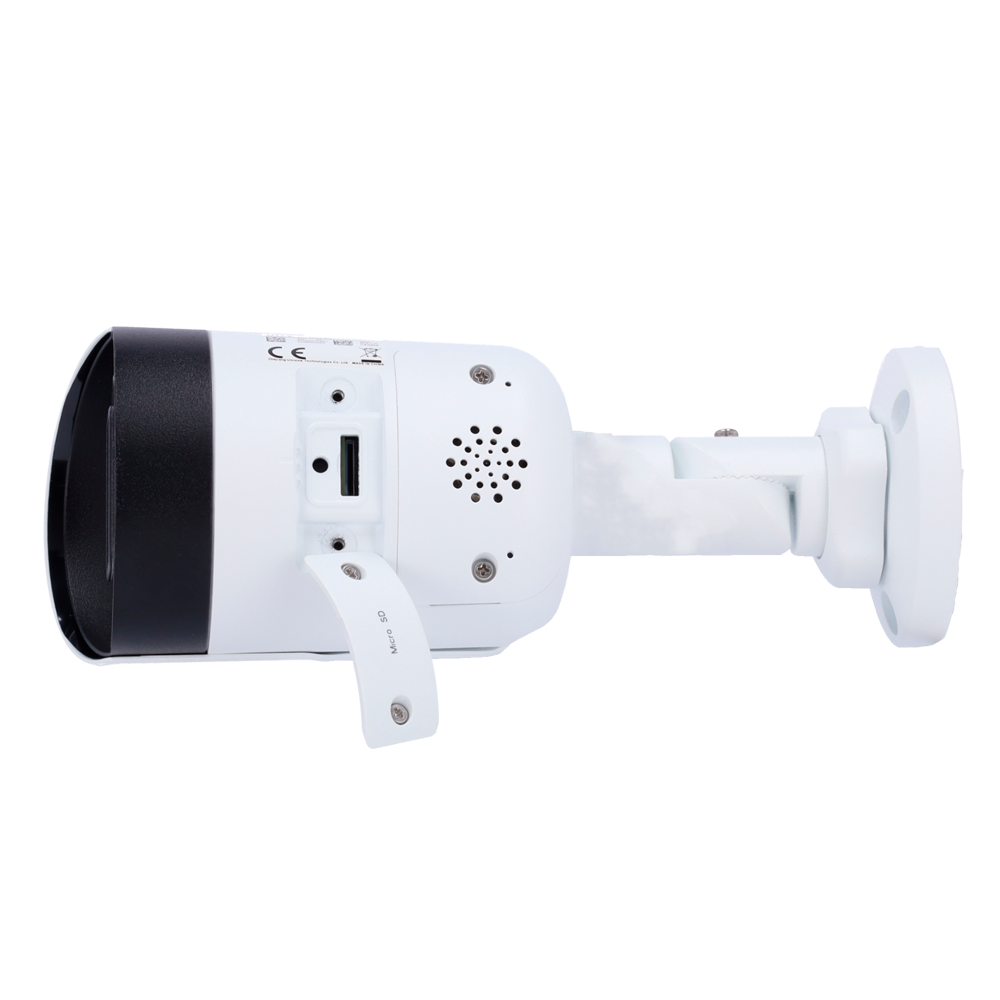

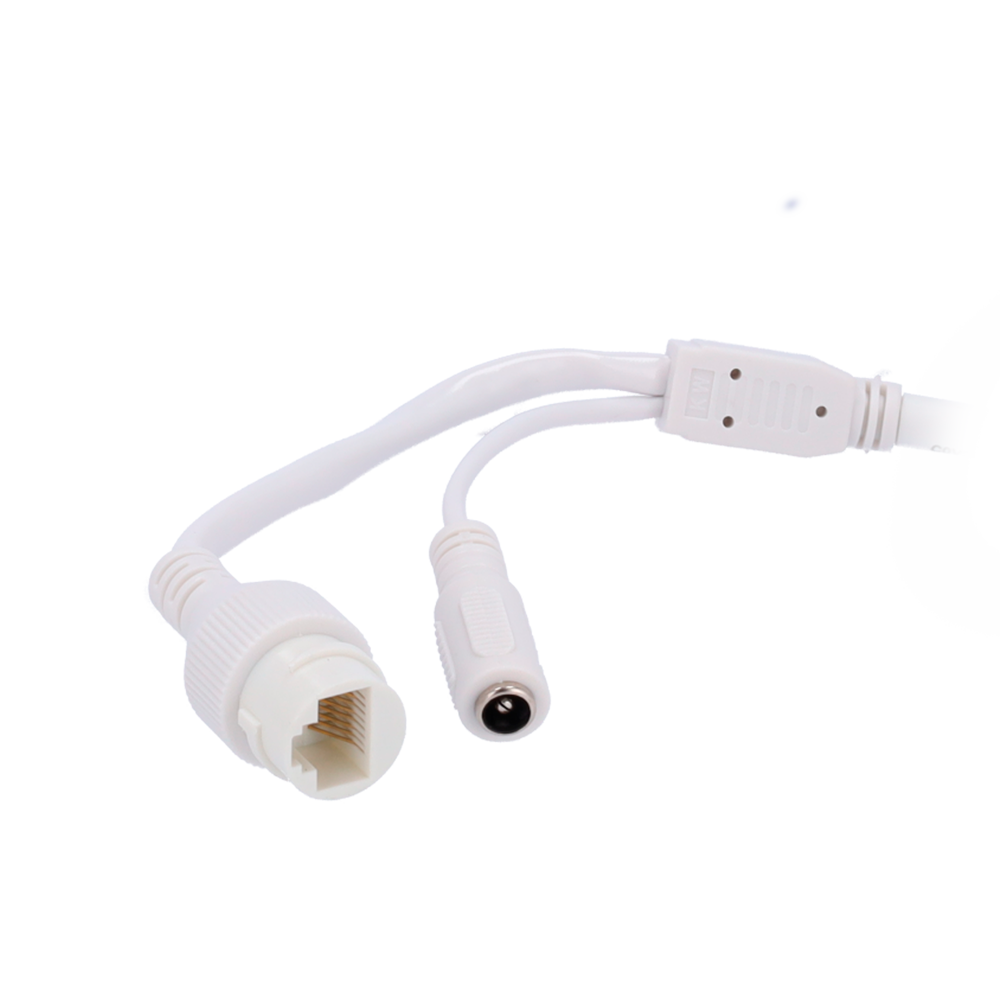

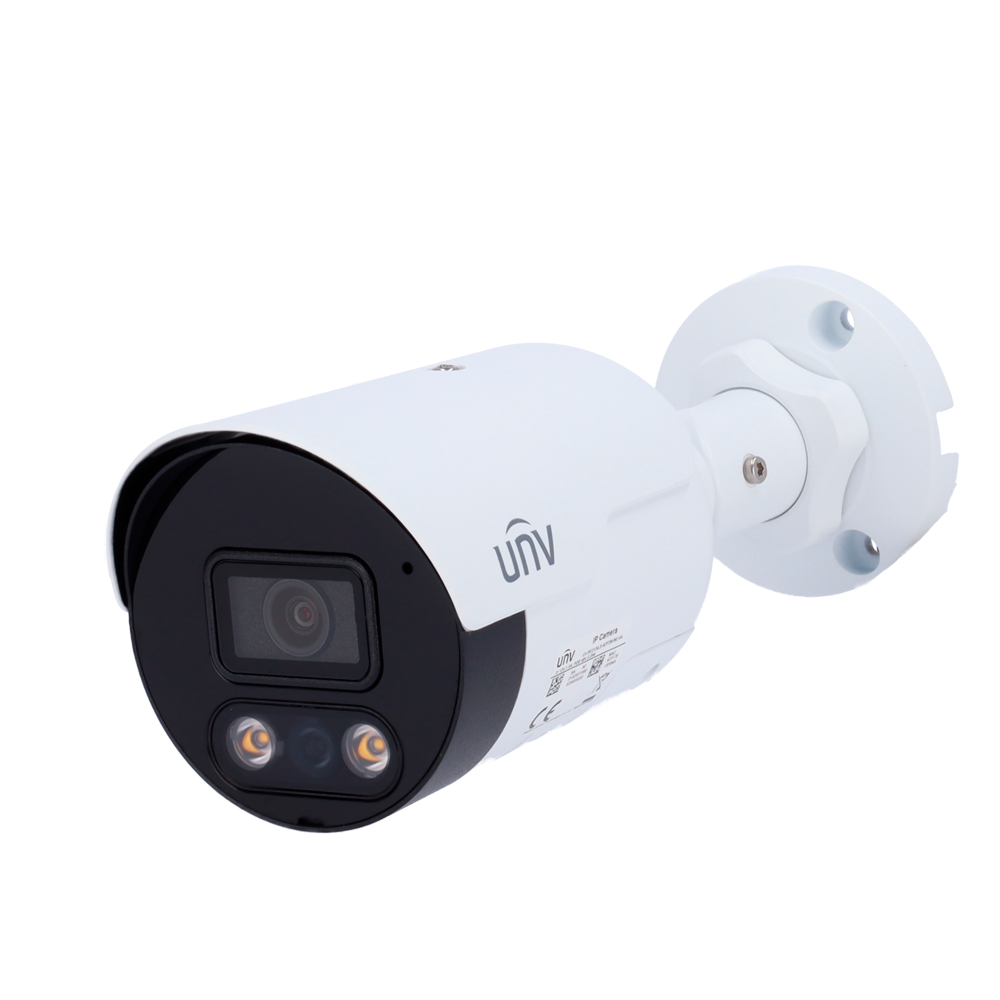

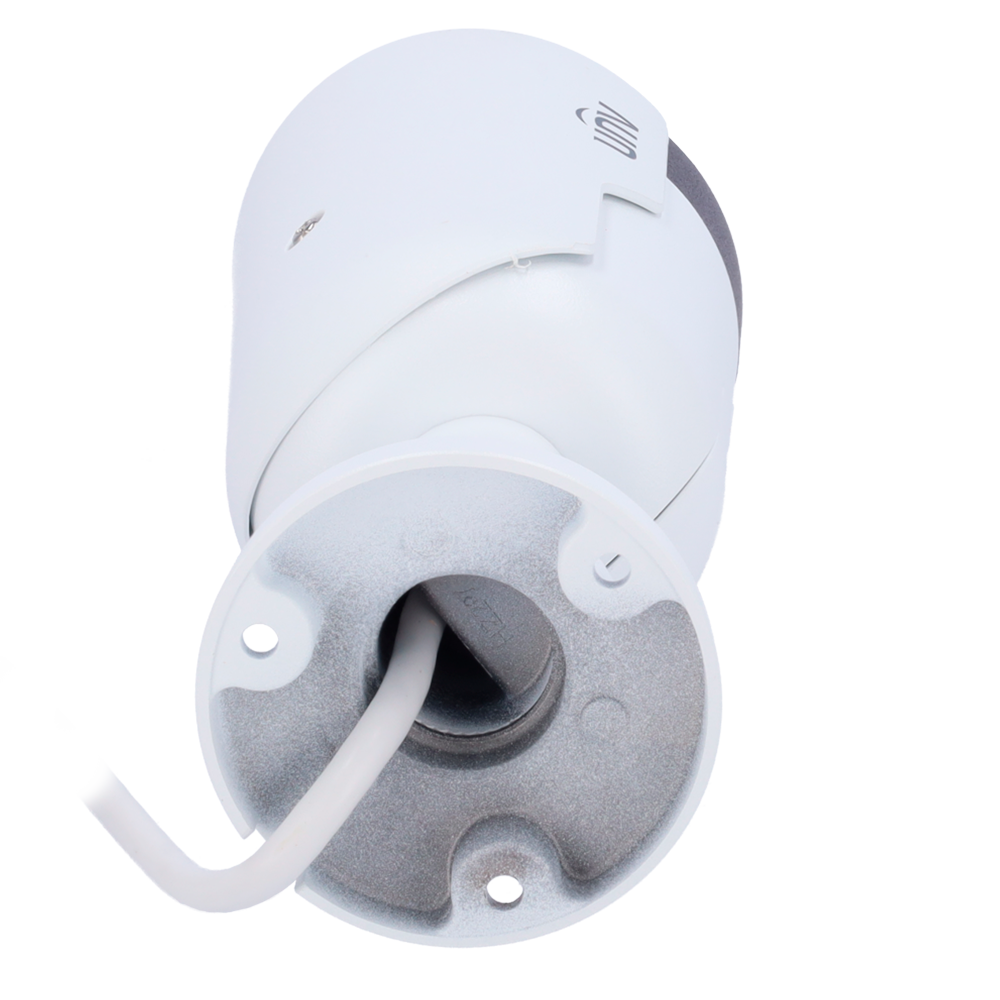

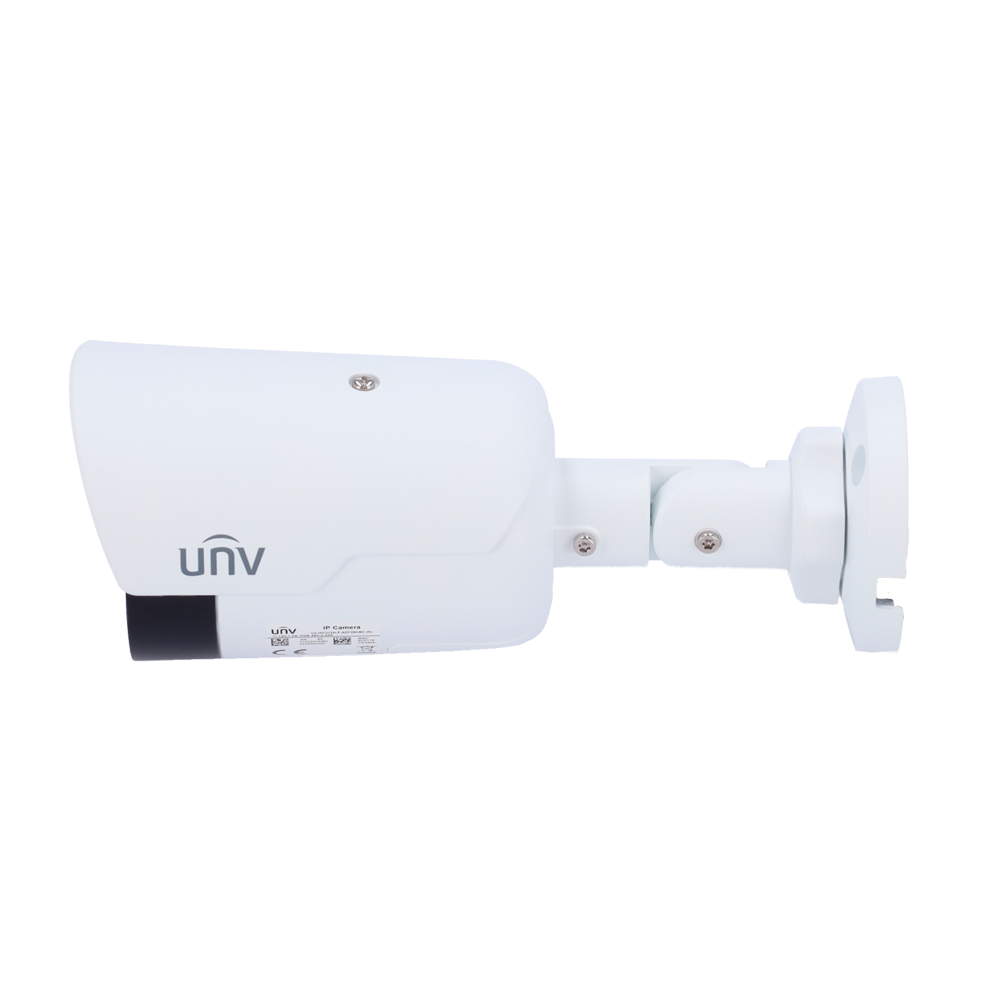

UV-IPC2124LE-ADF28KMC-WL
- Uniview IP Bullet Camera - Easy range
- 4 MP | Lens 2.8 mm | microSD 128 GB
- IR 30 m | White light 30 m | WDR 120 dB
- Color Hunter | Dual Light
- PoE | UMD | IP67
- Microphone : Loudspeaker
Easy Bullet type 4 MP IP camera with 2.8 mm fixed lens. Color Hunter and Dual Light technology for color display in low-light environments, together with SIP and UMD video analytics, reduces false alerts and enhances the recording search experience. Built-in microphone and loudspeaker for two-way communication.
- IP Camera - Easy Range
- 4 MP(2688x1520)
- 2.8 mm Lens
- Minimum illumination 0.003 lux | 0 lux with IR
- Dual Light: dual illumination technology (white light + IR), in total darkness it will turn on IR for black and white display, when it detects a human body, it will turn on the white light to have a color image of the person and the environment
- IR range of 30 m
- White light range 30 m
- Color Hunter: Allows to obtain color images in low light environments, even in total darkness, using white light
- WDR 120dB
- Integrated microphone
- Integrated speaker
- Slot for MicroSD card up to 128 GB
- PoE
- IP67
- Graphene and metal
- Corridor mode 9:16
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | EasyStar |
| Image sensor | 1/3” CMOS Progressive Scan Starlight |
| Maximum resolution | 4 Megapixel (2688x1520) |
| Main Stream rate | 4MP (2688*1520)@25fps; 4MP (2560*1440)@25fps; 3MP (2304*1296)@30fps; 1080P (1920*1080)@30fps; 720P (1280*720)@30fps; |
| Extra Stream rate | 720P (1280*720)@30fps; D1 (720*576)@30fps; 640*360@30fps; |
| Viewing angle | Horizontal: 112.9º Vertical: 59.1º Diagonal: 121.2º |
| Range performance | Detect: 63 m Observe: 25.2 m Recognize: 12.6 m Identify: 6.3 m |
| Compression | Ultra265/H.265/H.264 |
| Lens | 2.8 mm |
| Minimum illumination | 0.003Lux (F1.6 AGC ON) |
| Infrared range | 30 m |
| Scope White light | 30 m |
| Image improvements | WDR (120dB)2D/3D-NR, ROI, Privacy Mask, Smart IR |
| Intelligent functions | Motion Detection, UMD, Audio Detection, Tamper protection |
| UMD | Support Motion detection based on human body detection |
| Day / Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 128 GB |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Corridor Mode | Yes |
| Audio | Built-in microphone Built-in speaker G.711 |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Power | DC 12V / 9W PoE IEEE802.3af |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Weatherproof IP67 Surge protection 4000 V |
| Dimensions | 191(Fo) × 75(An) × 74 (H) mm |
| Weight | 410 g |
In the box
- Uniview IP Camera
- Installation material
- User instructions
