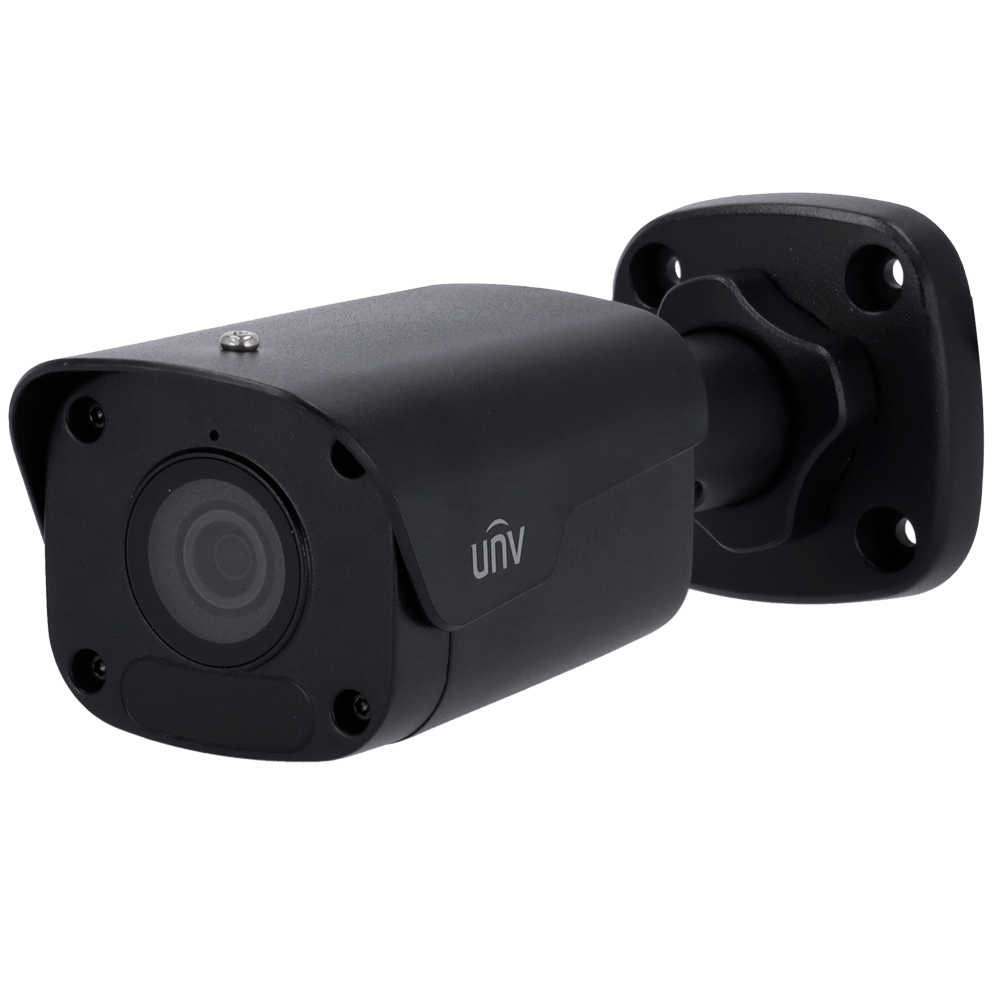

UV-IPC2124LB-ADF28KM-H-BLACK
Ga direct naar de productinformatie
UV-IPC2124LB-ADF28KM-H-BLACK
- Uniview IP Bullet Camera - Easy range
- 4 MP | Lens 2.8 mm | microSD 128 GB
- IR 30 m | WDR 120 dB
- PoE | UMD | IP67
- Microphone : Black color
Easy Bullet type 4 MP IP camera with 2.8 mm fixed lens. Integrates analytics with SIP and UMD to reduce false alerts and also facilitates recording searches.
- IP Camera - Easy Range
- 4 MP(2688x1520)
- 2.8 mm Lens
- Minimum illumination 0.01 lux | 0 lux with IR
- IR range of 30 m
- UMD (Ultra Motion Detection): thanks to its advanced AI algorithm, UMD is able to detect changes in the environment extremely efficiently, even in conditions of high speed or motion difficult to capture by other technologies
- WDR 120dB
- Integrated microphone
- Slot for MicroSD card up to 128 GB
- PoE
- IP67
- Graphene and metal
- ONVIF Compatible
- Black colour
Specifications
| Brand | Uniview |
| Range | EasyBasic |
| Image sensor | 1/2.9” Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2560x1440) |
| Main Stream rate | 4MP (2560*1440)@25fps; 3MP (2304*1296)@30fps; 1080P (1920*1080)@30fps; 720P (1280*720)@30fps |
| Extra Stream rate | D1 (720*576)@30fps; 640*360@30fps; 2CIF(704*288)@30fps; CIF(352*288)@30fps; |
| Compression | Ultra265/H.265/H.264/MJPEG |
| Minimum illumination | 0.01 Lux (Colour) |
| Lens | 2.8 mm |
| Range performance | Detection 63 m Remark 25.2 m Recognition 12.6 m Identification 6.3 m |
| FOV | H= 101.5° V= 55.6° O= 111.6° |
| Infrared range | 30 m |
| Image improvements | DWDR, BLC, HLC, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask |
| UMD | Ultra Motion Detection: Advanced motion detection with human and vehicle classification |
| Day / Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 128 GB |
| Alarms | Does not have |
| Audio | Built-in microphone |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Power | DC 12V / 5.5W PoE (IEEE802.3af) |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Weatherproof IP67 Overvoltage protection 4000 V |
| Dimensions | 166 (H) x 63 (W) x 62 (D) mm |
| Weight | 390 g |
In the box
- Uniview IP Camera
- Installation material
- User instructions
