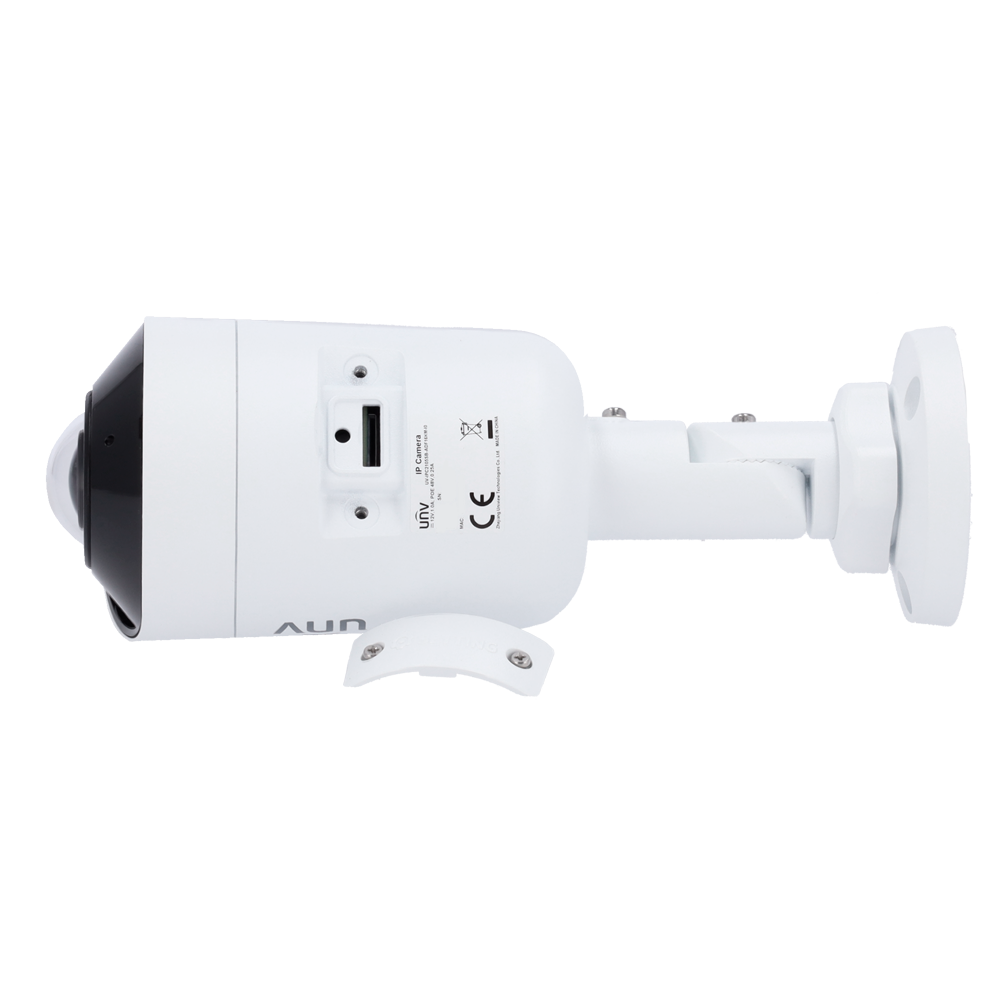

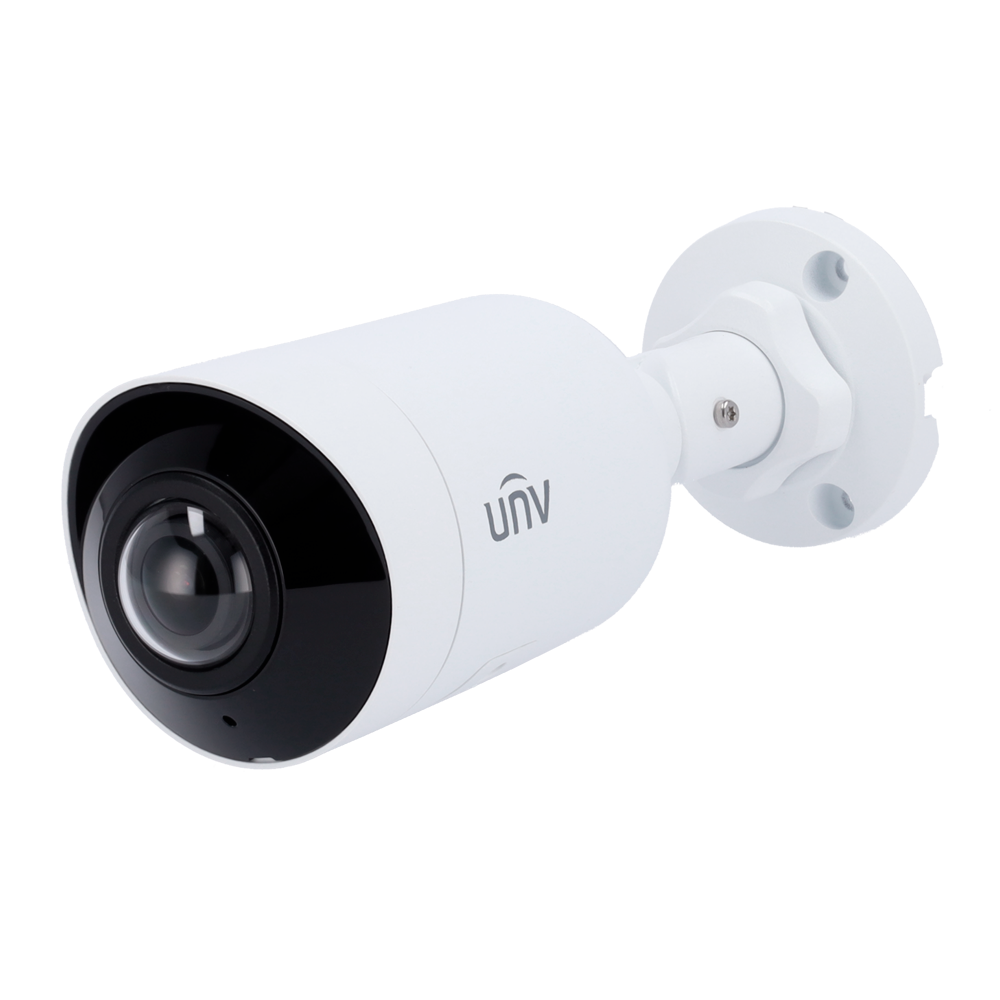

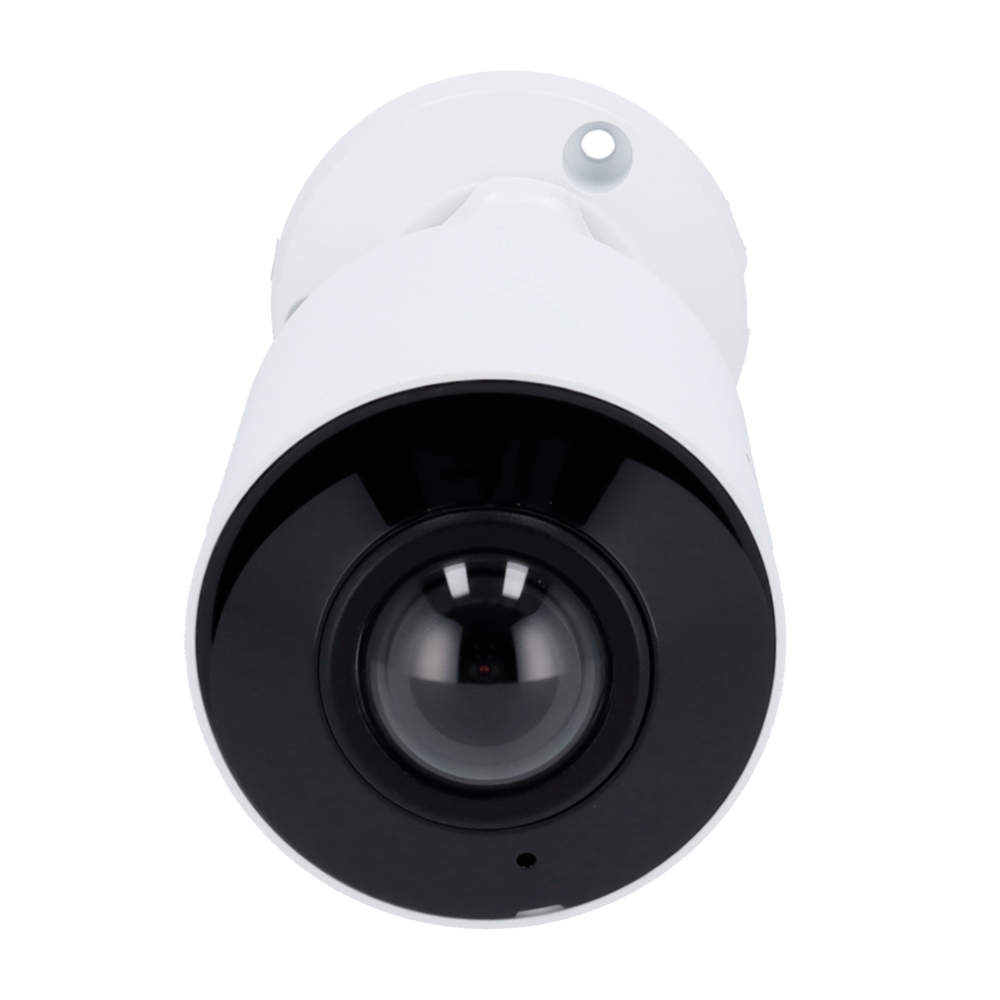

UV-IPC2108SB-ADF16KM-I0
- Uniview IP Bullet Camera - Prime range
- 8 MP | Lens 1.6 mm | microSD 512 GB
- IR 20m | WDR 120 dB | Image correction 1-9
- Wide-angle lens, image 180º
- PoE | UMD | SIP | IP67
- Reset button : Built-in microphone
5 MP Prime Bullet IP camera with 1.6 mm wide-angle fixed lens. The camera has a horizontal aperture angle of 180º, allowing a panoramic view, it also allows Dewarping and splitting the image into 9 portions for more detail. The dewarping is done from the initial real image, splitting it into different angles for better visualization. Equipped with UMD and SIP to enable human- and vehicle-based video analytics.
- IP Bullet Camera - Prime Range
- 8 MP (3840x2160)
- Wide-angle lens 1.6 mm, display 180º
- Minimum illumination 0.01 lux | 0 lux with IR
- IR range of 20 m
- Dewarp: allows a division of up to 9 parts, over the panoramic display to obtain more details of the image
- SIP (Smart Intrusion Prevention): combines artificial intelligence algorithms with real-time video analysis to accurately identify human and vehicular intrusions, minimizing false alarms caused by animal movements or weather conditions
- UMD (Ultra Motion Detection): thanks to its advanced AI algorithm, UMD is able to detect changes in the environment extremely efficiently, even in conditions of high speed or motion difficult to capture by other technologies
- WDR 120 dB
- Integrated microphone
- Slot for microSD up to 512 GB
- PoE
- IP67
- Metallic
- ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Prime |
| Image sensor | 1/2.7” Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (3840x2160) |
| Main Stream rate | 8MP (3840x2160), Max 30fps; 5MP (3072x1728), Max 30fps; 4MP (2560x1440), Max 30fps; 1080P (1920x1080), Max 30fps |
| Compression | Ultra265/H.265/H.264/U-code |
| Lens | 1.68 mm Wide-angle |
| Opening angle | Horizontal: 180º Vertical: 100º Diagonal: 180º |
| SORI | Detect: 37.8 m Observe: 15.1 m Recognize: 7.6 m Identify: 3.8 m |
| Minimum illumination | 0.01 Lux (F2.0, AGC ON) 0 Lux with IR ON |
| IR range | 20 m |
| Image improvements | WDR (120dB), BLC, HLC, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask, Smart IR, Intelligent Wide Angle |
| SIP (Smart Intrusion Prevention) | Line crossing detection, Intrusion detection, Zone entry detection, Zone exit detection on human, vehicle and two-wheeler classification |
| Day / Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 256 GB |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Dewarping | Supported (1-9) |
| Audio | Integrated microphone |
| Network interface | Ethernet 10M/100M Base-TX |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF (Profile S/ Profile G/ Profile T), API ,SDK |
| Power | DC 12V / 5.5W PoE IEEE802.3af |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Weatherproof IP67 Surge protection 4000 V |
| Material | Metallic |
| Dimensions | 71 (H) x 71 (W) x 198 (D) mm |
| Weight | 430 g |
In the box
- Uniview IP Camera
- Installation material
- User instructions
