  • IP Camera Turret | Uniarch
  • 4 Mpx | Lens 2.8 mm
  • IR Range 30 m
  • 1/3.0" Progressive Scan CMOS
  • PoE | UMD | DWDR
  • Built-in microphone | ONVIF

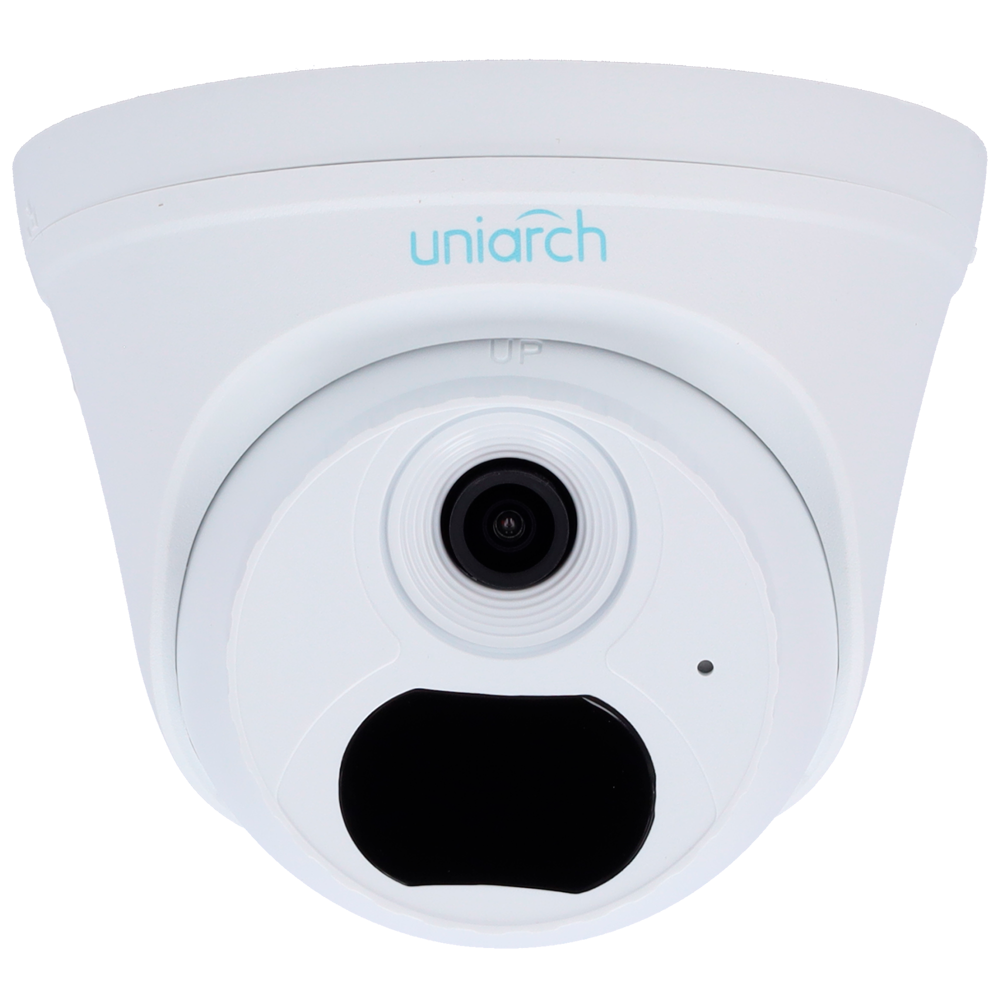

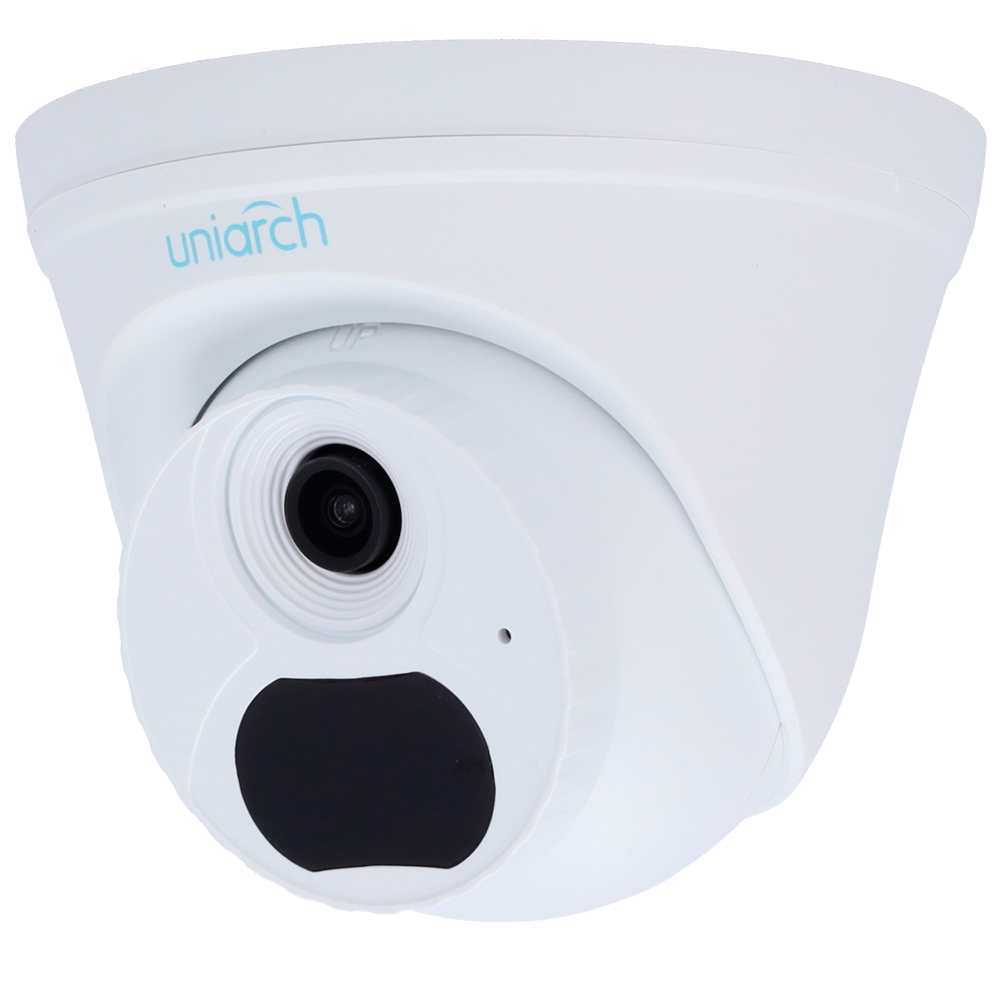

The 4 megapixel Turret IP Uniarch camera offers superior (2560×1440) image quality and a 2.8 mm wide-angle lens. Thanks to its 0.003 Lux sensitivity and infrared vision up to 30 meters, it guarantees clear images even in low light or total darkness.

Equipped with UMD (Ultra Motion Detection) technology based on artificial intelligence, it is capable of detecting complex movements with high accuracy, even in scenes with high speed or subtle changes. In addition, it incorporates audio detection and integrated microphone, allowing for more complete and contextual surveillance.

Compatible with PoE (IEEE802.3af) for simple and efficient installation, and with ONVIF and SDK standards, this camera is easily integrated into professional video surveillance systems.

  • Uniarch IP Turret Camera
  • 4 Megapixel (2560×1440)
  • 2.8 mm Lens
  • Minimum illumination 0.003 Lux | 0 Lux with IR
  • IR Range 30 m
  • DWDR
  • UMD (Ultra Motion Detection): thanks to its advanced AI algorithm, UMD is able to detect changes in the environment extremely efficiently, even in conditions of high speed or motion difficult to capture by other technologies
  • Audio detection
  • PoE IEEE802.3af
  • Integrated microphone
  • ONVIF and SDK support

Specifications

Range Uniarch
Image sensor 1/3.0" Progressive Scan CMOS
Maximum resolution 4 Megapixel (2560×1440)
Lens 2.8 mm
Main Stream rate 4 MP (2560×1440)@25fps
3 MP (2304×1296)@30fps
1080P (1920×1080)@30fps
Extra Stream rate (640×360); 2CIF (704×288); CIF (352×288)@30fps
Compression Ultra265/H.265/H.264
Range performance D: 63.0 m
O: 25.2 m
R: 12.6 m
I: 6.3 m
Field of View 97° (H), 54.9° (V), 111.9° (D)
Minimum illumination 0.003 Lux (F2.0, AGC ON), 0 Lux with IR
IR range 30 m
Image improvements DWDR, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask, Smart IR
Day / Night Mechanical ICR filter
Internal memory Does not have
Alarms Does not have
Microphone Integrated
Audio Does not have
Network interface Ethernet 10/100 BaseT
Remote access Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
Interoperability ONVIF, SDK
Power PoE (IEEE 802.3af))
Temp. operation -30º C ~ 60º C
Dimensions Ø118 mm × 100 mm
Weight 190 g
Material Plastic

In the box

  • Uniview IP Camera
  • Installation material
  • User instructions
