UV-IPC-T124-APF28K
Ga direct naar de productinformatie
UV-IPC-T124-APF28K

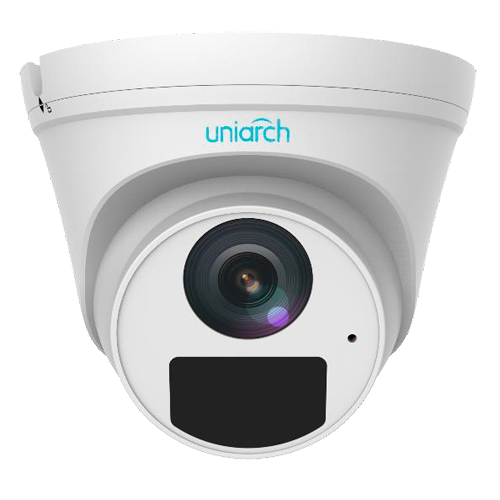

- IP Camera 4 Megapixel Uniarch
- 1/3" Progressive Scan CMOS
- 2.8 mm Lens
- IR LEDs Range 30 m
- Built-in microphone | MicroSD slot
- Weatherproof IP67
- Uniarch
- Turret IP Camera
- 1/3" Progressive Scan CMOS
- 4 Megapixel (2560x1440)
- 2.8 mm Lens
- 0 Lux
- IR Range 30 m
- Compression Ultra265/H.265/H.264
- Integrated microphone
- MicroSD card slot up to 128 GB

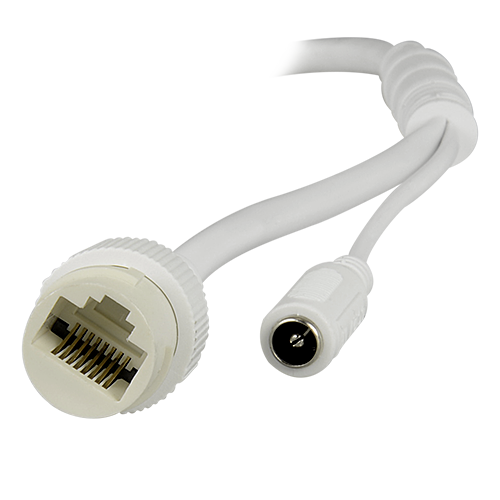

- RJ-45 10/100 BaseT
- Weatherproof IP67
- IR Cut
- WEB, CMS, Smartphone and NVR interface
- ONVIF Compatible
Specifications
| Range | Uniarch |
| Image sensor | 1/3” Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2560x1440) |
| Main Stream rate | 4 Mpx (1 ~ 20 FPS), 3 Mpx (1 ~ 20 FPS), 1080p (1 ~ 30 FPS), 720p (1 ~ 30 FPS) |
| Extra Stream rate | D1 (1 ~ 30 FPS), 640x360 (1 ~ 30 FPS), 2CIF (1 ~ 30 FPS) |
| Compression | Ultra265/H.265/H.264 |
| Lens | 2.8 mm |
| FOV (Viewing Angle) | H: 97º, V: 52.2º, D: 107.5º |
| Range performance | 63 m (D), 25.2 m (O), 12.6 m (R), 6.3 m (I) |
| Minimum illumination | 0.02 Lux @(F2.1, AGC ON) 0Lux with IR ON |
| Infrared range | 30 m |
| Day / Night | Mechanical ICR filter |
| Image improvements | DWDR, 2D/3D-NR, Motion detection, ROI, Privacy Mask, Smart IR, HLC, BLC |
| Internal memory | MicroSD card slot up to 256 GB |
| Alarms | Does not have |
| Audio | Integrated microphone |
| Audio Compression | G.711U, G.711A |
| Audio bitrate | 64 Kbps |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Power | DC 12 V / 3.3 W, PoE IEEE802.3af |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | Ø 118.1 (H) x 96.6 (H) mm |
| Weight | 270 g |
In the box
- Uniarch IP Camera
- Installation material
- User instructions
