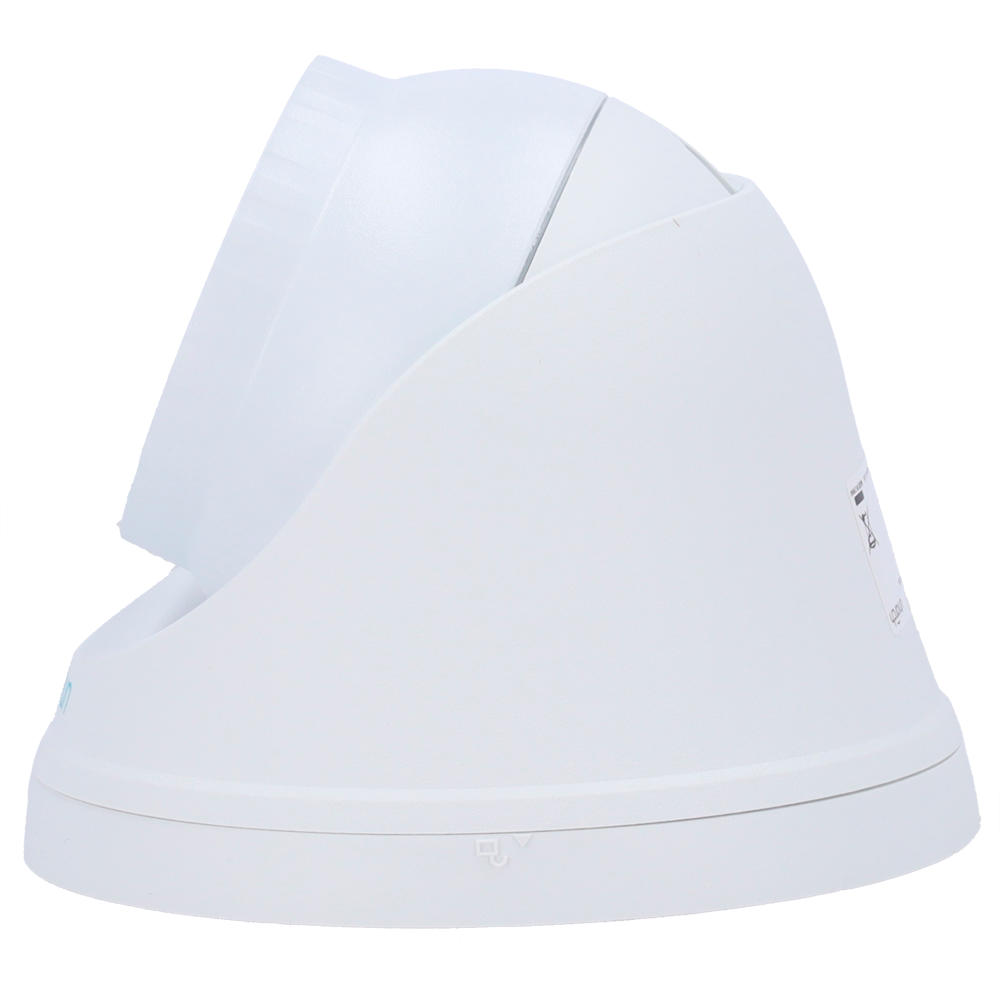

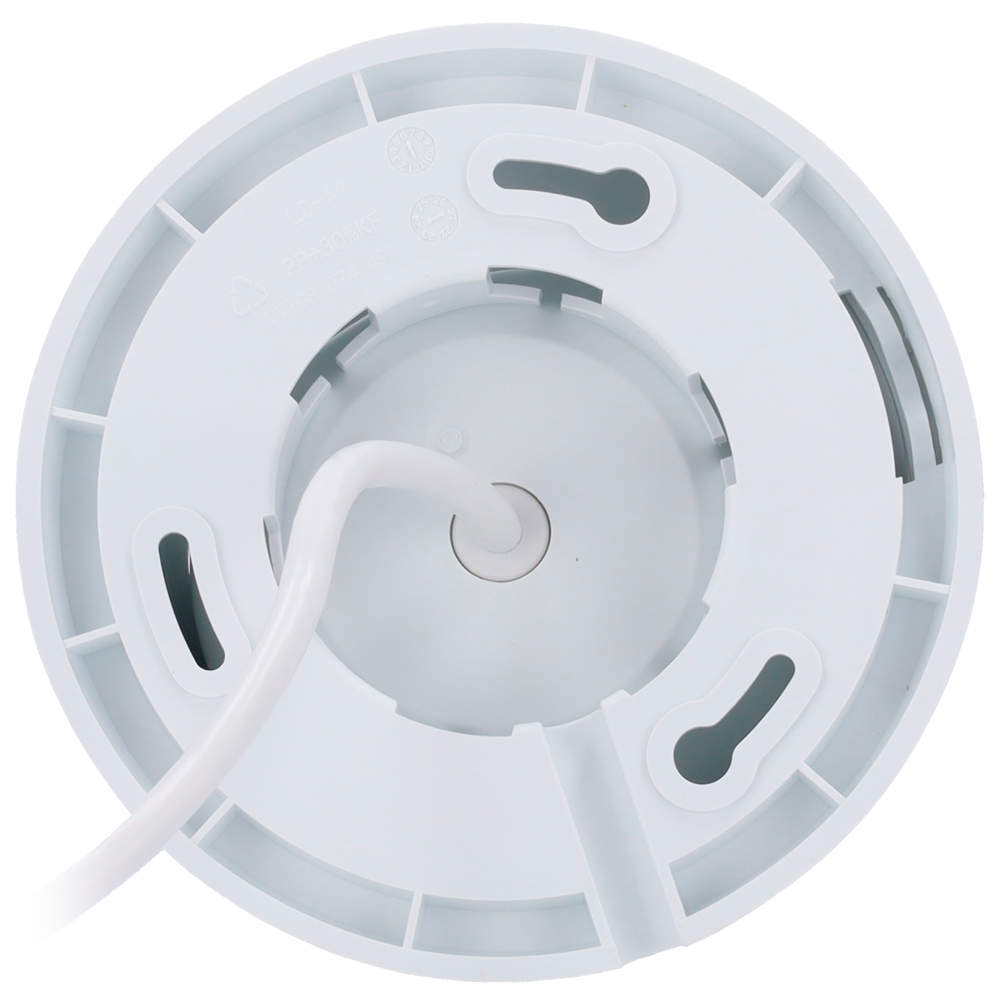

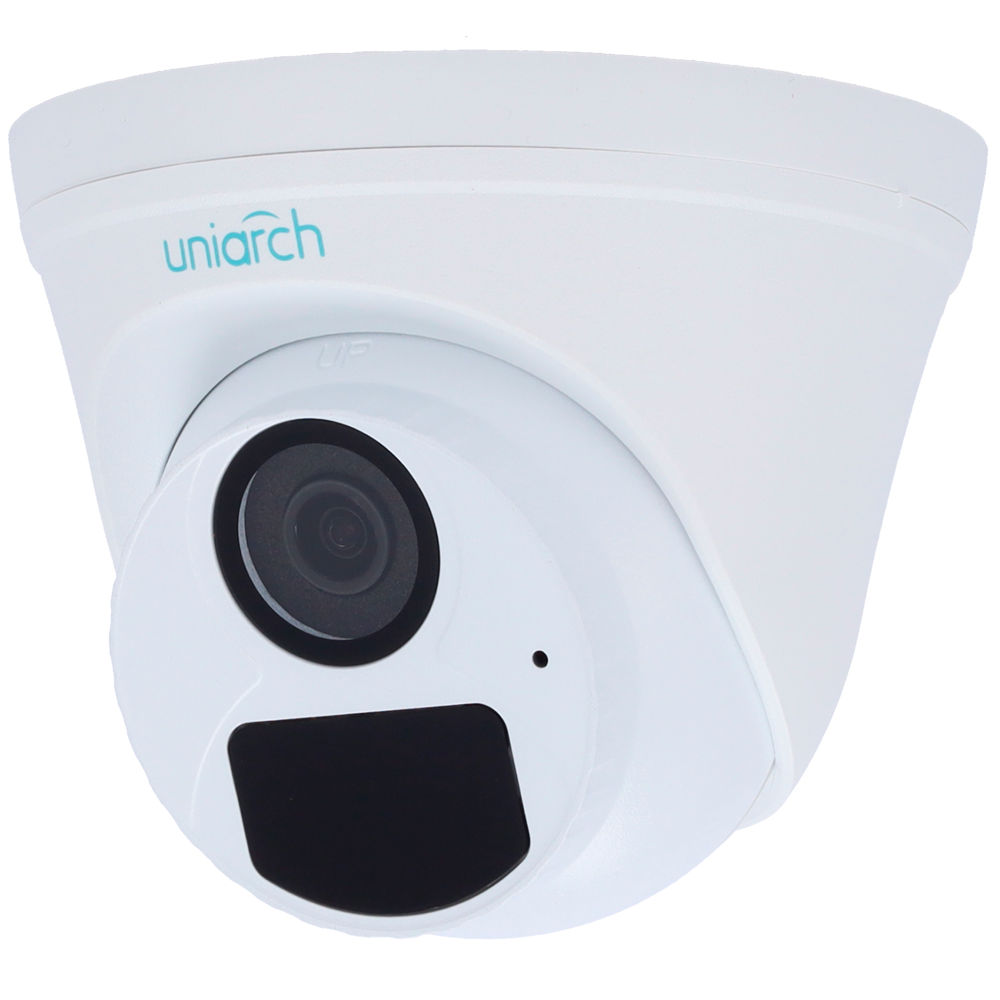

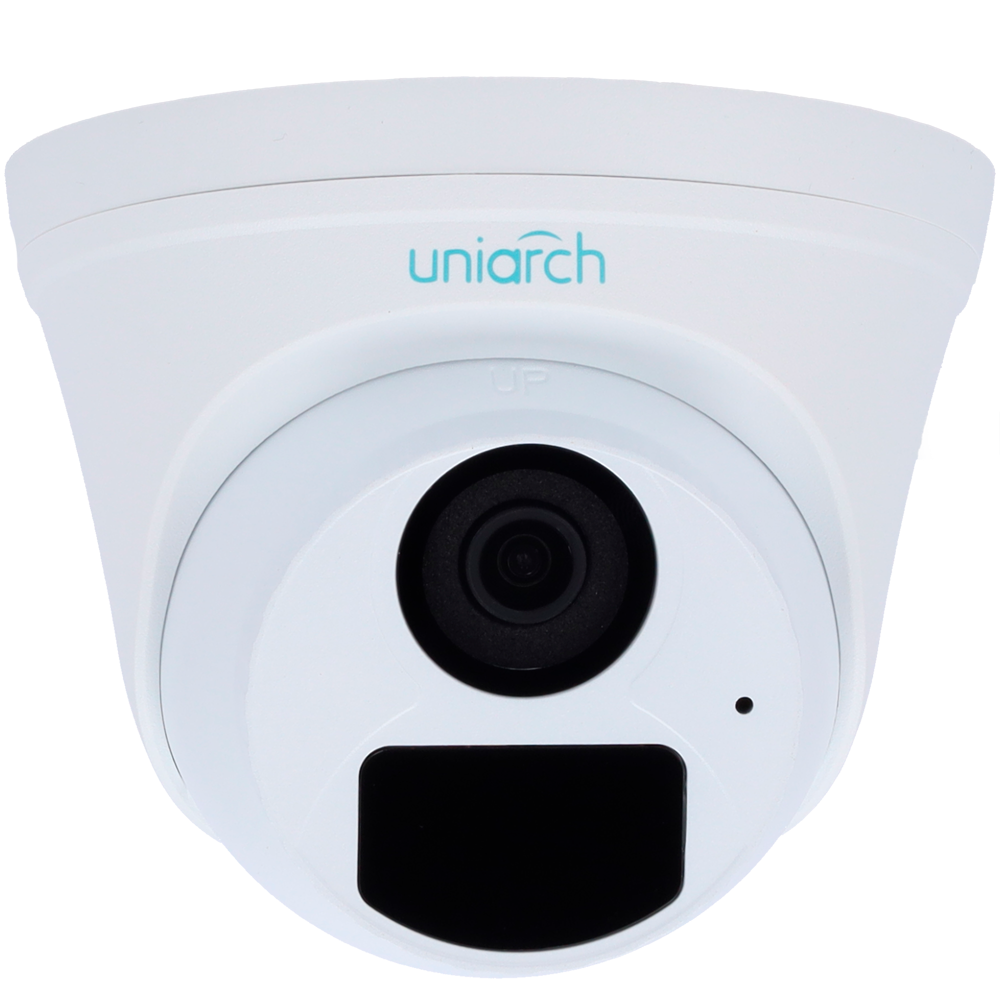

UV-IPC-T122-APF28-ECO
Ga direct naar de productinformatie
UV-IPC-T122-APF28-ECO
- 2 MP IP Camera
- Uniarch range
- 1/2.8" Progressive Scan CMOS
- 2.8 mm Lens
- IR LEDs Range 30 m
- Uniarch
- Turret IP Camera
- 2 Megapixel (1920x1080)
- 2.8 mm Lens
- Minimum illumination 0.02 Lux | 0 Lux with supplemental lighting
- IR Range 30 m
- DWDR
- PoE IEEE802.3af
- Weatherproof IP67
- Built-in microphone
- ONVIF Compatible
Specifications
| Range | Uniarch |
| Image sensor | 1/2.8” Progressive Scan CMOS |
| Maximum resolution | 2 Megapixel (1920x1080) |
| Main Stream rate | 1080P (1920*1080@25fps; 720P (1280*720)@25fps |
| Extra Stream rate | D1 (720*576)@25fps; 640*360@25fps; 2CIF(704*288)@25fps; CIF(352*288)@25fps |
| Range performance | 43.4 (D), 17.4 (O), 8.7 (R), 4.3 (I) |
| Field of View | 106.7° (H), 57.1° (V), 115.7° (D) |
| Compression | Ultra265/H.265/H.264 |
| Lens | 2.8 mm |
| Minimum illumination | 0.02 Lux (Colour) |
| Infrared range | 30 m |
| Image improvements | DWDR, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask, Smart IR |
| Day / Night | Mechanical ICR filter |
| Internal memory | Does not have |
| Alarms | Does not have |
| Audio | Does not have |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |

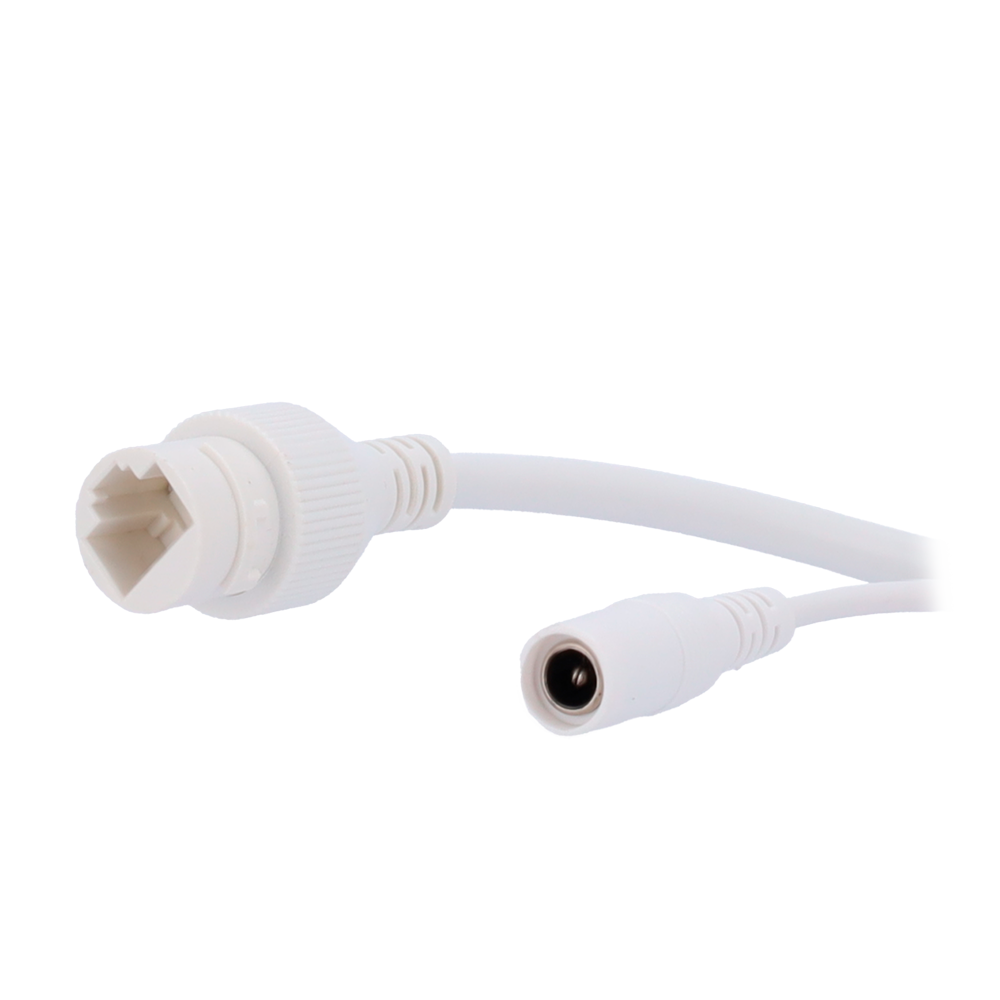

| Power | DC 12 V / 3.5 W, PoE IEEE802.3af |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Weatherproof IP67 |
| Dimensions | 118 (H) x 97 (W) mm |
| Weight | 250 g |
In the box
- Uniview IP Camera
- Installation material
- User instructions
