UV-ECS-516S-SF-HD
Ga direct naar de productinformatie
UV-ECS-516S-SF-HD
- UNIVIEW AI BOX
- Server with 24 Smart functions
- 16 Channels
- 2 x RJ45 10M/100M/1000M
- SSD 1 TB Included
- Facial Recognition
Intelligent artificial intelligence device that uses deep learning algorithms to perform different video analytics on regular IP cameras.
Receives the video stream from an ordinary IP camera, analyzes the objects in the video and executes an alarm output upon detection of abnormal behavior.
The device is capable of working with third-party cameras thanks to ONVIF integration and RTSP video transmission. Features more than 40 video analytics.
- Smart Function Server
- Support 16 channels to perform analytics
- Face detection
- Face comparison
- Behavioral analysis
- ONVIF
- Enables analytics on third-party cameras
- Two network interfaces of 10M/100M/1000M (RJ45)
- Supports API for easy integration with third-party systems
- Real-time reporting
Specifications
| Brand | UNIVIEW |
| RAM memory | 8 GB DDR4 |
| Hard disk drive | 1 TB SSD |
| Video inputs | 16 Channels |
| Facial Recognition Channels | 16 Channels |
| SIP Smart Features | 16 Channels |
| Behavioral analysis channels | 16 Channels |
| Advanced features | Face detection 16 channels; behavioral analysis 16 channels (the two analytics cannot be used at the same time on the same channel) |
| Types of Behavioral Analysis | Fire detection, smoke detection, illegal parking, evacuation route obstruction, perimeter protection (intrusion, area entry and exit, line crossing), sleeping person detection, absence detection, person count per area, overcrowding, no work clothes detection, non-reflective clothing detection, smoking detection, call detection, person count per line crossing, fall detection, long stay detection, fight detection, cell phone use detection, lost object, non-automotive vehicle parking violation, facial detection, etc. |
| Workwear shelves | 8 with up to 160 images |
| Face libraries | 128 libraries with a total of 20,000 images |
| Alarm Images | Maximum 150,000 images |
| Alarm videos | Maximum 150,000 video clips |
| Alarm inputs | 4 |
| Alarm outputs | 4 |

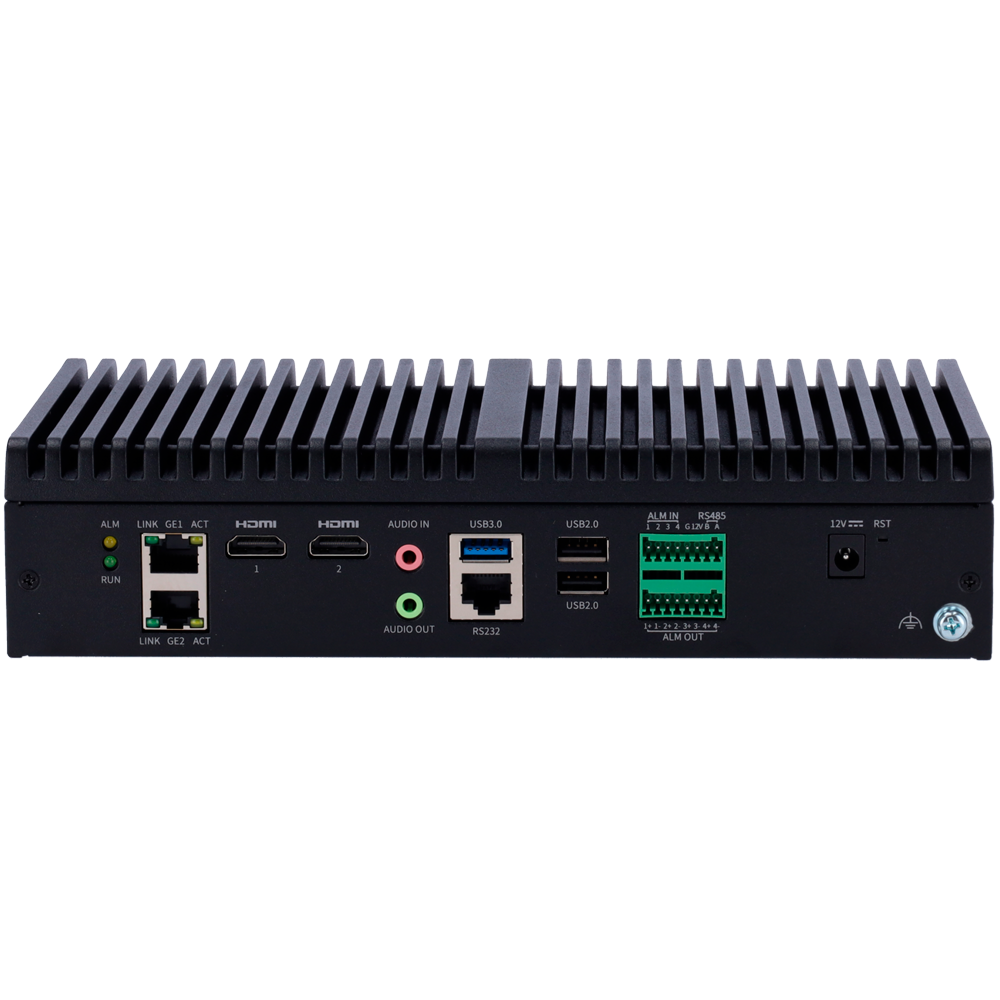

| Network Interface | 2 x RJ45 10M/100M/1000M |
| USB interface | 2 x USB 2.0 1 x USB 3.0 |
| Serial interface | 1 x RS-484 (phoenix connector) |
| Protocol | RTSP, ONVIF |
| NDAA | Support |
| Power | 12 VDC / 3A - ≤20 W |
| Operating humidity | 5% to 90% |
| Operating temperature | -40 ~ 70 ºC |
| Weight | ≤ 1500 g (With HDD) |
| Dimensions | 56.3 mm (H) x 251.3 mm (W) x 137.7 mm (D) |
In the box
- Uniview Intelligent Edge Computing Server
- Power supply
- Alarm output connectors
- Instructions
