UV-ECS-504S-SF-HA
Ga direct naar de productinformatie
UV-ECS-504S-SF-HA
- UNIVIEW AI BOX
- Server with more than 40 Smart features
- 4 Channels
- 2 x RJ45 10M/100M/1000M
- SSD 128 GB Included
- Facial Recognition
Intelligent artificial intelligence device that uses deep learning algorithms to perform different video analytics on regular IP cameras.
Receives the video stream from an ordinary IP camera, analyzes the objects in the video and executes an alarm output upon detection of abnormal behavior.
The device is capable of working with third-party cameras thanks to ONVIF integration and RTSP video transmission. Features more than 40 video analytics.
- Smart Function Server
- Support 4 channels to perform analytics
- Face detection
- Face comparison
- Behavioral analysis
- ONVIF
- Enables analytics on third-party cameras
- Two network interfaces of 10M/100M/1000M (RJ45)
- Supports API for easy integration with third-party systems
- Real-time reporting
Specifications
| Brand | UNIVIEW |
| Video inputs | 4 Channels |
| Bandwidth | 64 Mbps |
| Facial Recognition Channels | 4 Channels |
| SIP Smart Features | 4 Channels |
| Behavioral analysis channels | 4 Channels |
| Types of Behavioral Analysis | Helmet detection, chef hat detection, work clothing, smoke and fire detection, call detection, fight detection, fight detection, fall detection, face mask detection, rat detection, long stay detection, no-show detection, people counting, lost items, evacuation route obstruction detection, improperly parked motor vehicle, cell phone usage, over occupancy detection, no safety harness detection, unwashed vehicle detection, chef uniform non-use detection, trash can opening detection, shirt non-use detection, reflective clothing non-use detection, exposed trash, knife in hand detection, on-campus vehicle high speed detection, seat belt non-use detection, line crossing, area entry, area exit, preset marker detection, intrusion, face detection, etc. |
| Alarm Images | Maximum 20,000 images |
| Alarm videos | Maximum 20,000 video clips |

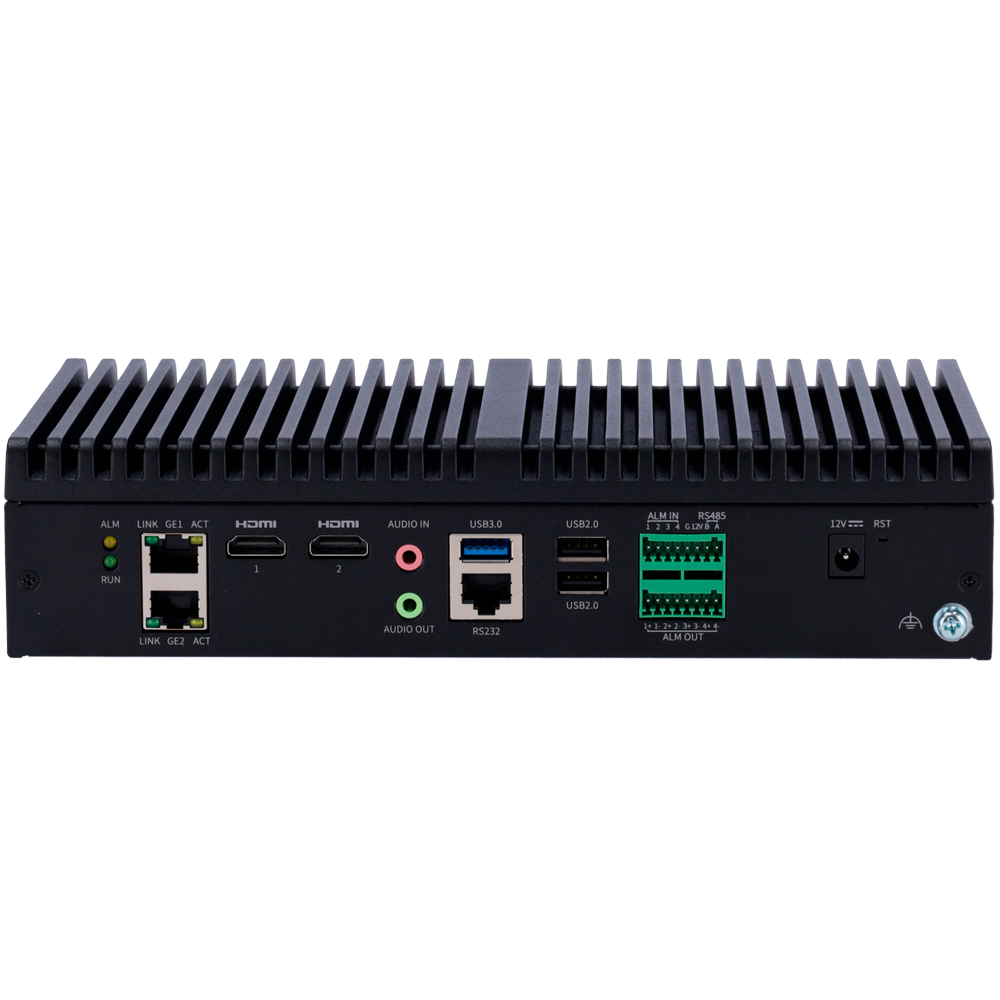

| Network Interface | 2 x RJ45 10M/100M/1000M |
| USB interface | 2 x USB 2.0 1 x USB 3.0 |
| Serial interface | 1 x RS-484 (phoenix connector) |
| Protocol | RTSP, ONVIF |
| NDAA | Support |
| Power | 12 VDC / 3A - ≤20 W |
| Operating humidity | 5% to 90% |
| Operating temperature | -40 ~ 70 ºC |
| Weight | ≤ 1500 g (With SSD) |
| Dimensions | 56.3 mm (H) x 251.3 mm (W) x 137.7 mm (D) |
In the box
- Uniview Intelligent Edge Computing Server
- Power supply
- Alarm output connectors
- Instructions
