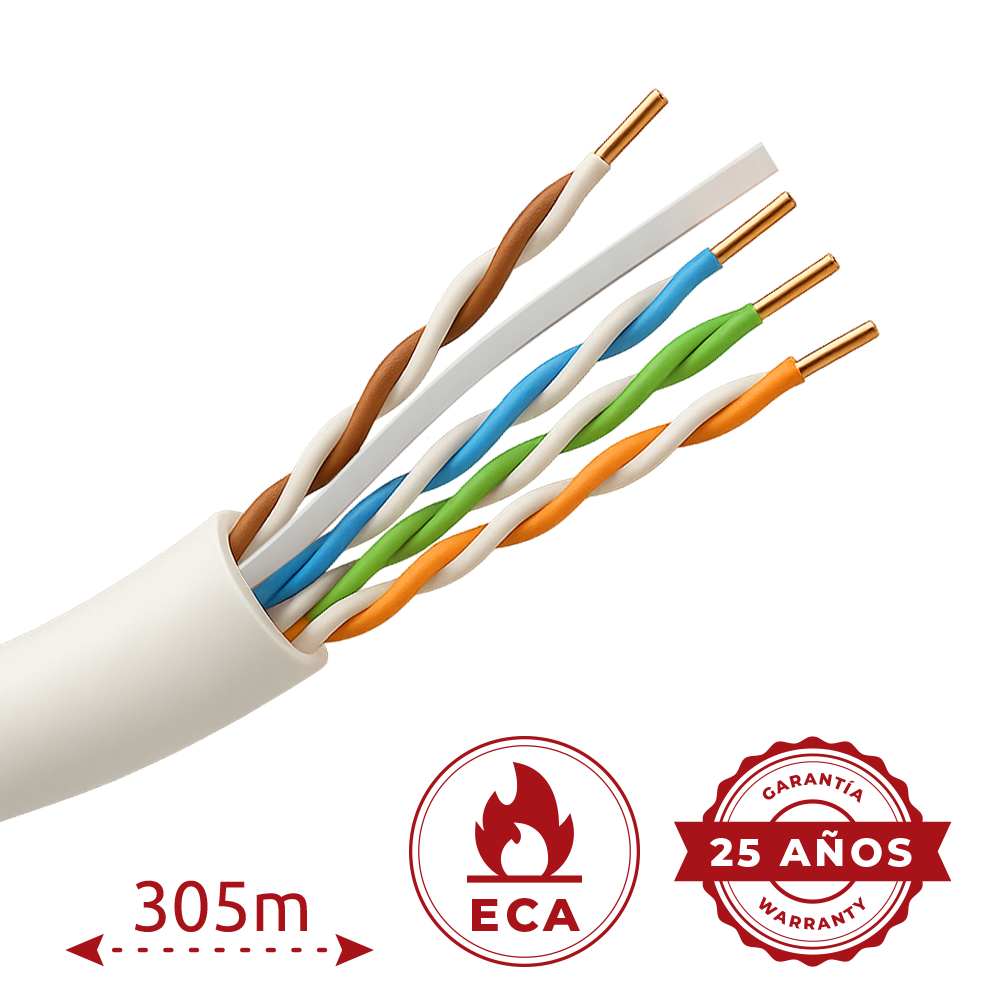

UTP6A-305-PVC-Eca
Ga direct naar de productinformatie
UTP6A-305-PVC-Eca
- Safire UTP Category 6A cable
- Driver OFC,100% copper
- Diameter 23 AWG-0,55mm
- CPR Certificate: Eca
- Outer jacket PVC / Color Gray-white
- Supplied in wooden coil of 305m
- Safire
- Bobbin of cable
- Length 305 m
- UTP
- Category 6A
- Driver OFC,100% copper
- Diameter 23 AWG-0,55mm
- HDPE insulation
- PVC outer jacket
- Insulation resistance ≤95Ω/km
- CPR Certificate
- Fire protection class: Eca
- Supplied on wooden spools
- Color Gray white
Specifications
| Brand | Safire |
| Shielding | U/UTP |
| Category | Category 6A |
| Length | 305 meters |
| Conductor | Material: OFC, Pure copper Diameter: 23AWG 0.55±0.005 mm DC resistance: ≤95Ω/km |
| Isolation | Material: HDPE Thickness: 0.21+0.03mm Diameter: 0.98±0.05 mm Colour: Blue/White-Blue, Orange/White-Orange, Green/White-Green,Brown/White-Brown |
| Cover | Material: PVC Diameter: 6.0±0.3 mm Thickness: 0.55±0.15 mm Tensile strength: >10 Mpa Colour: white |
| Tear thread | Yes |
| Separating crosshead | Yes |
| Installation | Interior |
| CPR Certificate | Eca |
| Operating temp | -20℃～75℃ |
| Packaging | Wooden spool |
| Packing dimensions | 380 x 200 x 200mm |
In the box
- Coil cable UTP6A of 305m
