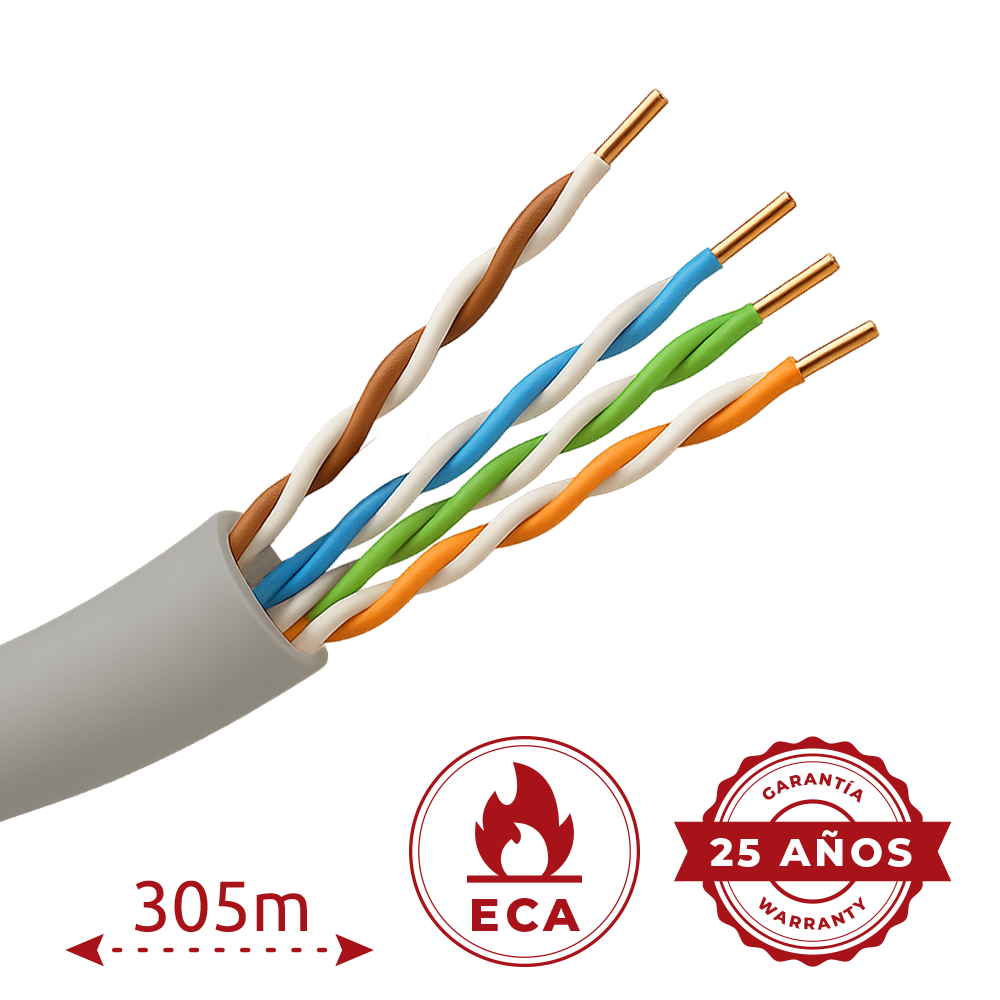

UTP5E-305-BC-PVC-Eca
Ga direct naar de productinformatie
UTP5E-305-BC-PVC-Eca
- UTP cable UTP Category 5E
- Driver OFC,100% copper
- Diameter 25 AWG-0,45mm
- CPR Eca Certificate
- Gray PVC outer cover
- Certificate ISO/IEC11801, TIA-568-C.2, YD/T1019
- Safire
- Bobbin of cable
- Length 305 m
- UTP
- Category 5E
- Driver OFC,100% copper
- Diameter 25 AWG 0,45mm
- HDPE insulation
- PVC outer jacket
- Insulation resistance ≤95Ω/km
- CPR Certificate
- Fire protection class: Eca
- Supplied in cardboard box
- Grey
- Certificate ISO/IEC11801, TIA-568-C.2, YD/T1019
Specifications
| Length | 305 m |
| Category | 5E |
| CPR Class | Eca |
| Conductor | Material: OFC, Pure copper Diameter: 25AWG 0.45±0.005 mm DC resistance: ≤95Ω/km |
| Conductor diameter | 0.5 mm ±0.005 |
| Conductor insulation | High Density Polyethylene (HDPE) |
| Outer casing diameter | 5 mm |
| Outer casing material | PVC |
| Colour of the outer casing | Grey |
| Certification | ISO/IEC11801, TIA-568-C.2, YD/T1019 |
| Fluke test | Complies with 90m Fluke test |
In the box
- Cable reel UTP5E 305 m
